MHU23L-BWXNKA (2005)

Toyota Highlander Hv

Production Mar 2005 - May 2007
Engine 3MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0503- )

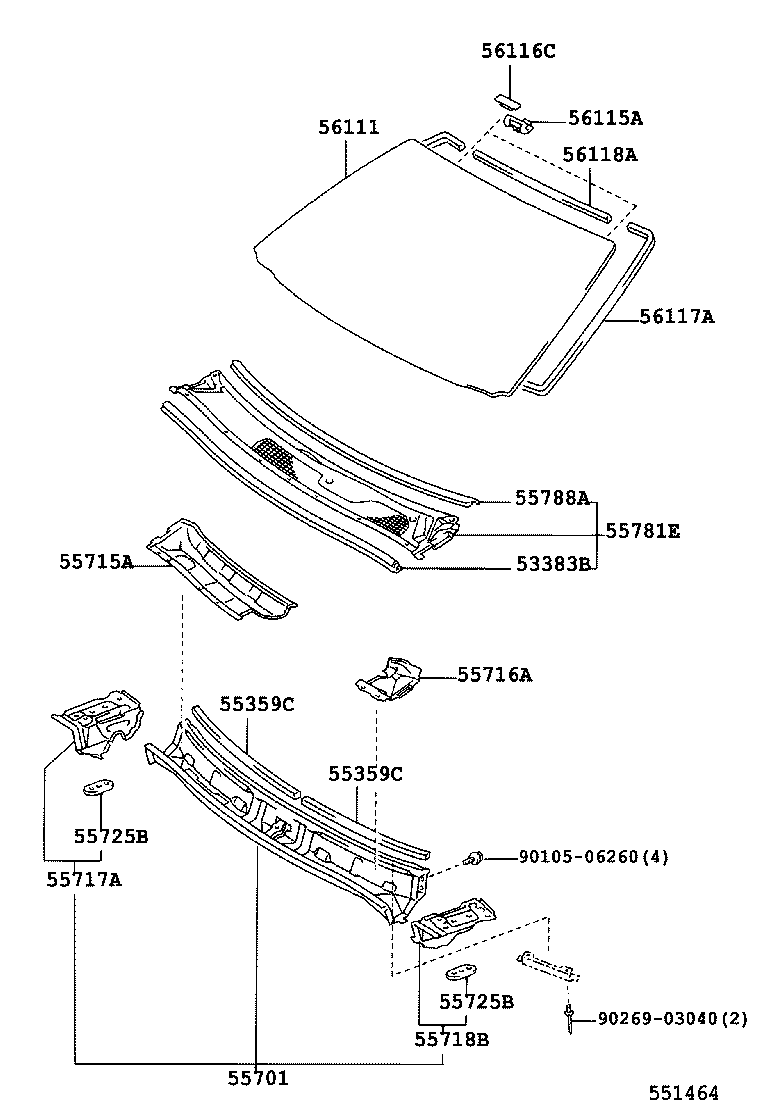

Click highlighted areas on diagram

diagram 53383B 55359C 55359C 55701 55715A 55716A 55717A 55718B 55725B 55725B 55781E 55788A 56111 56115A 56116C 56117A 56118A 9010506260 9026903040
Part # Description Qty Price
53383B - SEAL, HOOD TO COWL TOP
53383-48020

MHU2#

 1
55359C - COSHION, INSTRUMENT PANEL, NO.5
55359-48010

MHU2#

 2
55359C - COSHION, INSTRUMENT PANEL, NO.5
55359-48010

MHU2#

 2
55701 - PANEL SUB-ASSY, COWL
55700-48040

MHU2#

 1
55715A - BRACE, COWL TOP TO APRON, RH
55715-48030

MHU2#

 1
55716A - BRACE, COWL TOP TO APRON, LH
55716-48030

MHU2#

 1
55717A - PANEL, COWL TOP SIDE, INNER RH
55717-48900

MHU2#

 1
55718B - PANEL, COWL TOP SIDE, INNER LH
55718-48900

MHU2#

 1
55725B - REINFORCEMENT, HOOD HINGE MOUNTING
55725-22010

MHU2#

 2
55725B - REINFORCEMENT, HOOD HINGE MOUNTING
55725-22010

MHU2#

 2
55781E - LOUVER SUB-ASSY, COWL TOP VENTILATOR
55781-48050

MHU2#

 1
55788A - PROTECTOR, COWL TOP VENTILATOR LOUVER
55788-48030

MHU2#

 1
56111 - GLASS, WINDSHIELD
56111-48290

MHU2#

*TL,T=4.76,GREEN

 1
56111-48320

MHU2#

*EHTL,T=4.76,GREEN,LIMITED(USA)&W(WINDSHIELD WIPER DEICER)

 1
56111-48300

MHU2#

*EHTL,T=4.76,GREEN,W(WINDSHIELD WIPER DEICER)

 1
56111-48310

MHU2#

*TL,T=4.76,GREEN,LIMITED(USA)

 1
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-22010

MHU2#

 2
56116C - STOPPER, WINDSHIELD GLASS, NO.2
56116-22050

MHU2#

 2
56117A - DAM, WINDOW GLASS ADHESIVE
56117-48040

MHU2#

L=3372,W(WINDSHIELD WIPER DEICER)

 1
56117-48040

MHU2#

L=3372,LIMITED(USA)

 1
56117-48040

MHU2#

L=3372,LIMITED(USA)&W(WINDSHIELD WIPER DEICER)

 1
56117-48040

MHU2#

L=3372

 1
56118A - DAM, WINDOW GLASS ADHESIVE, NO.2
56118-48040

MHU2#

L=595

 1
56118-48040

MHU2#

L=595,LIMITED(USA)

 1
56118-48040

MHU2#

L=595,W(WINDSHIELD WIPER DEICER)

 1
56118-48040

MHU2#

L=595,LIMITED(USA)&W(WINDSHIELD WIPER DEICER)

 1
Common parts
90105-06260
90269-03040
