MHU23L-BWXNKA (2005)

Toyota Highlander Hv

Production Mar 2005 - May 2007
Engine 3MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0503- )

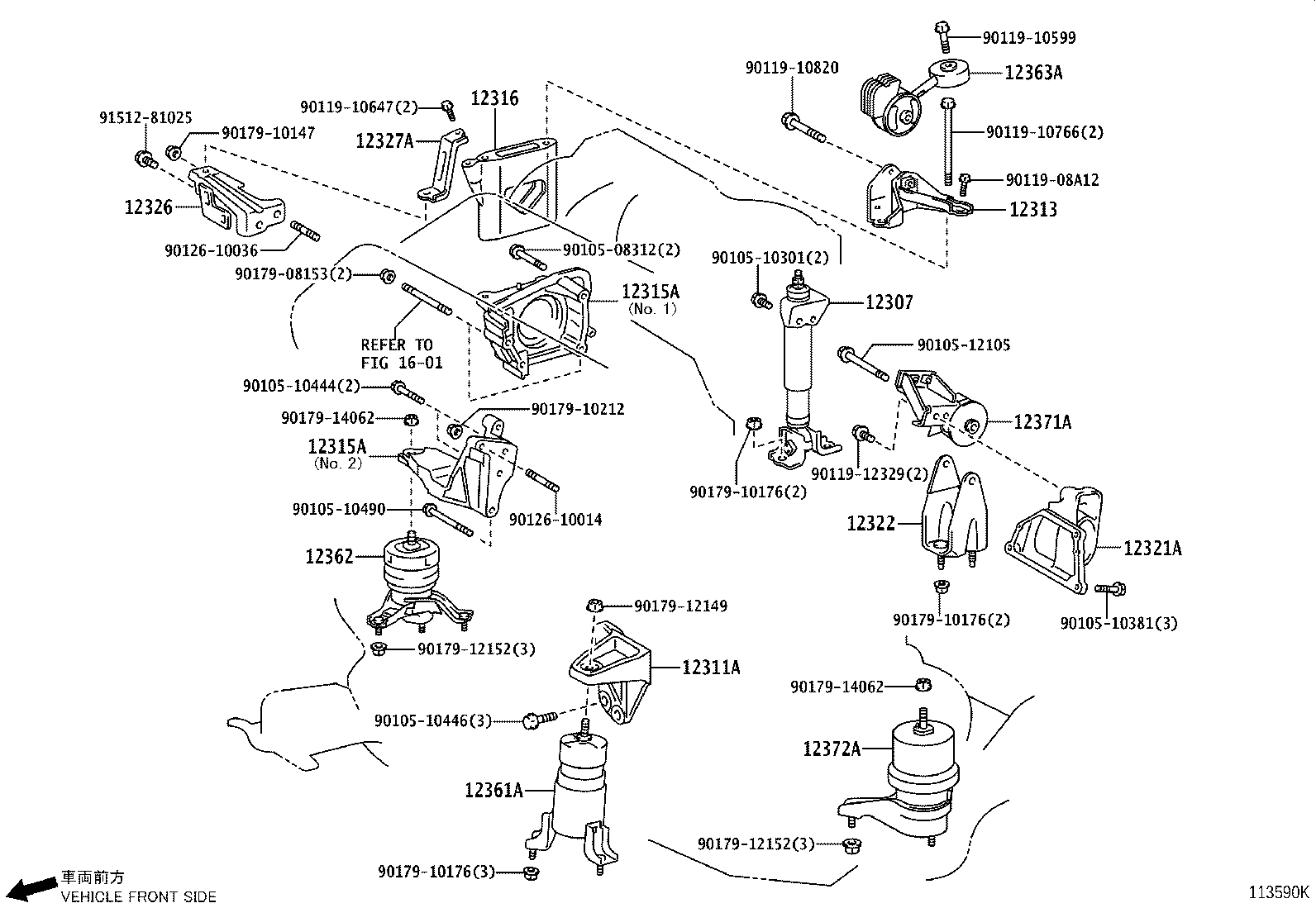

Click highlighted areas on diagram

diagram 12307 12311A 12313 12315A 12315A 12316 12321A 12322 12326 12327A 12361A 12362 12363A 12371A 12372A 1601 9010508312 9010510301 9010510381 9010510444 9010510446 9010510490 9010512105 9011908A12 9011910599 9011910647 9011910766 9011910820 9011912329 9012610014 9012610036 9017908153 9017910147 9017910176 9017910176 9017910176 9017910212 9017912149 9017912152 9017912152 9017914062 9017914062 9151281025
Part # Description Qty Price
12307 - ABSORBER SUB-ASSY, ENGINE MOUNTING
12307-20030

3MZFE..MHU2#

 1
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-20080

3MZFE..MHU2#

 1
12313 - BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE)
12313-20060

3MZFE..MHU2#

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-20020

3MZFE..MHU2#

NO.1

 1
12315-20040

3MZFE..MHU2#

NO.2

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-20020

3MZFE..MHU2#

NO.1

 1
12315-20040

3MZFE..MHU2#

NO.2

 1
12316 - BRACKET, ENGINE MOUNTING, NO.2 RH
12316-20020

3MZFE..MHU2#

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-20120

3MZFE..MHU2#

 1
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12322-20070

3MZFE..MHU2#

 1
12326 - BRACKET, ENGINE MOUNTING STAY
12326-20010

3MZFE..MHU2#

 1
12327A - STAY, ENGINE MOUNTING, NO.2 RH
12327-20030

3MZFE..MHU2#

 1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-20230

3MZFE..MHU2#

 1
12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12362-20040

3MZFE..MHU2#

 1
12363A - ROD, ENGINE MOVING CONTROL
12363-20130

3MZFE..MHU2#

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-20130

3MZFE..MHU2#

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-20060

3MZFE..MHU2#

 1
Common parts
90105-08312
90105-10301
90105-10381
90105-10444
90105-10446
90105-10490
90105-12105
90119-08A12
90119-10599
90119-10647
90119-10766
90119-10820
90119-12329
90126-10014
90126-10036
90179-08153
90179-10147
90179-10176
90179-10212
90179-12149
90179-12152
90179-14062
91512-81025
Linked diagrams
1601
