MHU23L-BRXNKA (2005)

Toyota Highlander Hv

Production Mar 2005 - May 2007
Engine 3MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0503- )

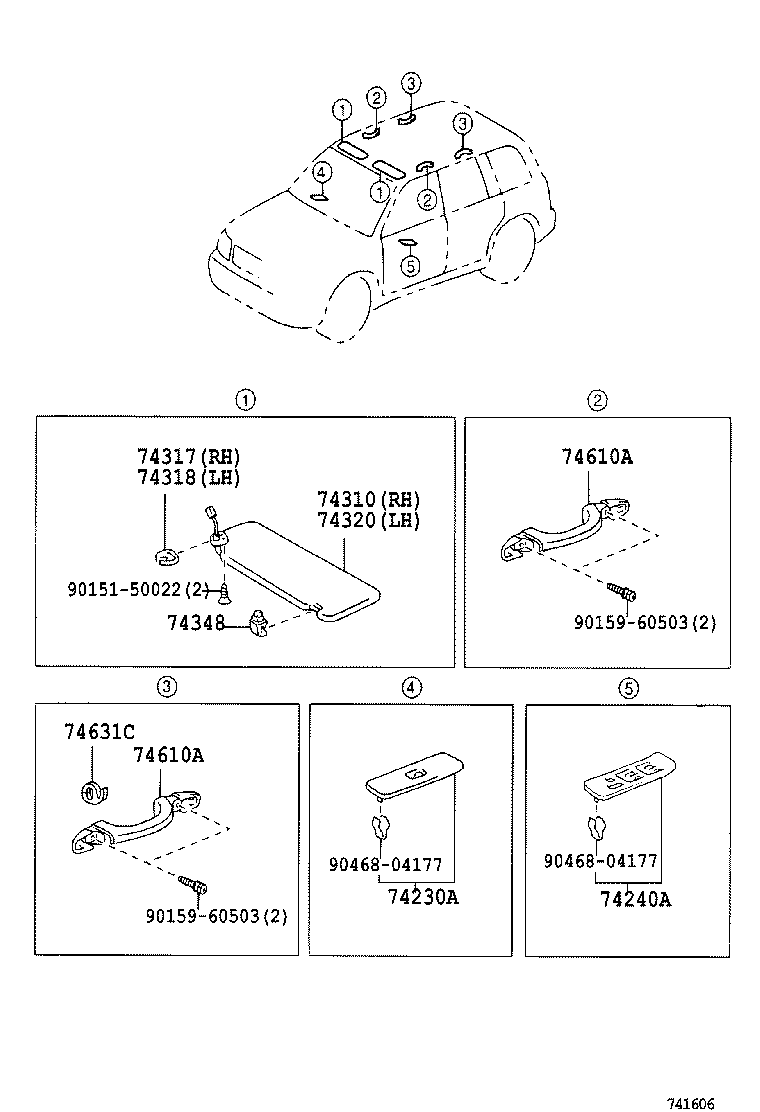

Click highlighted areas on diagram

diagram 74230A 74240A 74310 74317 74318 74320 74348 74610A 74610A 74631C 9015150022 9015960503 9015960503 9046804177 9046804177
Part # Description Qty Price
74230A - PANEL ASSY, FRONT DOOR ARMREST BASE, RH
74230-48100E0

MHU2#

SANDAL WOOD,TRIM0#

 1
74230-48110E1

MHU2#

LIMITED(USA),BROWN MOKUME,TRIM0#,1#

 1
74230-48100B0

MHU2#

SADDLE GRAY,TRIM1#

 1
74240A - PANEL ASSY, FRONT DOOR ARMREST BASE, LH
74240-48100B0

MHU2#

SADDLE GRAY,TRIM1#

 1
74240-48110E1

MHU2#

LIMITED(USA),BROWN MOKUME,TRIM0#,1#

 1
74240-48100E0

MHU2#

SANDAL WOOD,TRIM0#

 1
74310 - VISOR ASSY, RH
74310-48220B0

MHU2#

GRAY,TRIM1#

 1
74310-48220A0

MHU2#

IVORY,TRIM0#

 1
74310-48230B0

MHU2#

SUN VISOR-W/VANITY MIRROR & LAMP,GRAY,TRIM1#

 1
74310-48230A0

MHU2#

SUN VISOR-W/VANITY MIRROR & LAMP,IVORY,TRIM0#

 1
74317 - COVER, VISOR BRACKET, RH
74317-30010B6

MHU2#

GRAY,TRIM1#

 1
74317-30010A1

MHU2#

IVORY,TRIM0#

 1
74318 - COVER, VISOR BRACKET, LH
74317-30010A1

MHU2#

IVORY,TRIM0#

 1
74317-30010B6

MHU2#

GRAY,TRIM1#

 1
74320 - VISOR ASSY, LH
74320-48260B0

MHU2#

GRAY,TRIM1#

 1
74320-48270B0

MHU2#

SUN VISOR-W/VANITY MIRROR & LAMP,GRAY,TRIM1#

 1
74320-48270A0

MHU2#

SUN VISOR-W/VANITY MIRROR & LAMP,IVORY,TRIM0#

 1
74320-48260A0

MHU2#

IVORY,TRIM0#

 1
74348 - HOLDER, VISOR
74348-12040A0

MHU2#

IVORY,TRIM0#

 2
74348-12040B4

MHU2#

GRAY,TRIM1#

 2
74610A - GRIP SUB-ASSY, ASSIST
74611-48010A0

MHU2#

IVORY,TRIM0#

 4
74611-48010B0

MHU2#

GRAY,TRIM1#

 4
74610A - GRIP SUB-ASSY, ASSIST
74611-48010A0

MHU2#

IVORY,TRIM0#

 4
74611-48010B0

MHU2#

GRAY,TRIM1#

 4
74631C - HOOK, COAT
74631-48010B0

MHU2#

GRAY,TRIM1#

 2
74631-48010A0

MHU2#

IVORY,TRIM0#

 2
Common parts
90151-50022
90159-60503
90468-04177
