MHU23L-BRXNKA (2005)

Toyota Highlander Hv

Production Mar 2005 - May 2007
Engine 3MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0503- )

Click highlighted areas on diagram

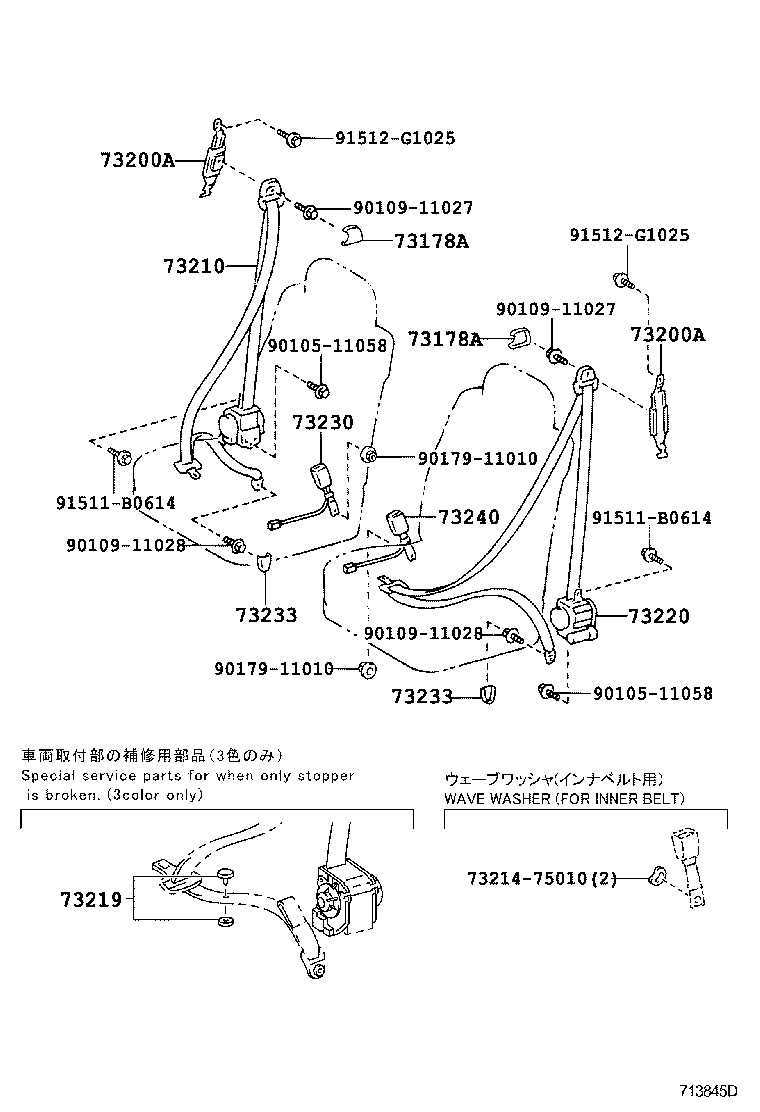

FRONT SEAT

diagram 73178A 73178A 73200A 73200A 73210 7321475010 73219 73220 73230 73233 73233 73240 9010511058 9010511058 9010911027 9010911027 9010911028 9010911028 9017911010 9017911010 91511B0614 91511B0614 91512G1025 91512G1025
Part # Description Qty Price
73178A - CAP, SEAT BELT ANCHOR COVER
73178-33020P3

MHU2#

GRAY,TRIM1#

 2
73178-33020A1

MHU2#

IVORY,TRIM0#

 2
73178A - CAP, SEAT BELT ANCHOR COVER
73178-33020P3

MHU2#

GRAY,TRIM1#

 2
73178-33020A1

MHU2#

IVORY,TRIM0#

 2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-52010B6

MHU2#

GRAY,TRIM1#

 2
73200-52010A0

MHU2#

IVORY,TRIM0#

 2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-52010B6

MHU2#

GRAY,TRIM1#

 2
73200-52010A0

MHU2#

IVORY,TRIM0#

 2
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-48130B0

MHU2#

GRAY,TRIM1#

 1
73210-48130A0

MHU2#

IVORY,TRIM0#

 1
73219 - STOPPER, TONGUE PLATE
73219-02020

MHU2#

GRAY

 1
73219-02010

MHU2#

BLACK

 1
73219-02030

MHU2#

BEIGE

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-48110B0

MHU2#

GRAY,TRIM1#

 1
73220-48110A0

MHU2#

IVORY,TRIM0#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-48230A0

MHU2#

DRIVER:POWER SEAT/PASSENGER:POWER SEAT,IVORY,TRIM0#

 1
73230-48230B0

MHU2#

DRIVER:POWER SEAT/PASSENGER:POWER SEAT,GRAY,TRIM1#

 1
73230-48160B0

MHU2#

GRAY,TRIM1#

 1
73230-48160A0

MHU2#

IVORY,TRIM0#

 1
73233 - COVER, LAP BELT OUTER ANCHOR
73233-33010A1

MHU2#

IVORY,TRIM0#

 2
73233-33010P3

MHU2#

GRAY,TRIM1#

 2
73233 - COVER, LAP BELT OUTER ANCHOR
73233-33010A1

MHU2#

IVORY,TRIM0#

 2
73233-33010P3

MHU2#

GRAY,TRIM1#

 2
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-48150A0

MHU2#

IVORY,TRIM0#

 1
73230-48210A0

MHU2#

DRIVER:POWER SEAT/PASSENGER:MANUAL SEAT,IVORY,TRIM0#

 1
73230-48210B0

MHU2#

DRIVER:POWER SEAT/PASSENGER:POWER SEAT,GRAY,TRIM1#

 1
73230-48210A0

MHU2#

DRIVER:POWER SEAT/PASSENGER:POWER SEAT,IVORY,TRIM0#

 1
73230-48150B0

MHU2#

GRAY,TRIM1#

 1
73230-48210B0

MHU2#

DRIVER:POWER SEAT/PASSENGER:MANUAL SEAT,GRAY,TRIM1#

 1
Common parts
73214-75010
90105-11058
90109-11027
90109-11028
90179-11010
91511-B0614
91512-G1025

(0503- )07S

Click highlighted areas on diagram

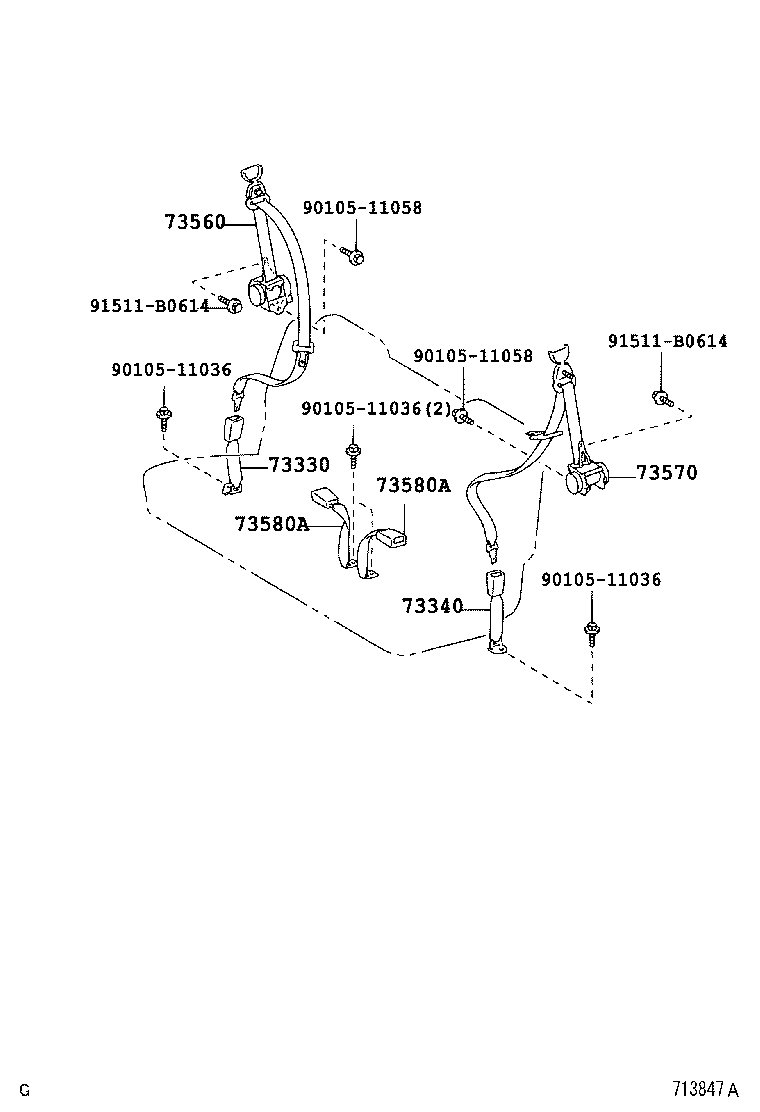

REAR NO.2 SEAT

diagram 73330 73340 73560 73570 73580A 73580A 9010511036 9010511036 9010511036 9010511058 9010511058 91511B0614 91511B0614
Part # Description Qty Price
73330 - BELT ASSY, REAR SEAT LAP TYPE, RH
73330-48020B0

MHU2#..07S

GRAY,TRIM1#

 1
73330-48020A0

MHU2#..07S

IVORY,TRIM0#

 1
73340 - BELT ASSY, REAR SEAT LAP TYPE, LH
73330-48030B0

MHU2#..07S

GRAY,TRIM1#

 1
73330-48030A0

MHU2#..07S

IVORY,TRIM0#

 1
73560 - BELT ASSY, REAR NO.2 SEAT, OUTER RH
73560-48010A0

MHU2#..07S

IVORY,TRIM0#

 1
73560-48010B0

MHU2#..07S

GRAY,TRIM1#

 1
73570 - BELT ASSY, REAR NO.2 SEAT, OUTER LH
73570-48010A0

MHU2#..07S

IVORY,TRIM0#

 1
73570-48010B0

MHU2#..07S

GRAY,TRIM1#

 1
73580A - BELT SUB ASSY, REAR NO.2 SEAT, INNER
73580-48010A0

MHU2#..07S

IVORY,TRIM0#

 2
73580-48010B0

MHU2#..07S

GRAY,TRIM1#

 2
73580A - BELT SUB ASSY, REAR NO.2 SEAT, INNER
73580-48010A0

MHU2#..07S

IVORY,TRIM0#

 2
73580-48010B0

MHU2#..07S

GRAY,TRIM1#

 2
Common parts
90105-11036
90105-11058
91511-B0614

(0503- )07S

Click highlighted areas on diagram

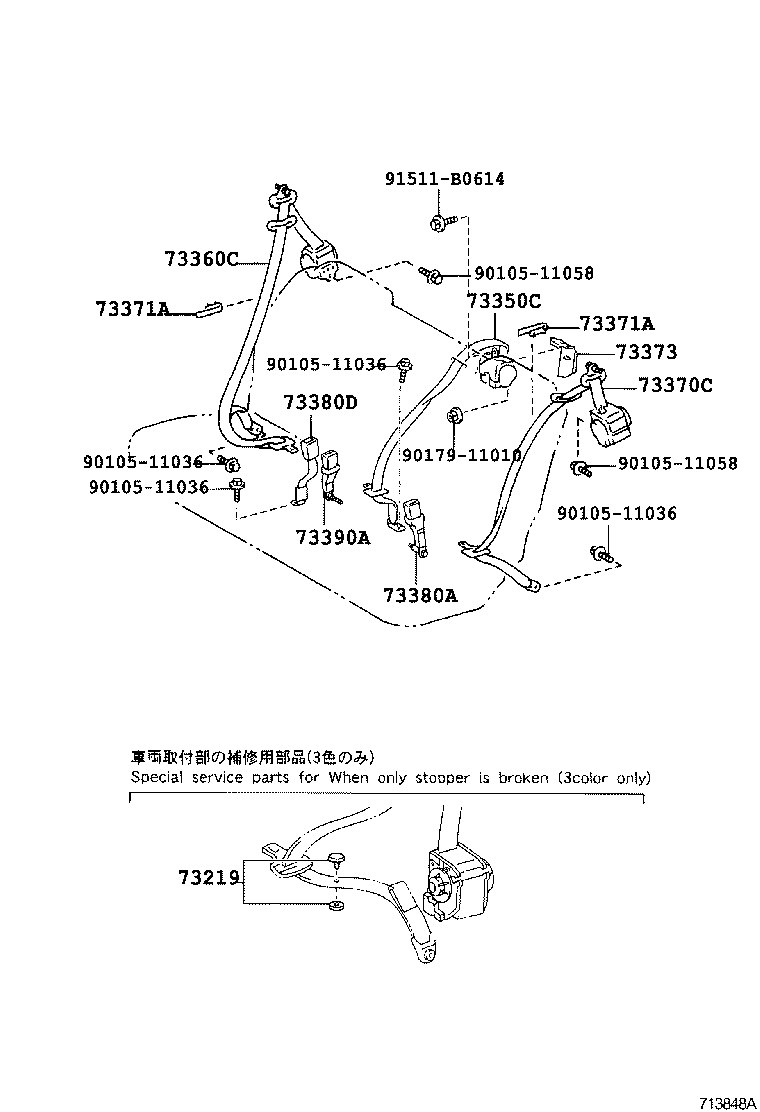

REAR NO.1 SEAT

diagram 73219 73350C 73360C 73370C 73371A 73371A 73373 73380A 73380D 73390A 9010511036 9010511036 9010511036 9010511036 9010511058 9010511058 9017911010 91511B0614
Part # Description Qty Price
73219 - STOPPER, TONGUE PLATE
73219-02020

MHU2#

GRAY

 1
73219-02010

MHU2#

BLACK

 1
73219-02030

MHU2#

BEIGE

 1
73350C - BELT ASSY, REAR SEAT, OUTER CENTER
73350-48040B0

MHU2#..07S

GRAY,TRIM1#

 1
73350-48040A0

MHU2#..07S

IVORY,TRIM0#

 1
73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH
73360-48050B0

MHU2#

GRAY,TRIM1#

 1
73360-48050A0

MHU2#

IVORY,TRIM0#

 1
73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH
73370-48050A0

MHU2#

IVORY,TRIM0#

 1
73370-48050B0

MHU2#

GRAY,TRIM1#

 1
73371A - HANGER REAR SEAT SHOULDER BELT
73371-44020P0

MHU2#

GRAY,TRIM1#

 2
73371-44020A1

MHU2#

IVORY,TRIM0#

 2
73371A - HANGER REAR SEAT SHOULDER BELT
73371-44020P0

MHU2#

GRAY,TRIM1#

 2
73371-44020A1

MHU2#

IVORY,TRIM0#

 2
73373 - COVER, REAR SEAT SHOULDER BELT
73373-48040

MHU2#..07S

 1
73380A - BELT ASSY, REAR SEAT, INNER
73380-48030B1

MHU2#

GRAY,TRIM1#

 1
73380-48030A0

MHU2#

IVORY,TRIM0#

 1
73380D - BELT ASSY, REAR SEAT, INNER
73380-48070A0

MHU2#..07S

IVORY,TRIM0#

 1
73380-48070B0

MHU2#..07S

GRAY,TRIM1#

 1
73390A - BELT ASSY, REAR SEAT, INNER
73480-48030B1

MHU2#

GRAY,TRIM1#

 1
73480-48030A0

MHU2#

IVORY,TRIM0#

 1
Common parts
90105-11036
90105-11058
90179-11010
91511-B0614
