MHU23L-BRXNKA (2005)

Toyota Highlander Hv

Production Mar 2005 - May 2007
Engine 3MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0503- )

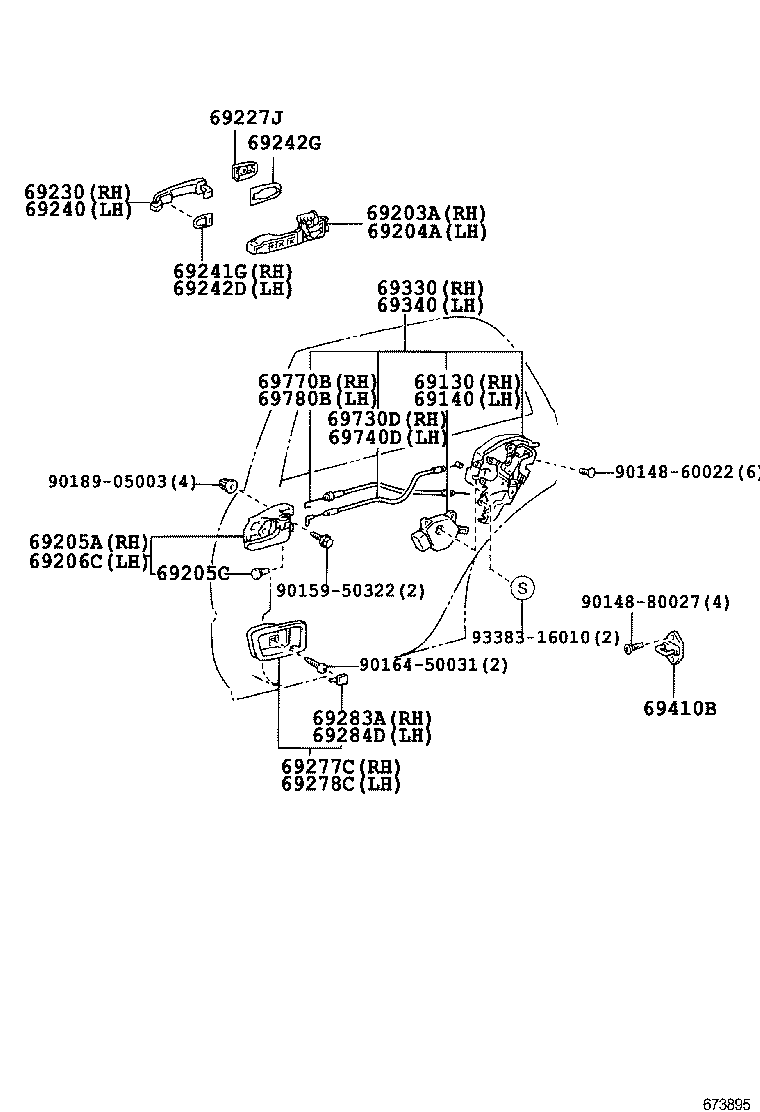

Click highlighted areas on diagram

diagram 69130 69140 69203A 69204A 69205A 69205C 69206C 69227J 69230 69240 69241G 69242D 69242G 69277C 69278C 69283A 69284D 69330 69340 69410B 69730D 69740D 69770B 69780B 9014860022 9014880027 9015950322 9016450031 9018905003 9338316010
Part # Description Qty Price
69130 - ACTUATOR ASSY, REAR DOOR LOCK, RH
69130-51010

MHU2#

 1
69140 - ACTUATOR ASSY, REAR DOOR LOCK, LH
69140-51010

MHU2#

 1
69203A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69203-48030

MHU2#

 1
69204A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69204-48030

MHU2#

 1
69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205-48020B1

MHU2#

GRAY,TRIM1#

 1
69205-48030A0

MHU2#

LIMITED(USA),IVORY,TRIM0#

 1
69205-48020A0

MHU2#

IVORY,TRIM0#

 1
69205-48030B2

MHU2#

LIMITED(USA),GRAY,TRIM1#

 1
69205C - CUSHION(FOR REAR DOOR INSIDE HANDLE)
90541-04014

MHU2#

 2
69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69206-48020A0

MHU2#

IVORY,TRIM0#

 1
69206-48020B1

MHU2#

GRAY,TRIM1#

 1
69206-48030A0

MHU2#

LIMITED(USA),IVORY,TRIM0#

 1
69206-48030B2

MHU2#

LIMITED(USA),GRAY,TRIM1#

 1
69227J - COVER, REAR DOOR OUTSIDE HANDLE, RH
69227-42070B3

MHU2#

SILVER ME.,1C0

 2
69227-42070A3

MHU2#

SUPER WHITE 2,040

 2
69227-42070E5

MHU2#

BEIGE M.M.,4R3

 2
69227-42070G5

MHU2#

GREEN M.M.,6T5

 2
69227-42070J5

MHU2#

GRAYISH BLUE ME.,8N6

 2
69227-42070C0

MHU2#

BLACK,202

 2
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69211-12220G5

MHU2#

GREEN M.M.,6T5

 1
69211-12220B2

MHU2#

SILVER ME.,1C0

 1
69211-12220A0

MHU2#

SUPER WHITE 2,040

 1
69211-12220C1

MHU2#

BLACK,202

 1
69211-12220E5

MHU2#

BEIGE M.M.,4R3

 1
69211-12220J1

MHU2#

GRAYISH BLUE ME.,8N6

 1
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69211-12220B2

MHU2#

SILVER ME.,1C0

 1
69211-12220E5

MHU2#

BEIGE M.M.,4R3

 1
69211-12220C1

MHU2#

BLACK,202

 1
69211-12220J1

MHU2#

GRAYISH BLUE ME.,8N6

 1
69211-12220A0

MHU2#

SUPER WHITE 2,040

 1
69211-12220G5

MHU2#

GREEN M.M.,6T5

 1
69241G - PAD, REAR DOOR OUTSIDE HANDLE, FRONT
69241-48020

MHU2#

 1
69242D - PAD, REAR DOOR OUTSIDE HANDLE, LH
69241-48020

MHU2#

 1
69242G - PAD, REAR DOOR OUTSIDE HANDLE, REAR
69242-42010

MHU2#

 2
69277C - BEZEL, REAR DOOR INSIDE HANDLE, RH
69277-22090B8

MHU2#

LIMITED(USA),GRAY,TRIM1#

 1
69277-30150P0

MHU2#

GRAY,TRIM1#

 1
69277-30150A0

MHU2#

IVORY,TRIM0#

 1
69277-22090A1

MHU2#

LIMITED(USA),IVORY,TRIM0#

 1
69278C - BEZEL, REAR DOOR INSIDE HANDLE, LH
69278-30080A0

MHU2#

IVORY,TRIM0#

 1
69278-22050B8

MHU2#

LIMITED(USA),GRAY,TRIM1#

 1
69278-22050A1

MHU2#

LIMITED(USA),IVORY,TRIM0#

 1
69278-30080P0

MHU2#

GRAY,TRIM1#

 1
69283A - PLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
69283-30040P2

MHU2#

NEW GRAY,TRIM13

 1
69283-30040A1

MHU2#

IVORY,TRIM03

 1
69284D - PLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
69284-30040P2

MHU2#

NEW GRAY,TRIM13

 1
69284-30040A1

MHU2#

IVORY,TRIM03

 1
69330 - LOCK ASSY, REAR DOOR, RH
69050-48030

MHU2#

 1
69340 - LOCK ASSY, REAR DOOR, LH
69060-48030

MHU2#

 1
69410B - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-20110

MHU2#

 2
69730D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69730-48030

MHU2#

 1
69740D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69730-48030

MHU2#

 1
69770B - CABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69770-48030

MHU2#

 1
69780B - CABLE ASSY, REAR DOOR INSIDE LOCKING, LH
69780-48010

MHU2#

 1
Common parts
90148-60022
90148-80027
90159-50322
90164-50031
90189-05003
93383-16010
