MHU23L-BRXNKA (2005)

Toyota Highlander Hv

Production Mar 2005 - May 2007
Engine 3MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0503- )

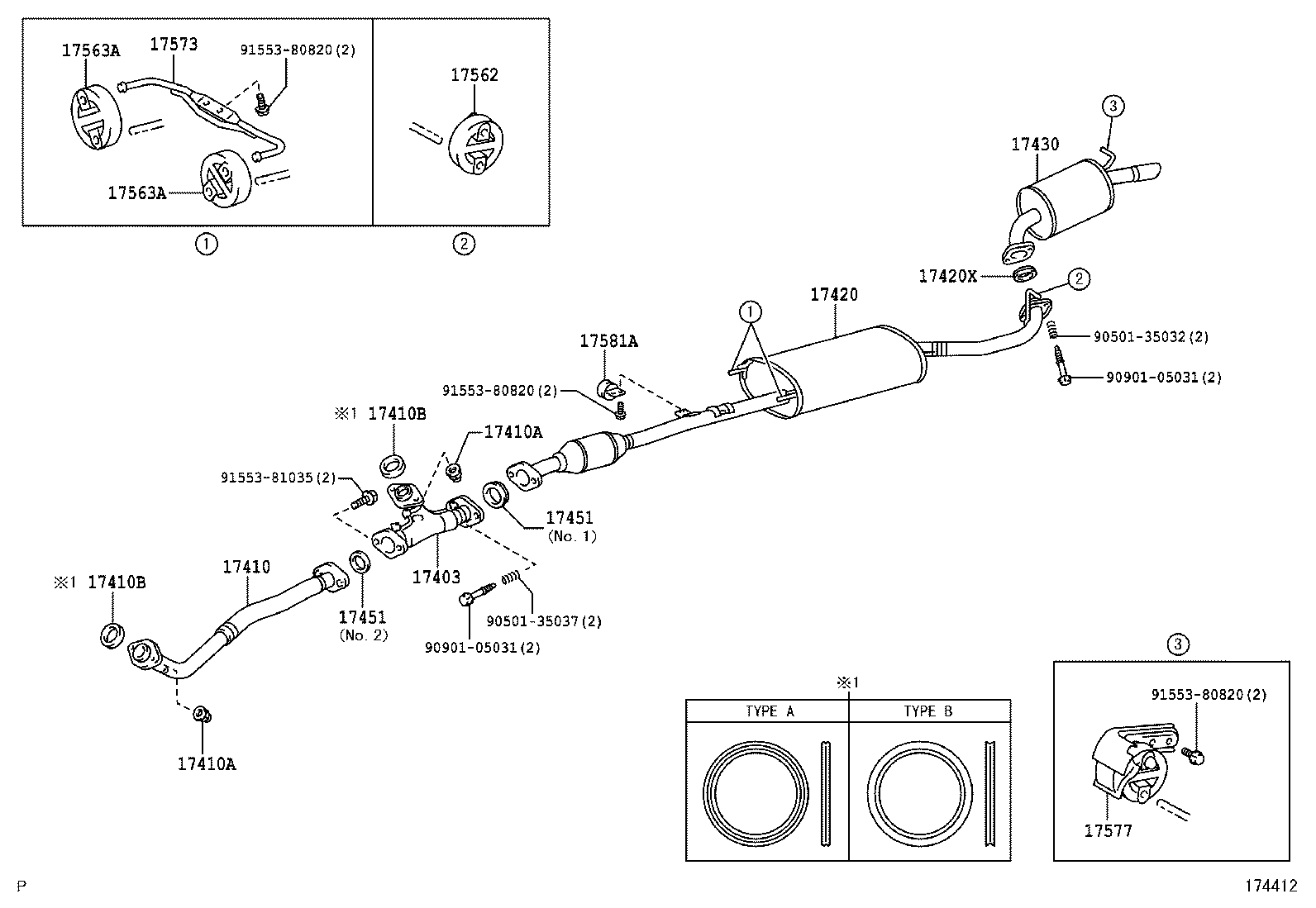

Click highlighted areas on diagram

diagram 17403 17410 17410A 17410A 17410B 17410B 17420 17420X 17430 17451 17451 17562 17563A 17563A 17573 17577 17581A 9050135032 9050135037 9090105031 9090105031 9155380820 9155380820 9155380820 9155381035
Part # Description Qty Price
17403 - PIPE SUB-ASSY, EXHAUST, FRONT NO.3
17403-20190

3MZFE..MHU2#

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-20480

3MZFE..MHU2#

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

3MZFE..MHU2#

 4
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

3MZFE..MHU2#

 4
17410B - GASKET, EXHAUST PIPE
90917-06089

3MZFE..MHU2#

TYPE B:REFER ILLUST.

 2
90917-06065

3MZFE..MHU2#

TYPE A:REFER ILLUST.

 2
17410B - GASKET, EXHAUST PIPE
90917-06089

3MZFE..MHU2#

TYPE B:REFER ILLUST.

 2
90917-06065

3MZFE..MHU2#

TYPE A:REFER ILLUST.

 2
17420 - PIPE ASSY, EXHAUST, CENTER
17420-20400

3MZFE..MHU2#

*114=TOYOTA/UA4/Y

 1
17420X - GASKET, EXHAUST PIPE, CENTER
17451-22060

3MZFE..MHU2#

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-20150

3MZFE..MHU2#

 1
17451 - GASKET, EXHAUST PIPE
90917-06046

3MZFE..MHU2#

NO.2

 1
17451-22070

3MZFE..MHU2#

NO.1

 1
17451 - GASKET, EXHAUST PIPE
90917-06046

3MZFE..MHU2#

NO.2

 1
17451-22070

3MZFE..MHU2#

NO.1

 1
17562 - SUPPORT, EXHAUST PIPE, NO.2
17565-11160

3MZFE..MHU2#

 1
17563A - SUPPORT, EXHAUST PIPE, NO.3
17565-22040

3MZFE..MHU2#

 2
17563A - SUPPORT, EXHAUST PIPE, NO.3
17565-22040

3MZFE..MHU2#

 2
17573 - BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER
17573-20080

3MZFE..MHU2#

 1
17577 - BRACKET, EXHAUST PIPE SUPPORT, NO.7
17577-20020

3MZFE..MHU2#

 1
17581A - DAMPER, EXHAUST PIPE
17581-16030

3MZFE..MHU2#

 1
17581-16020

3MZFE..MHU2#

 1
Common parts
90501-35032
90501-35037
90901-05031
91553-80820
91553-81035
