GVU58L-ARXNKA (2014)
Toyota Highlander (Nap)
Production
Jan 2014
-
Nov 2016
Engine
2GRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

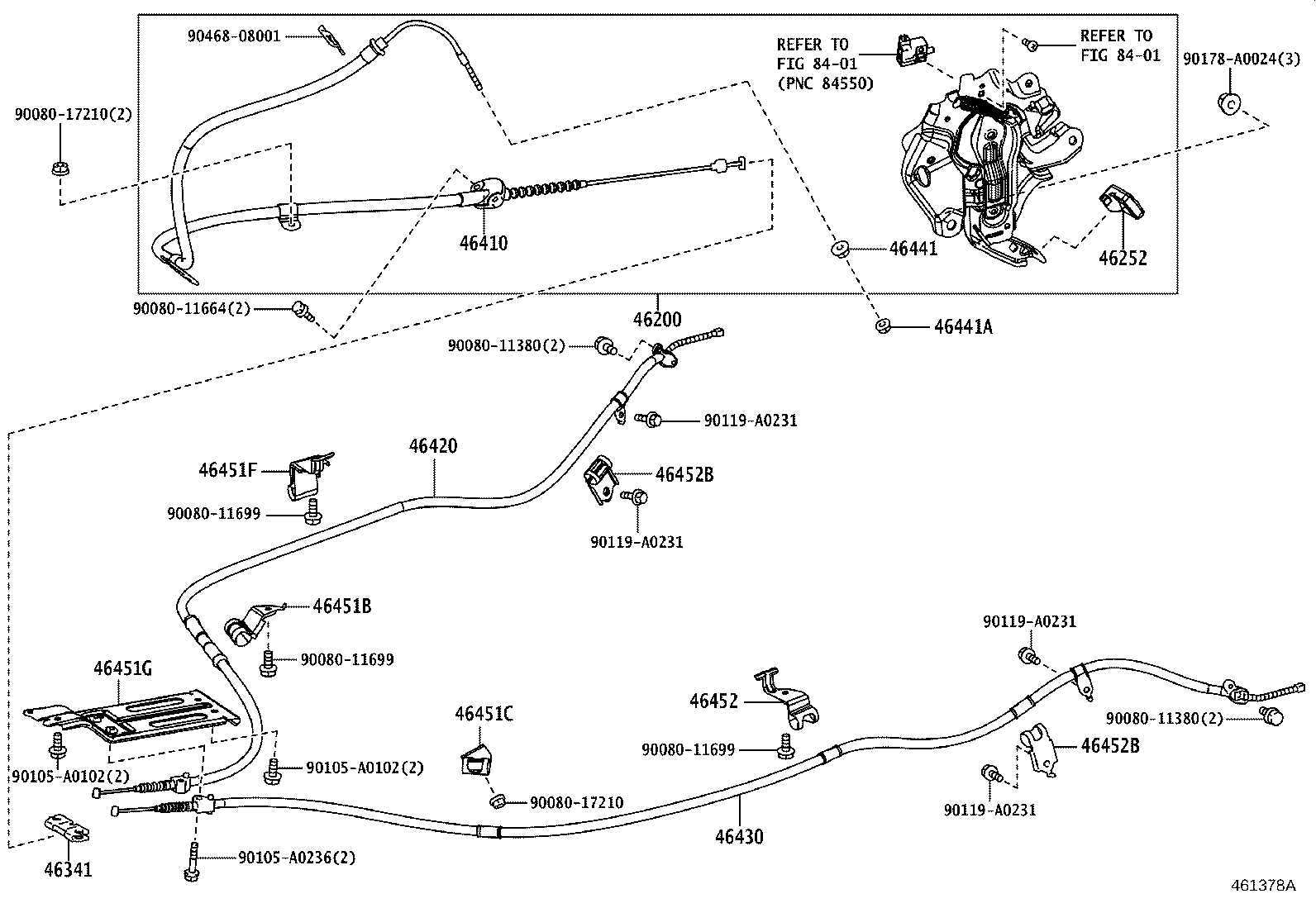

ILLUST NO. 1 OF 2(1401- )GVU58
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46200 - PEDAL ASSY, PARKING BRAKE CONTROL | ||||
| 46200-0E070 |
GVU58 |
1 | ||
| 46200-0E070 |
GVU58 |
1 | ||
| 46252 - PAD, PARKING PEDAL | ||||
| 46252-22010 |
ASU50,GSU5#,GVU58 |
1 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-48010 |
ASU50,GSU5#,GVU58 |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-0E070 |
GVU58 |
1 | ||
| 46410-0E070 |
GVU58 |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-0E070 |
GVU58 |
1 | ||
| 46420-0E070 |
GVU58 |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-0E070 |
GVU58 |
1 | ||
| 46430-0E070 |
GVU58 |
1 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-12010 |
ASU50,GSU5#,GVU58 |
1 | ||
| 46441A - NUT, WIRE ADJUSTING, NO.2 | ||||
| 90178-A0023 |
ASU50,GSU5#,GVU58 |
1 | ||
| 46451B - BRACKET, PARKING BRAKE CABLE SUPPORT | ||||
| 46451-48260 |
GVU58 |
1 | ||
| 46451-48260 |
GVU58 |
1 | ||
| 46451C - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.1 | ||||
| 46451-48250 |
GVU58 |
1 | ||
| 46451-48250 |
GVU58 |
1 | ||
| 46451F - BRACKET, CABLE SUPPORT | ||||
| 46451-0E100 |
ASU50,GSU5#,GVU58 |
1 | ||
| 46451G - BRACKET, CABLE SUPPORT | ||||
| 46451-48180 |
GVU58 |
1 | ||
| 46451-48180 |
GVU58 |
1 | ||
| 46452 - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2 | ||||
| 46451-0E050 |
ASU50,GSU5#,GVU58 |
1 | ||
| 46452B - BRACKET, CABLE SUPPORT, NO.2 | ||||
| 46451-0E060 |
ASU50,GSU5#,GVU58 |
2 | ||
| 46452B - BRACKET, CABLE SUPPORT, NO.2 | ||||
| 46451-0E060 |
ASU50,GSU5#,GVU58 |
2 | ||
| Common parts | ||||
| 90080-11380 | None epc.PartDetail.None | |||
| 90080-11664 | None epc.PartDetail.None | |||
| 90080-11699 | None epc.PartDetail.None | |||
| 90080-17210 | None epc.PartDetail.None | |||
| 90105-A0102 | None epc.PartDetail.None | |||
| 90105-A0236 | None epc.PartDetail.None | |||
| 90119-A0231 | None epc.PartDetail.None | |||
| 90178-A0024 | None epc.PartDetail.None | |||
| 90468-08001 | None epc.PartDetail.None | |||
| Linked diagrams | ||||
| 8401 | ||||
