GVU58L-ARXMKA (2014)
Toyota Highlander (Nap)

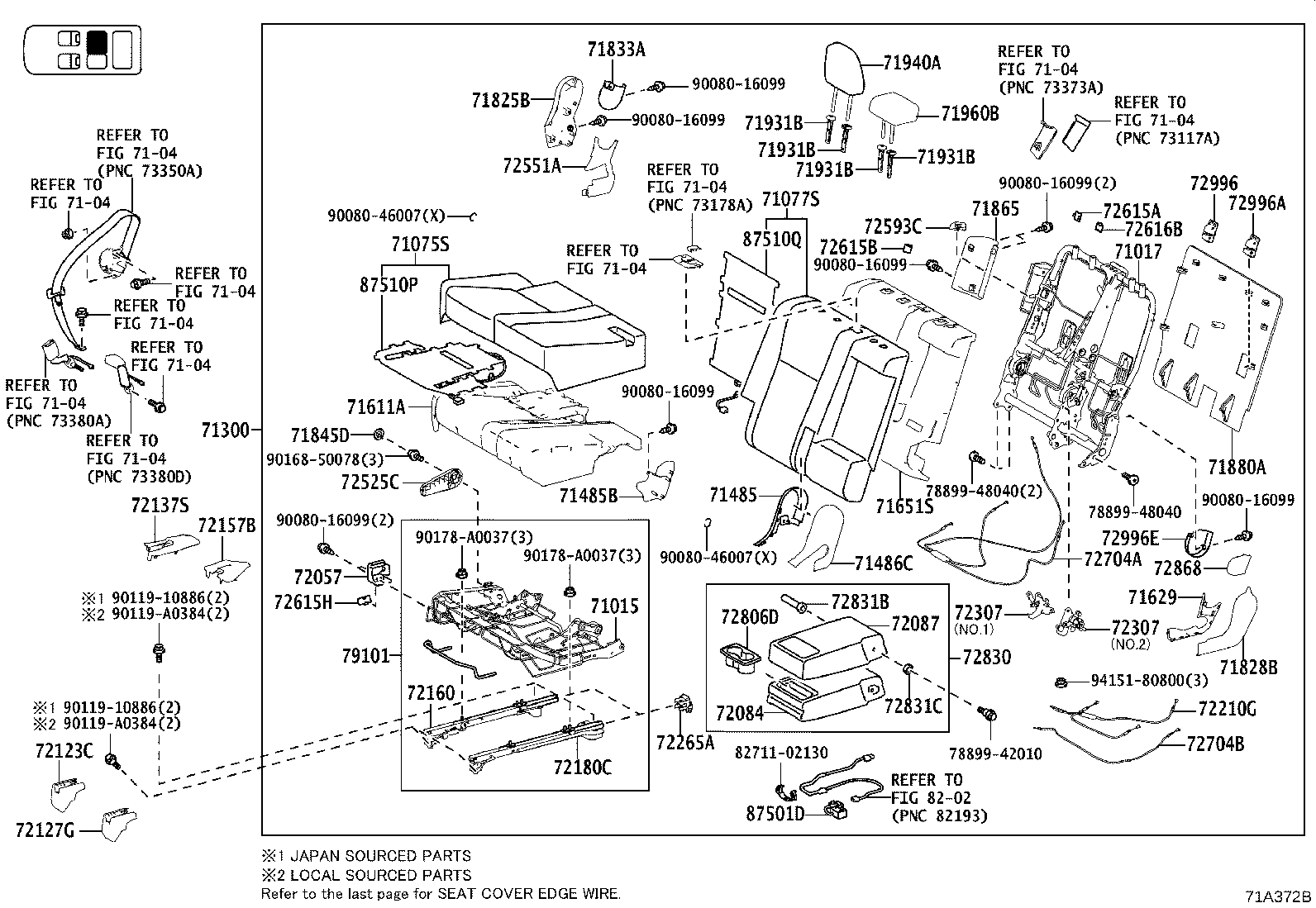

ILLUST NO. 1 OF 7(1312-1611)M,N
REAR NO.1, BENCH SEAT TYPE(RH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015 - FRAME SUB-ASSY, REAR SEAT CUSHION | ||||
| 71015-0E040 |
ASU50,GSU5#,GVU58..M,N |
1 | ||
| 71015-0E070 |
GSU5#,GVU58..G |
1 | ||
| 71015-0E100 |
GSU5#,GVU58..G SEAT HEATER-WITH(*DRP & REAR NO.1 SEAT=CAPTAIN TYPE) |
1 | ||
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-0E090 |
ASU50,GSU5#,GVU58..M,N |
1 | ||
| 71017-0E100 |
GSU5#,GVU58..G |
1 | ||
| 71075S - COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) | ||||
| 71075-0E200B3 |
GSU5#,GVU58..M GRAY,TRIM1# |
1 | ||
| 71075-0E200C3 |
GSU5#,GVU58..M BLACK,TRIM2# |
1 | ||
| 71075-0E250B1 |
GSU5#,GVU58..G SEAT HEATER-WITH(*DRP & REAR NO.1 SEAT=CAPTAIN TYPE),GRAY,TRIM1# |
1 | ||
| 71075-0E250A2 |
GSU5#,GVU58..G SEAT HEATER-WITH(*DRP & REAR NO.1 SEAT=CAPTAIN TYPE),FLAXEN,TRIM0# |
1 | ||
| 71075-0E240C1 |
GSU5#,GVU58..G BLACK,TRIM2# |
1 | ||
| 71075-0E240B1 |
GSU5#,GVU58..G GRAY,TRIM1# |
1 | ||
| 71075-0E250C1 |
GSU5#,GVU58..G SEAT HEATER-WITH(*DRP & REAR NO.1 SEAT=CAPTAIN TYPE),BLACK,TRIM2# |
1 | ||
| 71075-0E200A4 |
GSU5#,GVU58..M FLAXEN,TRIM0# |
1 | ||
| 71075-0E201B3 |
GSU5#,GVU58..M GRAY,TRIM1# |
1 | ||
| 71075-0E201A4 |
GSU5#,GVU58..M FLAXEN,TRIM0# |
1 | ||
| 71075-0E240A2 |
GSU5#,GVU58..G FLAXEN,TRIM0# |
1 | ||
| 71075-0E201C3 |
GSU5#,GVU58..M BLACK,TRIM2# |
1 | ||
| 71075-0E251B1 |
GSU5#,GVU58..G SEAT HEATER-WITH(*DRP & REAR NO.1 SEAT=CAPTAIN TYPE),GRAY,TRIM1# |
1 | ||
| 71075-0E251A2 |
GSU5#,GVU58..G SEAT HEATER-WITH(*DRP & REAR NO.1 SEAT=CAPTAIN TYPE),FLAXEN,TRIM0# |
1 | ||
| 71075-0E241B1 |
GSU5#,GVU58..G GRAY,TRIM1# |
1 | ||
| 71075-0E241C1 |
GSU5#,GVU58..G BLACK,TRIM2# |
1 | ||
| 71075-0E241A2 |
GSU5#,GVU58..G FLAXEN,TRIM0# |
1 | ||
| 71075-0E251C1 |
GSU5#,GVU58..G SEAT HEATER-WITH(*DRP & REAR NO.1 SEAT=CAPTAIN TYPE),BLACK,TRIM2# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-0E120A2 |
GSU5#,GVU58..M FLAXEN,TRIM0# |
1 | ||
| 71077-0E310B1 |
GSU5#,GVU58..G GRAY,TRIM1# |
1 | ||
| 71077-0E120C1 |
GSU5#,GVU58..M BLACK,TRIM2# |
1 | ||
| 71077-0E310C1 |
GSU5#,GVU58..G BLACK,TRIM2# |
1 | ||
| 71077-0E120B1 |
GSU5#,GVU58..M GRAY,TRIM1# |
1 | ||
| 71077-0E320A2 |
GSU5#,GVU58..G SEAT HEATER-WITH(*DRP & REAR NO.1 SEAT=CAPTAIN TYPE),FLAXEN,TRIM0# |
1 | ||
| 71077-0E310A2 |
GSU5#,GVU58..G FLAXEN,TRIM0# |
1 | ||
| 71077-0E320C1 |
GSU5#,GVU58..G SEAT HEATER-WITH(*DRP & REAR NO.1 SEAT=CAPTAIN TYPE),BLACK,TRIM2# |
1 | ||
| 71077-0E320B1 |
GSU5#,GVU58..G SEAT HEATER-WITH(*DRP & REAR NO.1 SEAT=CAPTAIN TYPE),GRAY,TRIM1# |
1 | ||
| 71077-0E121A2 |
GSU5#,GVU58..M FLAXEN,TRIM0# |
1 | ||
| 71077-0E311C1 |
GSU5#,GVU58..G BLACK,TRIM2# |
1 | ||
| 71077-0E121B1 |
GSU5#,GVU58..M GRAY,TRIM1# |
1 | ||
| 71077-0E311A2 |
GSU5#,GVU58..G FLAXEN,TRIM0# |
1 | ||
| 71077-0E311B1 |
GSU5#,GVU58..G GRAY,TRIM1# |
1 | ||
| 71077-0E121C1 |
GSU5#,GVU58..M BLACK,TRIM2# |
1 | ||
| 71077-0E321B1 |
GSU5#,GVU58..G SEAT HEATER-WITH(*DRP & REAR NO.1 SEAT=CAPTAIN TYPE),GRAY,TRIM1# |
1 | ||
| 71077-0E321A2 |
GSU5#,GVU58..G SEAT HEATER-WITH(*DRP & REAR NO.1 SEAT=CAPTAIN TYPE),FLAXEN,TRIM0# |
1 | ||
| 71077-0E321C1 |
GSU5#,GVU58..G SEAT HEATER-WITH(*DRP & REAR NO.1 SEAT=CAPTAIN TYPE),BLACK,TRIM2# |
1 | ||
| 71300 - SEAT ASSY, REAR RH | ||||
| 71300-0E680A7 |
GVU58..M FLAXEN,TRIM0# |
1 | ||
| 71300-0E680B6 |
GVU58..M GRAY,TRIM1# |
1 | ||
| 71300-0E680C6 |
GVU58..M BLACK,TRIM2# |
1 | ||
| 71300-0E680A8 |
GVU58..M FLAXEN,TRIM0# |
1 | ||
| 71300-0E680B7 |
GVU58..M GRAY,TRIM1# |
1 | ||
| 71300-0E680C7 |
GVU58..M BLACK,TRIM2# |
1 | ||
| 71300-0E681C0 |
GVU58..M BLACK,TRIM2# |
1 | ||
| 71300-0E681A0 |
GVU58..M FLAXEN,TRIM0# |
1 | ||
| 71300-0E681B0 |
GVU58..M GRAY,TRIM1# |
1 | ||
| 71300-0E682A0 |
GVU58..M FLAXEN,TRIM0# |
1 | ||
| 71300-0E682C0 |
GVU58..M BLACK,TRIM2# |
1 | ||
| 71300-0E682B0 |
GVU58..M GRAY,TRIM1# |
1 | ||
| 71485 - COVER, REAR SEAT HINGE | ||||
| 71485-0E030B0 |
ASU50,GSU5#,GVU58..M,N GRAY,TRIM1# |
1 | ||
| 71485-0E030A0 |
ASU50,GSU5#,GVU58..M,N FLAXEN,TRIM0# |
1 | ||
| 71485-0E030C0 |
ASU50,GSU5#,GVU58..M,N BLACK,TRIM2# |
1 | ||
| 71485B - COVER, REAR SEAT HINGE | ||||
| 71485-0E040A0 |
ASU50,GSU5#,GVU58..M,N FLAXEN,TRIM0# |
1 | ||
| 71485-0E040B0 |
ASU50,GSU5#,GVU58..M,N GRAY,TRIM1# |
1 | ||
| 71485-0E040C0 |
ASU50,GSU5#,GVU58..M,N BLACK,TRIM2# |
1 | ||
| 71486C - COVER, REAR SEAT HINGE, LH | ||||
| 71486-0E030C0 |
ASU50,GSU5#,GVU58..M,N BLACK,TRIM2# |
1 | ||
| 71486-0E030A0 |
ASU50,GSU5#,GVU58..M,N FLAXEN,TRIM0# |
1 | ||
| 71486-0E030B0 |
ASU50,GSU5#,GVU58..M,N GRAY,TRIM1# |
1 | ||
| 71611A - PAD, REAR SEAT CUSHION, RH | ||||
| 71611-0E070 |
GSU5#,GVU58..G |
1 | ||
| 71611-0E060 |
ASU50,GSU5#,GVU58..M,N |
1 | ||
| 71629 - COVER, REAR SEAT CUSHION HINGE | ||||
| 71629-0E010A0 |
ASU50,GSU5#,GVU58..M,N FLAXEN,TRIM0# |
1 | ||
| 71629-0E020B0 |
GSU5#,GVU58..G GRAY,TRIM1# |
1 | ||
| 71629-0E010C0 |
ASU50,GSU5#,GVU58..M,N BLACK,TRIM2# |
1 | ||
| 71629-0E010B0 |
ASU50,GSU5#,GVU58..M,N GRAY,TRIM1# |
1 | ||
| 71629-0E020A0 |
GSU5#,GVU58..G FLAXEN,TRIM0# |
1 | ||
| 71629-0E020C0 |
GSU5#,GVU58..G BLACK,TRIM2# |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-0E070 |
ASU50,GSU5#,GVU58..M,N |
1 | ||
| 71651-0E100 |
GSU5#,GVU58..G |
1 | ||
| 71825B - MOULDING, REAR SEAT CUSHION, RH | ||||
| 71825-0E060B0 |
ASU50,GSU5#,GVU58 GRAY,TRIM1# |
1 | ||
| 71825-0E060A0 |
ASU50,GSU5#,GVU58 FLAXEN,TRIM0# |
1 | ||
| 71825-0E060C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM2# |
1 | ||
| 71828B - MOULDING, REAR SEAT CUSHION, REAR RH | ||||
| 71828-0E080B0 |
GSU5#,GVU58..G GRAY,TRIM1# |
1 | ||
| 71828-0E070B0 |
ASU50,GSU5#,GVU58..M,N GRAY,TRIM1# |
1 | ||
| 71828-0E070C0 |
ASU50,GSU5#,GVU58..M,N BLACK,TRIM2# |
1 | ||
| 71828-0E080C0 |
GSU5#,GVU58..G BLACK,TRIM2# |
1 | ||
| 71828-0E070A0 |
ASU50,GSU5#,GVU58..M,N FLAXEN,TRIM0# |
1 | ||
| 71828-0E080A0 |
GSU5#,GVU58..G FLAXEN,TRIM0# |
1 | ||
| 71833A - COVER, REAR SEAT RECLINING, NO.1 RH | ||||
| 71833-0E030C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM2# |
1 | ||
| 71845D - CAP, REAR SEAT COVER, RH | ||||
| 71845-0E080A0 |
ASU50,GSU5#,GVU58 FLAXEN,TRIM0# |
1 | ||
| 71845-0E080B0 |
ASU50,GSU5#,GVU58 GRAY,TRIM1# |
1 | ||
| 71845-0E080C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM2# |
1 | ||
| 71865 - BEZEL, REAR SEAT COVER, NO.1 | ||||
| 71865-0E050A0 |
ASU50,GSU5#,GVU58 FLAXEN,TRIM0# |
1 | ||
| 71865-0E050C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM2# |
1 | ||
| 71865-0E050B0 |
ASU50,GSU5#,GVU58 GRAY,TRIM1# |
1 | ||
| 71880A - CARPET ASSY, REAR SEAT BACK BOARD, RH | ||||
| 71880-0E030A0 |
ASU50,GSU5#,GVU58..M,N FLAXEN,TRIM0# |
1 | ||
| 71880-0E030B0 |
ASU50,GSU5#,GVU58..M,N LT.GRAY,TRIM1# |
1 | ||
| 71880-0E030C0 |
ASU50,GSU5#,GVU58..M,N BLACK,TRIM2# |
1 | ||
| 71880-0E100C0 |
GSU5#,GVU58..G BLACK,TRIM2# |
1 | ||
| 71880-0E100A0 |
GSU5#,GVU58..G FLAXEN,TRIM0# |
1 | ||
| 71880-0E100B0 |
GSU5#,GVU58..G LT.GRAY,TRIM1# |
1 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-47020A7 |
GSU5#..M;GVU58..M,N W(LOCK),FLAXEN,TRIM0# |
3 | ||
| 71930-47020B5 |
GSU5#,GVU58..G W(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-47020A7 |
GSU5#,GVU58..G W(LOCK),FLAXEN,TRIM0# |
2 | ||
| 71930-47020C0 |
ASU50,GSU5#,GVU58..M,N W(LOCK),BLACK,TRIM2# |
3 | ||
| 71930-47020B5 |
ASU50,GSU5#,GVU58..M,N W(LOCK),GRAY,TRIM1# |
3 | ||
| 71931-47020A7 |
GSU5#,GVU58..G W/O(LOCK),FLAXEN,TRIM0# |
2 | ||
| 71931-47020B5 |
GSU5#,GVU58..G W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-47020C0 |
GSU5#,GVU58..G W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47020A7 |
GSU5#..M;GVU58..M,N W/O(LOCK),FLAXEN,TRIM0# |
3 | ||
| 71931-47020B5 |
ASU50,GSU5#,GVU58..M,N W/O(LOCK),GRAY,TRIM1# |
3 | ||
| 71931-47020C0 |
ASU50,GSU5#,GVU58..M,N W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71931-47020C0 |
GSU5#,GVU58..G W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-47020A7 |
GSU5#..M;GVU58..M,N W(LOCK),FLAXEN,TRIM0# |
3 | ||
| 71930-47020B5 |
GSU5#,GVU58..G W(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-47020A7 |
GSU5#,GVU58..G W(LOCK),FLAXEN,TRIM0# |
2 | ||
| 71930-47020C0 |
ASU50,GSU5#,GVU58..M,N W(LOCK),BLACK,TRIM2# |
3 | ||
| 71930-47020B5 |
ASU50,GSU5#,GVU58..M,N W(LOCK),GRAY,TRIM1# |
3 | ||
| 71931-47020A7 |
GSU5#,GVU58..G W/O(LOCK),FLAXEN,TRIM0# |
2 | ||
| 71931-47020B5 |
GSU5#,GVU58..G W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-47020C0 |
GSU5#,GVU58..G W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47020A7 |
GSU5#..M;GVU58..M,N W/O(LOCK),FLAXEN,TRIM0# |
3 | ||
| 71931-47020B5 |
ASU50,GSU5#,GVU58..M,N W/O(LOCK),GRAY,TRIM1# |
3 | ||
| 71931-47020C0 |
ASU50,GSU5#,GVU58..M,N W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71931-47020C0 |
GSU5#,GVU58..G W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-47020A7 |
GSU5#..M;GVU58..M,N W(LOCK),FLAXEN,TRIM0# |
3 | ||
| 71930-47020B5 |
GSU5#,GVU58..G W(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-47020A7 |
GSU5#,GVU58..G W(LOCK),FLAXEN,TRIM0# |
2 | ||
| 71930-47020C0 |
ASU50,GSU5#,GVU58..M,N W(LOCK),BLACK,TRIM2# |
3 | ||
| 71930-47020B5 |
ASU50,GSU5#,GVU58..M,N W(LOCK),GRAY,TRIM1# |
3 | ||
| 71931-47020A7 |
GSU5#,GVU58..G W/O(LOCK),FLAXEN,TRIM0# |
2 | ||
| 71931-47020B5 |
GSU5#,GVU58..G W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-47020C0 |
GSU5#,GVU58..G W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47020A7 |
GSU5#..M;GVU58..M,N W/O(LOCK),FLAXEN,TRIM0# |
3 | ||
| 71931-47020B5 |
ASU50,GSU5#,GVU58..M,N W/O(LOCK),GRAY,TRIM1# |
3 | ||
| 71931-47020C0 |
ASU50,GSU5#,GVU58..M,N W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71931-47020C0 |
GSU5#,GVU58..G W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-47020A7 |
GSU5#..M;GVU58..M,N W(LOCK),FLAXEN,TRIM0# |
3 | ||
| 71930-47020B5 |
GSU5#,GVU58..G W(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-47020A7 |
GSU5#,GVU58..G W(LOCK),FLAXEN,TRIM0# |
2 | ||
| 71930-47020C0 |
ASU50,GSU5#,GVU58..M,N W(LOCK),BLACK,TRIM2# |
3 | ||
| 71930-47020B5 |
ASU50,GSU5#,GVU58..M,N W(LOCK),GRAY,TRIM1# |
3 | ||
| 71931-47020A7 |
GSU5#,GVU58..G W/O(LOCK),FLAXEN,TRIM0# |
2 | ||
| 71931-47020B5 |
GSU5#,GVU58..G W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-47020C0 |
GSU5#,GVU58..G W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47020A7 |
GSU5#..M;GVU58..M,N W/O(LOCK),FLAXEN,TRIM0# |
3 | ||
| 71931-47020B5 |
ASU50,GSU5#,GVU58..M,N W/O(LOCK),GRAY,TRIM1# |
3 | ||
| 71931-47020C0 |
ASU50,GSU5#,GVU58..M,N W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71931-47020C0 |
GSU5#,GVU58..G W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-0E300B2 |
GVU58;GSU5#..G,M GRAY,TRIM1# |
2 | ||
| 71940-0E301A4 |
GVU58;GSU5#..G,M FLAXEN,TRIM0# |
2 | ||
| 71940-0E300A4 |
GVU58;GSU5#..G,M FLAXEN,TRIM0# |
2 | ||
| 71940-0E301B2 |
GVU58;GSU5#..G,M GRAY,TRIM1# |
2 | ||
| 71940-0E300C2 |
GVU58;GSU5#..G,M BLACK,TRIM2# |
2 | ||
| 71940-0E301C2 |
GVU58;GSU5#..G,M BLACK,TRIM2# |
2 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-0E180B3 |
GSU5#..M;GVU58..M,N GRAY,TRIM1# |
1 | ||
| 71960-0E180A5 |
GSU5#..M;GVU58..M,N FLAXEN,TRIM0# |
1 | ||
| 71960-0E180C3 |
GSU5#..M;GVU58..M,N BLACK,TRIM2# |
1 | ||
| 71960-0E181A5 |
GSU5#..M;GVU58..M,N FLAXEN,TRIM0# |
1 | ||
| 71960-0E181B3 |
GSU5#..M;GVU58..M,N GRAY,TRIM1# |
1 | ||
| 71960-0E181C3 |
GSU5#..M;GVU58..M,N BLACK,TRIM2# |
1 | ||
| 72057 - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH | ||||
| 72057-0E040C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM2# |
1 | ||
| 72057-0E040A0 |
ASU50,GSU5#,GVU58 FLAXEN,TRIM0# |
1 | ||
| 72057-0E040B0 |
ASU50,GSU5#,GVU58 GRAY,TRIM1# |
1 | ||
| 72084 - PAD SUB-ASSY, REAR SEAT CENTER ARMREST, NO.2 | ||||
| 72084-0E020 |
ASU50,GSU5#,GVU58..M,N |
1 | ||
| 72087 - COVER, REAR SEAT CENTER ARMREST, NO.1 | ||||
| 72087-0E080B0 |
GSU5#,GVU58..M GRAY,TRIM1# |
1 | ||
| 72087-0E080A0 |
GSU5#,GVU58..M FLAXEN,TRIM0# |
1 | ||
| 72087-0E080C0 |
GSU5#,GVU58..M BLACK,TRIM2# |
1 | ||
| 72123C - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-0E110C0 |
GVU58 BLACK,TRIM0#,1#,2# |
1 | ||
| 72127G - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72123-0E110C0 |
GVU58..M,N BLACK,TRIM0#,1#,2# |
1 | ||
| 72127-0E070C0 |
GVU58..G BLACK,TRIM0#,1#,2# |
1 | ||
| 72137S - COVER, SEAT TRACK BRACKET, OUTER REAR RH | ||||
| 72137-0E170C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM0#,1#,2# |
1 | ||
| 72157B - COVER, REAR SEAT TRACK BRACKET, INNER RH | ||||
| 72157-0E100C0 |
GVU58..G BLACK,TRIM0#,1#,2# |
1 | ||
| 72157-0E090C0 |
GVU58..M,N BLACK,TRIM0#,1#,2# |
1 | ||
| 72160 - TRACK ASSY, REAR SEAT, OUTER RH | ||||
| 72160-0E060 |
GSU5#,GVU58..G SEAT HEATER-WITH(*DRP & REAR NO.1 SEAT=CAPTAIN TYPE) |
1 | ||
| 72160-0E061 |
GSU5#,GVU58..G SEAT HEATER-WITH(*DRP & REAR NO.1 SEAT=CAPTAIN TYPE) |
1 | ||
| 72160-0E031 |
ASU50,GSU5#,GVU58 |
1 | ||
| 72160-0E030 |
ASU50,GSU5#,GVU58 |
1 | ||
| 72180C - TRACK ASSY, REAR SEAT, INNER RH | ||||
| 72180-0E080 |
GVU58..G |
1 | ||
| 72180-0E060 |
GVU58..M,N |
1 | ||
| 72180-0E061 |
GVU58..M,N |
1 | ||
| 72180-0E081 |
GVU58..G |
1 | ||
| 72210G - CABLE ASSY, REAR NO.1 SEAT TRACK CONTROL, RH | ||||
| 72210-0E030 |
ASU50,GSU5#,GVU58 |
1 | ||
| 72265A - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-0E020 |
ASU50,GSU5#,GVU58 |
2 | ||
| 72307 - LINK SUB-ASSY, RECLINING CONTROL, RH | ||||
| 72307-0E080 |
GSU5#,GVU58..G NO.1 |
1 | ||
| 72307-0E070 |
ASU50,GSU5#,GVU58..M,N NO.2 |
1 | ||
| 72307-0E060 |
ASU50,GSU5#,GVU58..M,N NO.1 |
1 | ||
| 72307-0E090 |
GSU5#,GVU58..G NO.2 |
1 | ||
| 72307 - LINK SUB-ASSY, RECLINING CONTROL, RH | ||||
| 72307-0E080 |
GSU5#,GVU58..G NO.1 |
1 | ||
| 72307-0E070 |
ASU50,GSU5#,GVU58..M,N NO.2 |
1 | ||
| 72307-0E060 |
ASU50,GSU5#,GVU58..M,N NO.1 |
1 | ||
| 72307-0E090 |
GSU5#,GVU58..G NO.2 |
1 | ||
| 72525C - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH | ||||
| 72525-0E030B0 |
ASU50,GSU5#,GVU58 GRAY,TRIM1# |
1 | ||
| 72525-0E030C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM2# |
1 | ||
| 72525-0E030A0 |
ASU50,GSU5#,GVU58 FLAXEN,TRIM0# |
1 | ||
| 72551A - COVER, RECLINING HINGE | ||||
| 72551-0E040B0 |
ASU50,GSU5#,GVU58 GRAY,TRIM1# |
1 | ||
| 72551-0E040C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM2# |
1 | ||
| 72551-0E040A0 |
ASU50,GSU5#,GVU58 FLAXEN,TRIM0# |
1 | ||
| 72593C - KNOB, RECLINING REMOTE CONTROL LEVER, NO.2 | ||||
| 72593-0E060A0 |
ASU50,GSU5#,GVU58 FLAXEN,TRIM0# |
1 | ||
| 72593-0E060B0 |
ASU50,GSU5#,GVU58 GRAY,TRIM1# |
1 | ||
| 72593-0E060C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM2# |
1 | ||
| 72615A - COVER, REAR SEAT BACK LOCK STRIKER, RH | ||||
| 72615-0E060C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM2# |
1 | ||
| 72615-0E060B0 |
ASU50,GSU5#,GVU58 GRAY,TRIM1# |
1 | ||
| 72615-0E060A0 |
ASU50,GSU5#,GVU58 FLAXEN,TRIM0# |
1 | ||
| 72615B - COVER, REAR SEAT LOCK STRIKER, RH | ||||
| 72615-0E060B0 |
ASU50,GSU5#,GVU58 GRAY,TRIM1# |
1 | ||
| 72615-0E060A0 |
ASU50,GSU5#,GVU58 FLAXEN,TRIM0# |
1 | ||
| 72615-0E060C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM2# |
1 | ||
| 72615H - COVER, REAR SEAT BACK LOCK STRIKER, NO.1 | ||||
| 72615-0E120A0 |
ASU50,GSU5#,GVU58 FLAXEN,TRIM0# |
2 | ||
| 72615-0E120C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM2# |
2 | ||
| 72615-0E120B0 |
ASU50,GSU5#,GVU58 GRAY,TRIM1# |
2 | ||
| 72616B - COVER, REAR SEAT LOCK STRIKER | ||||
| 72615-0E060B0 |
ASU50,GSU5#,GVU58 GRAY,TRIM1# |
1 | ||
| 72615-0E060C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM2# |
1 | ||
| 72615-0E060A0 |
ASU50,GSU5#,GVU58 FLAXEN,TRIM0# |
1 | ||
| 72704A - CABLE, REAR SEAT RECLINING CONTROL | ||||
| 72704-0E130 |
ASU50,GSU5#,GVU58 |
1 | ||
| 72704B - CABLE, REAR SEAT RECLINING CONTROL, NO.2 | ||||
| 72704-0E140 |
ASU50,GSU5#,GVU58 |
1 | ||
| 72806D - HOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP | ||||
| 72806-0E010A0 |
GSU5#..M;GVU58..M,N FLAXEN,TRIM0# |
1 | ||
| 72806-0E010C0 |
ASU50,GSU5#,GVU58..M,N BLACK,TRIM2# |
1 | ||
| 72806-0E010B0 |
ASU50,GSU5#,GVU58..M,N GRAY,TRIM1# |
1 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-0E230C1 |
GSU5#,GVU58..M BLACK,TRIM2# |
1 | ||
| 72830-0E230B1 |
GSU5#,GVU58..M GRAY,TRIM1# |
1 | ||
| 72830-0E230A1 |
GSU5#,GVU58..M FLAXEN,TRIM0# |
1 | ||
| 72831B - PLATE, REAR SEAT CENTER ARMREST, NO.1 | ||||
| 72831-0R010 |
ASU50,GSU5#,GVU58..M,N |
1 | ||
| 72831C - PLATE, REAR SEAT CENTER ARMREST, NO.2 | ||||
| 72831-0R020 |
ASU50,GSU5#,GVU58..M,N |
1 | ||
| 72868 - COVER, CENTER ARMREST HINGE, RH | ||||
| 72868-0E020B0 |
ASU50,GSU5#,GVU58..M,N GRAY,TRIM1# |
1 | ||
| 72868-0E020C0 |
ASU50,GSU5#,GVU58..M,N BLACK,TRIM2# |
1 | ||
| 72868-0E020A0 |
ASU50,GSU5#,GVU58..M,N FLAXEN,TRIM0# |
1 | ||
| 72996 - COVER, REAR SEAT BACK, RH | ||||
| 72996-0E070B0 |
ASU50,GSU5#,GVU58 GRAY,TRIM1# |
1 | ||
| 72996-0E070C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM2# |
1 | ||
| 72996-0E070A1 |
ASU50,GSU5#,GVU58 FLAXEN,TRIM0# |
1 | ||
| 72996A - COVER, REAR SEAT BACK | ||||
| 72996-0E110C0 |
ASU50,GSU5#,GVU58..M,N BLACK,TRIM2# |
1 | ||
| 72996-0E110A0 |
GSU5#,GVU58..M,N FLAXEN,TRIM0# |
1 | ||
| 72996-0E110B0 |
ASU50,GSU5#,GVU58..M,N GRAY,TRIM1# |
1 | ||
| 72996E - COVER, REAR SEAT SHIELD INNER, NO.1 | ||||
| 72996-0E100 |
ASU50,GSU5#,GVU58..M,N |
1 | ||
| 79101 - FRAME SUB-ASSY, NO.1 SEAT CUSHION | ||||
| 79101-0E040 |
GVU58..M,N |
1 | ||
| 79101-0E041 |
GVU58..M,N |
1 | ||
| 79101-0E060 |
GVU58..G |
1 | ||
| 79101-0E091 |
GVU58..G SEAT HEATER-WITH(*DRP & REAR NO.1 SEAT=CAPTAIN TYPE) |
1 | ||
| 79101-0E090 |
GVU58..G SEAT HEATER-WITH(*DRP & REAR NO.1 SEAT=CAPTAIN TYPE) |
1 | ||
| 79101-0E061 |
GVU58..G |
1 | ||
| 87501D - CONTROL SUB-ASSY, SEAT HEATER | ||||
| 87501-60040 |
GSU5#,GVU58..G SEAT HEATER-WITH(*DRP & REAR NO.1 SEAT=CAPTAIN TYPE) |
2 | ||
| 87501-60050 |
GSU5#,GVU58..G SEAT HEATER-WITH(*DRP & REAR NO.1 SEAT=CAPTAIN TYPE) |
2 | ||
| 87510P - HEATER ASSY, SEAT | ||||
| 87510-0E100 |
GSU5#,GVU58..G SEAT HEATER-WITH(*DRP & REAR NO.1 SEAT=CAPTAIN TYPE) |
1 | ||
| 87510Q - HEATER ASSY, SEAT | ||||
| 87530-0E090 |
GSU5#,GVU58..G SEAT HEATER-WITH(*DRP & REAR NO.1 SEAT=CAPTAIN TYPE) |
1 | ||
| Common parts | ||||
| 78899-42010 | ||||
| 78899-48040 | ||||
| 82711-02130 | ||||
| 90080-16099 | ||||
| 90080-46007 | ||||
| 90119-10886 | ||||
| 90119-A0384 | ||||
| 90168-50078 | ||||
| 90178-A0037 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
