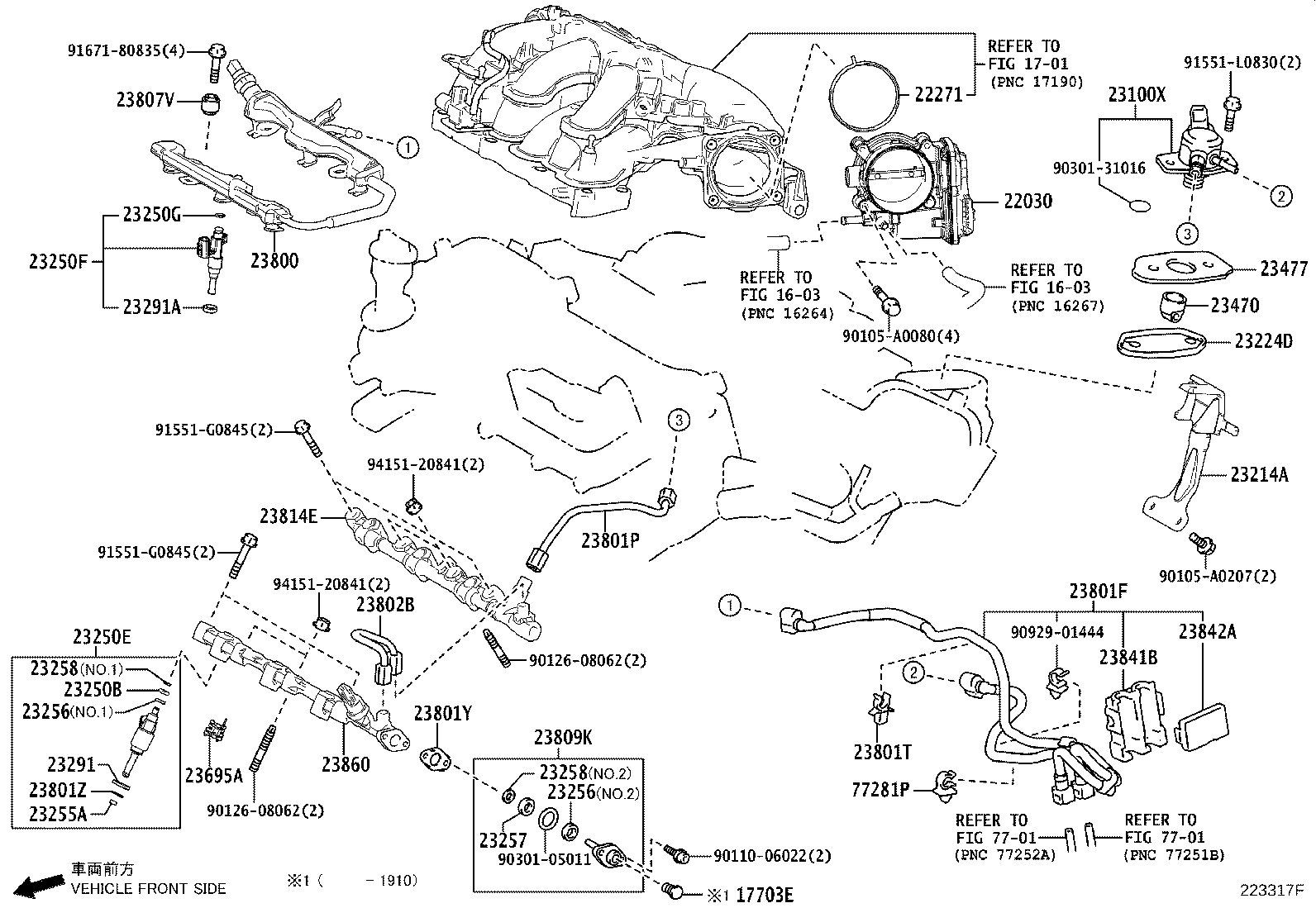

GVU58L-ARXMHA (2016)
Toyota Highlander (Nap)
(1611- )2GRFXS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17703E - CAP SUB-ASSY, DUST | ||||
| 17703-47010 |
2GR#..GSU5#,GVU58 |
1 | ||
| 22030 - BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR | ||||
| 22030-0P060 |
2GR#..GSU5#,GVU58 |
1 | ||
| 22030-0P050 |
2GR#..GSU5#,GVU58 |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-31040 |
2GRFXS..GVU58 |
1 | ||
| 23100X - PUMP ASSY, FUEL (ENGINE ROOM SIDE) | ||||
| 23101-31100 |
2GRFXS..GVU58 |
1 | ||
| 23214A - PROTECTOR, FUEL PUMP | ||||
| 23214-0P030 |
2GRFXS..GVU58 |
1 | ||
| 23224D - GASKET, FUEL PUMP SPACER | ||||
| 23224-31020 |
2GRFXS..GVU58 (J) |
1 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-05011 |
2GRFXS..GVU58 NOK |
6 | ||
| 90301-07033 |
2GR#..GSU5#,GVU58 |
6 | ||
| 90301-05013 |
2GRFXS..GVU58 DENSO |
6 | ||
| 23250E - INJECTOR ASSY, FUEL(FOR DIRECT) | ||||
| 23209-3118002 |
2GRFXS..GVU58 MARK 2 |
6 | ||
| 23209-3118003 |
2GRFXS..GVU58 MARK 3 |
6 | ||
| 23209-3118001 |
2GRFXS..GVU58 MARK 1 |
6 | ||
| 23250F - INJECTOR ASSY, FUEL(FOR PORT) | ||||
| 23209-39325 |
2GRFXS..GVU58 |
6 | ||
| 23209-39335 |
2GRFXS..GVU58 |
6 | ||
| 23250G - RING, O, NO.2(FOR FUEL INJECTOR) | ||||
| 90301-07037 |
2GRFXS..GVU58 |
6 | ||
| 23255A - SEAL, FUEL INJECTOR | ||||
| 23255-31020 |
2GRFXS..GVU58 NOK |
6 | ||
| 23255-31030 |
2GRFXS..GVU58 DENSO |
6 | ||
| 23256 - RING, FUEL INJECTOR BACK-UP, NO.1 | ||||
| 23256-31010 |
2GRFXS..GVU58 NO.1,NOK |
6 | ||
| 23256-25010 |
2GRFXS..GVU58 NO.1,DENSO |
6 | ||
| 23256-31010 |
2GR#..GSU5#,GVU58 NO.2 |
1 | ||
| 23256 - RING, FUEL INJECTOR BACK-UP, NO.1 | ||||
| 23256-31010 |
2GRFXS..GVU58 NO.1,NOK |
6 | ||
| 23256-25010 |
2GRFXS..GVU58 NO.1,DENSO |
6 | ||
| 23256-31010 |
2GR#..GSU5#,GVU58 NO.2 |
1 | ||
| 23257 - RING, FUEL INJECTOR BACK-UP, NO.2 | ||||
| 23257-47010 |
2GR#..GSU5#,GVU58 |
1 | ||
| 23258 - RING, FUEL INJECTOR BACK-UP, NO.3 | ||||
| 23258-31030 |
2GRFXS..GVU58 NO.1 |
6 | ||
| 23258-31010 |
2GR#..GSU5#,GVU58 NO.2 |
1 | ||
| 23258 - RING, FUEL INJECTOR BACK-UP, NO.3 | ||||
| 23258-31030 |
2GRFXS..GVU58 NO.1 |
6 | ||
| 23258-31010 |
2GR#..GSU5#,GVU58 NO.2 |
1 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-31030 |
2GRFXS..GVU58 |
6 | ||
| 23291A - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-28020 |
2GR#..GSU5#,GVU58 |
6 | ||
| 23291-23010 |
2GR#..GSU5#,GVU58 |
6 | ||
| 23470 - LIFTER ASSY, FUEL PUMP | ||||
| 23470-31010 |
2GRFXS..GVU58 |
1 | ||
| 23470-25010 |
2GRFXS..GVU58 |
1 | ||
| 23477 - GUIDE, FUEL PUMP LIFTER | ||||
| 23477-31020 |
2GR#..GSU5#,GVU58 |
1 | ||
| 23695A - CLAMP, NOZZLE HOLDER | ||||
| 23695-31020 |
2GR#..GSU5#,GVU58 |
6 | ||
| 23800 - PIPE ASSY, FUEL DELIVERY W/SENSOR | ||||
| 23800-31040 |
2GRFXS..GVU58 |
1 | ||
| 23800-31010 |
2GRFXS..GVU58 |
1 | ||
| 23801F - HOSE, FUEL, NO.1 | ||||
| 23801-0P040 |
2GRFXS..GVU58 |
1 | ||
| 23801-0P043 |
2GRFXS..GVU58 |
1 | ||
| 23801-0P041 |
2GRFXS..GVU58 |
1 | ||
| 23801-0P042 |
2GRFXS..GVU58 |
1 | ||
| 23801-0P044 |
2GRFXS..GVU58 |
1 | ||
| 23801P - PIPE SUB-ASSY, FUEL, NO.1 | ||||
| 23801-31210 |
2GR#..GSU5#,GVU58 |
1 | ||
| 23801T - CLAMP OR CLIP, FUEL HOSE(FOR EFI) | ||||
| 77281-0E120 |
2GRFXS..GVU58 |
1 | ||
| 23801Y - GASKET | ||||
| 23893-47010 |
2GR#..GSU5#,GVU58 |
1 | ||
| 23801Z - RING, SNAP(FOR FUEL PIPE) | ||||
| 90520-14004 |
2GRFXS..GVU58 |
6 | ||
| 23802B - PIPE SUB-ASSY, FUEL, NO.2 | ||||
| 23802-31160 |
2GR#..GSU5#,GVU58 |
1 | ||
| 23807V - SPACER, NO.1(FOR DELIVERY PIPE) | ||||
| 90561-08023 |
2GR#..GSU5#,GVU58 |
4 | ||
| 23809K - PLUG SUB-ASSY, FUEL PIPE | ||||
| 23809-47010 |
2GR#..GSU5#,GVU58 |
1 | ||
| 23814E - PIPE, FUEL DELIVERY, RH | ||||
| 23807-31110 |
2GRFXS..GVU58 |
1 | ||
| 23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI) | ||||
| 23841-0P050 |
2GR#..GSU5#,GVU58 |
1 | ||
| 23841-0P060 |
2GR#..GSU5#,GVU58 |
1 | ||
| 23841-21050 |
2GR#..GSU5#,GVU58 |
1 | ||
| 23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI) | ||||
| 23842-0P120 |
2GR#..GSU5#,GVU58 |
1 | ||
| 23842-0P140 |
2GR#..GSU5#,GVU58 |
1 | ||
| 23842-31040 |
2GR#..GSU5#,GVU58 |
1 | ||
| 23860 - PIPE ASSY, FUEL DELIVERY W/SENSOR, LH | ||||
| 23860-31030 |
2GRFXS..GVU58 |
1 | ||
| 77281P - CLAMP, FUEL HOSE | ||||
| 77281-0E150 |
GVU58 |
1 | ||
| Common parts | ||||
| 90105-A0080 | ||||
| 90105-A0207 | ||||
| 90110-06022 | ||||
| 90126-08062 | ||||
| 90301-05011 | ||||
| 90301-31016 | ||||
| 90929-01444 | ||||
| 91551-G0845 | ||||
| 91551-L0830 | ||||
| 91671-80835 | ||||
| 94151-20841 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 1701 | ||||
| 7701 | ||||
