GVU58L-ARXGHA (2016)
Toyota Highlander (Nap)
Production
Nov 2016
-
Nov 2019
Engine
2GRFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

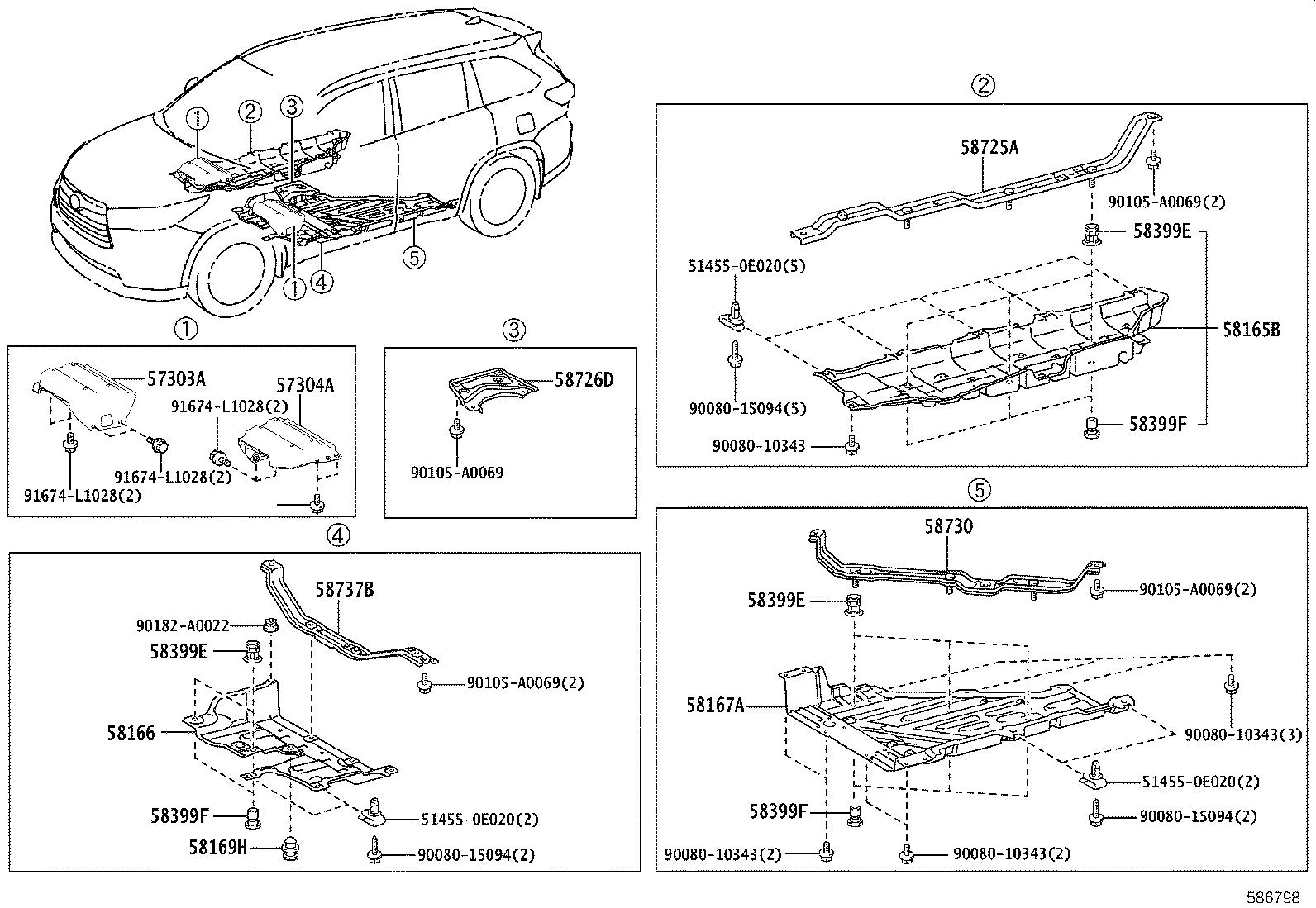

ILLUST NO. 2 OF 2(1811- )GVU58
Click highlighted areas on diagram
FLOOR UNDER COVER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57303A - OUTRIGGER SUB-ASSY, NO.2 RH | ||||
| 57303-0E010 |
ASU50,GSU5#,GVU58 |
1 | ||
| 57303-0E010 |
ASU50,GSU5#,GVU58 |
1 | ||
| 57304A - OUTRIGGER SUB-ASSY, NO.2 LH | ||||
| 57304-0E010 |
ASU50,GSU5#,GVU58 |
1 | ||
| 57304-0E010 |
ASU50,GSU5#,GVU58 |
1 | ||
| 58165B - COVER, FRONT FLOOR, RH | ||||
| 58165-0E040 |
ASU50,GSU5#,GVU58 |
1 | ||
| 50819-0E020 |
GVU58 |
1 | ||
| 58166 - COVER, FRONT FLOOR, LH | ||||
| 58166-0E050 |
ASU50,GSU5#,GVU58 |
1 | ||
| 58166-0E050 |
ASU50,GSU5#,GVU58 |
1 | ||
| 58166-0E051 |
ASU50,GSU5#,GVU58 |
1 | ||
| 58167A - COVER, FRONT FLOOR, CENTER | ||||
| 58167-0E052 |
GVU58 |
1 | ||
| 58167-0E051 |
GVU58 |
1 | ||
| 58169H - PATCH, FRONT FLOOR, REAR | ||||
| 58169-0E010 |
ASU50,GSU5#,GVU58 |
1 | ||
| 58169-0E010 |
ASU50,GSU5#,GVU58 |
1 | ||
| 58399E - CLIP, NO.1(FOR FLOOR UNDER COVER) | ||||
| 90467-A0029A0 |
GVU58 SUPER WHITE 2 |
8 | ||
| 58399E - CLIP, NO.1(FOR FLOOR UNDER COVER) | ||||
| 90467-A0029A0 |
GVU58 SUPER WHITE 2 |
8 | ||
| 58399E - CLIP, NO.1(FOR FLOOR UNDER COVER) | ||||
| 90467-A0029A0 |
GVU58 SUPER WHITE 2 |
8 | ||
| 58399F - CLIP, NO.2(FOR FLOOR UNDER COVER) | ||||
| 90467-A0030C0 |
GVU58 BLACK |
8 | ||
| 90467-A0030C1 |
GVU58 BLACK |
8 | ||
| 58399F - CLIP, NO.2(FOR FLOOR UNDER COVER) | ||||
| 90467-A0030C0 |
GVU58 BLACK |
8 | ||
| 90467-A0030C1 |
GVU58 BLACK |
8 | ||
| 58399F - CLIP, NO.2(FOR FLOOR UNDER COVER) | ||||
| 90467-A0030C0 |
GVU58 BLACK |
8 | ||
| 90467-A0030C1 |
GVU58 BLACK |
8 | ||
| 58725A - STAY, ENGINE SERVICE COVER | ||||
| 58720-0E030 |
ASU50,GSU5#,GVU58 |
1 | ||
| 58720-0E030 |
ASU50,GSU5#,GVU58 |
1 | ||
| 58726D - STAY, ENGINE SERVICE COVER CATCH, REAR LH | ||||
| 58726-0E030 |
ASU50,GSU5#,GVU58 |
1 | ||
| 58726-0E030 |
ASU50,GSU5#,GVU58 |
1 | ||
| 58730 - COVER ASSY, ENGINE SERVICE, REAR | ||||
| 58738-0E010 |
ASU50,GSU5#,GVU58 |
1 | ||
| 58730-0E030 |
ASU50,GSU5#,GVU58 |
1 | ||
| 58737B - BRACKET, ENGINE SERVICE COVER | ||||
| 58737-0E030 |
ASU50,GSU5#,GVU58 |
1 | ||
| 58737-0E030 |
ASU50,GSU5#,GVU58 |
1 | ||
| Common parts | ||||
| 51455-0E020 | ||||
| 90080-10343 | ||||
| 90080-15094 | ||||
| 90105-A0069 | ||||
| 90182-A0022 | ||||
| 91674-L1028 | ||||
