GSU55L-ARZGHA (2016)

Toyota Highlander (Nap)

Production Nov 2016 - Nov 2019
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1611- )GSU5#

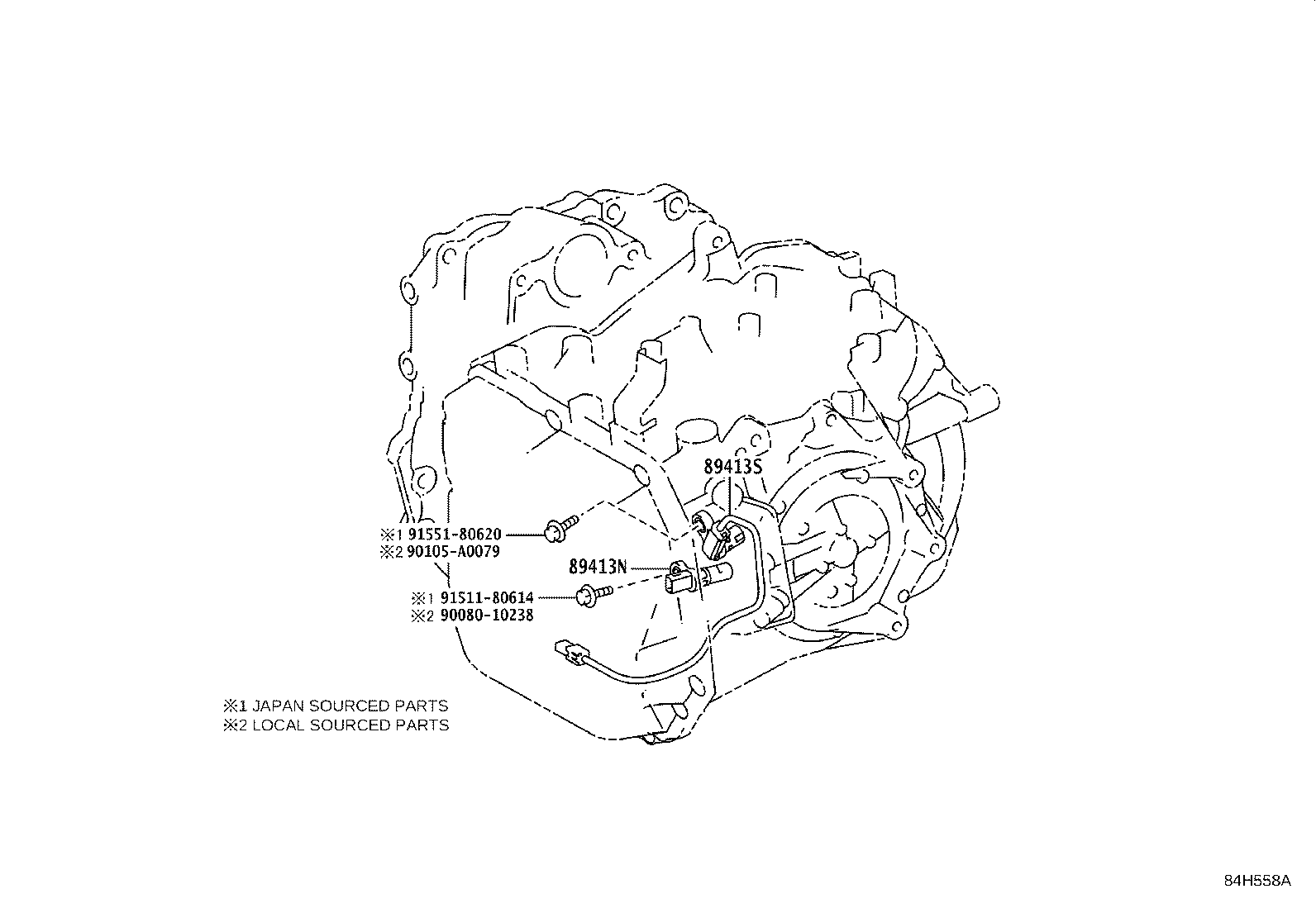

Click highlighted areas on diagram

diagram 89413N 89413S 9008010238 90105A0079 9151180614 9155180620
Part # Description Qty Price
89413N - SENSOR, TRANSMISSION REVOLUTION, (NT)
89413-33040

GSU5#

 1
89413-06021

GSU5#

(L)

 1
89413-33041

GSU5#

(J)

 1
89413S - SENSOR, TRANSMISSION REVOLUTION (NC)
89413-33050

GSU5#

 1
89413-06031

GSU5#

(L)

 1
89413-33051

GSU5#

(J)

 1
Common parts
90080-10238
90105-A0079
91511-80614
91551-80620
