GSU55L-ARZGHA (2016)

Toyota Highlander (Nap)

Production Nov 2016 - Nov 2019
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1611- )

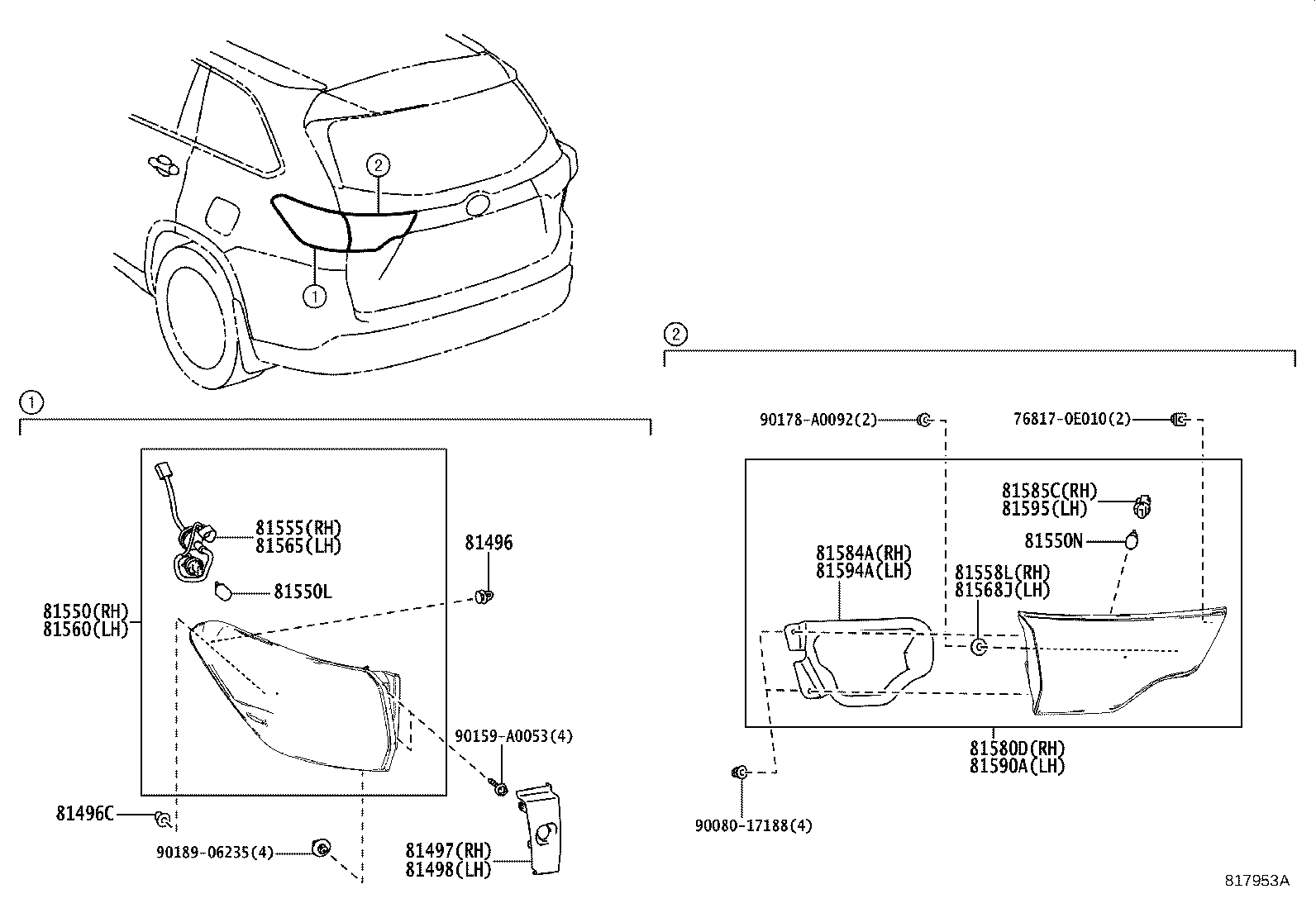

Click highlighted areas on diagram

diagram 768170E010 81496 81496C 81497 81498 81550 81550L 81550N 81555 81558L 81560 81565 81568J 81580D 81584A 81585C 81590A 81594A 81595 9008017188 90159A0053 90178A0092 9018906235
Part # Description Qty Price
81496 - GUIDE, REAR COMBINATION LAMP
81496-0E010

ASU50,GSU5#,GVU58

 2
81496-0E010

ASU50,GSU5#,GVU58

 2
81496C - GUIDE, REAR COMBINATION LAMP, NO.2
81496-0E020

ASU50,GSU5#,GVU58

 2
81496-0E020

ASU50,GSU5#,GVU58

 2
81497 - COVER, REAR COMBINATION LAMP, RH
81497-0E010

ASU50,GSU5#,GVU58

 1
81498 - COVER, REAR COMBINATION LAMP, LH
81498-0E010

ASU50,GSU5#,GVU58

 1
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-0E161

ASU50,GSU5#,GVU58

 1
81550-0E100

ASU50,GSU5#,GVU58

 1
81550-0E250

GSU5#..M

SPECIAL EDITION

 1
81550-0E160

ASU50,GSU5#,GVU58

 1
81550-0E250

GSU5#..M

SE PACKAGE

 1
81550L - BULB, REAR TURN SIGNAL LAMP
90981-15021

ASU50,GSU5#,GVU58

12V 21W,AMBER

 2
90981-15021

ASU50,GSU5#,GVU58

12V 21W,AMBER

 2
81550N - BULB, BACK UP LAMP
90981-11059

ASU50,GSU5#,GVU58

12V 16W

 2
90981-11059

ASU50,GSU5#,GVU58

12V 16W

 2
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-0E160

ASU50,GSU5#,GVU58

 1
81555-0E161

ASU50,GSU5#,GVU58

 1
81558L - PROTECTOR, REAR COMBINATION LAMP, RH
81558-24040

ASU50,GSU5#,GVU58

 1
81558-24040

ASU50,GSU5#,GVU58

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-0E160

ASU50,GSU5#,GVU58

 1
81560-0E100

ASU50,GSU5#,GVU58

 1
81560-0E250

GSU5#..M

SPECIAL EDITION

 1
81560-0E161

ASU50,GSU5#,GVU58

 1
81560-0E250

GSU5#..M

SE PACKAGE

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81565-0E161

ASU50,GSU5#,GVU58

 1
81565-0E160

ASU50,GSU5#,GVU58

 1
81568J - PROTECTOR, REAR COMBINATION LAMP, LH
81558-24040

ASU50,GSU5#,GVU58

 1
81558-24040

ASU50,GSU5#,GVU58

 1
81580D - LAMP ASSY, REAR, RH
81580-0E050

ASU50,GSU5#,GVU58

 1
81580-0E120

ASU50,GSU5#,GVU58

 1
81580-0E190

GSU5#..M

SPECIAL EDITION

 1
81580-0E190

GSU5#..M

SE PACKAGE

 1
81584A - GASKET, REAR LAMP RH
81584-0E050

ASU50,GSU5#,GVU58

 1
81584-0E120

ASU50,GSU5#,GVU58

 1
81585C - SOCKET & WIRE, REAR LAMP, RH
81585-0E120

ASU50,GSU5#,GVU58

 1
81585-0E120

ASU50,GSU5#,GVU58

 1
81590A - LAMP ASSY, REAR, LH
81590-0E190

GSU5#..M

SPECIAL EDITION

 1
81590-0E120

ASU50,GSU5#,GVU58

 1
81590-0E190

GSU5#..M

SE PACKAGE

 1
81590-0E060

ASU50,GSU5#,GVU58

 1
81594A - GASKET, REAR LAMP LH
81594-0E120

ASU50,GSU5#,GVU58

 1
81594-0E060

ASU50,GSU5#,GVU58

 1
81595 - SOCKET & WIRE, REAR LAMP, LH
81585-0E120

ASU50,GSU5#,GVU58

 1
81585-0E120

ASU50,GSU5#,GVU58

 1
Common parts
76817-0E010
90080-17188
90159-A0053
90178-A0092
90189-06235
