GSU55L-ARZGHA (2016)
Toyota Highlander (Nap)
(1611- )GSU5#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48045 - SEAT SUB-ASSY, FRONT SPRING RH, W/INSULATOR | ||||
| 48045-0E020 |
ASU50,GSU5#,GVU58 |
1 | ||
| 48045A - SEAT SUB-ASSY, FRONT SPRING LH, W/INSULATOR | ||||
| 48045-0E020 |
ASU50,GSU5#,GVU58 |
1 | ||
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-0E170 |
GSU55 |
1 | ||
| 48131-0E340 |
GSU55..M SE PACKAGE |
1 | ||
| 48131-0E310 |
GSU55 |
1 | ||
| 48131-0E340 |
GSU55..M SPECIAL EDITION |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48132-0E060 |
GSU55 |
1 | ||
| 48132-0E310 |
GSU55 |
1 | ||
| 48132-0E340 |
GSU55..M SE PACKAGE |
1 | ||
| 48132-0E340 |
GSU55..M SPECIAL EDITION |
1 | ||
| 48158B - INSULATOR, FRONT COIL SPRING, LOWER RH | ||||
| 48158-0E060 |
ASU50,GSU5#,GVU58 |
1 | ||
| 48158-0E100 |
ASU50,GSU5#,GVU58 |
1 | ||
| 48158C - INSULATOR, FRONT COIL SPRING, LOWER LH | ||||
| 48158-0E110 |
ASU50,GSU5#,GVU58 |
1 | ||
| 48158-0E070 |
ASU50,GSU5#,GVU58 |
1 | ||
| 48331B - BUMPER, FRONT SPRING, RH | ||||
| 48331-0E040 |
ASU50,GSU5#,GVU58 |
1 | ||
| 48331-0E070 |
ASU50,GSU5#,GVU58 |
1 | ||
| 48331C - BUMPER, FRONT SPRING, LH | ||||
| 48331-0E040 |
ASU50,GSU5#,GVU58 |
1 | ||
| 48331-0E070 |
ASU50,GSU5#,GVU58 |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-8Z103 |
GSU5# MARK 48510-0E150 |
1 | ||
| 48510-8Z306 |
GSU5# MARK 48510-0E310 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-8Z167 |
GSU5# MARK 48520-0E310 |
1 | ||
| 48520-8Z013 |
GSU5# MARK 48520-0E150 |
1 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48609-0E060 |
ASU50,GSU5#,GVU58 |
1 | ||
| 48609-0E060 |
ASU50,GSU5#,GVU58 |
1 | ||
| 48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH) | ||||
| 90080-17217 |
ASU50,GSU5#,GVU58 |
1 | ||
| 90080-17217 |
ASU50,GSU5#,GVU58 |
1 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-0E060 |
ASU50,GSU5#,GVU58 |
1 | ||
| 48609-0E060 |
ASU50,GSU5#,GVU58 |
1 | ||
| 48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH) | ||||
| 90080-17217 |
ASU50,GSU5#,GVU58 |
1 | ||
| 90080-17217 |
ASU50,GSU5#,GVU58 |
1 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48820-06040 |
ASU50,GSU5#,GVU58 |
1 | ||
| 48820-06040 |
ASU50,GSU5#,GVU58 |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-0E040 |
GSU55 |
1 | ||
| 48811-0E040 |
GSU55 |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-AE030 |
ASU50,GSU5#,GVU58 |
2 | ||
| 48815-AE030 |
ASU50,GSU5#,GVU58 |
2 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-06040 |
ASU50,GSU5#,GVU58 |
1 | ||
| 48820-06040 |
ASU50,GSU5#,GVU58 |
1 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-0E020 |
ASU50,GSU5#,GVU58 |
1 | ||
| 48824-0E020 |
ASU50,GSU5#,GVU58 |
1 | ||
| 48826 - PROTECTOR, FRONT STABILIZER BAR | ||||
| 48826-0E010 |
GSU5# |
1 | ||
| 48827 - BRACKET, FRONT STABILIZER, NO.2 RH | ||||
| 48827-08010 |
ASU50,GSU5#,GVU58 |
1 | ||
| 48827-08010 |
ASU50,GSU5#,GVU58 |
1 | ||
| 48828 - BRACKET, FRONT STABILIZER, NO.2 LH | ||||
| 48827-08010 |
ASU50,GSU5#,GVU58 |
1 | ||
| 48827-08010 |
ASU50,GSU5#,GVU58 |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48824-0E020 |
ASU50,GSU5#,GVU58 |
1 | ||
| 48824-0E020 |
ASU50,GSU5#,GVU58 |
1 | ||
| Common parts | ||||
| 90080-17215 | ||||
| 90080-17224 | ||||
| 90119-08D06 | ||||
| 90178-A0060 | ||||
| 90468-23005 | ||||

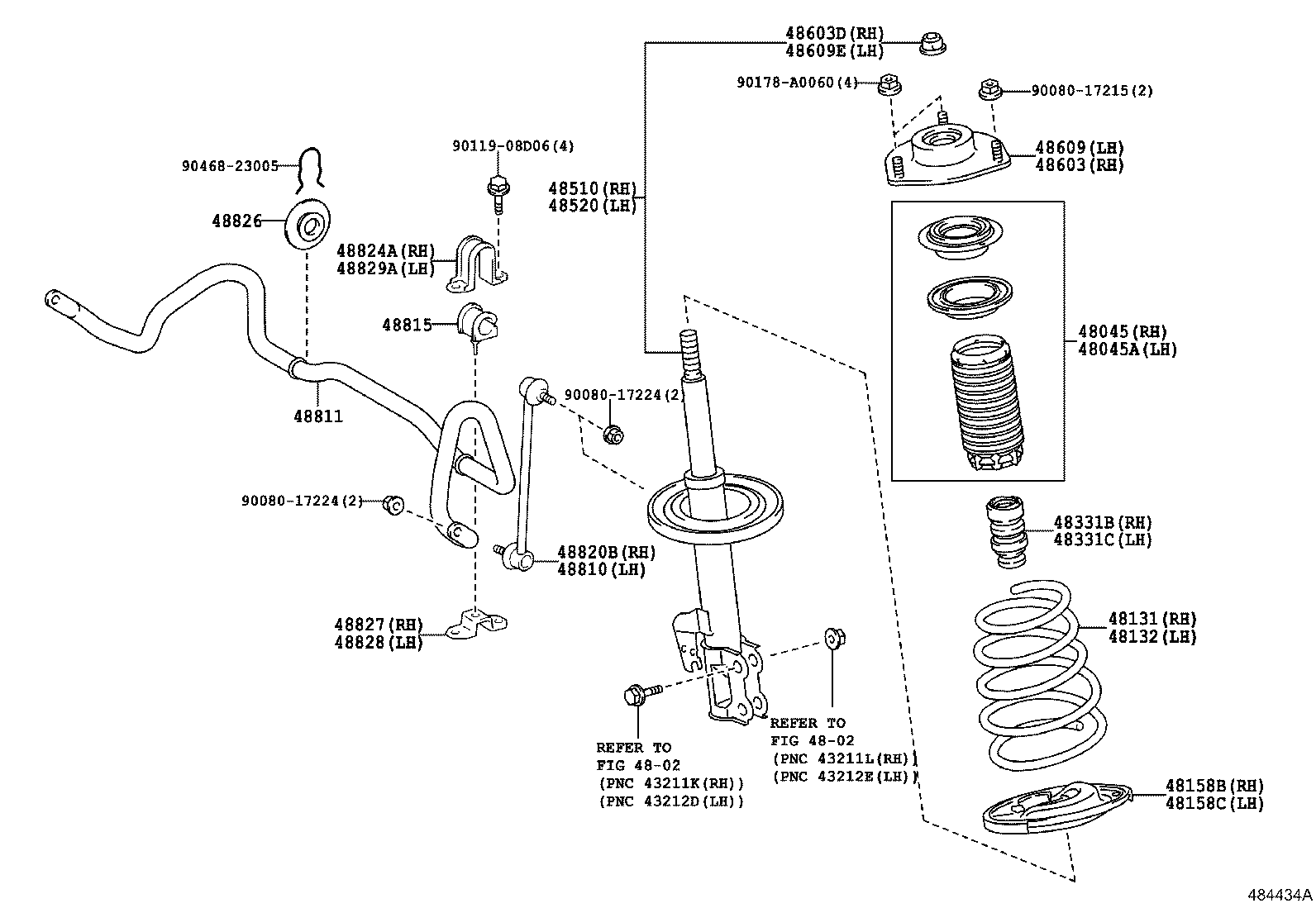

| Linked diagrams | ||||
| 4802 | ||||
