GSU55L-ARZGHA (2016)

Toyota Highlander (Nap)

Production Nov 2016 - Nov 2019
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1611- )GSU5#

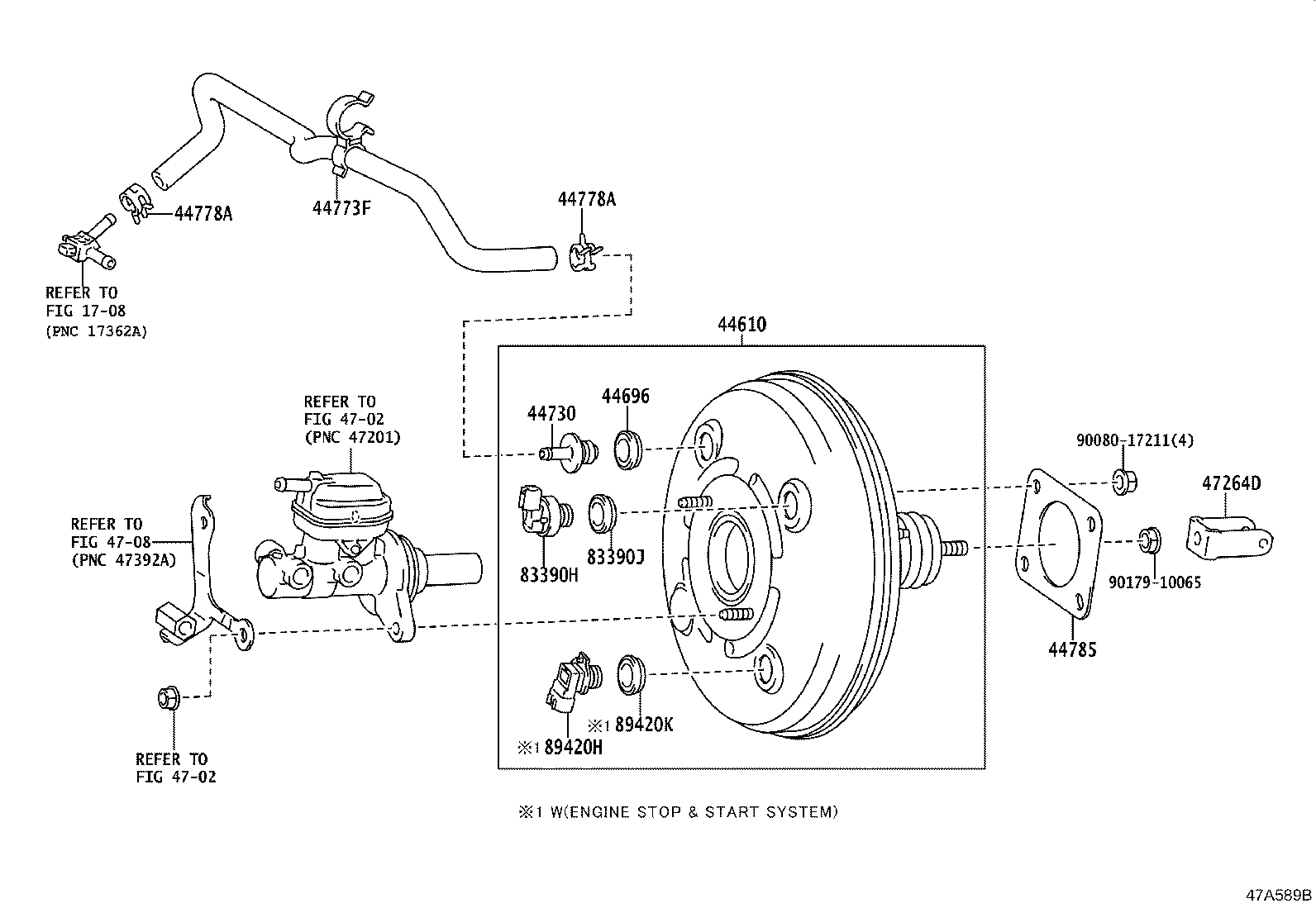

Click highlighted areas on diagram

diagram 1708 44610 44696 44730 44773F 44778A 44778A 44785 4702 4702 4708 47264D 83390H 83390J 89420H 89420K 9008017211 9017910065
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-0E080

GSU5#

 1
44610-0E160

GSU5#..G,M

 1
44696 - GROMMET, CHECK VALVE
90080-48071

GSU5#

 1
90080-48071

GSU5#

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-60070

GSU5#

 1
44730-60070

GSU5#

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-0E040

GSU5#

 1
44773-0E091

GSU5#

 1
44773-0E090

GSU5#

 1
44778A - CLIP(FOR CONNECTOR TO CHECK VALVE HOSE)
90467-16014

GSU5#

 2
90466-A0003

GSU5#

 2
44778A - CLIP(FOR CONNECTOR TO CHECK VALVE HOSE)
90467-16014

GSU5#

 2
90466-A0003

GSU5#

 2
44785 - GASKET, BRAKE BOOSTER
44785-07010

ASU50,GSU5#

 1
44785-07010

ASU50,GSU5#

 1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-06040

GSU5#

 1
47264-06040

GSU5#

(L)

 1
47264-48020

GSU5#

(J)

 1
47264-06040

ASU50,GSU5#

 1
83390H - SWITCH ASSY, VACUUM WARNING
83390-28120

GSU5#

 1
83390J - GROMMET, VACUUM WARNING SWITCH
90080-48071

GSU5#

 1
89420H - SENSOR ASSY, VACUUM
89421-52020

GSU5#..G,M

DESTINATION PACKAGE(ALL)-CANADA

 1
89421-52020

GSU5#..G,M

 1
89421-52020

GSU5#..G,M

DESTINATION PACKAGE(ALL)-USA POSSESSION

 1
89420K - GROMMET, VACUUM SENSOR
90080-48071

GSU5#..G,M

 1
Common parts
90080-17211
90179-10065
Linked diagrams
1708
4702
4708
