Toyota Highlander (nap) GSU55 FRONT DRIVE SHAFT

GSU55L-ARZGHA (2016)

Toyota Highlander (Nap)

Production Nov 2016 - Nov 2019

Engine 2GRFKS

Transmission 8FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

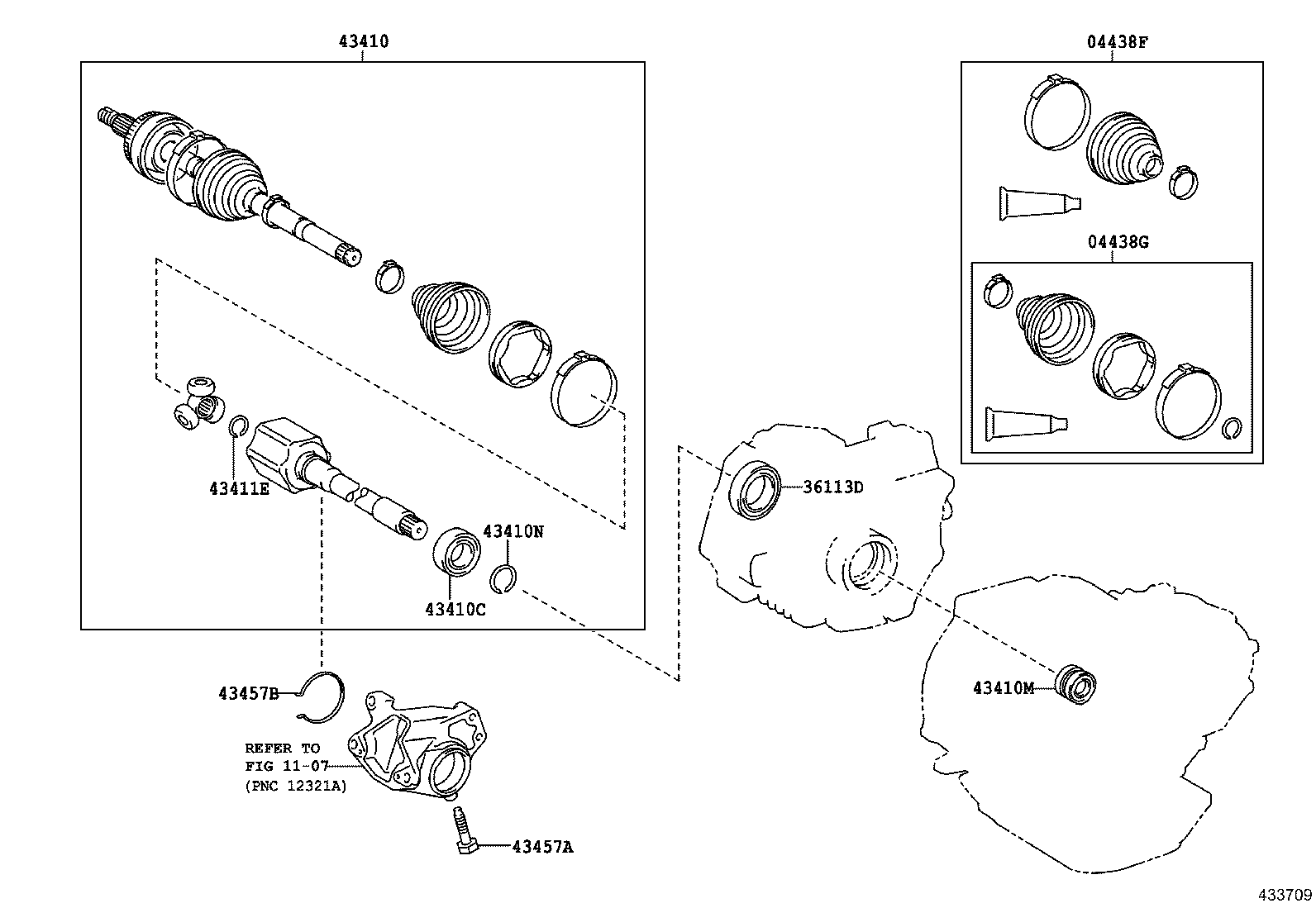

Click highlighted areas on diagram

Part #	Description	Period	Qty
04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH
04428-0W070	GSU55	12/2013 - 11/2016	1
04427-08131	GSU55	02/2019 - 12/2999	1
04427-08130	GSU55	11/2016 - 02/2019	1
04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
04438-08130	GSU55	12/2013 - 11/2016	1
04437-08110	GSU5#,GVU58	02/2019 - 12/2999	1
04437-08070	GSU5#,GVU58	11/2016 - 02/2019	1
36113D - SEAL, OIL (FOR TRANSFER CASE RH)
90311-36006	GSU55	11/2016 - 12/2999	1
90311-36006	GSU55	12/2013 - 11/2016	1
43410 - SHAFT ASSY, FRONT DRIVE, RH
43410-0E130	GSU55	12/2013 - 11/2016	1
43410-0E220	GSU55	11/2016 - 09/2019	1
43410-0E330	GSU55	09/2019 - 12/2999	1
43410C - BEARING (FOR FRONT DRIVE SHAFT)
90363-A0007	GSU55	11/2016 - 12/2999	1
90363-A0007	GSU55	12/2013 - 11/2016	1
43410M - OIL SEAL, FRONT DRIVE SHAFT, RH
90316-34001	GSU55	12/2013 - 11/2016	1
90316-34001	GSU55	11/2016 - 12/2999	1
43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)
90080-52054	GSU55	12/2013 - 11/2016	1
90080-52054	GSU55	11/2016 - 12/2999	1
43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
43425-06450	GSU5#	02/2019 - 12/2999	1
43425-08040	GSU5#	11/2016 - 02/2019	1
43425-08040	ASU50,GSU5#,GVU58	12/2013 - 11/2016	1
43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
90901-19060	GSU55 *10-1.25PX28.5-14.8	11/2016 - 12/2999	1
90901-19060	GSU55 *10-1.25PX28.5-14.8	12/2013 - 11/2016	1
43457B - RING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)
90521-73001	GSU55	12/2013 - 11/2016	1
90521-73001	GSU55	11/2016 - 12/2999	1
Linked diagrams
1107

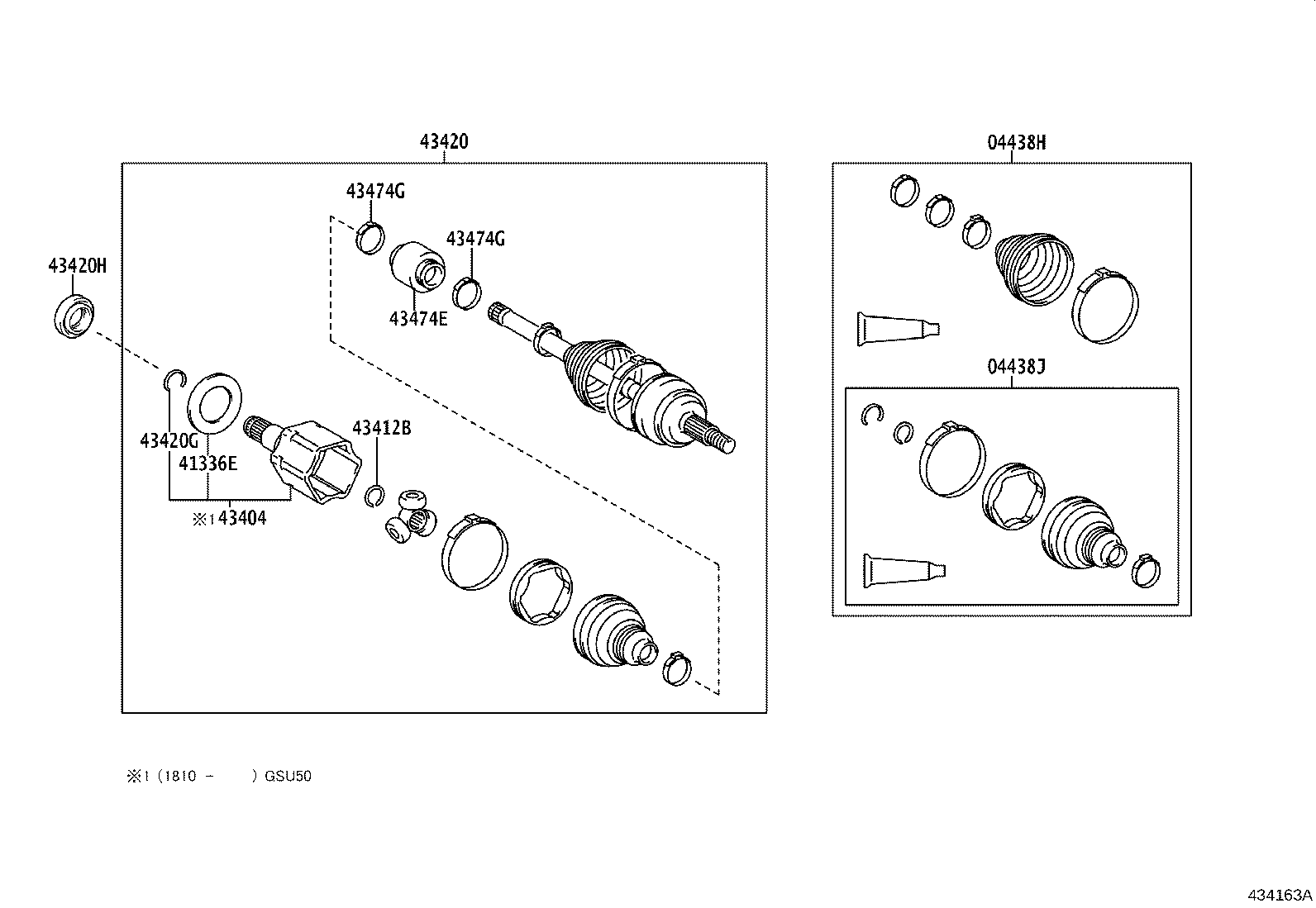

Click highlighted areas on diagram

Part #	Description	Period	Qty
04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH
04427-08151	GSU5#,GVU58	02/2019 - 12/2999	1
04428-0W070	GSU5#,GVU58	12/2013 - 07/2014	1
04427-08150	GSU5#,GVU58	11/2016 - 02/2019	1
04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH
04438-08130	GSU5#,GVU58	12/2013 - 11/2016	1
04437-08120	GSU5#,GVU58	02/2019 - 12/2999	1
04437-08080	GSU5#,GVU58	11/2016 - 02/2019	1
41336E - COVER, FRONT DRIVE SHAFT DUST, LH
41336-06060	GSU5#	12/2013 - 11/2016	1
43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)
43425-08040	ASU50,GSU5#,GVU58	11/2016 - 02/2019	1
43425-08040	ASU50,GSU5#,GVU58	12/2013 - 11/2016	1
43425-06450	GSU5#,GVU58	02/2019 - 12/2999	1
43420 - SHAFT ASSY, FRONT DRIVE, LH
43420-0E150	GSU5#	11/2016 - 09/2019	1
43420-0E210	GSU5#	09/2019 - 12/2999	1
43420-0E100	GSU5#	12/2013 - 11/2016	1
43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)
90080-52017	ASU50,GSU5#,GVU58	11/2016 - 12/2999	1
90080-52017	ASU50,GSU5#,GVU58	12/2013 - 11/2016	1
43420H - OIL SEAL, FRONT DRIVE SHAFT, LH
90311-50059	GSU5#	11/2016 - 12/2999	1
90311-50045	GSU5#	12/2013 - 01/2015	1
43474E - DAMPER, FRONT DRIVE SHAFT, LH
43474-06090	GSU5#	12/2013 - 07/2014	1
43474-06310	ASU50,GSU5#	11/2016 - 12/2999	1
43474G - CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH)
42345-06100	GSU5#,GVU58	12/2013 - 07/2014	1
42345-06790	ASU50,GSU5#,GVU58	11/2016 - 12/2999	2
43474G - CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH)
42345-06100	GSU5#,GVU58	12/2013 - 07/2014	1
42345-06790	ASU50,GSU5#,GVU58	11/2016 - 12/2999	2
