GSU55L-ARZGHA (2016)
Toyota Highlander (Nap)
Production
Nov 2016
-
Nov 2019
Engine
2GRFKS
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1611- )GSU5#

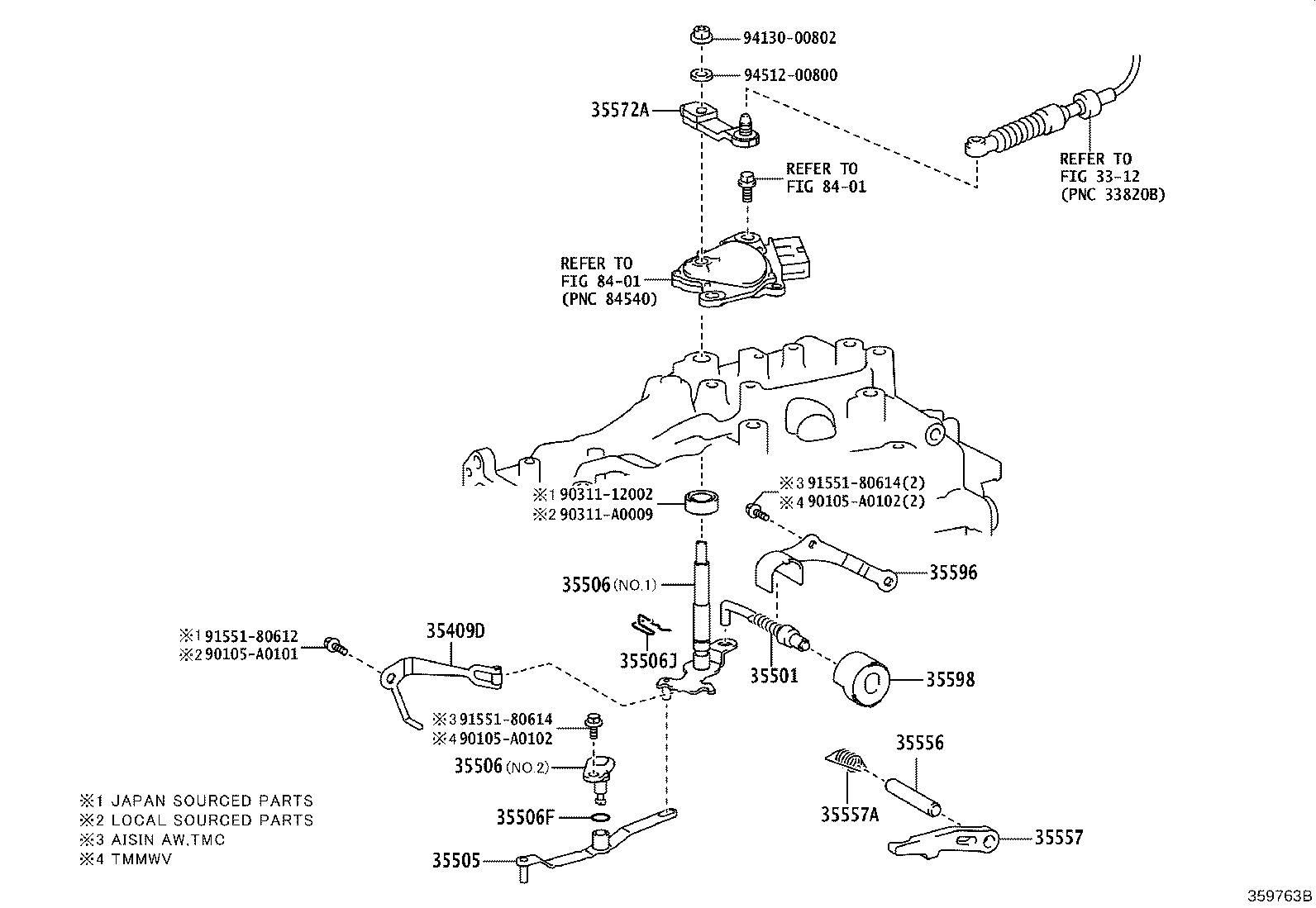

Click highlighted areas on diagram
UA80E,UA80F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35409D - SPRING SUB-ASSY, MANUAL DETENT | ||||
| 35409-48060 |
GSU5# |
1 | ||
| 35501 - ROD SUB-ASSY, PARKING LOCK | ||||
| 35501-33020 |
ASU50,GSU5# |
1 | ||
| 35501-48040 |
GSU5# |
1 | ||
| 35505 - LEVER SUB-ASSY, MANUAL VALVE | ||||
| 35502-48010 |
GSU5# |
1 | ||
| 35506 - SHAFT SUB-ASSY, MANUAL VALVE LEVER | ||||
| 35506-48010 |
GSU5# NO.1,TMC:REFER 35-01 |
1 | ||
| 35506-48020 |
GSU55 NO.1,AISIN:SEE 35-01 |
1 | ||
| 35503-48010 |
GSU5# NO.2 |
1 | ||
| 35506-33020 |
ASU50,GSU5# |
1 | ||
| 35506-06020 |
GSU5# #,NO.1 |
1 | ||
| 35506-48021 |
GSU55 NO.1,AISIN:SEE 35-01 |
1 | ||
| 35506-06021 |
GSU5# #,NO.1 |
1 | ||
| 35506 - SHAFT SUB-ASSY, MANUAL VALVE LEVER | ||||
| 35506-48010 |
GSU5# NO.1,TMC:REFER 35-01 |
1 | ||
| 35506-48020 |
GSU55 NO.1,AISIN:SEE 35-01 |
1 | ||
| 35503-48010 |
GSU5# NO.2 |
1 | ||
| 35506-33020 |
ASU50,GSU5# |
1 | ||
| 35506-06020 |
GSU5# #,NO.1 |
1 | ||
| 35506-48021 |
GSU55 NO.1,AISIN:SEE 35-01 |
1 | ||
| 35506-06021 |
GSU5# #,NO.1 |
1 | ||
| 35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90311-12002 |
GSU5# |
1 | ||
| 90301-A0063 |
GSU5# (L) |
1 | ||
| 90301-09173 |
GSU55 (J) |
1 | ||
| 35506J - SPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90524-09002 |
GSU5# |
1 | ||
| 90524-09004 |
GSU5# |
1 | ||
| 35556 - SHAFT, PARKING LOCK PAWL | ||||
| 35556-33010 |
GSU5# |
1 | ||
| 35556-48030 |
GSU5# TOYOTA:REFER 35-01 |
1 | ||
| 35556-48040 |
GSU55 AISIN:REFER 35-01 |
1 | ||
| 35556-06010 |
GSU5# TMMWV:REFER 35-01 |
1 | ||
| 35557 - PAWL, PARKING LOCK | ||||
| 35557-33021 |
GSU5# |
1 | ||
| 35557-48040 |
GSU5# |
1 | ||
| 35557A - SPRING, TORSION (FOR PARKING LOCK PAWL) | ||||
| 90508-29030 |
GSU5# |
1 | ||
| 35572A - LEVER, TRANSMISSION CONTROL SHAFT | ||||
| 35572-33020 |
GSU5# |
1 | ||
| 35572-48050 |
GSU5# |
1 | ||
| 35596 - PLATE, PAWL STOPPER | ||||
| 35596-33010 |
GSU5# |
1 | ||
| 35596-06010 |
GSU5# (L) |
1 | ||
| 35596-48030 |
GSU55 (J) |
1 | ||
| 35598 - SLEEVE, PARKING LOCK | ||||
| 35598-33010 |
GSU5# |
1 | ||
| 35598-06020 |
GSU5# (L) |
1 | ||
| 35598-48040 |
GSU55 (J) |
1 | ||
| Common parts | ||||
| 90105-A0101 | ||||
| 90105-A0102 | ||||
| 90311-12002 | ||||
| 90311-A0009 | ||||
| 91551-80612 | ||||
| 91551-80614 | ||||
| 94130-00802 | ||||
| 94512-00800 | ||||
| Linked diagrams | ||||
| 3312 | ||||
| 8401 | ||||
