GSU55L-ARZGHA (2016)
Toyota Highlander (Nap)

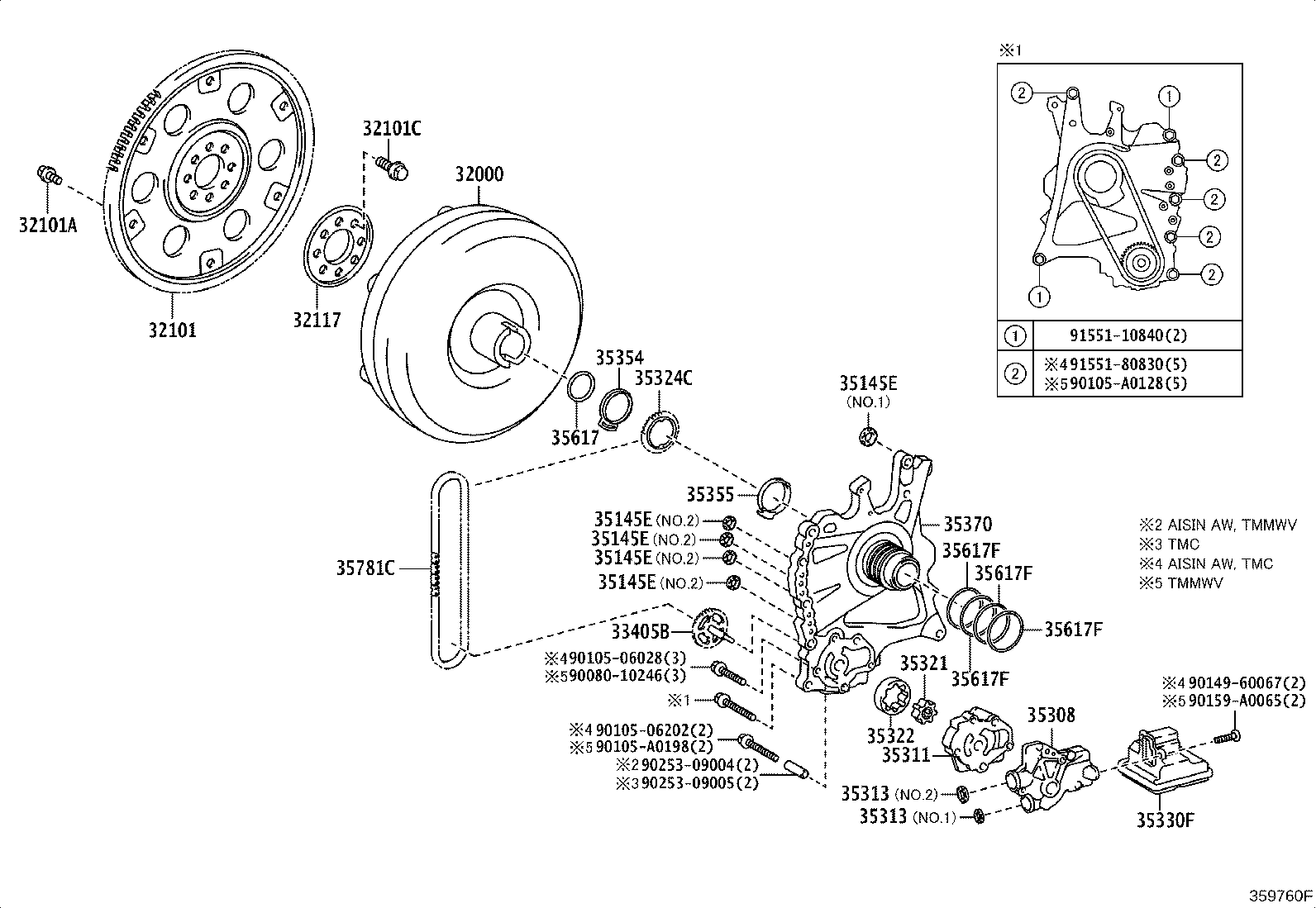

(1611- )GSU5#
UA80E,UA80F WITHOUT(STOP & START)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32000 - CONVERTER ASSY, TORQUE | ||||
| 32000-48060 |
GSU5# |
1 | ||
| 32000-33132 |
GSU5# |
1 | ||
| 32000-06070 |
GSU5# TMMWV:REFER 35-01 |
1 | ||
| 32000-48060 |
GSU55 AISIN AW:REFER 35-01 |
1 | ||
| 32101 - GEAR SUB-ASSY, DRIVE PLATE & RING | ||||
| 32101-0E020 |
GSU5#..G,M (L) |
1 | ||
| 32101-48010 |
GSU5# (J) |
1 | ||
| 32101-0E010 |
GSU5# (L) |
1 | ||
| 32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) | ||||
| 90109-09001 |
ASU50,GSU5# *9-1.25PX12.4-7.3,BLACK |
1 | ||
| 90119-09025 |
ASU50,GSU5# *9-1.25PX12.4-8.4,SILVER WHITE |
5 | ||
| 90109-09001 |
ASU50,GSU5# *9-1.25PX12.4-7.3,BLACK |
1 | ||
| 90119-09025 |
ASU50,GSU5# *9-1.25PX12.4-8.4,SILVER WHITE |
5 | ||
| 32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING) | ||||
| 90105-10048 |
GSU5# *10-1.25PX18-13 |
8 | ||
| 90105-10048 |
GSU5# *10-1.25PX18-13 |
8 | ||
| 32117 - SPACER, DRIVE PLATE, REAR | ||||
| 32117-32020 |
GSU5# |
1 | ||
| 32117-32020 |
GSU5# |
1 | ||
| 33405B - SHAFT SUB-ASSY, OIL PUMP DRIVE | ||||
| 33405-06010 |
GSU5# (L) |
1 | ||
| 33405-48010 |
GSU55 (J) |
1 | ||
| 35145E - GASKET, TRANSAXLE CASE | ||||
| 35145-48030 |
GSU5# NO.2,TMC:REFER 35-01 |
4 | ||
| 35145-33010 |
GSU5#..G,M NO.1,TMC:REFER 35-01 |
2 | ||
| 35145-07010 |
GSU5#..G,M NO.1,TMMWV:SEE 35-01 |
2 | ||
| 35145-33010 |
GSU55..G,M NO.1,AISIN:SEE 35-01 |
2 | ||
| 35145-48030 |
GSU5# NO.2,TMMWV:SEE 35-01 |
4 | ||
| 35145-48030 |
GSU55 NO.2,AISIN:SEE 35-01 |
4 | ||
| 35145E - GASKET, TRANSAXLE CASE | ||||
| 35145-48030 |
GSU5# NO.2,TMC:REFER 35-01 |
4 | ||
| 35145-33010 |
GSU5#..G,M NO.1,TMC:REFER 35-01 |
2 | ||
| 35145-07010 |
GSU5#..G,M NO.1,TMMWV:SEE 35-01 |
2 | ||
| 35145-33010 |
GSU55..G,M NO.1,AISIN:SEE 35-01 |
2 | ||
| 35145-48030 |
GSU5# NO.2,TMMWV:SEE 35-01 |
4 | ||
| 35145-48030 |
GSU55 NO.2,AISIN:SEE 35-01 |
4 | ||
| 35145E - GASKET, TRANSAXLE CASE | ||||
| 35145-48030 |
GSU5# NO.2,TMC:REFER 35-01 |
4 | ||
| 35145-33010 |
GSU5#..G,M NO.1,TMC:REFER 35-01 |
2 | ||
| 35145-07010 |
GSU5#..G,M NO.1,TMMWV:SEE 35-01 |
2 | ||
| 35145-33010 |
GSU55..G,M NO.1,AISIN:SEE 35-01 |
2 | ||
| 35145-48030 |
GSU5# NO.2,TMMWV:SEE 35-01 |
4 | ||
| 35145-48030 |
GSU55 NO.2,AISIN:SEE 35-01 |
4 | ||
| 35145E - GASKET, TRANSAXLE CASE | ||||
| 35145-48030 |
GSU5# NO.2,TMC:REFER 35-01 |
4 | ||
| 35145-33010 |
GSU5#..G,M NO.1,TMC:REFER 35-01 |
2 | ||
| 35145-07010 |
GSU5#..G,M NO.1,TMMWV:SEE 35-01 |
2 | ||
| 35145-33010 |
GSU55..G,M NO.1,AISIN:SEE 35-01 |
2 | ||
| 35145-48030 |
GSU5# NO.2,TMMWV:SEE 35-01 |
4 | ||
| 35145-48030 |
GSU55 NO.2,AISIN:SEE 35-01 |
4 | ||
| 35145E - GASKET, TRANSAXLE CASE | ||||
| 35145-48030 |
GSU5# NO.2,TMC:REFER 35-01 |
4 | ||
| 35145-33010 |
GSU5#..G,M NO.1,TMC:REFER 35-01 |
2 | ||
| 35145-07010 |
GSU5#..G,M NO.1,TMMWV:SEE 35-01 |
2 | ||
| 35145-33010 |
GSU55..G,M NO.1,AISIN:SEE 35-01 |
2 | ||
| 35145-48030 |
GSU5# NO.2,TMMWV:SEE 35-01 |
4 | ||
| 35145-48030 |
GSU55 NO.2,AISIN:SEE 35-01 |
4 | ||
| 35311 - BODY, FRONT OIL PUMP | ||||
| 35311-48030 |
GSU5# TOYOTA:REFER 35-01 |
1 | ||
| 35311-48040 |
GSU55 AISIN AW:REFER 35-01 |
1 | ||
| 35311-06030 |
GSU5# TMMWV:REFER 35-01 |
1 | ||
| 35313 - GASKET, FRONT OIL PUMP COVER | ||||
| 35313-48020 |
GSU5# NO.1,TMC:REFER 35-01 |
1 | ||
| 35313-48020 |
GSU55 NO.1,AISIN:SEE 35-01 |
1 | ||
| 35313-48020 |
GSU5# NO.1,TMMWV:SEE 35-01 |
1 | ||
| 35313-48030 |
GSU5# NO.2,TMMWV:SEE 35-01 |
1 | ||
| 35313-48030 |
GSU5# NO.2,TMC:REFER 35-01 |
1 | ||
| 35313-48030 |
GSU55 NO.2,AISIN:SEE 35-01 |
1 | ||
| 35313 - GASKET, FRONT OIL PUMP COVER | ||||
| 35313-48020 |
GSU5# NO.1,TMC:REFER 35-01 |
1 | ||
| 35313-48020 |
GSU55 NO.1,AISIN:SEE 35-01 |
1 | ||
| 35313-48020 |
GSU5# NO.1,TMMWV:SEE 35-01 |
1 | ||
| 35313-48030 |
GSU5# NO.2,TMMWV:SEE 35-01 |
1 | ||
| 35313-48030 |
GSU5# NO.2,TMC:REFER 35-01 |
1 | ||
| 35313-48030 |
GSU55 NO.2,AISIN:SEE 35-01 |
1 | ||
| 35321 - GEAR, FRONT OIL PUMP DRIVE | ||||
| 35321-33141 |
GSU5# T=11.567,MARK 4 |
1 | ||
| 35321-33121 |
GSU5# T=11.567,MARK 2 |
1 | ||
| 35321-33151 |
GSU5# T=11.567,MARK 5 |
1 | ||
| 35321-33111 |
GSU5# T=11.567,MARK 1 |
1 | ||
| 35321-33131 |
GSU5# T=11.567,MARK 3 |
1 | ||
| 35321-06160 |
GSU5# T=16.66,(L) |
1 | ||
| 35321-48110 |
GSU55 T=16.66,(J) |
1 | ||
| 35322 - GEAR, FRONT OIL PUMP DRIVEN | ||||
| 35322-33120 |
GSU5# T=11.567,MARK 2 |
1 | ||
| 35322-33140 |
GSU5# T=11.567,MARK 4 |
1 | ||
| 35322-33150 |
GSU5# T=11.567,MARK 5 |
1 | ||
| 35322-33130 |
GSU5# T=11.567,MARK 3 |
1 | ||
| 35322-33110 |
GSU5# T=11.567,MARK 1 |
1 | ||
| 35322-48110 |
GSU55 T=16.66,(J) |
1 | ||
| 35322-06160 |
GSU5# T=16.66,(L) |
1 | ||
| 35324C - SPROCKET, TRANSMISSION OIL PUMP DRIVE | ||||
| 35324-48030 |
GSU5# TOYOTA:REFER 35-01 |
1 | ||
| 35324-06010 |
GSU5# TMMWV:REFER 35-01 |
1 | ||
| 35324-48040 |
GSU55 AISIN AW:REFER 35-01 |
1 | ||
| 35330F - STRAINER ASSY, OIL | ||||
| 35330-06020 |
GSU5# (L) |
1 | ||
| 35330-48040 |
GSU55 (J) |
1 | ||
| 35354 - WASHER, OIL PUMP SPROCKET THRUST, FRONT | ||||
| 35354-48010 |
GSU5# |
1 | ||
| 35355 - WASHER, OIL PUMP SPROCKET THRUST, REAR | ||||
| 35355-48010 |
GSU5# |
1 | ||
| 35370 - SHAFT ASSY, STATOR | ||||
| 35370-48030 |
GSU5# TOYOTA:REFER 35-01 |
1 | ||
| 35370-33031 |
GSU5# |
1 | ||
| 35370-48040 |
GSU55 AISIN AW:REFER 35-01 |
1 | ||
| 35370-06040 |
GSU5# TMMWV:REFER 35-01 |
1 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-48050 |
GSU5# |
1 | ||
| 35617F - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-48060 |
GSU5# |
4 | ||
| 35617F - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-48060 |
GSU5# |
4 | ||
| 35617F - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-48060 |
GSU5# |
4 | ||
| 35617F - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-48060 |
GSU5# |
4 | ||
| 35781C - CHAIN, TRANSMISSION DRIVE | ||||
| 35781-48020 |
GSU55 (J) |
1 | ||
| 35781-06010 |
GSU5# (L) |
1 | ||
| Common parts | ||||
| 90080-10246 | ||||
| 90105-06028 | ||||
| 90105-06202 | ||||
| 90105-A0128 | ||||
| 90105-A0198 | ||||
| 90149-60067 | ||||
| 90159-A0065 | ||||
| 90253-09004 | ||||
| 90253-09005 | ||||
| 91551-10840 | ||||
| 91551-80830 | ||||

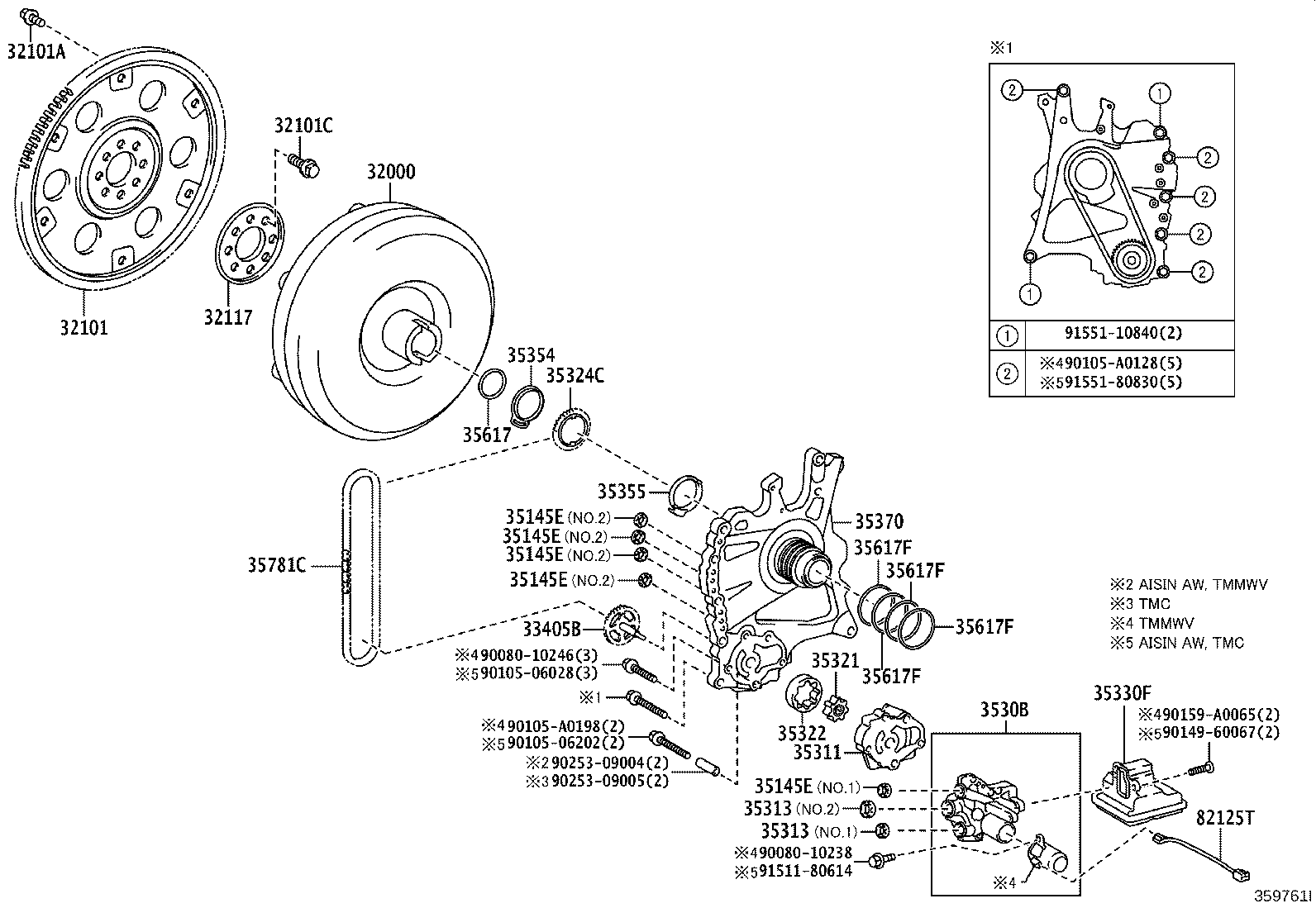

(1611- )GSU5#
UA80E,UA80F WITH(STOP & START)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32000 - CONVERTER ASSY, TORQUE | ||||
| 32000-48060 |
GSU5# |
1 | ||
| 32000-33132 |
GSU5# |
1 | ||
| 32000-06070 |
GSU5# TMMWV:REFER 35-01 |
1 | ||
| 32000-48060 |
GSU55 AISIN AW:REFER 35-01 |
1 | ||
| 32101 - GEAR SUB-ASSY, DRIVE PLATE & RING | ||||
| 32101-0E020 |
GSU5#..G,M (L) |
1 | ||
| 32101-48010 |
GSU5# (J) |
1 | ||
| 32101-0E010 |
GSU5# (L) |
1 | ||
| 32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) | ||||
| 90109-09001 |
ASU50,GSU5# *9-1.25PX12.4-7.3,BLACK |
1 | ||
| 90119-09025 |
ASU50,GSU5# *9-1.25PX12.4-8.4,SILVER WHITE |
5 | ||
| 90109-09001 |
ASU50,GSU5# *9-1.25PX12.4-7.3,BLACK |
1 | ||
| 90119-09025 |
ASU50,GSU5# *9-1.25PX12.4-8.4,SILVER WHITE |
5 | ||
| 32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING) | ||||
| 90105-10048 |
GSU5# *10-1.25PX18-13 |
8 | ||
| 90105-10048 |
GSU5# *10-1.25PX18-13 |
8 | ||
| 32117 - SPACER, DRIVE PLATE, REAR | ||||
| 32117-32020 |
GSU5# |
1 | ||
| 32117-32020 |
GSU5# |
1 | ||
| 33405B - SHAFT SUB-ASSY, OIL PUMP DRIVE | ||||
| 33405-06010 |
GSU5# (L) |
1 | ||
| 33405-48010 |
GSU55 (J) |
1 | ||
| 35145E - GASKET, TRANSAXLE CASE | ||||
| 35145-48030 |
GSU5# NO.2,TMC:REFER 35-01 |
4 | ||
| 35145-33010 |
GSU5#..G,M NO.1,TMC:REFER 35-01 |
2 | ||
| 35145-07010 |
GSU5#..G,M NO.1,TMMWV:SEE 35-01 |
2 | ||
| 35145-33010 |
GSU55..G,M NO.1,AISIN:SEE 35-01 |
2 | ||
| 35145-48030 |
GSU5# NO.2,TMMWV:SEE 35-01 |
4 | ||
| 35145-48030 |
GSU55 NO.2,AISIN:SEE 35-01 |
4 | ||
| 35145E - GASKET, TRANSAXLE CASE | ||||
| 35145-48030 |
GSU5# NO.2,TMC:REFER 35-01 |
4 | ||
| 35145-33010 |
GSU5#..G,M NO.1,TMC:REFER 35-01 |
2 | ||
| 35145-07010 |
GSU5#..G,M NO.1,TMMWV:SEE 35-01 |
2 | ||
| 35145-33010 |
GSU55..G,M NO.1,AISIN:SEE 35-01 |
2 | ||
| 35145-48030 |
GSU5# NO.2,TMMWV:SEE 35-01 |
4 | ||
| 35145-48030 |
GSU55 NO.2,AISIN:SEE 35-01 |
4 | ||
| 35145E - GASKET, TRANSAXLE CASE | ||||
| 35145-48030 |
GSU5# NO.2,TMC:REFER 35-01 |
4 | ||
| 35145-33010 |
GSU5#..G,M NO.1,TMC:REFER 35-01 |
2 | ||
| 35145-07010 |
GSU5#..G,M NO.1,TMMWV:SEE 35-01 |
2 | ||
| 35145-33010 |
GSU55..G,M NO.1,AISIN:SEE 35-01 |
2 | ||
| 35145-48030 |
GSU5# NO.2,TMMWV:SEE 35-01 |
4 | ||
| 35145-48030 |
GSU55 NO.2,AISIN:SEE 35-01 |
4 | ||
| 35145E - GASKET, TRANSAXLE CASE | ||||
| 35145-48030 |
GSU5# NO.2,TMC:REFER 35-01 |
4 | ||
| 35145-33010 |
GSU5#..G,M NO.1,TMC:REFER 35-01 |
2 | ||
| 35145-07010 |
GSU5#..G,M NO.1,TMMWV:SEE 35-01 |
2 | ||
| 35145-33010 |
GSU55..G,M NO.1,AISIN:SEE 35-01 |
2 | ||
| 35145-48030 |
GSU5# NO.2,TMMWV:SEE 35-01 |
4 | ||
| 35145-48030 |
GSU55 NO.2,AISIN:SEE 35-01 |
4 | ||
| 35145E - GASKET, TRANSAXLE CASE | ||||
| 35145-48030 |
GSU5# NO.2,TMC:REFER 35-01 |
4 | ||
| 35145-33010 |
GSU5#..G,M NO.1,TMC:REFER 35-01 |
2 | ||
| 35145-07010 |
GSU5#..G,M NO.1,TMMWV:SEE 35-01 |
2 | ||
| 35145-33010 |
GSU55..G,M NO.1,AISIN:SEE 35-01 |
2 | ||
| 35145-48030 |
GSU5# NO.2,TMMWV:SEE 35-01 |
4 | ||
| 35145-48030 |
GSU55 NO.2,AISIN:SEE 35-01 |
4 | ||
| 3530B - COVER SUB-ASSY, FRONT OIL PUMP & SOLENOID | ||||
| 3530B-48010 |
GSU5#..G,M TOYOTA:REFER 35-01 |
1 | ||
| 3530B-48030 |
GSU5#..G,M TOYOTA:REFER 35-01 |
1 | ||
| 3530B-48020 |
GSU5#..G,M AISIN:REFER 35-01 |
1 | ||
| 3530B-48040 |
GSU5#..G,M AISIN:REFER 35-01 |
1 | ||
| 3530B-0E020 |
GSU5#..G,M |
1 | ||
| 35311 - BODY, FRONT OIL PUMP | ||||
| 35311-48030 |
GSU5# TOYOTA:REFER 35-01 |
1 | ||
| 35311-48040 |
GSU55 AISIN AW:REFER 35-01 |
1 | ||
| 35311-06030 |
GSU5# TMMWV:REFER 35-01 |
1 | ||
| 35313 - GASKET, FRONT OIL PUMP COVER | ||||
| 35313-48020 |
GSU5# NO.1,TMC:REFER 35-01 |
1 | ||
| 35313-48020 |
GSU55 NO.1,AISIN:SEE 35-01 |
1 | ||
| 35313-48020 |
GSU5# NO.1,TMMWV:SEE 35-01 |
1 | ||
| 35313-48030 |
GSU5# NO.2,TMMWV:SEE 35-01 |
1 | ||
| 35313-48030 |
GSU5# NO.2,TMC:REFER 35-01 |
1 | ||
| 35313-48030 |
GSU55 NO.2,AISIN:SEE 35-01 |
1 | ||
| 35313 - GASKET, FRONT OIL PUMP COVER | ||||
| 35313-48020 |
GSU5# NO.1,TMC:REFER 35-01 |
1 | ||
| 35313-48020 |
GSU55 NO.1,AISIN:SEE 35-01 |
1 | ||
| 35313-48020 |
GSU5# NO.1,TMMWV:SEE 35-01 |
1 | ||
| 35313-48030 |
GSU5# NO.2,TMMWV:SEE 35-01 |
1 | ||
| 35313-48030 |
GSU5# NO.2,TMC:REFER 35-01 |
1 | ||
| 35313-48030 |
GSU55 NO.2,AISIN:SEE 35-01 |
1 | ||
| 35321 - GEAR, FRONT OIL PUMP DRIVE | ||||
| 35321-33141 |
GSU5# T=11.567,MARK 4 |
1 | ||
| 35321-33121 |
GSU5# T=11.567,MARK 2 |
1 | ||
| 35321-33151 |
GSU5# T=11.567,MARK 5 |
1 | ||
| 35321-33111 |
GSU5# T=11.567,MARK 1 |
1 | ||
| 35321-33131 |
GSU5# T=11.567,MARK 3 |
1 | ||
| 35321-06160 |
GSU5# T=16.66,(L) |
1 | ||
| 35321-48110 |
GSU55 T=16.66,(J) |
1 | ||
| 35322 - GEAR, FRONT OIL PUMP DRIVEN | ||||
| 35322-33120 |
GSU5# T=11.567,MARK 2 |
1 | ||
| 35322-33140 |
GSU5# T=11.567,MARK 4 |
1 | ||
| 35322-33150 |
GSU5# T=11.567,MARK 5 |
1 | ||
| 35322-33130 |
GSU5# T=11.567,MARK 3 |
1 | ||
| 35322-33110 |
GSU5# T=11.567,MARK 1 |
1 | ||
| 35322-48110 |
GSU55 T=16.66,(J) |
1 | ||
| 35322-06160 |
GSU5# T=16.66,(L) |
1 | ||
| 35324C - SPROCKET, TRANSMISSION OIL PUMP DRIVE | ||||
| 35324-48030 |
GSU5# TOYOTA:REFER 35-01 |
1 | ||
| 35324-06010 |
GSU5# TMMWV:REFER 35-01 |
1 | ||
| 35324-48040 |
GSU55 AISIN AW:REFER 35-01 |
1 | ||
| 35330F - STRAINER ASSY, OIL | ||||
| 35330-06020 |
GSU5# (L) |
1 | ||
| 35330-48040 |
GSU55 (J) |
1 | ||
| 35354 - WASHER, OIL PUMP SPROCKET THRUST, FRONT | ||||
| 35354-48010 |
GSU5# |
1 | ||
| 35355 - WASHER, OIL PUMP SPROCKET THRUST, REAR | ||||
| 35355-48010 |
GSU5# |
1 | ||
| 35370 - SHAFT ASSY, STATOR | ||||
| 35370-48030 |
GSU5# TOYOTA:REFER 35-01 |
1 | ||
| 35370-33031 |
GSU5# |
1 | ||
| 35370-48040 |
GSU55 AISIN AW:REFER 35-01 |
1 | ||
| 35370-06040 |
GSU5# TMMWV:REFER 35-01 |
1 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-48050 |
GSU5# |
1 | ||
| 35617F - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-48060 |
GSU5# |
4 | ||
| 35617F - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-48060 |
GSU5# |
4 | ||
| 35617F - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-48060 |
GSU5# |
4 | ||
| 35617F - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-48060 |
GSU5# |
4 | ||
| 35781C - CHAIN, TRANSMISSION DRIVE | ||||
| 35781-48020 |
GSU55 (J) |
1 | ||
| 35781-06010 |
GSU5# (L) |
1 | ||
| 82125T - WIRE, TRANSMISSION | ||||
| 82125-48080 |
GSU5#..G,M |
1 | ||
| 82125-48050 |
GSU5#..G,M |
1 | ||
| Common parts | ||||
| 90080-10238 | ||||
| 90080-10246 | ||||
| 90105-06028 | ||||
| 90105-06202 | ||||
| 90105-A0128 | ||||
| 90105-A0198 | ||||
| 90149-60067 | ||||
| 90159-A0065 | ||||
| 90253-09004 | ||||
| 90253-09005 | ||||
| 91511-80614 | ||||
| 91551-10840 | ||||
| 91551-80830 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
