GSU55L-ARZGHA (2016)

Toyota Highlander (Nap)

Production Nov 2016 - Nov 2019
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

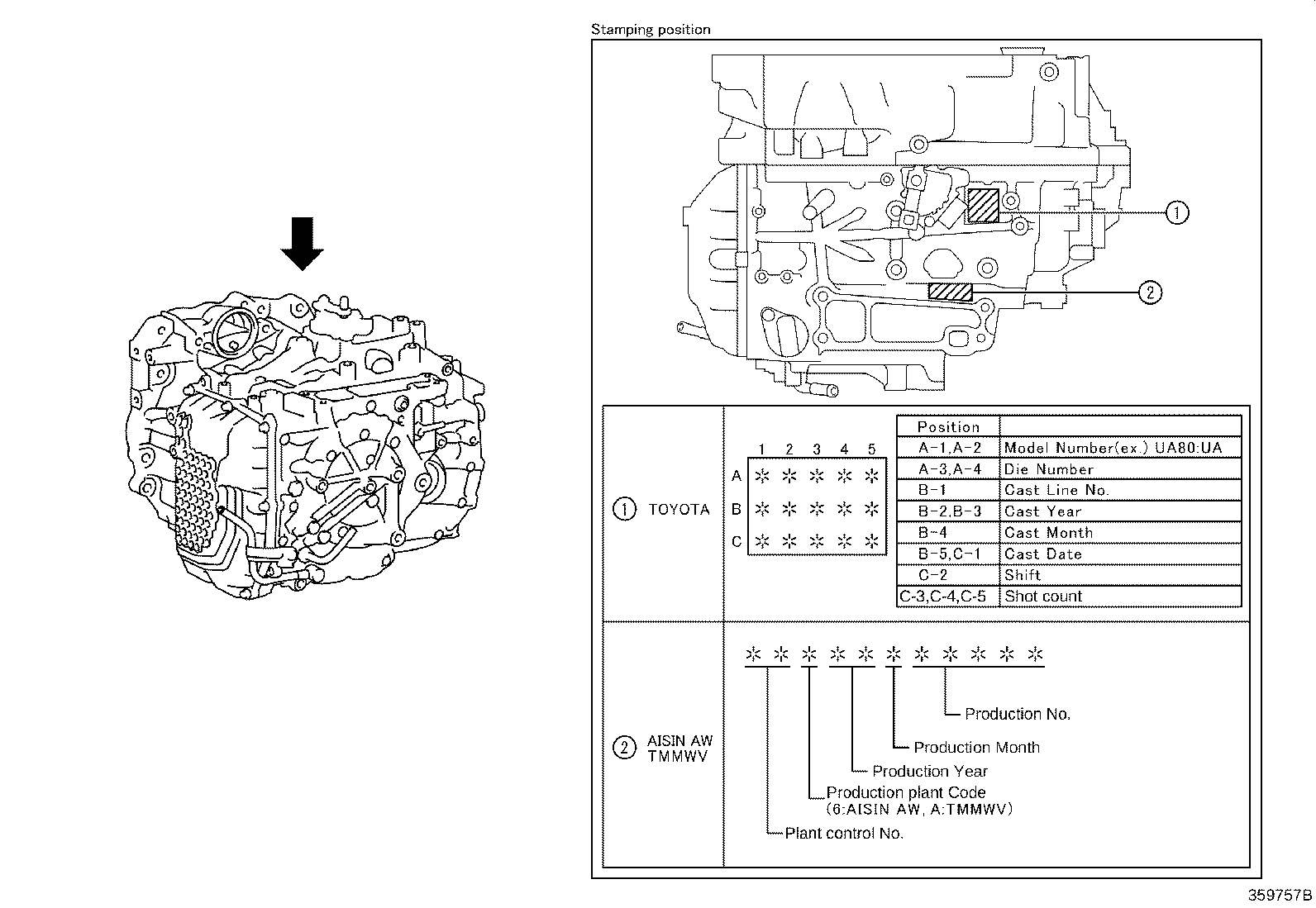

ILLUST NO. 2 OF 2(1611- )GSU5#

Click highlighted areas on diagram

UA80E,UA80F

diagram
Part # Description Qty Price

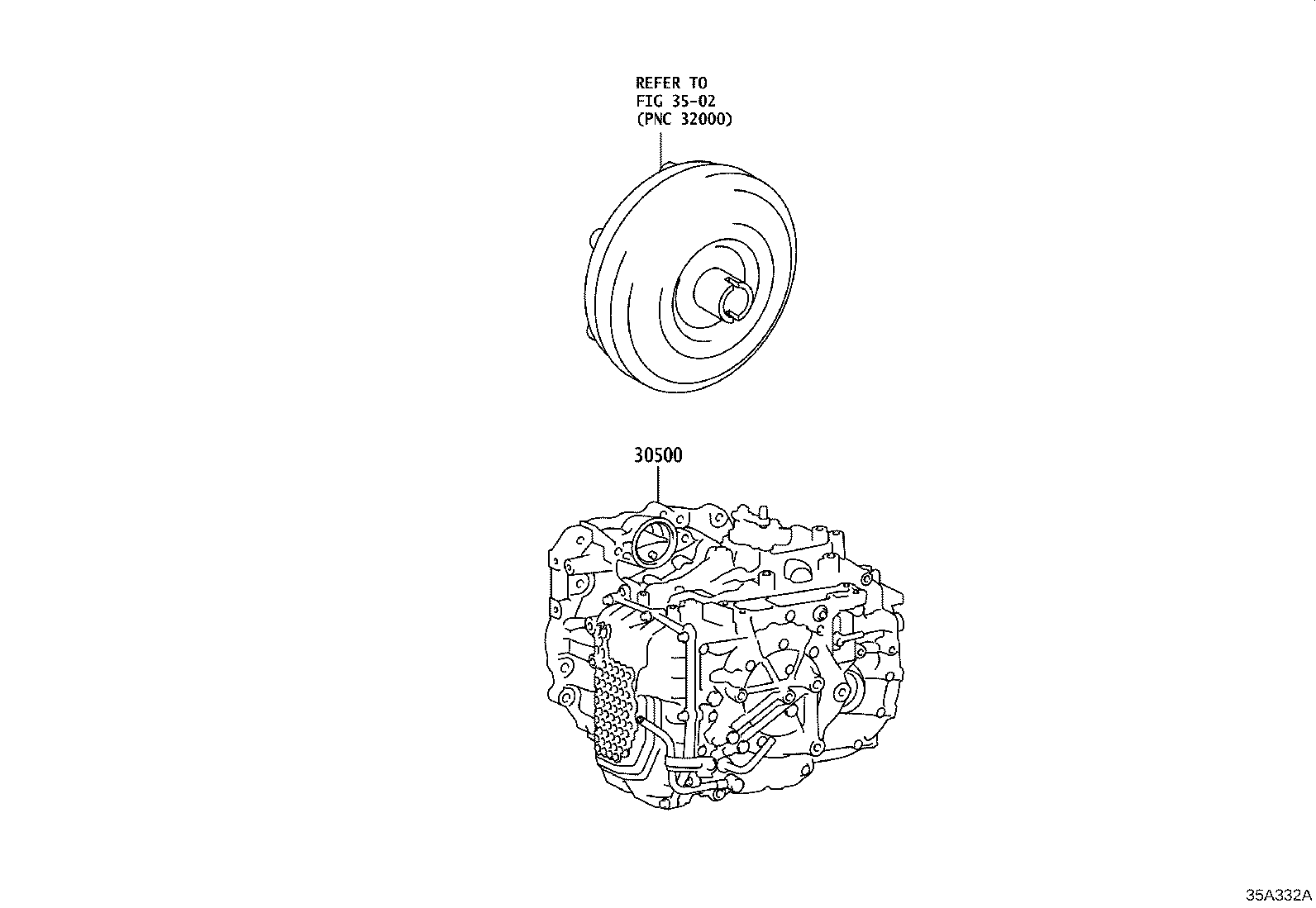

ILLUST NO. 1 OF 2(1611- )GSU5#

Click highlighted areas on diagram

UA80E,UA80F

diagram 30500 3502
Part # Description Qty Price
30500 - TRANSAXLE ASSY, AUTOMATIC
30500-45032

GSU55

U660F

 1
30500-48580

GSU55..G,M

UA80F,TOYOTA

 1
30500-48600

GSU55..G,M

UA80F,AISIN AW

 1
30500-48601

GSU55..G,M

UA80F,AISIN AW

 1
30500-0E140

GSU55..G,M

UA80F,TMMWV

 1
30500-48581

GSU55..G,M

UA80F,TOYOTA

 1
Linked diagrams
3502
