GSU55L-ARZGHA (2016)

Toyota Highlander (Nap)

Production Nov 2016 - Nov 2019
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1611- )2GRFKS

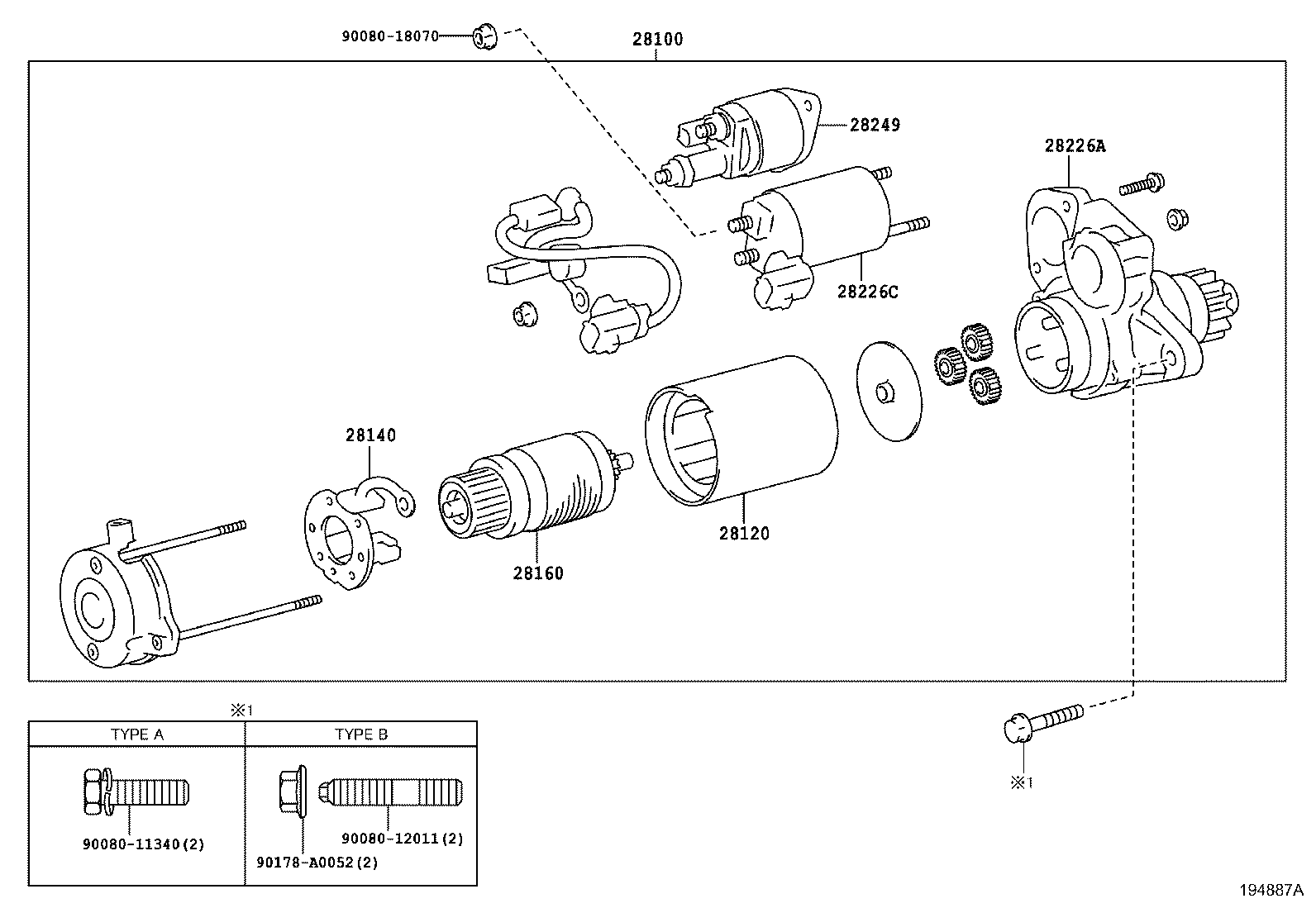

Click highlighted areas on diagram

12V 1.7KW

diagram 28100 28120 28140 28160 28226A 28226C 28249 9008011340 9008012011 9008018070 90178A0052
Part # Description Qty Price
28100 - STARTER ASSY
28100-0P120

2GRFKS..GSU5#..G,M

12V 1.7KW

 1
28100-0P121

2GRFKS..GSU5#..G,M

12V 1.7KW

 1
28120 - YOKE ASSY, STARTER
28120-28100

2GRFKS..GSU5#..G,M

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-36110

2GRFKS..GSU5#..G,M

 1
28160 - ARMATURE ASSY, STARTER
28160-36110

2GRFKS..GSU5#..G,M

 1
28226A - STARTER KIT, MOTOR TERMINAL
28226-31180

2GRFKS..GSU5#..G,M

 1
28226C - STARTER KIT, REPAIR SERVICE, NO.2
28226-31210

2GRFKS..GSU5#..G,M

 1
28249 - RELAY, STARTER INRUSH CURRENT REDUCTION
28249-31180

2GRFKS..GSU5#..G,M

 1
Common parts
90080-11340
90080-12011
90080-18070
90178-A0052
