GSU55L-ARZGHA (2016)
Toyota Highlander (Nap)
Production
Nov 2016
-
Nov 2019
Engine
2GRFKS
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1611- )2GRFKS

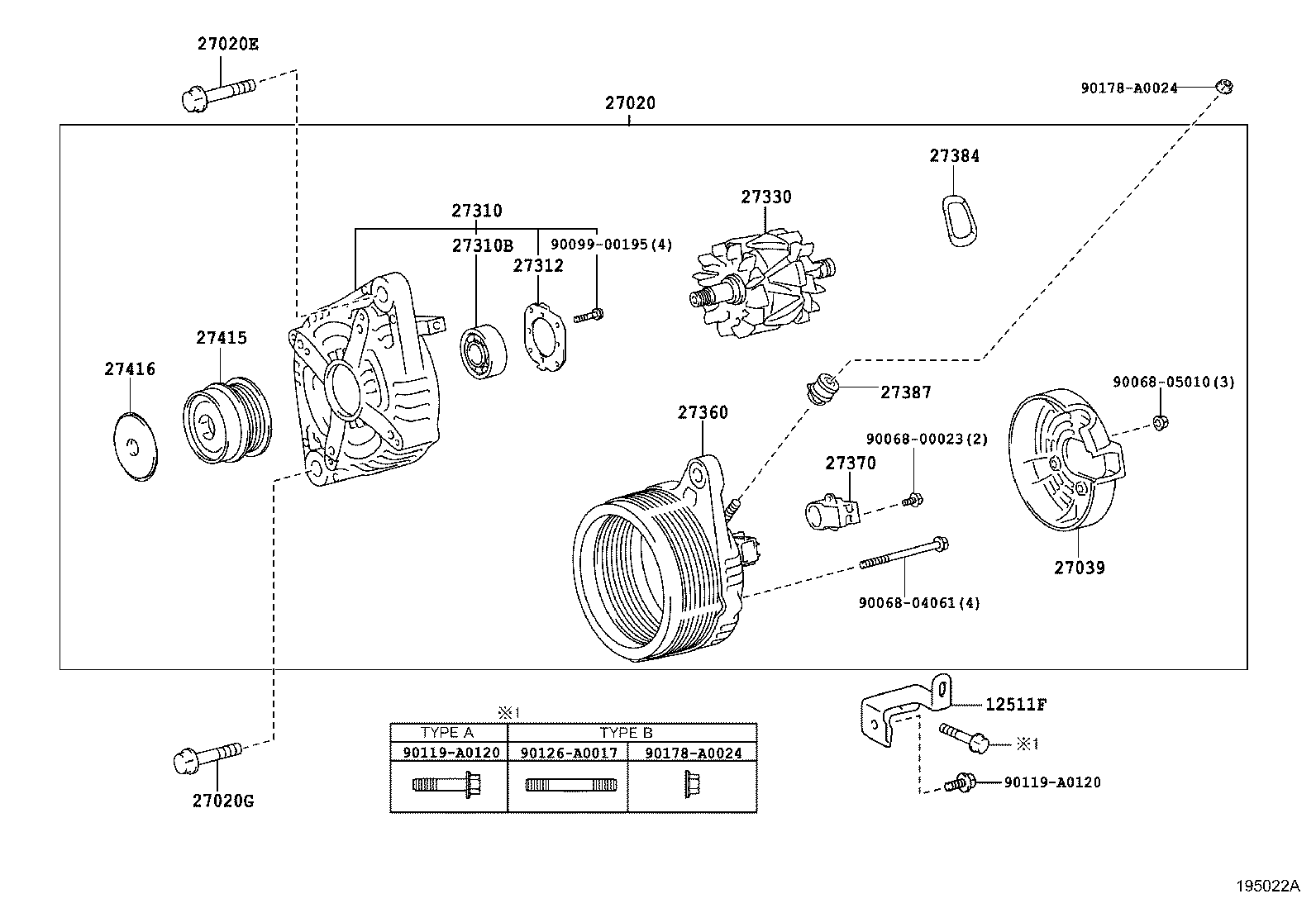

Click highlighted areas on diagram
12V 180A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12511F - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-0P070 |
2GRFKS..GSU5# |
1 | ||
| 27020 - ALTERNATOR ASSY | ||||
| 27060-0P420 |
2GRFKS..GSU5# 12V 180A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-A0107 |
2GRFKS..GSU5# |
1 | ||
| 27020G - BOLT, NO.2(FOR ALTERNATOR) | ||||
| 90105-A0324 |
2GRFKS..GSU5# (L) |
1 | ||
| 91552-81095 |
2GRFKS..GSU5# |
1 | ||
| 91552-81095 |
2GRFKS..GSU5# (J) |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-0P470 |
2GRFKS..GSU5# |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-0P470 |
2GRFKS..GSU5# |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10241 |
2GRFKS..GSU5# |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-42010 |
2GRFKS..GSU5# |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-0P470 |
2GRFKS..GSU5# |
1 | ||
| 27360 - COIL ASSY, ALTERNATOR | ||||
| 27360-0P470 |
2GRFKS..GSU5# |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-0V160 |
2GRFKS..GSU5# |
1 | ||
| 27384 - WASHER | ||||
| 27384-38130 |
2GRFKS..GSU5# |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-38130 |
2GRFKS..GSU5# |
1 | ||
| 27415 - PULLEY, ALTERNATOR W/CLUTCH | ||||
| 27415-0P030 |
2GRFKS..GSU5# |
1 | ||
| 27416 - CAP, ALTERNATOR PULLEY | ||||
| 27416-0W050 |
1ARFE,2GRFKS..ASU50,GSU5# |
1 | ||
| Common parts | ||||
| 90068-00023 | ||||
| 90068-04061 | ||||
| 90068-05010 | ||||
| 90099-00195 | ||||
| 90119-A0120 | ||||
| 90126-A0017 | ||||
| 90178-A0024 | ||||
