GSU55L-ARZGHA (2016)

Toyota Highlander (Nap)

Production Nov 2016 - Nov 2019
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1611- )2GRFKS

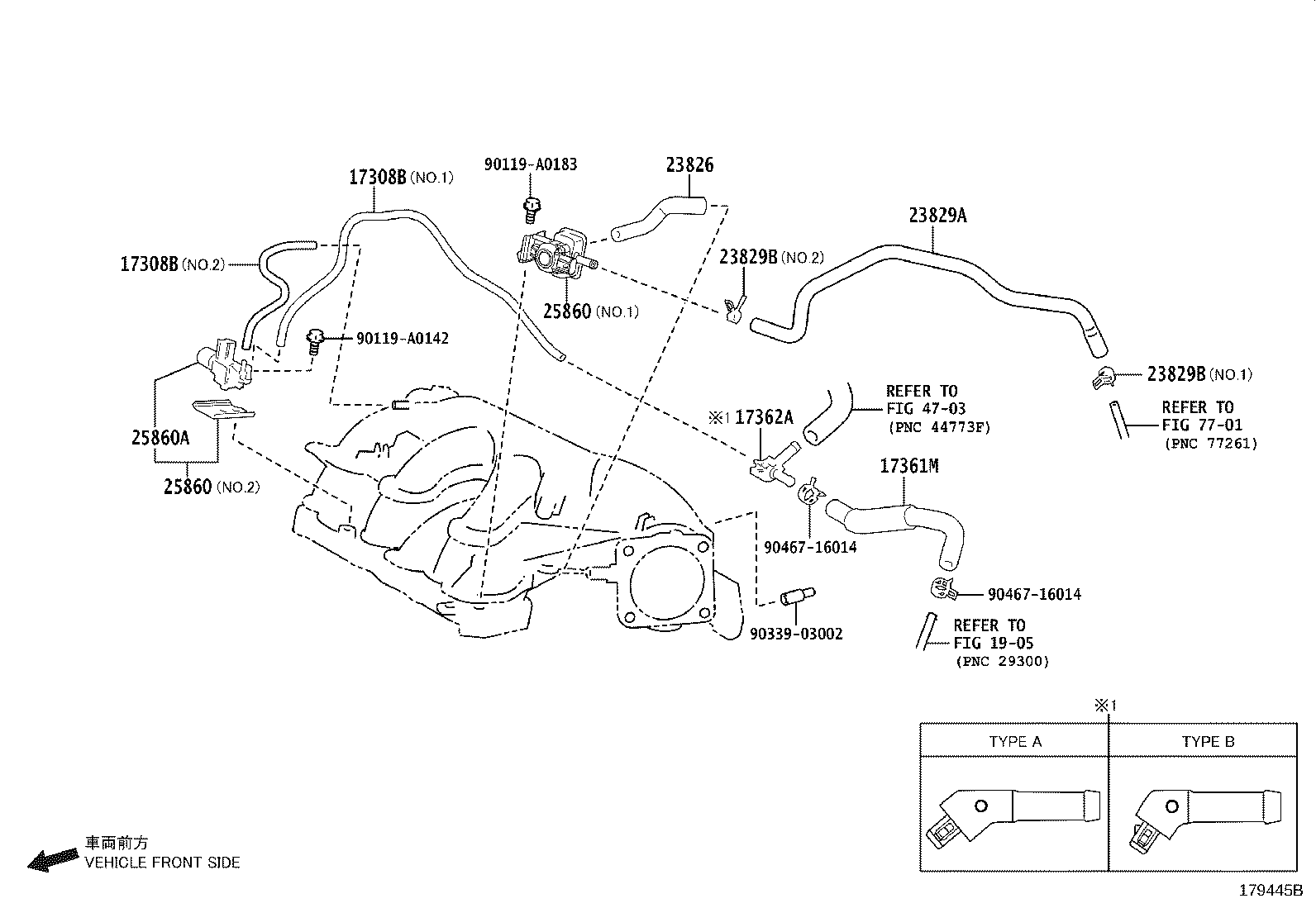

Click highlighted areas on diagram

diagram 17308B 17308B 17361M 17362A 1905 23826 23829A 23829B 23829B 25860 25860 25860A 4703 7701 90119A0142 90119A0183 9033903002 9046716014 9046716014
Part # Description Qty Price
17308B - HOSE SUB-ASSY, VACUUM
25760-31020

2GRFKS..GSU5#

NO.1

 1
90999-92002

2GRFKS..GSU5#

NO.2

 1
17308B - HOSE SUB-ASSY, VACUUM
25760-31020

2GRFKS..GSU5#

NO.1

 1
90999-92002

2GRFKS..GSU5#

NO.2

 1
17361M - TUBE, AIR
17361-0P020

2GRFKS..GSU5#

 1
17362A - TUBE, AIR, NO.2
17362-0P010

2GRFKS..GSU5#

TYPE A:REFER ILLUST.

 1
22281-0P020

2GRFKS..GSU5#

TYPE B:REFER ILLUST.

 1
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-0P220

2GRFKS..GSU5#

 1
23829A - HOSE, FUEL VAPOR FEED
23829-0P250

2GRFKS..GSU5#

 1
23829B - CLIP(FOR FUEL VAPOR FEED HOSE)
90466-11003

2GR#..GSU5#,GVU58

NO.1

 1
96132-51100

2GR#..GSU5#,GVU58

NO.2

 2
96133-41300

2GR#..GSU5#,GVU58

NO.3

 1
96136-41901

2GRFKS..GSU5#

NO.2

 1
90467-19021

2GRFKS..GSU5#

NO.1

 1
90466-A0032

2GRFKS..GSU5#

(L),NO.1

 1
96136-41901

2GRFKS..GSU5#

(J),NO.1

 1
23829B - CLIP(FOR FUEL VAPOR FEED HOSE)
90466-11003

2GR#..GSU5#,GVU58

NO.1

 1
96132-51100

2GR#..GSU5#,GVU58

NO.2

 2
96133-41300

2GR#..GSU5#,GVU58

NO.3

 1
96136-41901

2GRFKS..GSU5#

NO.2

 1
90467-19021

2GRFKS..GSU5#

NO.1

 1
90466-A0032

2GRFKS..GSU5#

(L),NO.1

 1
96136-41901

2GRFKS..GSU5#

(J),NO.1

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-31110

2GRFKS..GSU5#

NO.1

 1
25860-0P090

2GRFKS..GSU5#

(L),NO.1

 1
25860-31120

2GRFKS..GSU5#

NO.2

 1
25860-31110

2GRFKS..GSU5#

(J),NO.1

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-31110

2GRFKS..GSU5#

NO.1

 1
25860-0P090

2GRFKS..GSU5#

(L),NO.1

 1
25860-31120

2GRFKS..GSU5#

NO.2

 1
25860-31110

2GRFKS..GSU5#

(J),NO.1

 1
25860A - VALVE, VACUUM SWITCHING, NO.1
25860-31070

2GR#..GSU5#,GVU58

 1
25860-46010

2GRFKS..GSU5#

 1
Common parts
90119-A0142
90119-A0183
90339-03002
90467-16014
Linked diagrams
1905
4703
7701
