GSU55L-ARZGHA (2016)

Toyota Highlander (Nap)

Production Nov 2016 - Nov 2019
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1611- )2GRFKS

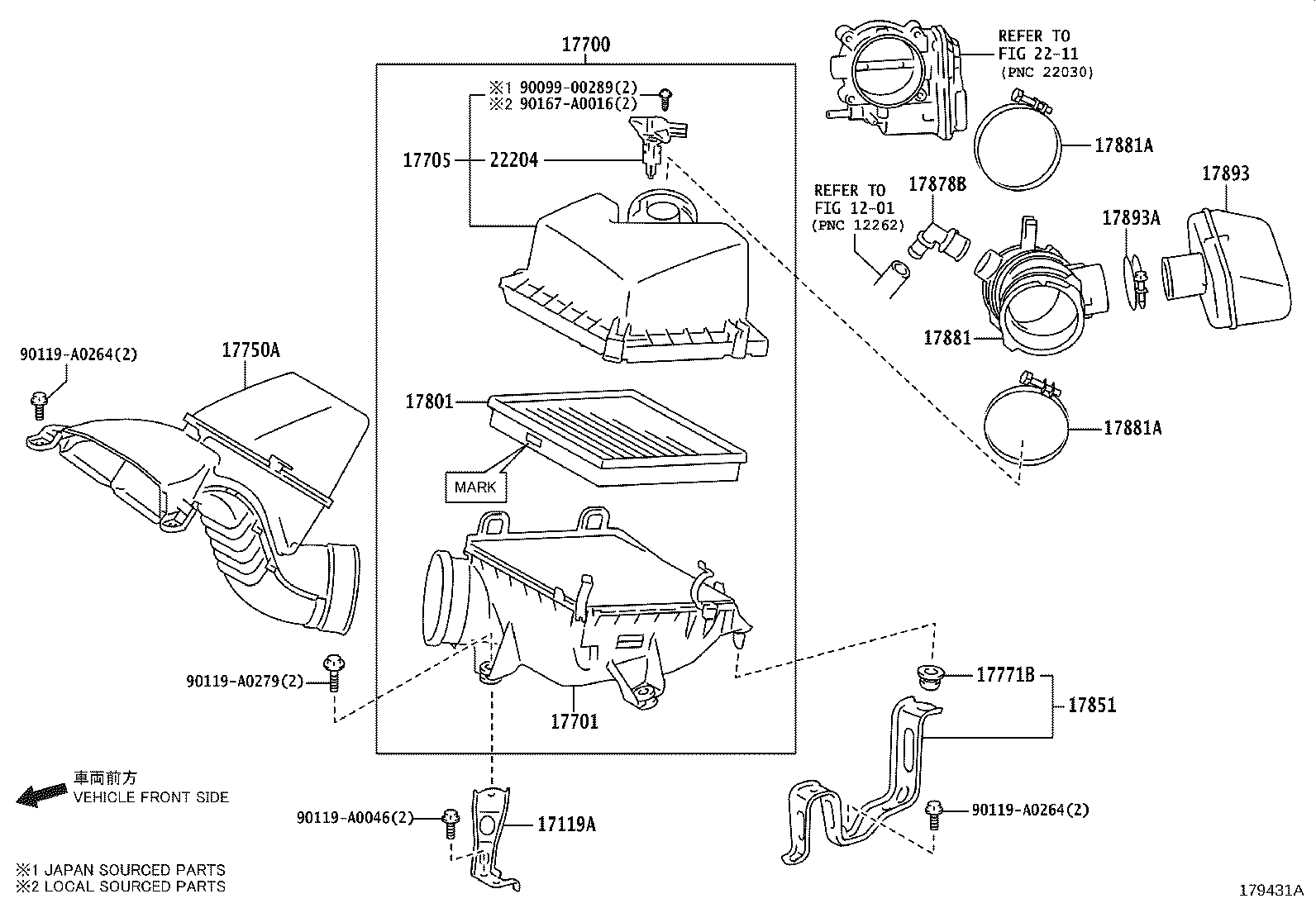

Click highlighted areas on diagram

diagram 1201 17119A 17700 17701 17705 17750A 17771B 17801 17851 17878B 17881 17881A 17881A 17893 17893A 2211 22204 9009900289 90119A0046 90119A0264 90119A0264 90119A0279 90167A0016
Part # Description Qty Price
17119A - BRACKET, AIR CLEANER
17119-0P120

2GRFKS..GSU5#

 1
17700 - CLEANER ASSY, AIR
17700-0P240

2GRFKS..GSU5#

 1
17701 - CASE SUB-ASSY, AIR CLEANER
17701-0P150

2GRFKS..GSU5#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-0P230

2GRFKS..GSU5#

 1
17750A - INLET ASSY, AIR CLEANER
17750-0P110

2GRFKS..GSU5#

 1
17771B - GROMMET(FOR AIR CLEANER BRACKET)
90480-18006

2GR#..GSU5#,GVU58

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-0P051

2GRFKS..GSU5#

MARK 17801-0P051

 1
17801-31131

2GRFKS..GSU5#

MARK 17801-31131

 1
17851 - BRACKET, AIR CLEANER SUPPORT
17850-31030

2GRFKS..GSU5#

 1
17878B - TUBE, VENTILATION
17878-0P040

2GR#..GSU5#,GVU58

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-0P260

2GRFKS..GSU5#

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10900

2GR#..GSU5#,GVU58

 2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10900

2GR#..GSU5#,GVU58

 2
17893 - RESONATOR, INTAKE AIR
17893-0P200

2GRFKS..GSU5#

 1
17893A - CLAMP, HOSE
96111-10460

2GRFKS..GSU5#

 1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-0V020

2GR#..GSU5#,GVU58

MARK 22204-0V020

 1
22204-0V010

2GR#..GSU5#,GVU58

MARK 22204-0V010

 1
22204-75040

2GR#..GSU5#,GVU58

 1
22204-28010

2GR#..GSU5#,GVU58

MARK 22204-28010

 1
Common parts
90099-00289
90119-A0046
90119-A0264
90119-A0279
90167-A0016
Linked diagrams
1201
2211
