GSU55L-ARZGHA (2016)

Toyota Highlander (Nap)

Production Nov 2016 - Nov 2019
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1611- )2GR#

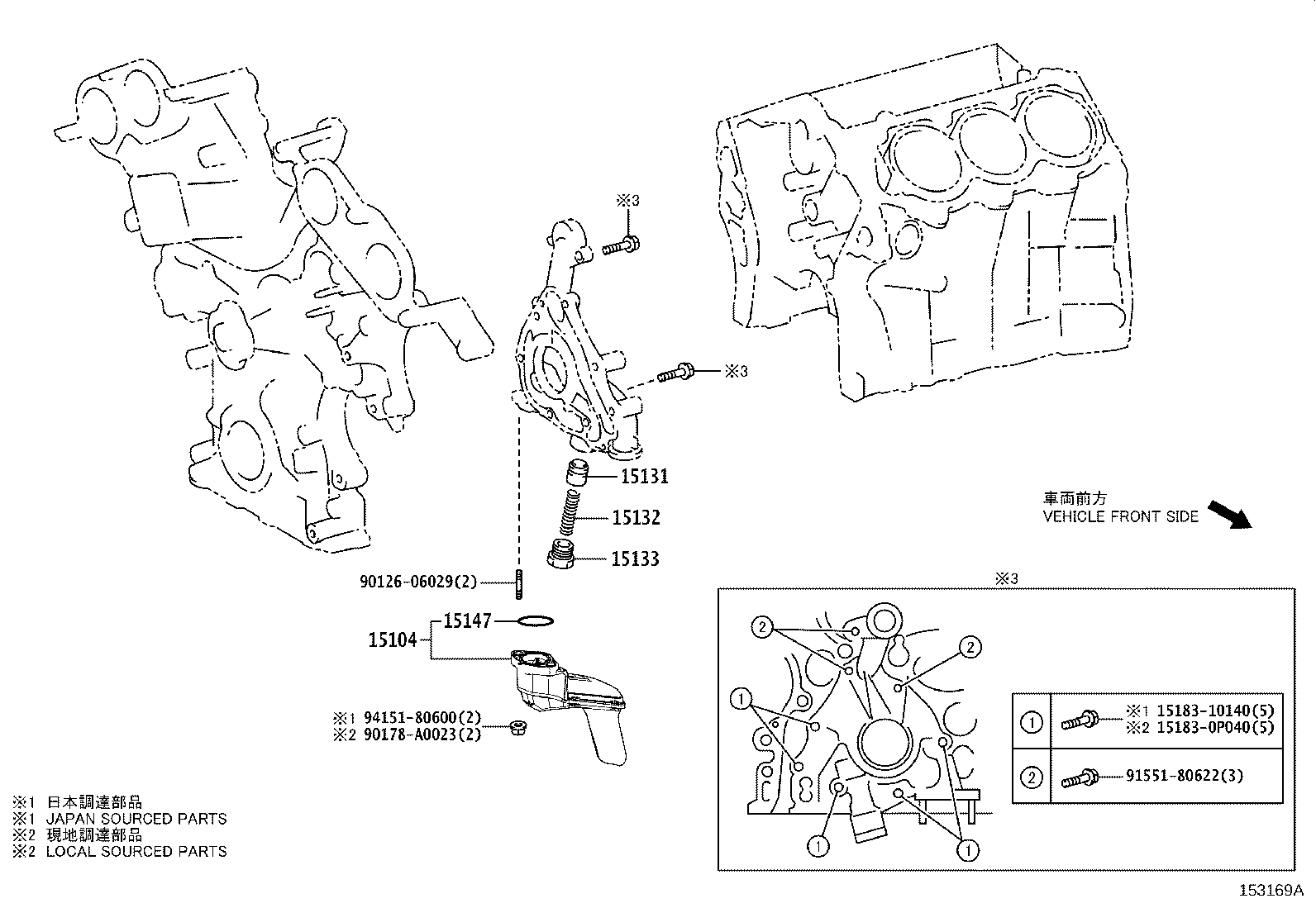

Click highlighted areas on diagram

diagram 15104 15131 15132 15133 15147 151830P040 1518310140 9012606029 90178A0023 9155180622 9415180600
Part # Description Qty Price
15104 - STRAINER SUB-ASSY, OIL
15104-31120

2GR#..GSU5#,GVU58

*427

 1
15104-0P010

2GRFKS..GSU5#

 1
15131 - VALVE, OIL PUMP RELIEF
15131-31100

2GR#..GSU5#,GVU58

 1
15131-17010

2GR#..GSU5#,GVU58

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-46020

2GR#..GSU5#,GVU58

*427

 1
15132-31100

2GR#..GSU5#,GVU58

 1
15133 - PLUG, OIL PUMP RELIEF VALVE
15133-28020

2GR#..GSU5#,GVU58

 1
15133-31100

2GR#..GSU5#,GVU58

 1
15147 - GASKET, OIL STRAINER
15147-0P030

2GRFKS..GSU5#

 1
15147-31060

2GR#..GSU5#,GVU58

(J)

 1
Common parts
15183-0P040
15183-10140
90126-06029
90178-A0023
91551-80622
94151-80600
