GSU50L-ARZNHA (2016)

Toyota Highlander (Nap)

Production Nov 2016 - Nov 2019
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1611- )GSU5#

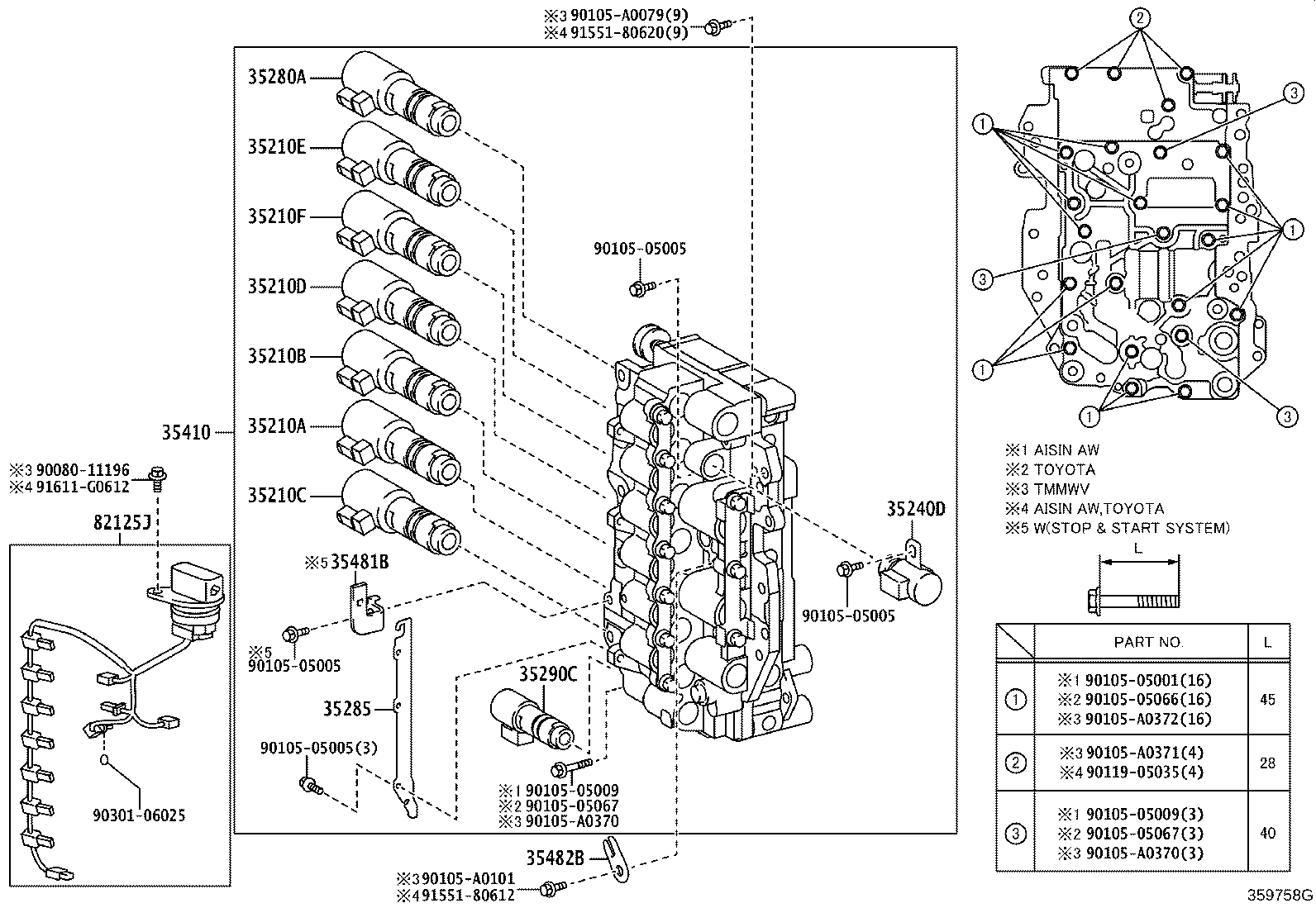

Click highlighted areas on diagram

UA80E,UA80F

diagram 35210A 35210B 35210C 35210D 35210E 35210F 35240D 35280A 35285 35290C 35410 35481B 35482B 82125J 9008011196 9010505001 9010505005 9010505005 9010505005 9010505005 9010505009 9010505009 9010505066 9010505067 9010505067 90105A0079 90105A0101 90105A0370 90105A0370 90105A0371 90105A0372 9011905035 9030106025 9155180612 9155180612 9155180620 91611G0612
Part # Description Qty Price
35210A - VALVE, SOLENOID(SL1)
35210-48020

GSU50

(J)

 1
35210-48020

GSU50..G,M

DESTINATION PACKAGE(ALL)-MEXICO

 1
35210-48020

GSU50..N

LE PACKAGE

 1
35210-06020

GSU5#

(L)

 1
35210B - VALVE, SOLENOID(SL3)
35210-48020

GSU50

(J)

 1
35210-48020

GSU50..N

LE PACKAGE

 1
35210-06020

GSU5#

(L)

 1
35210-48020

GSU50..G,M

DESTINATION PACKAGE(ALL)-MEXICO

 1
35210C - VALVE, SOLENOID(SL2)
35210-48020

GSU50..N

LE PACKAGE

 1
35210-48020

GSU50..G,M

DESTINATION PACKAGE(ALL)-MEXICO

 1
35210-48020

GSU50

(J)

 1
35210-06020

GSU5#

(L)

 1
35210D - VALVE, SOLENOID(SL4)
35210-06020

GSU5#

(L)

 1
35210-48020

GSU50..N

LE PACKAGE

 1
35210-48020

GSU50..G,M

DESTINATION PACKAGE(ALL)-MEXICO

 1
35210-48020

GSU50

(J)

 1
35210E - VALVE, SOLENOID(SL5)
35210-48020

GSU50..N

LE PACKAGE

 1
35210-48020

GSU50..G,M

DESTINATION PACKAGE(ALL)-MEXICO

 1
35210-48020

GSU50

(J)

 1
35210-06020

GSU5#

(L)

 1
35210F - VALVE, SOLENOID(SL6)
35210-48020

GSU50..G,M

DESTINATION PACKAGE(ALL)-MEXICO

 1
35210-48020

GSU50..N

LE PACKAGE

 1
35210-06020

GSU5#

(L)

 1
35210-48020

GSU50

(J)

 1
35240D - VALVE, SOLENOID(SL)
35240-48020

GSU5#

 1
35280A - VALVE, SOLENOID(SLU)
35280-48030

GSU50..N

LE PACKAGE

 1
35280-48030

GSU50

(J)

 1
35280-06020

GSU5#

(L)

 1
35280-48030

GSU50..G,M

DESTINATION PACKAGE(ALL)-MEXICO

 1
35285 - PLATE, SOLENOID LOCK
35285-48030

GSU50

(J)

 1
35285-06020

GSU5#

(L)

 1
35290C - VALVE, SOLENOID(SLT)
35290-48030

GSU50..N

LE PACKAGE

 1
35290-48030

GSU50

(J)

 1
35290-06010

GSU5#

(L)

 1
35290-48030

GSU50..G,M

DESTINATION PACKAGE(ALL)-MEXICO

 1
35410 - BODY ASSY, TRANSMISSION VALVE
35410-33240

GSU5#

 1
35410-48080

GSU5#..N

LE PACKAGE,TOYOTA:REFER 35-01

 1
35410-48070

GSU5#..N

TOYOTA:REFER 35-01

 1
35410-48090

GSU50..G,M

DESTINATION PACKAGE(ALL)-MEXICO,AISIN:REFER 35-01

 1
35410-48070

GSU50..G,M

DESTINATION PACKAGE(ALL)-MEXICO,TOYOTA:REFER 35-01

 1
35410-48080

GSU5#..G,M

TOYOTA:REFER 35-01

 1
35410-0E010

GSU5#..G,M

TMMWV:REFER 35-01

 1
35410-06050

GSU5#..N

TMMWV:REFER 35-01

 1
35410-48090

GSU50..N

AISIN:REFER 35-01

 1
35410-0E010

GSU5#..N

LE PACKAGE,TMMWV:REFER 35-01

 1
35410-06050

GSU50..G,M

DESTINATION PACKAGE(ALL)-MEXICO,TMMWV:REFER 35-01

 1
35481B - CLAMP, VALVE BODY WIRE HARNESS
35481-48020

GSU5#..G,M

TOYOTA:REFER 35-01

 1
35481-48020

GSU5#..N

LE PACKAGE,TOYOTA:REFER 35-01

 1
35481-48020

GSU5#..N

LE PACKAGE

 1
35481-48020

GSU5#..G,M

TMMWV:REFER 35-01

 1
35481-48020

GSU5#..N

LE PACKAGE,TMMWV:REFER 35-01

 1
35481-48020

GSU5#..G,M

 1
35482B - CLAMP, TEMPERATURE SENSOR
35482-73010

GSU5#

 1
82125J - WIRE, TRANSMISSION
82125-33150

GSU5#

 1
82125-33210

GSU5#..G,M

 1
82125-33170

GSU50..G,M

DESTINATION PACKAGE(ALL)-MEXICO

 1
82125-33210

GSU5#..N

LE PACKAGE

 1
82125-33211

GSU5#..N

LE PACKAGE

 1
82125-33170

GSU5#..N

 1
82125-33171

GSU50..G,M

DESTINATION PACKAGE(ALL)-MEXICO,(J)

 1
82125-33211

GSU5#..G,M

 1
82125-06281

GSU50..G,M

DESTINATION PACKAGE(ALL)-MEXICO,(L)

 1
82125-33171

GSU5#..N

(J)

 1
82125-06281

GSU5#..N

(L)

 1
Common parts
90080-11196
90105-05001
90105-05005
90105-05009
90105-05066
90105-05067
90105-A0079
90105-A0101
90105-A0370
90105-A0371
90105-A0372
90119-05035
90301-06025
91551-80612
91551-80620
91611-G0612
