GSU50L-ARZNHA (2016)
Toyota Highlander (Nap)

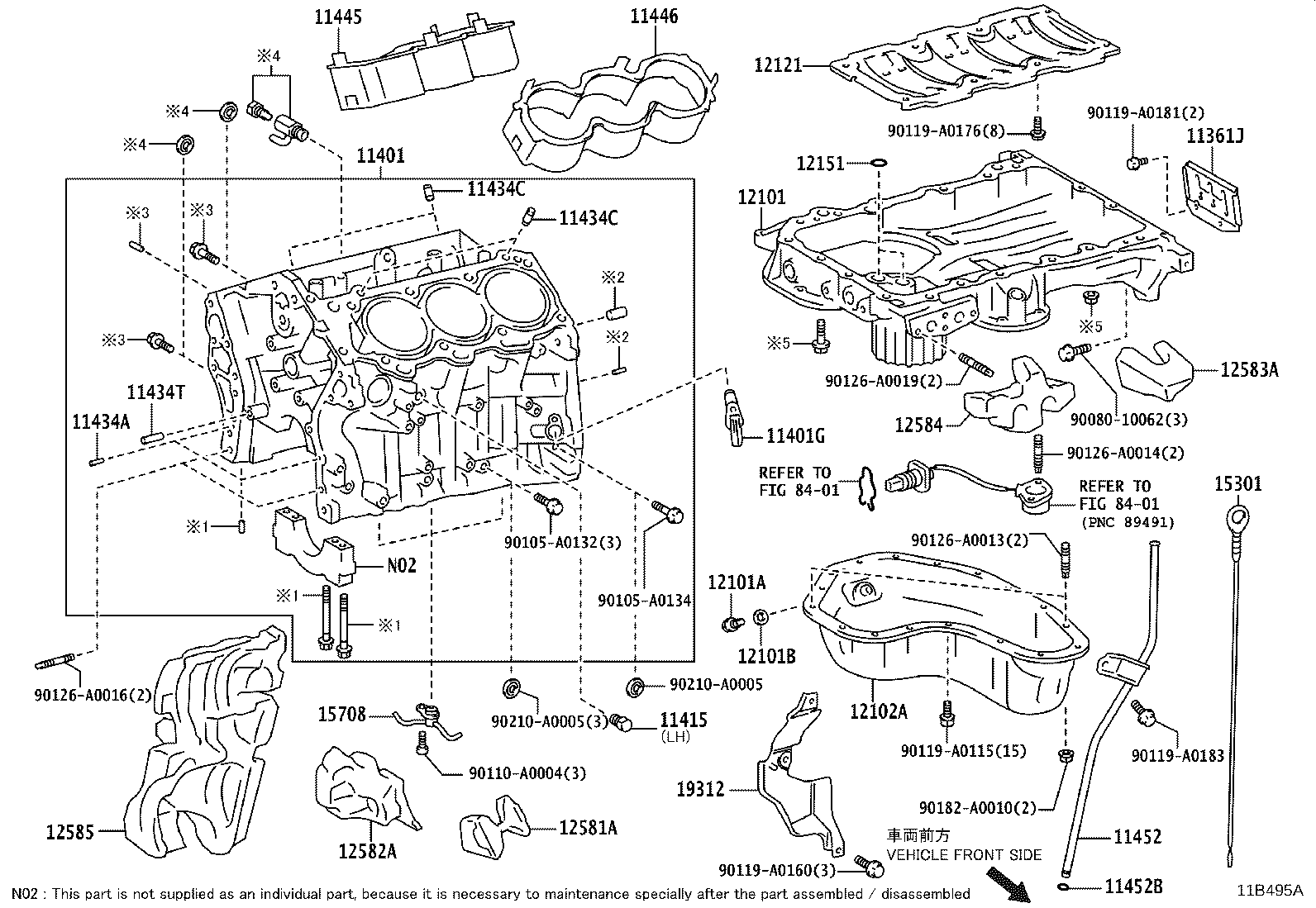

ILLUST NO. 1 OF 2(1611- )2GRFKS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11361J - COVER, FLYWHEEL HOUSING UNDER | ||||
| 11361-0P020 |
2GR#..GSU5#,GVU58 |
1 | ||
| 11361-0P020 |
2GR#..GSU5#,GVU58 |
1 | ||
| 11361-0P030 |
2GR#..GSU5#,GVU58 |
1 | ||
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-80800 |
2GR#..GSU5#,GVU58 |
1 | ||
| 11401-09A10 |
2GRFKS..GSU5# |
1 | ||
| 11401-09A11 |
2GRFKS..GSU5# |
1 | ||
| 11401G - SENSOR, CRANK POSITION | ||||
| 90919-05100 |
2GRFKS..GSU5#..G,M |
1 | ||
| 90919-05100 |
2GRFKS..GSU5#..N LE PACKAGE |
1 | ||
| 90919-05090 |
2GRFXS..GVU58;2GRFKS..GSU5#..N |
1 | ||
| 90919-05090 |
2GRFKS..GSU50..G,M DESTINATION PACKAGE(ALL)-MEXICO |
1 | ||
| 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) | ||||
| 90345-52001 |
2GR#..GSU5#,GVU58 LH |
1 | ||
| 90910-09129 |
2GR#..GSU5#,GVU58 RH |
1 | ||
| 90345-A0001 |
2GRFKS..GSU5# LH |
1 | ||
| 90910-09129 |
2GR#..GSU5#,GVU58 RH |
1 | ||
| 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) | ||||
| 90250-04097 |
2GR#..GSU5#,GVU58 L=12,OD=4.0 |
2 | ||
| 90250-04097 |
2GR#..GSU5#,GVU58 L=12,OD=4.0 |
2 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90250-08120 |
2GR#..GSU5#,GVU58 L=18,OD=8 |
4 | ||
| 90250-08120 |
2GR#..GSU5#,GVU58 L=18,OD=8 |
4 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90250-08120 |
2GR#..GSU5#,GVU58 L=18,OD=8 |
4 | ||
| 90250-08120 |
2GR#..GSU5#,GVU58 L=18,OD=8 |
4 | ||
| 11434T - PIN, RING(FOR TIMING BELT IDLER BRACKET SET) | ||||
| 90250-10030 |
2GR#..GSU5#,GVU58 |
1 | ||
| 90250-A0026 |
2GRFKS..GSU5# |
1 | ||
| 11445 - SPACER, CYLINDER BLOCK WATER JACKET | ||||
| 11445-0P020 |
2GRFKS..GSU5# |
1 | ||
| 11446 - SPACER, CYLINDER BLOCK WATER JACKET, LH | ||||
| 11446-0P020 |
2GRFKS..GSU5# |
1 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-31060 |
2GR#..GSU5#,GVU58 (J) |
1 | ||
| 11452-0P030 |
2GRFKS..GSU5# |
1 | ||
| 11452B - RING, O(FOR OIL LEVEL GAGE GUIDE) | ||||
| 90301-A0062 |
2GRFKS..GSU5# |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-0P050 |
2GRFKS..GSU5# |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-A0007 |
2GRFKS..GSU5# |
1 | ||
| 90341-12012 |
2GR#..GSU5#,GVU58 (J) |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-12031 |
2GR#..GSU5#,GVU58 |
1 | ||
| 90430-12031 |
2GRFKS..GSU5# (J) |
1 | ||
| 90430-A0006 |
2GRFKS..GSU5# (L) |
1 | ||
| 12102A - PAN SUB-ASSY, OIL, NO.2 | ||||
| 12102-0P041 |
2GRFKS..GSU5# |
1 | ||
| 12102-31051 |
2GR#..GSU5#,GVU58 (J) |
1 | ||
| 12121 - PLATE, OIL PAN BAFFLE, NO.1 | ||||
| 12121-31070 |
2GR#..GSU5#,GVU58 (J) |
1 | ||
| 12121-0P040 |
2GRFKS..GSU5# |
1 | ||
| 12151 - GASKET, OIL PAN | ||||
| 12151-0P010 |
2GRFKS..GSU5# |
2 | ||
| 12151-31010 |
2GR#..GSU5#,GVU58 (J) |
2 | ||
| 12581A - INSULATOR, CYLINDER BLOCK, NO.1 | ||||
| 12581-0P010 |
2GRFKS..GSU5# |
1 | ||
| 12582A - INSULATOR, CYLINDER BLOCK, NO.2 | ||||
| 12582-0P010 |
2GRFKS..GSU5# |
1 | ||
| 12583A - INSULATOR, CYLINDER BLOCK, NO.3 | ||||
| 12583-0P010 |
2GRFKS..GSU5# |
1 | ||
| 12584 - INSULATOR, CYLINDER BROCK, NO.4 | ||||
| 12584-0P010 |
2GR#..GSU5#,GVU58 |
1 | ||
| 12585 - INSULATOR, CYLINDER BROCK, NO.5 | ||||
| 12585-0P010 |
2GRFKS..GSU5# |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-0P030 |
2GR#..GSU5#,GVU58 |
1 | ||
| 15301-0P040 |
2GRFKS..GSU5# |
1 | ||
| 15708 - NOZZLE SUB-ASSY, OIL, NO.1 | ||||
| 15708-31030 |
2GR#..GSU5#,GVU58 *252 |
3 | ||
| 15708-31050 |
2GR#..GSU5#,GVU58 |
3 | ||
| 19312 - PROTECTOR, CRANK POSITION SENSOR | ||||
| 19312-0P010 |
2GRFKS..GSU5# |
1 | ||
| Common parts | ||||
| 90080-10062 | ||||
| 90105-A0132 | ||||
| 90105-A0134 | ||||
| 90110-A0004 | ||||
| 90119-A0115 | ||||
| 90119-A0160 | ||||
| 90119-A0176 | ||||
| 90119-A0181 | ||||
| 90119-A0183 | ||||
| 90126-A0013 | ||||
| 90126-A0014 | ||||
| 90126-A0016 | ||||
| 90126-A0019 | ||||
| 90182-A0010 | ||||
| 90210-A0005 | ||||
| Linked diagrams | ||||
| 8401 | ||||

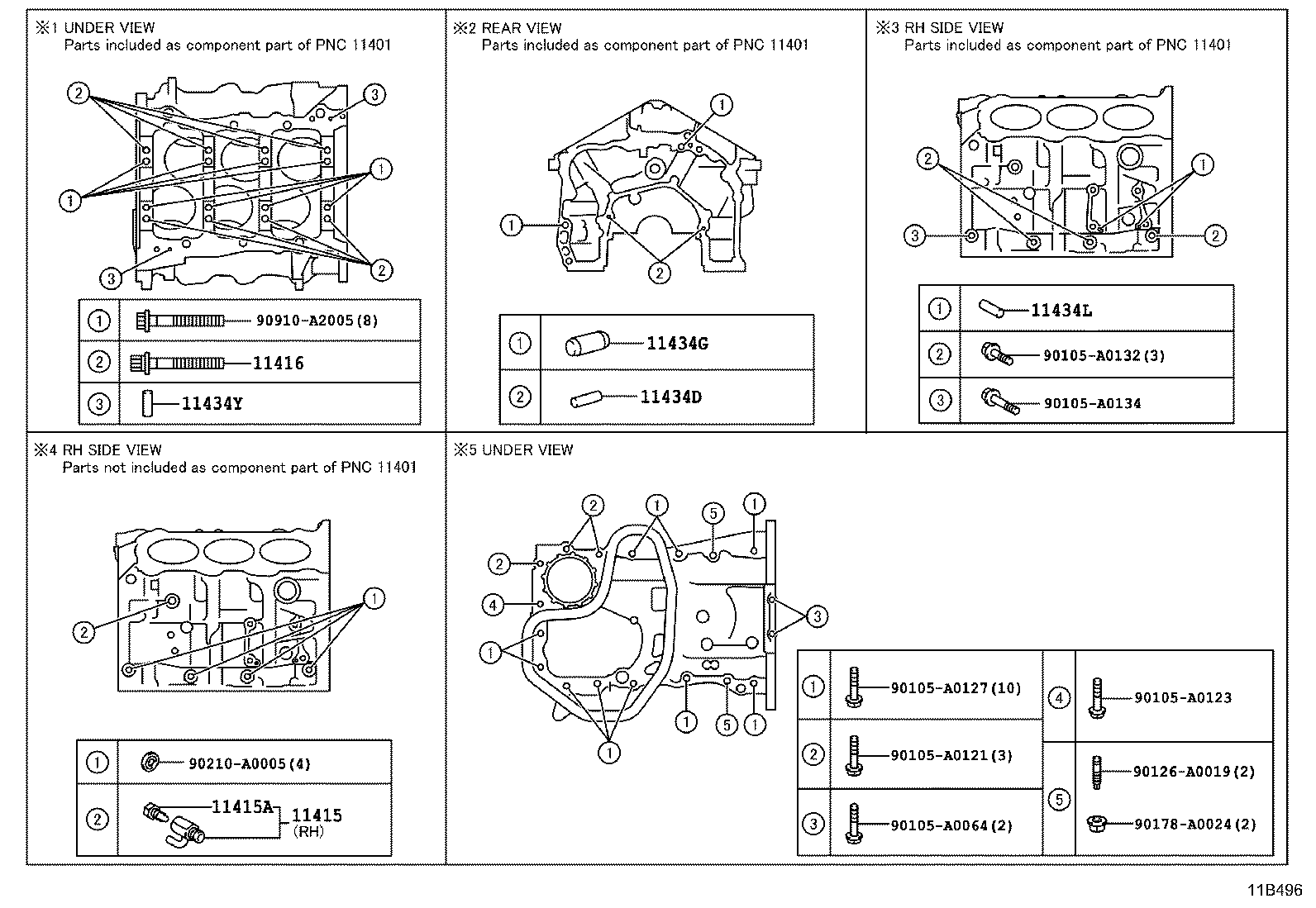

ILLUST NO. 2 OF 2(1611- )2GRFKS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) | ||||
| 90345-52001 |
2GR#..GSU5#,GVU58 LH |
1 | ||
| 90910-09129 |
2GR#..GSU5#,GVU58 RH |
1 | ||
| 90345-A0001 |
2GRFKS..GSU5# LH |
1 | ||
| 90910-09129 |
2GR#..GSU5#,GVU58 RH |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 90910-09087 |
2GR#..GSU5#,GVU58 |
1 | ||
| 90910-09087 |
2GR#..GSU5#,GVU58 |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02154 |
2GR#..GSU5#,GVU58 (J) |
8 | ||
| 90910-A2004 |
2GRFKS..GSU5# |
8 | ||
| 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) | ||||
| 90250-04097 |
2GR#..GSU5#,GVU58 L=12,OD=4.0 |
2 | ||
| 90250-04097 |
2GR#..GSU5#,GVU58 L=12,OD=4.0 |
2 | ||
| 11434G - PIN, STRAIGHT(FOR END PLATE) | ||||
| 90250-10113 |
2GR#..GSU5#,GVU58 |
2 | ||
| 90250-10113 |
2GR#..GSU5#,GVU58 |
2 | ||
| 11434L - PIN, STRAIGHT(FOR ENGINE MOUNTING) | ||||
| 90250-04097 |
2GR#..GSU5#,GVU58 |
2 | ||
| 90250-04097 |
2GR#..GSU5#,GVU58 |
2 | ||
| 11434Y - PIN, STRAIGHT(FOR OIL PAN) | ||||
| 90250-04097 |
2GR#..GSU5#,GVU58 |
2 | ||
| 90250-04097 |
2GR#..GSU5#,GVU58 |
2 | ||
| Common parts | ||||
| 90105-A0064 | ||||
| 90105-A0121 | ||||
| 90105-A0123 | ||||
| 90105-A0127 | ||||
| 90105-A0132 | ||||
| 90105-A0134 | ||||
| 90126-A0019 | ||||
| 90178-A0024 | ||||
| 90210-A0005 | ||||
| 90910-A2005 | ||||
