GSU50L-ARZMHA (2016)
Toyota Highlander (Nap)
(1611- )2GR#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

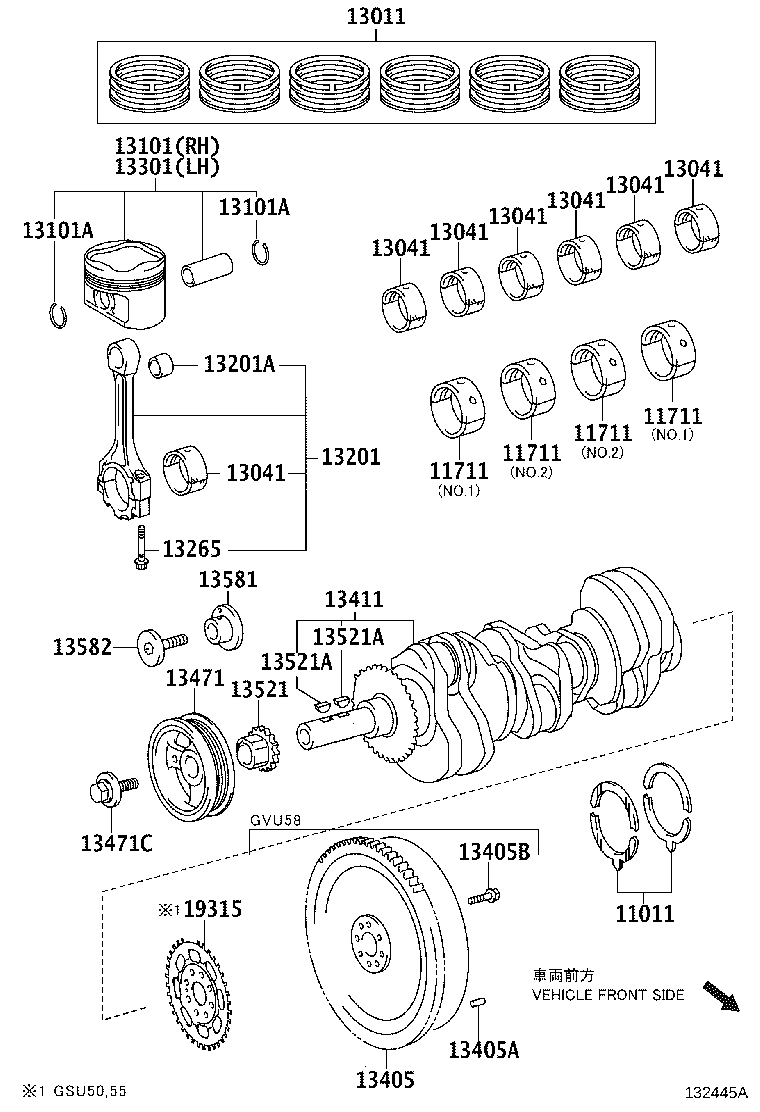

| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11011-31060 |
2GR#..GSU5#,GVU58 STD |
1 | ||
| 11011-31080 |
2GR#..GSU5#,GVU58 STD |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-3103105 |
2GR#..GSU5#,GVU58 MARK5,NO.2,(J):REFER R/M |
2 | ||
| 11071-3103103 |
2GR#..GSU5#,GVU58 MARK3,NO.2,(J):REFER R/M |
2 | ||
| 11701-3109002 |
2GR#..GSU5#,GVU58 MARK 2,NO.1,(J):REFER R/M |
2 | ||
| 11071-3103104 |
2GR#..GSU5#,GVU58 MARK4,NO.2,(J):REFER R/M |
2 | ||
| 11701-3109005 |
2GR#..GSU5#,GVU58 MARK 5,NO.1,(J):REFER R/M |
2 | ||
| 11071-3103102 |
2GR#..GSU5#,GVU58 MARK2,NO.2,(J):REFER R/M |
2 | ||
| 11701-3109003 |
2GR#..GSU5#,GVU58 MARK 3,NO.1,(J):REFER R/M |
2 | ||
| 11701-3109001 |
2GR#..GSU5#,GVU58 MARK 1,NO.1,(J):REFER R/M |
2 | ||
| 11071-3103101 |
2GR#..GSU5#,GVU58 MARK1,NO.2,(J):REFER R/M |
2 | ||
| 11701-3109004 |
2GR#..GSU5#,GVU58 MARK 4,NO.1,(J):REFER R/M |
2 | ||
| 11071-0P060B3 |
2GRFKS..GSU5# MARK UPPER 2 LOWER 3,NO.2,REFER R/M |
2 | ||
| 11071-0P060E5 |
2GRFKS..GSU5# MARK UPPER 5 LOWER 5,NO.2,REFER R/M |
2 | ||
| 11701-0P060A1 |
2GRFKS..GSU5# MARK UPPER 1 LOWER 1,NO.1,REFER R/M |
2 | ||
| 11071-0P060A2 |
2GRFKS..GSU5# MARK UPPER 1 LOWER 2,NO.2,REFER R/M |
2 | ||
| 11071-0P060C3 |
2GRFKS..GSU5# MARK UPPER 3 LOWER 3,NO.2,REFER R/M |
2 | ||
| 11071-0P060A1 |
2GRFKS..GSU5# MARK UPPER 1 LOWER 1,NO.2,REFER R/M |
2 | ||
| 11701-0P060B3 |
2GRFKS..GSU5# MARK UPPER 2 LOWER 3,NO.1,REFER R/M |
2 | ||
| 11701-0P060A2 |
2GRFKS..GSU5# MARK UPPER 1 LOWER 2,NO.1,REFER R/M |
2 | ||
| 11071-0P060D5 |
2GRFKS..GSU5# MARK UPPER 4 LOWER 5,NO.2,REFER R/M |
2 | ||
| 11701-0P060B2 |
2GRFKS..GSU5# MARK UPPER 2 LOWER 2,NO.1,REFER R/M |
2 | ||
| 11071-0P060C4 |
2GRFKS..GSU5# MARK UPPER 3 LOWER 4,NO.2,REFER R/M |
2 | ||
| 11701-0P060D4 |
2GRFKS..GSU5# MARK UPPER 4 LOWER 4,NO.1,REFER R/M |
2 | ||
| 11701-0P060D5 |
2GRFKS..GSU5# MARK UPPER 4 LOWER 5,NO.1,REFER R/M |
2 | ||
| 11071-0P060B2 |
2GRFKS..GSU5# MARK UPPER 2 LOWER 2,NO.2,REFER R/M |
2 | ||
| 11071-0P060D4 |
2GRFKS..GSU5# MARK UPPER 4 LOWER 4,NO.2,REFER R/M |
2 | ||
| 11701-0P060C4 |
2GRFKS..GSU5# MARK UPPER 3 LOWER 4,NO.1,REFER R/M |
2 | ||
| 11701-0P060E5 |
2GRFKS..GSU5# MARK UPPER 5 LOWER 5,NO.1,REFER R/M |
2 | ||
| 11701-0P060C3 |
2GRFKS..GSU5# MARK UPPER 3 LOWER 3,NO.1,REFER R/M |
2 | ||
| 11071-0P060A2 |
2GRFKS..GSU5# MARK UPPER 1 LOWER 2,NO.2,(L):REFER R/M |
2 | ||
| 11071-0P060C4 |
2GRFKS..GSU5# MARK UPPER 3 LOWER 4,NO.2,(L):REFER R/M |
2 | ||
| 11071-0P060D4 |
2GRFKS..GSU5# MARK UPPER 4 LOWER 4,NO.2,(L):REFER R/M |
2 | ||
| 11071-0P060D5 |
2GRFKS..GSU5# MARK UPPER 4 LOWER 5,NO.2,(L):REFER R/M |
2 | ||
| 11071-31060A1 |
2GRFKS..GSU5# MARK UPPER 1 LOWER 1,NO.2,(J):REFER R/M |
2 | ||
| 11071-0P060B2 |
2GRFKS..GSU5# MARK UPPER 2 LOWER 2,NO.2,(L):REFER R/M |
2 | ||
| 11071-0P060A1 |
2GRFKS..GSU5# MARK UPPER 1 LOWER 1,NO.2,(L):REFER R/M |
2 | ||
| 11071-0P060C3 |
2GRFKS..GSU5# MARK UPPER 3 LOWER 3,NO.2,(L):REFER R/M |
2 | ||
| 11071-31060C3 |
2GRFKS..GSU5# MARK UPPER 3 LOWER 3,NO.2,(J):REFER R/M |
2 | ||
| 11701-0P060B2 |
2GRFKS..GSU5# MARK UPPER 2 LOWER 2,NO.1,(L):REFER R/M |
2 | ||
| 11071-0P060B3 |
2GRFKS..GSU5# MARK UPPER 2 LOWER 3,NO.2,(L):REFER R/M |
2 | ||
| 11071-31060B2 |
2GRFKS..GSU5# MARK UPPER 2 LOWER 2,NO.2,(J):REFER R/M |
2 | ||
| 11701-0P060D4 |
2GRFKS..GSU5# MARK UPPER 4 LOWER 4,NO.1,(L):REFER R/M |
2 | ||
| 11071-31060B3 |
2GRFKS..GSU5# MARK UPPER 2 LOWER 3,NO.2,(J):REFER R/M |
2 | ||
| 11071-31060D5 |
2GRFKS..GSU5# MARK UPPER 4 LOWER 5,NO.2,(J):REFER R/M |
2 | ||
| 11701-0P060C3 |
2GRFKS..GSU5# MARK UPPER 3 LOWER 3,NO.1,(L):REFER R/M |
2 | ||
| 11701-0P060B3 |
2GRFKS..GSU5# MARK UPPER 2 LOWER 3,NO.1,(L):REFER R/M |
2 | ||
| 11071-31060E5 |
2GRFKS..GSU5# MARK UPPER 5 LOWER 5,NO.2,(J):REFER R/M |
2 | ||
| 11701-0P060C4 |
2GRFKS..GSU5# MARK UPPER 3 LOWER 4,NO.1,(L):REFER R/M |
2 | ||
| 11701-31100B2 |
2GRFKS..GSU5# MARK UPPER 2 LOWER 2,NO.1,(J):REFER R/M |
2 | ||
| 11701-0P060A2 |
2GRFKS..GSU5# MARK UPPER 1 LOWER 2,NO.1,(L):REFER R/M |
2 | ||
| 11701-0P060E5 |
2GRFKS..GSU5# MARK UPPER 5 LOWER 5,NO.1,(L):REFER R/M |
2 | ||
| 11071-0P060E5 |
2GRFKS..GSU5# MARK UPPER 5 LOWER 5,NO.2,(L):REFER R/M |
2 | ||
| 11071-31060C4 |
2GRFKS..GSU5# MARK UPPER 3 LOWER 4,NO.2,(J):REFER R/M |
2 | ||
| 11701-0P060D5 |
2GRFKS..GSU5# MARK UPPER 4 LOWER 5,NO.1,(L):REFER R/M |
2 | ||
| 11071-31060D4 |
2GRFKS..GSU5# MARK UPPER 4 LOWER 4,NO.2,(J):REFER R/M |
2 | ||
| 11701-31100A1 |
2GRFKS..GSU5# MARK UPPER 1 LOWER 1,NO.1,(J):REFER R/M |
2 | ||
| 11701-31100B3 |
2GRFKS..GSU5# MARK UPPER 2 LOWER 3,NO.1,(J):REFER R/M |
2 | ||
| 11701-0P060A1 |
2GRFKS..GSU5# MARK UPPER 1 LOWER 1,NO.1,(L):REFER R/M |
2 | ||
| 11071-31060A2 |
2GRFKS..GSU5# MARK UPPER 1 LOWER 2,NO.2,(J):REFER R/M |
2 | ||
| 11701-31100A2 |
2GRFKS..GSU5# MARK UPPER 1 LOWER 2,NO.1,(J):REFER R/M |
2 | ||
| 11701-31100C4 |
2GRFKS..GSU5# MARK UPPER 3 LOWER 4,NO.1,(J):REFER R/M |
2 | ||
| 11701-31100C3 |
2GRFKS..GSU5# MARK UPPER 3 LOWER 3,NO.1,(J):REFER R/M |
2 | ||
| 11701-31100E5 |
2GRFKS..GSU5# MARK UPPER 5 LOWER 5,NO.1,(J):REFER R/M |
2 | ||
| 11701-31100D5 |
2GRFKS..GSU5# MARK UPPER 4 LOWER 5,NO.1,(J):REFER R/M |
2 | ||
| 11701-31100D4 |
2GRFKS..GSU5# MARK UPPER 4 LOWER 4,NO.1,(J):REFER R/M |
2 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-3103105 |
2GR#..GSU5#,GVU58 MARK5,NO.2,(J):REFER R/M |
2 | ||
| 11071-3103103 |
2GR#..GSU5#,GVU58 MARK3,NO.2,(J):REFER R/M |
2 | ||
| 11701-3109002 |
2GR#..GSU5#,GVU58 MARK 2,NO.1,(J):REFER R/M |
2 | ||
| 11071-3103104 |
2GR#..GSU5#,GVU58 MARK4,NO.2,(J):REFER R/M |
2 | ||
| 11701-3109005 |
2GR#..GSU5#,GVU58 MARK 5,NO.1,(J):REFER R/M |
2 | ||
| 11071-3103102 |
2GR#..GSU5#,GVU58 MARK2,NO.2,(J):REFER R/M |
2 | ||
| 11701-3109003 |
2GR#..GSU5#,GVU58 MARK 3,NO.1,(J):REFER R/M |
2 | ||
| 11701-3109001 |
2GR#..GSU5#,GVU58 MARK 1,NO.1,(J):REFER R/M |
2 | ||
| 11071-3103101 |
2GR#..GSU5#,GVU58 MARK1,NO.2,(J):REFER R/M |
2 | ||
| 11701-3109004 |
2GR#..GSU5#,GVU58 MARK 4,NO.1,(J):REFER R/M |
2 | ||
| 11071-0P060B3 |
2GRFKS..GSU5# MARK UPPER 2 LOWER 3,NO.2,REFER R/M |
2 | ||
| 11071-0P060E5 |
2GRFKS..GSU5# MARK UPPER 5 LOWER 5,NO.2,REFER R/M |
2 | ||
| 11701-0P060A1 |
2GRFKS..GSU5# MARK UPPER 1 LOWER 1,NO.1,REFER R/M |
2 | ||
| 11071-0P060A2 |
2GRFKS..GSU5# MARK UPPER 1 LOWER 2,NO.2,REFER R/M |
2 | ||
| 11071-0P060C3 |
2GRFKS..GSU5# MARK UPPER 3 LOWER 3,NO.2,REFER R/M |
2 | ||
| 11071-0P060A1 |
2GRFKS..GSU5# MARK UPPER 1 LOWER 1,NO.2,REFER R/M |
2 | ||
| 11701-0P060B3 |
2GRFKS..GSU5# MARK UPPER 2 LOWER 3,NO.1,REFER R/M |
2 | ||
| 11701-0P060A2 |
2GRFKS..GSU5# MARK UPPER 1 LOWER 2,NO.1,REFER R/M |
2 | ||
| 11071-0P060D5 |
2GRFKS..GSU5# MARK UPPER 4 LOWER 5,NO.2,REFER R/M |
2 | ||
| 11701-0P060B2 |
2GRFKS..GSU5# MARK UPPER 2 LOWER 2,NO.1,REFER R/M |
2 | ||
| 11071-0P060C4 |
2GRFKS..GSU5# MARK UPPER 3 LOWER 4,NO.2,REFER R/M |
2 | ||
| 11701-0P060D4 |
2GRFKS..GSU5# MARK UPPER 4 LOWER 4,NO.1,REFER R/M |
2 | ||
| 11701-0P060D5 |
2GRFKS..GSU5# MARK UPPER 4 LOWER 5,NO.1,REFER R/M |
2 | ||
| 11071-0P060B2 |
2GRFKS..GSU5# MARK UPPER 2 LOWER 2,NO.2,REFER R/M |
2 | ||
| 11071-0P060D4 |
2GRFKS..GSU5# MARK UPPER 4 LOWER 4,NO.2,REFER R/M |
2 | ||
| 11701-0P060C4 |
2GRFKS..GSU5# MARK UPPER 3 LOWER 4,NO.1,REFER R/M |
2 | ||
| 11701-0P060E5 |
2GRFKS..GSU5# MARK UPPER 5 LOWER 5,NO.1,REFER R/M |
2 | ||
| 11701-0P060C3 |
2GRFKS..GSU5# MARK UPPER 3 LOWER 3,NO.1,REFER R/M |
2 | ||
| 11071-0P060A2 |
2GRFKS..GSU5# MARK UPPER 1 LOWER 2,NO.2,(L):REFER R/M |
2 | ||
| 11071-0P060C4 |
2GRFKS..GSU5# MARK UPPER 3 LOWER 4,NO.2,(L):REFER R/M |
2 | ||
| 11071-0P060D4 |
2GRFKS..GSU5# MARK UPPER 4 LOWER 4,NO.2,(L):REFER R/M |
2 | ||
| 11071-0P060D5 |
2GRFKS..GSU5# MARK UPPER 4 LOWER 5,NO.2,(L):REFER R/M |
2 | ||
| 11071-31060A1 |
2GRFKS..GSU5# MARK UPPER 1 LOWER 1,NO.2,(J):REFER R/M |
2 | ||
| 11071-0P060B2 |
2GRFKS..GSU5# MARK UPPER 2 LOWER 2,NO.2,(L):REFER R/M |
2 | ||
| 11071-0P060A1 |
2GRFKS..GSU5# MARK UPPER 1 LOWER 1,NO.2,(L):REFER R/M |
2 | ||
| 11071-0P060C3 |
2GRFKS..GSU5# MARK UPPER 3 LOWER 3,NO.2,(L):REFER R/M |
2 | ||
| 11071-31060C3 |
2GRFKS..GSU5# MARK UPPER 3 LOWER 3,NO.2,(J):REFER R/M |
2 | ||
| 11701-0P060B2 |
2GRFKS..GSU5# MARK UPPER 2 LOWER 2,NO.1,(L):REFER R/M |
2 | ||
| 11071-0P060B3 |
2GRFKS..GSU5# MARK UPPER 2 LOWER 3,NO.2,(L):REFER R/M |
2 | ||
| 11071-31060B2 |
2GRFKS..GSU5# MARK UPPER 2 LOWER 2,NO.2,(J):REFER R/M |
2 | ||
| 11701-0P060D4 |
2GRFKS..GSU5# MARK UPPER 4 LOWER 4,NO.1,(L):REFER R/M |
2 | ||
| 11071-31060B3 |
2GRFKS..GSU5# MARK UPPER 2 LOWER 3,NO.2,(J):REFER R/M |
2 | ||
| 11071-31060D5 |
2GRFKS..GSU5# MARK UPPER 4 LOWER 5,NO.2,(J):REFER R/M |
2 | ||
| 11701-0P060C3 |
2GRFKS..GSU5# MARK UPPER 3 LOWER 3,NO.1,(L):REFER R/M |
2 | ||
| 11701-0P060B3 |
2GRFKS..GSU5# MARK UPPER 2 LOWER 3,NO.1,(L):REFER R/M |
2 | ||
| 11071-31060E5 |
2GRFKS..GSU5# MARK UPPER 5 LOWER 5,NO.2,(J):REFER R/M |
2 | ||
| 11701-0P060C4 |
2GRFKS..GSU5# MARK UPPER 3 LOWER 4,NO.1,(L):REFER R/M |
2 | ||
| 11701-31100B2 |
2GRFKS..GSU5# MARK UPPER 2 LOWER 2,NO.1,(J):REFER R/M |
2 | ||
| 11701-0P060A2 |
2GRFKS..GSU5# MARK UPPER 1 LOWER 2,NO.1,(L):REFER R/M |
2 | ||
| 11701-0P060E5 |
2GRFKS..GSU5# MARK UPPER 5 LOWER 5,NO.1,(L):REFER R/M |
2 | ||
| 11071-0P060E5 |
2GRFKS..GSU5# MARK UPPER 5 LOWER 5,NO.2,(L):REFER R/M |
2 | ||
| 11071-31060C4 |
2GRFKS..GSU5# MARK UPPER 3 LOWER 4,NO.2,(J):REFER R/M |
2 | ||
| 11701-0P060D5 |
2GRFKS..GSU5# MARK UPPER 4 LOWER 5,NO.1,(L):REFER R/M |
2 | ||
| 11071-31060D4 |
2GRFKS..GSU5# MARK UPPER 4 LOWER 4,NO.2,(J):REFER R/M |
2 | ||
| 11701-31100A1 |
2GRFKS..GSU5# MARK UPPER 1 LOWER 1,NO.1,(J):REFER R/M |
2 | ||
| 11701-31100B3 |
2GRFKS..GSU5# MARK UPPER 2 LOWER 3,NO.1,(J):REFER R/M |
2 | ||
| 11701-0P060A1 |
2GRFKS..GSU5# MARK UPPER 1 LOWER 1,NO.1,(L):REFER R/M |
2 | ||
| 11071-31060A2 |
2GRFKS..GSU5# MARK UPPER 1 LOWER 2,NO.2,(J):REFER R/M |
2 | ||
| 11701-31100A2 |
2GRFKS..GSU5# MARK UPPER 1 LOWER 2,NO.1,(J):REFER R/M |
2 | ||
| 11701-31100C4 |
2GRFKS..GSU5# MARK UPPER 3 LOWER 4,NO.1,(J):REFER R/M |
2 | ||
| 11701-31100C3 |
2GRFKS..GSU5# MARK UPPER 3 LOWER 3,NO.1,(J):REFER R/M |
2 | ||
| 11701-31100E5 |
2GRFKS..GSU5# MARK UPPER 5 LOWER 5,NO.1,(J):REFER R/M |
2 | ||
| 11701-31100D5 |
2GRFKS..GSU5# MARK UPPER 4 LOWER 5,NO.1,(J):REFER R/M |
2 | ||
| 11701-31100D4 |
2GRFKS..GSU5# MARK UPPER 4 LOWER 4,NO.1,(J):REFER R/M |
2 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-3103105 |
2GR#..GSU5#,GVU58 MARK5,NO.2,(J):REFER R/M |
2 | ||
| 11071-3103103 |
2GR#..GSU5#,GVU58 MARK3,NO.2,(J):REFER R/M |
2 | ||
| 11701-3109002 |
2GR#..GSU5#,GVU58 MARK 2,NO.1,(J):REFER R/M |
2 | ||
| 11071-3103104 |
2GR#..GSU5#,GVU58 MARK4,NO.2,(J):REFER R/M |
2 | ||
| 11701-3109005 |
2GR#..GSU5#,GVU58 MARK 5,NO.1,(J):REFER R/M |
2 | ||
| 11071-3103102 |
2GR#..GSU5#,GVU58 MARK2,NO.2,(J):REFER R/M |
2 | ||
| 11701-3109003 |
2GR#..GSU5#,GVU58 MARK 3,NO.1,(J):REFER R/M |
2 | ||
| 11701-3109001 |
2GR#..GSU5#,GVU58 MARK 1,NO.1,(J):REFER R/M |
2 | ||
| 11071-3103101 |
2GR#..GSU5#,GVU58 MARK1,NO.2,(J):REFER R/M |
2 | ||
| 11701-3109004 |
2GR#..GSU5#,GVU58 MARK 4,NO.1,(J):REFER R/M |
2 | ||
| 11071-0P060B3 |
2GRFKS..GSU5# MARK UPPER 2 LOWER 3,NO.2,REFER R/M |
2 | ||
| 11071-0P060E5 |
2GRFKS..GSU5# MARK UPPER 5 LOWER 5,NO.2,REFER R/M |
2 | ||
| 11701-0P060A1 |
2GRFKS..GSU5# MARK UPPER 1 LOWER 1,NO.1,REFER R/M |
2 | ||
| 11071-0P060A2 |
2GRFKS..GSU5# MARK UPPER 1 LOWER 2,NO.2,REFER R/M |
2 | ||
| 11071-0P060C3 |
2GRFKS..GSU5# MARK UPPER 3 LOWER 3,NO.2,REFER R/M |
2 | ||
| 11071-0P060A1 |
2GRFKS..GSU5# MARK UPPER 1 LOWER 1,NO.2,REFER R/M |
2 | ||
| 11701-0P060B3 |
2GRFKS..GSU5# MARK UPPER 2 LOWER 3,NO.1,REFER R/M |
2 | ||
| 11701-0P060A2 |
2GRFKS..GSU5# MARK UPPER 1 LOWER 2,NO.1,REFER R/M |
2 | ||
| 11071-0P060D5 |
2GRFKS..GSU5# MARK UPPER 4 LOWER 5,NO.2,REFER R/M |
2 | ||
| 11701-0P060B2 |
2GRFKS..GSU5# MARK UPPER 2 LOWER 2,NO.1,REFER R/M |
2 | ||
| 11071-0P060C4 |
2GRFKS..GSU5# MARK UPPER 3 LOWER 4,NO.2,REFER R/M |
2 | ||
| 11701-0P060D4 |
2GRFKS..GSU5# MARK UPPER 4 LOWER 4,NO.1,REFER R/M |
2 | ||
| 11701-0P060D5 |
2GRFKS..GSU5# MARK UPPER 4 LOWER 5,NO.1,REFER R/M |
2 | ||
| 11071-0P060B2 |
2GRFKS..GSU5# MARK UPPER 2 LOWER 2,NO.2,REFER R/M |
2 | ||
| 11071-0P060D4 |
2GRFKS..GSU5# MARK UPPER 4 LOWER 4,NO.2,REFER R/M |
2 | ||
| 11701-0P060C4 |
2GRFKS..GSU5# MARK UPPER 3 LOWER 4,NO.1,REFER R/M |
2 | ||
| 11701-0P060E5 |
2GRFKS..GSU5# MARK UPPER 5 LOWER 5,NO.1,REFER R/M |
2 | ||
| 11701-0P060C3 |
2GRFKS..GSU5# MARK UPPER 3 LOWER 3,NO.1,REFER R/M |
2 | ||
| 11071-0P060A2 |
2GRFKS..GSU5# MARK UPPER 1 LOWER 2,NO.2,(L):REFER R/M |
2 | ||
| 11071-0P060C4 |
2GRFKS..GSU5# MARK UPPER 3 LOWER 4,NO.2,(L):REFER R/M |
2 | ||
| 11071-0P060D4 |
2GRFKS..GSU5# MARK UPPER 4 LOWER 4,NO.2,(L):REFER R/M |
2 | ||
| 11071-0P060D5 |
2GRFKS..GSU5# MARK UPPER 4 LOWER 5,NO.2,(L):REFER R/M |
2 | ||
| 11071-31060A1 |
2GRFKS..GSU5# MARK UPPER 1 LOWER 1,NO.2,(J):REFER R/M |
2 | ||
| 11071-0P060B2 |
2GRFKS..GSU5# MARK UPPER 2 LOWER 2,NO.2,(L):REFER R/M |
2 | ||
| 11071-0P060A1 |
2GRFKS..GSU5# MARK UPPER 1 LOWER 1,NO.2,(L):REFER R/M |
2 | ||
| 11071-0P060C3 |
2GRFKS..GSU5# MARK UPPER 3 LOWER 3,NO.2,(L):REFER R/M |
2 | ||
| 11071-31060C3 |
2GRFKS..GSU5# MARK UPPER 3 LOWER 3,NO.2,(J):REFER R/M |
2 | ||
| 11701-0P060B2 |
2GRFKS..GSU5# MARK UPPER 2 LOWER 2,NO.1,(L):REFER R/M |
2 | ||
| 11071-0P060B3 |
2GRFKS..GSU5# MARK UPPER 2 LOWER 3,NO.2,(L):REFER R/M |
2 | ||
| 11071-31060B2 |
2GRFKS..GSU5# MARK UPPER 2 LOWER 2,NO.2,(J):REFER R/M |
2 | ||
| 11701-0P060D4 |
2GRFKS..GSU5# MARK UPPER 4 LOWER 4,NO.1,(L):REFER R/M |
2 | ||
| 11071-31060B3 |
2GRFKS..GSU5# MARK UPPER 2 LOWER 3,NO.2,(J):REFER R/M |
2 | ||
| 11071-31060D5 |
2GRFKS..GSU5# MARK UPPER 4 LOWER 5,NO.2,(J):REFER R/M |
2 | ||
| 11701-0P060C3 |
2GRFKS..GSU5# MARK UPPER 3 LOWER 3,NO.1,(L):REFER R/M |
2 | ||
| 11701-0P060B3 |
2GRFKS..GSU5# MARK UPPER 2 LOWER 3,NO.1,(L):REFER R/M |
2 | ||
| 11071-31060E5 |
2GRFKS..GSU5# MARK UPPER 5 LOWER 5,NO.2,(J):REFER R/M |
2 | ||
| 11701-0P060C4 |
2GRFKS..GSU5# MARK UPPER 3 LOWER 4,NO.1,(L):REFER R/M |
2 | ||
| 11701-31100B2 |
2GRFKS..GSU5# MARK UPPER 2 LOWER 2,NO.1,(J):REFER R/M |
2 | ||
| 11701-0P060A2 |
2GRFKS..GSU5# MARK UPPER 1 LOWER 2,NO.1,(L):REFER R/M |
2 | ||
| 11701-0P060E5 |
2GRFKS..GSU5# MARK UPPER 5 LOWER 5,NO.1,(L):REFER R/M |
2 | ||
| 11071-0P060E5 |
2GRFKS..GSU5# MARK UPPER 5 LOWER 5,NO.2,(L):REFER R/M |
2 | ||
| 11071-31060C4 |
2GRFKS..GSU5# MARK UPPER 3 LOWER 4,NO.2,(J):REFER R/M |
2 | ||
| 11701-0P060D5 |
2GRFKS..GSU5# MARK UPPER 4 LOWER 5,NO.1,(L):REFER R/M |
2 | ||
| 11071-31060D4 |
2GRFKS..GSU5# MARK UPPER 4 LOWER 4,NO.2,(J):REFER R/M |
2 | ||
| 11701-31100A1 |
2GRFKS..GSU5# MARK UPPER 1 LOWER 1,NO.1,(J):REFER R/M |
2 | ||
| 11701-31100B3 |
2GRFKS..GSU5# MARK UPPER 2 LOWER 3,NO.1,(J):REFER R/M |
2 | ||
| 11701-0P060A1 |
2GRFKS..GSU5# MARK UPPER 1 LOWER 1,NO.1,(L):REFER R/M |
2 | ||
| 11071-31060A2 |
2GRFKS..GSU5# MARK UPPER 1 LOWER 2,NO.2,(J):REFER R/M |
2 | ||
| 11701-31100A2 |
2GRFKS..GSU5# MARK UPPER 1 LOWER 2,NO.1,(J):REFER R/M |
2 | ||
| 11701-31100C4 |
2GRFKS..GSU5# MARK UPPER 3 LOWER 4,NO.1,(J):REFER R/M |
2 | ||
| 11701-31100C3 |
2GRFKS..GSU5# MARK UPPER 3 LOWER 3,NO.1,(J):REFER R/M |
2 | ||
| 11701-31100E5 |
2GRFKS..GSU5# MARK UPPER 5 LOWER 5,NO.1,(J):REFER R/M |
2 | ||
| 11701-31100D5 |
2GRFKS..GSU5# MARK UPPER 4 LOWER 5,NO.1,(J):REFER R/M |
2 | ||
| 11701-31100D4 |
2GRFKS..GSU5# MARK UPPER 4 LOWER 4,NO.1,(J):REFER R/M |
2 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-3103105 |
2GR#..GSU5#,GVU58 MARK5,NO.2,(J):REFER R/M |
2 | ||
| 11071-3103103 |
2GR#..GSU5#,GVU58 MARK3,NO.2,(J):REFER R/M |
2 | ||
| 11701-3109002 |
2GR#..GSU5#,GVU58 MARK 2,NO.1,(J):REFER R/M |
2 | ||
| 11071-3103104 |
2GR#..GSU5#,GVU58 MARK4,NO.2,(J):REFER R/M |
2 | ||
| 11701-3109005 |
2GR#..GSU5#,GVU58 MARK 5,NO.1,(J):REFER R/M |
2 | ||
| 11071-3103102 |
2GR#..GSU5#,GVU58 MARK2,NO.2,(J):REFER R/M |
2 | ||
| 11701-3109003 |
2GR#..GSU5#,GVU58 MARK 3,NO.1,(J):REFER R/M |
2 | ||
| 11701-3109001 |
2GR#..GSU5#,GVU58 MARK 1,NO.1,(J):REFER R/M |
2 | ||
| 11071-3103101 |
2GR#..GSU5#,GVU58 MARK1,NO.2,(J):REFER R/M |
2 | ||
| 11701-3109004 |
2GR#..GSU5#,GVU58 MARK 4,NO.1,(J):REFER R/M |
2 | ||
| 11071-0P060B3 |
2GRFKS..GSU5# MARK UPPER 2 LOWER 3,NO.2,REFER R/M |
2 | ||
| 11071-0P060E5 |
2GRFKS..GSU5# MARK UPPER 5 LOWER 5,NO.2,REFER R/M |
2 | ||
| 11701-0P060A1 |
2GRFKS..GSU5# MARK UPPER 1 LOWER 1,NO.1,REFER R/M |
2 | ||
| 11071-0P060A2 |
2GRFKS..GSU5# MARK UPPER 1 LOWER 2,NO.2,REFER R/M |
2 | ||
| 11071-0P060C3 |
2GRFKS..GSU5# MARK UPPER 3 LOWER 3,NO.2,REFER R/M |
2 | ||
| 11071-0P060A1 |
2GRFKS..GSU5# MARK UPPER 1 LOWER 1,NO.2,REFER R/M |
2 | ||
| 11701-0P060B3 |
2GRFKS..GSU5# MARK UPPER 2 LOWER 3,NO.1,REFER R/M |
2 | ||
| 11701-0P060A2 |
2GRFKS..GSU5# MARK UPPER 1 LOWER 2,NO.1,REFER R/M |
2 | ||
| 11071-0P060D5 |
2GRFKS..GSU5# MARK UPPER 4 LOWER 5,NO.2,REFER R/M |
2 | ||
| 11701-0P060B2 |
2GRFKS..GSU5# MARK UPPER 2 LOWER 2,NO.1,REFER R/M |
2 | ||
| 11071-0P060C4 |
2GRFKS..GSU5# MARK UPPER 3 LOWER 4,NO.2,REFER R/M |
2 | ||
| 11701-0P060D4 |
2GRFKS..GSU5# MARK UPPER 4 LOWER 4,NO.1,REFER R/M |
2 | ||
| 11701-0P060D5 |
2GRFKS..GSU5# MARK UPPER 4 LOWER 5,NO.1,REFER R/M |
2 | ||
| 11071-0P060B2 |
2GRFKS..GSU5# MARK UPPER 2 LOWER 2,NO.2,REFER R/M |
2 | ||
| 11071-0P060D4 |
2GRFKS..GSU5# MARK UPPER 4 LOWER 4,NO.2,REFER R/M |
2 | ||
| 11701-0P060C4 |
2GRFKS..GSU5# MARK UPPER 3 LOWER 4,NO.1,REFER R/M |
2 | ||
| 11701-0P060E5 |
2GRFKS..GSU5# MARK UPPER 5 LOWER 5,NO.1,REFER R/M |
2 | ||
| 11701-0P060C3 |
2GRFKS..GSU5# MARK UPPER 3 LOWER 3,NO.1,REFER R/M |
2 | ||
| 11071-0P060A2 |
2GRFKS..GSU5# MARK UPPER 1 LOWER 2,NO.2,(L):REFER R/M |
2 | ||
| 11071-0P060C4 |
2GRFKS..GSU5# MARK UPPER 3 LOWER 4,NO.2,(L):REFER R/M |
2 | ||
| 11071-0P060D4 |
2GRFKS..GSU5# MARK UPPER 4 LOWER 4,NO.2,(L):REFER R/M |
2 | ||
| 11071-0P060D5 |
2GRFKS..GSU5# MARK UPPER 4 LOWER 5,NO.2,(L):REFER R/M |
2 | ||
| 11071-31060A1 |
2GRFKS..GSU5# MARK UPPER 1 LOWER 1,NO.2,(J):REFER R/M |
2 | ||
| 11071-0P060B2 |
2GRFKS..GSU5# MARK UPPER 2 LOWER 2,NO.2,(L):REFER R/M |
2 | ||
| 11071-0P060A1 |
2GRFKS..GSU5# MARK UPPER 1 LOWER 1,NO.2,(L):REFER R/M |
2 | ||
| 11071-0P060C3 |
2GRFKS..GSU5# MARK UPPER 3 LOWER 3,NO.2,(L):REFER R/M |
2 | ||
| 11071-31060C3 |
2GRFKS..GSU5# MARK UPPER 3 LOWER 3,NO.2,(J):REFER R/M |
2 | ||
| 11701-0P060B2 |
2GRFKS..GSU5# MARK UPPER 2 LOWER 2,NO.1,(L):REFER R/M |
2 | ||
| 11071-0P060B3 |
2GRFKS..GSU5# MARK UPPER 2 LOWER 3,NO.2,(L):REFER R/M |
2 | ||
| 11071-31060B2 |
2GRFKS..GSU5# MARK UPPER 2 LOWER 2,NO.2,(J):REFER R/M |
2 | ||
| 11701-0P060D4 |
2GRFKS..GSU5# MARK UPPER 4 LOWER 4,NO.1,(L):REFER R/M |
2 | ||
| 11071-31060B3 |
2GRFKS..GSU5# MARK UPPER 2 LOWER 3,NO.2,(J):REFER R/M |
2 | ||
| 11071-31060D5 |
2GRFKS..GSU5# MARK UPPER 4 LOWER 5,NO.2,(J):REFER R/M |
2 | ||
| 11701-0P060C3 |
2GRFKS..GSU5# MARK UPPER 3 LOWER 3,NO.1,(L):REFER R/M |
2 | ||
| 11701-0P060B3 |
2GRFKS..GSU5# MARK UPPER 2 LOWER 3,NO.1,(L):REFER R/M |
2 | ||
| 11071-31060E5 |
2GRFKS..GSU5# MARK UPPER 5 LOWER 5,NO.2,(J):REFER R/M |
2 | ||
| 11701-0P060C4 |
2GRFKS..GSU5# MARK UPPER 3 LOWER 4,NO.1,(L):REFER R/M |
2 | ||
| 11701-31100B2 |
2GRFKS..GSU5# MARK UPPER 2 LOWER 2,NO.1,(J):REFER R/M |
2 | ||
| 11701-0P060A2 |
2GRFKS..GSU5# MARK UPPER 1 LOWER 2,NO.1,(L):REFER R/M |
2 | ||
| 11701-0P060E5 |
2GRFKS..GSU5# MARK UPPER 5 LOWER 5,NO.1,(L):REFER R/M |
2 | ||
| 11071-0P060E5 |
2GRFKS..GSU5# MARK UPPER 5 LOWER 5,NO.2,(L):REFER R/M |
2 | ||
| 11071-31060C4 |
2GRFKS..GSU5# MARK UPPER 3 LOWER 4,NO.2,(J):REFER R/M |
2 | ||
| 11701-0P060D5 |
2GRFKS..GSU5# MARK UPPER 4 LOWER 5,NO.1,(L):REFER R/M |
2 | ||
| 11071-31060D4 |
2GRFKS..GSU5# MARK UPPER 4 LOWER 4,NO.2,(J):REFER R/M |
2 | ||
| 11701-31100A1 |
2GRFKS..GSU5# MARK UPPER 1 LOWER 1,NO.1,(J):REFER R/M |
2 | ||
| 11701-31100B3 |
2GRFKS..GSU5# MARK UPPER 2 LOWER 3,NO.1,(J):REFER R/M |
2 | ||
| 11701-0P060A1 |
2GRFKS..GSU5# MARK UPPER 1 LOWER 1,NO.1,(L):REFER R/M |
2 | ||
| 11071-31060A2 |
2GRFKS..GSU5# MARK UPPER 1 LOWER 2,NO.2,(J):REFER R/M |
2 | ||
| 11701-31100A2 |
2GRFKS..GSU5# MARK UPPER 1 LOWER 2,NO.1,(J):REFER R/M |
2 | ||
| 11701-31100C4 |
2GRFKS..GSU5# MARK UPPER 3 LOWER 4,NO.1,(J):REFER R/M |
2 | ||
| 11701-31100C3 |
2GRFKS..GSU5# MARK UPPER 3 LOWER 3,NO.1,(J):REFER R/M |
2 | ||
| 11701-31100E5 |
2GRFKS..GSU5# MARK UPPER 5 LOWER 5,NO.1,(J):REFER R/M |
2 | ||
| 11701-31100D5 |
2GRFKS..GSU5# MARK UPPER 4 LOWER 5,NO.1,(J):REFER R/M |
2 | ||
| 11701-31100D4 |
2GRFKS..GSU5# MARK UPPER 4 LOWER 4,NO.1,(J):REFER R/M |
2 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-0P051 |
2GRFKS..GSU5# STD |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-3107001 |
2GR#..GSU5#,GVU58 MARK 1,REFER R/M,*427 |
6 | ||
| 13041-3107002 |
2GR#..GSU5#,GVU58 MARK 2,REFER R/M,*427 |
6 | ||
| 13041-3107004 |
2GR#..GSU5#,GVU58 MARK 4,REFER R/M,*427 |
6 | ||
| 13041-3107003 |
2GR#..GSU5#,GVU58 MARK 3,REFER R/M,*427 |
6 | ||
| 13041-0P09001 |
2GRFKS..GSU5# MARK 1 |
6 | ||
| 13041-0P09004 |
2GRFKS..GSU5# MARK 4 |
6 | ||
| 13041-0P09002 |
2GRFKS..GSU5# MARK 2 |
6 | ||
| 13041-0P09003 |
2GRFKS..GSU5# MARK 3 |
6 | ||
| 13041-0P09003 |
2GRFKS..GSU5# MARK 3,(L),REFER R/M |
6 | ||
| 13041-0P09004 |
2GRFKS..GSU5# MARK 4,(L),REFER R/M |
6 | ||
| 13041-3110003 |
2GRFKS..GSU5# MARK 3,(J),REFER R/M |
6 | ||
| 13041-3110001 |
2GRFKS..GSU5# MARK 1,(J),REFER R/M |
6 | ||
| 13041-0P09001 |
2GRFKS..GSU5# MARK 1,(L),REFER R/M |
6 | ||
| 13041-0P09002 |
2GRFKS..GSU5# MARK 2,(L),REFER R/M |
6 | ||
| 13041-3110004 |
2GRFKS..GSU5# MARK 4,(J),REFER R/M |
6 | ||
| 13041-3110002 |
2GRFKS..GSU5# MARK 2,(J),REFER R/M |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-3107001 |
2GR#..GSU5#,GVU58 MARK 1,REFER R/M,*427 |
6 | ||
| 13041-3107002 |
2GR#..GSU5#,GVU58 MARK 2,REFER R/M,*427 |
6 | ||
| 13041-3107004 |
2GR#..GSU5#,GVU58 MARK 4,REFER R/M,*427 |
6 | ||
| 13041-3107003 |
2GR#..GSU5#,GVU58 MARK 3,REFER R/M,*427 |
6 | ||
| 13041-0P09001 |
2GRFKS..GSU5# MARK 1 |
6 | ||
| 13041-0P09004 |
2GRFKS..GSU5# MARK 4 |
6 | ||
| 13041-0P09002 |
2GRFKS..GSU5# MARK 2 |
6 | ||
| 13041-0P09003 |
2GRFKS..GSU5# MARK 3 |
6 | ||
| 13041-0P09003 |
2GRFKS..GSU5# MARK 3,(L),REFER R/M |
6 | ||
| 13041-0P09004 |
2GRFKS..GSU5# MARK 4,(L),REFER R/M |
6 | ||
| 13041-3110003 |
2GRFKS..GSU5# MARK 3,(J),REFER R/M |
6 | ||
| 13041-3110001 |
2GRFKS..GSU5# MARK 1,(J),REFER R/M |
6 | ||
| 13041-0P09001 |
2GRFKS..GSU5# MARK 1,(L),REFER R/M |
6 | ||
| 13041-0P09002 |
2GRFKS..GSU5# MARK 2,(L),REFER R/M |
6 | ||
| 13041-3110004 |
2GRFKS..GSU5# MARK 4,(J),REFER R/M |
6 | ||
| 13041-3110002 |
2GRFKS..GSU5# MARK 2,(J),REFER R/M |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-3107001 |
2GR#..GSU5#,GVU58 MARK 1,REFER R/M,*427 |
6 | ||
| 13041-3107002 |
2GR#..GSU5#,GVU58 MARK 2,REFER R/M,*427 |
6 | ||
| 13041-3107004 |
2GR#..GSU5#,GVU58 MARK 4,REFER R/M,*427 |
6 | ||
| 13041-3107003 |
2GR#..GSU5#,GVU58 MARK 3,REFER R/M,*427 |
6 | ||
| 13041-0P09001 |
2GRFKS..GSU5# MARK 1 |
6 | ||
| 13041-0P09004 |
2GRFKS..GSU5# MARK 4 |
6 | ||
| 13041-0P09002 |
2GRFKS..GSU5# MARK 2 |
6 | ||
| 13041-0P09003 |
2GRFKS..GSU5# MARK 3 |
6 | ||
| 13041-0P09003 |
2GRFKS..GSU5# MARK 3,(L),REFER R/M |
6 | ||
| 13041-0P09004 |
2GRFKS..GSU5# MARK 4,(L),REFER R/M |
6 | ||
| 13041-3110003 |
2GRFKS..GSU5# MARK 3,(J),REFER R/M |
6 | ||
| 13041-3110001 |
2GRFKS..GSU5# MARK 1,(J),REFER R/M |
6 | ||
| 13041-0P09001 |
2GRFKS..GSU5# MARK 1,(L),REFER R/M |
6 | ||
| 13041-0P09002 |
2GRFKS..GSU5# MARK 2,(L),REFER R/M |
6 | ||
| 13041-3110004 |
2GRFKS..GSU5# MARK 4,(J),REFER R/M |
6 | ||
| 13041-3110002 |
2GRFKS..GSU5# MARK 2,(J),REFER R/M |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-3107001 |
2GR#..GSU5#,GVU58 MARK 1,REFER R/M,*427 |
6 | ||
| 13041-3107002 |
2GR#..GSU5#,GVU58 MARK 2,REFER R/M,*427 |
6 | ||
| 13041-3107004 |
2GR#..GSU5#,GVU58 MARK 4,REFER R/M,*427 |
6 | ||
| 13041-3107003 |
2GR#..GSU5#,GVU58 MARK 3,REFER R/M,*427 |
6 | ||
| 13041-0P09001 |
2GRFKS..GSU5# MARK 1 |
6 | ||
| 13041-0P09004 |
2GRFKS..GSU5# MARK 4 |
6 | ||
| 13041-0P09002 |
2GRFKS..GSU5# MARK 2 |
6 | ||
| 13041-0P09003 |
2GRFKS..GSU5# MARK 3 |
6 | ||
| 13041-0P09003 |
2GRFKS..GSU5# MARK 3,(L),REFER R/M |
6 | ||
| 13041-0P09004 |
2GRFKS..GSU5# MARK 4,(L),REFER R/M |
6 | ||
| 13041-3110003 |
2GRFKS..GSU5# MARK 3,(J),REFER R/M |
6 | ||
| 13041-3110001 |
2GRFKS..GSU5# MARK 1,(J),REFER R/M |
6 | ||
| 13041-0P09001 |
2GRFKS..GSU5# MARK 1,(L),REFER R/M |
6 | ||
| 13041-0P09002 |
2GRFKS..GSU5# MARK 2,(L),REFER R/M |
6 | ||
| 13041-3110004 |
2GRFKS..GSU5# MARK 4,(J),REFER R/M |
6 | ||
| 13041-3110002 |
2GRFKS..GSU5# MARK 2,(J),REFER R/M |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-3107001 |
2GR#..GSU5#,GVU58 MARK 1,REFER R/M,*427 |
6 | ||
| 13041-3107002 |
2GR#..GSU5#,GVU58 MARK 2,REFER R/M,*427 |
6 | ||
| 13041-3107004 |
2GR#..GSU5#,GVU58 MARK 4,REFER R/M,*427 |
6 | ||
| 13041-3107003 |
2GR#..GSU5#,GVU58 MARK 3,REFER R/M,*427 |
6 | ||
| 13041-0P09001 |
2GRFKS..GSU5# MARK 1 |
6 | ||
| 13041-0P09004 |
2GRFKS..GSU5# MARK 4 |
6 | ||
| 13041-0P09002 |
2GRFKS..GSU5# MARK 2 |
6 | ||
| 13041-0P09003 |
2GRFKS..GSU5# MARK 3 |
6 | ||
| 13041-0P09003 |
2GRFKS..GSU5# MARK 3,(L),REFER R/M |
6 | ||
| 13041-0P09004 |
2GRFKS..GSU5# MARK 4,(L),REFER R/M |
6 | ||
| 13041-3110003 |
2GRFKS..GSU5# MARK 3,(J),REFER R/M |
6 | ||
| 13041-3110001 |
2GRFKS..GSU5# MARK 1,(J),REFER R/M |
6 | ||
| 13041-0P09001 |
2GRFKS..GSU5# MARK 1,(L),REFER R/M |
6 | ||
| 13041-0P09002 |
2GRFKS..GSU5# MARK 2,(L),REFER R/M |
6 | ||
| 13041-3110004 |
2GRFKS..GSU5# MARK 4,(J),REFER R/M |
6 | ||
| 13041-3110002 |
2GRFKS..GSU5# MARK 2,(J),REFER R/M |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-3107001 |
2GR#..GSU5#,GVU58 MARK 1,REFER R/M,*427 |
6 | ||
| 13041-3107002 |
2GR#..GSU5#,GVU58 MARK 2,REFER R/M,*427 |
6 | ||
| 13041-3107004 |
2GR#..GSU5#,GVU58 MARK 4,REFER R/M,*427 |
6 | ||
| 13041-3107003 |
2GR#..GSU5#,GVU58 MARK 3,REFER R/M,*427 |
6 | ||
| 13041-0P09001 |
2GRFKS..GSU5# MARK 1 |
6 | ||
| 13041-0P09004 |
2GRFKS..GSU5# MARK 4 |
6 | ||
| 13041-0P09002 |
2GRFKS..GSU5# MARK 2 |
6 | ||
| 13041-0P09003 |
2GRFKS..GSU5# MARK 3 |
6 | ||
| 13041-0P09003 |
2GRFKS..GSU5# MARK 3,(L),REFER R/M |
6 | ||
| 13041-0P09004 |
2GRFKS..GSU5# MARK 4,(L),REFER R/M |
6 | ||
| 13041-3110003 |
2GRFKS..GSU5# MARK 3,(J),REFER R/M |
6 | ||
| 13041-3110001 |
2GRFKS..GSU5# MARK 1,(J),REFER R/M |
6 | ||
| 13041-0P09001 |
2GRFKS..GSU5# MARK 1,(L),REFER R/M |
6 | ||
| 13041-0P09002 |
2GRFKS..GSU5# MARK 2,(L),REFER R/M |
6 | ||
| 13041-3110004 |
2GRFKS..GSU5# MARK 4,(J),REFER R/M |
6 | ||
| 13041-3110002 |
2GRFKS..GSU5# MARK 2,(J),REFER R/M |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-3107001 |
2GR#..GSU5#,GVU58 MARK 1,REFER R/M,*427 |
6 | ||
| 13041-3107002 |
2GR#..GSU5#,GVU58 MARK 2,REFER R/M,*427 |
6 | ||
| 13041-3107004 |
2GR#..GSU5#,GVU58 MARK 4,REFER R/M,*427 |
6 | ||
| 13041-3107003 |
2GR#..GSU5#,GVU58 MARK 3,REFER R/M,*427 |
6 | ||
| 13041-0P09001 |
2GRFKS..GSU5# MARK 1 |
6 | ||
| 13041-0P09004 |
2GRFKS..GSU5# MARK 4 |
6 | ||
| 13041-0P09002 |
2GRFKS..GSU5# MARK 2 |
6 | ||
| 13041-0P09003 |
2GRFKS..GSU5# MARK 3 |
6 | ||
| 13041-0P09003 |
2GRFKS..GSU5# MARK 3,(L),REFER R/M |
6 | ||
| 13041-0P09004 |
2GRFKS..GSU5# MARK 4,(L),REFER R/M |
6 | ||
| 13041-3110003 |
2GRFKS..GSU5# MARK 3,(J),REFER R/M |
6 | ||
| 13041-3110001 |
2GRFKS..GSU5# MARK 1,(J),REFER R/M |
6 | ||
| 13041-0P09001 |
2GRFKS..GSU5# MARK 1,(L),REFER R/M |
6 | ||
| 13041-0P09002 |
2GRFKS..GSU5# MARK 2,(L),REFER R/M |
6 | ||
| 13041-3110004 |
2GRFKS..GSU5# MARK 4,(J),REFER R/M |
6 | ||
| 13041-3110002 |
2GRFKS..GSU5# MARK 2,(J),REFER R/M |
6 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-0P040 |
2GRFKS..GSU5# STD |
3 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90520-A0004 |
2GRFKS..GSU5# |
12 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90520-A0004 |
2GRFKS..GSU5# |
12 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-39135A0 |
2GR#..GSU5#,GVU58 MARK A,*427 |
6 | ||
| 13201-39135C0 |
2GR#..GSU5#,GVU58 MARK C,*427 |
6 | ||
| 13201-39135B0 |
2GR#..GSU5#,GVU58 MARK B,*427 |
6 | ||
| 13201-09B90 |
2GRFKS..GSU5# REFER R/M |
6 | ||
| 13201A - BUSH(FOR CONNECTING ROD SMALL END) | ||||
| 90999-73144 |
2GR#..GSU5#,GVU58 |
6 | ||
| 90999-73144 |
2GR#..GSU5#,GVU58 |
6 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-28010 |
2GR#..GSU5#,GVU58 |
12 | ||
| 13265-28020 |
2GR#..GSU5#,GVU58 |
12 | ||
| 13265-28010 |
2GR#..GSU5#,GVU58 |
12 | ||
| 13301 - PISTON SUB-ASSY, W/PIN, LH | ||||
| 13301-0P030 |
2GRFKS..GSU5# STD |
3 | ||
| 13411 - CRANKSHAFT | ||||
| 13401-31040 |
2GR#..GSU5#,GVU58 (J) |
1 | ||
| 13401-0P060 |
2GRFKS..GSU5# |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13470-31030 |
2GR#..GSU5#,GVU58 |
1 | ||
| 13470-31060 |
2GRFKS..GSU5# |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90119-16004 |
2GR#..GSU5#,GVU58 |
1 | ||
| 90119-16020 |
2GR#..GSU5#,GVU58 |
1 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-0P020 |
2GRFKS..GSU5# |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 95161-30516 |
2GR#..GSU5#,GVU58 |
2 | ||
| 95161-30516 |
2GR#..GSU5#,GVU58 |
2 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 95161-30516 |
2GR#..GSU5#,GVU58 |
2 | ||
| 95161-30516 |
2GR#..GSU5#,GVU58 |
2 | ||
| 13581 - SHAFT, IDLE GEAR, NO.1 | ||||
| 13581-AD010 |
2GRFKS..GSU5# |
1 | ||
| 13582 - SHAFT, IDLE GEAR, NO.2 | ||||
| 13582-31031 |
2GR#..GSU5#,GVU58 |
1 | ||
| 13582-31031 |
2GR#..GSU5#,GVU58 |
1 | ||
| 19315 - PLATE, CRANK ANGLE SENSOR, NO.1 | ||||
| 19315-0P030 |
2GRFKS..GSU5# |
1 | ||
| 19315-0P050 |
2GRFKS..GSU5# |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
