GSU50L-ARZGHA (2016)

Toyota Highlander (Nap)

Production Nov 2016 - Nov 2019
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1611- )GSU5#

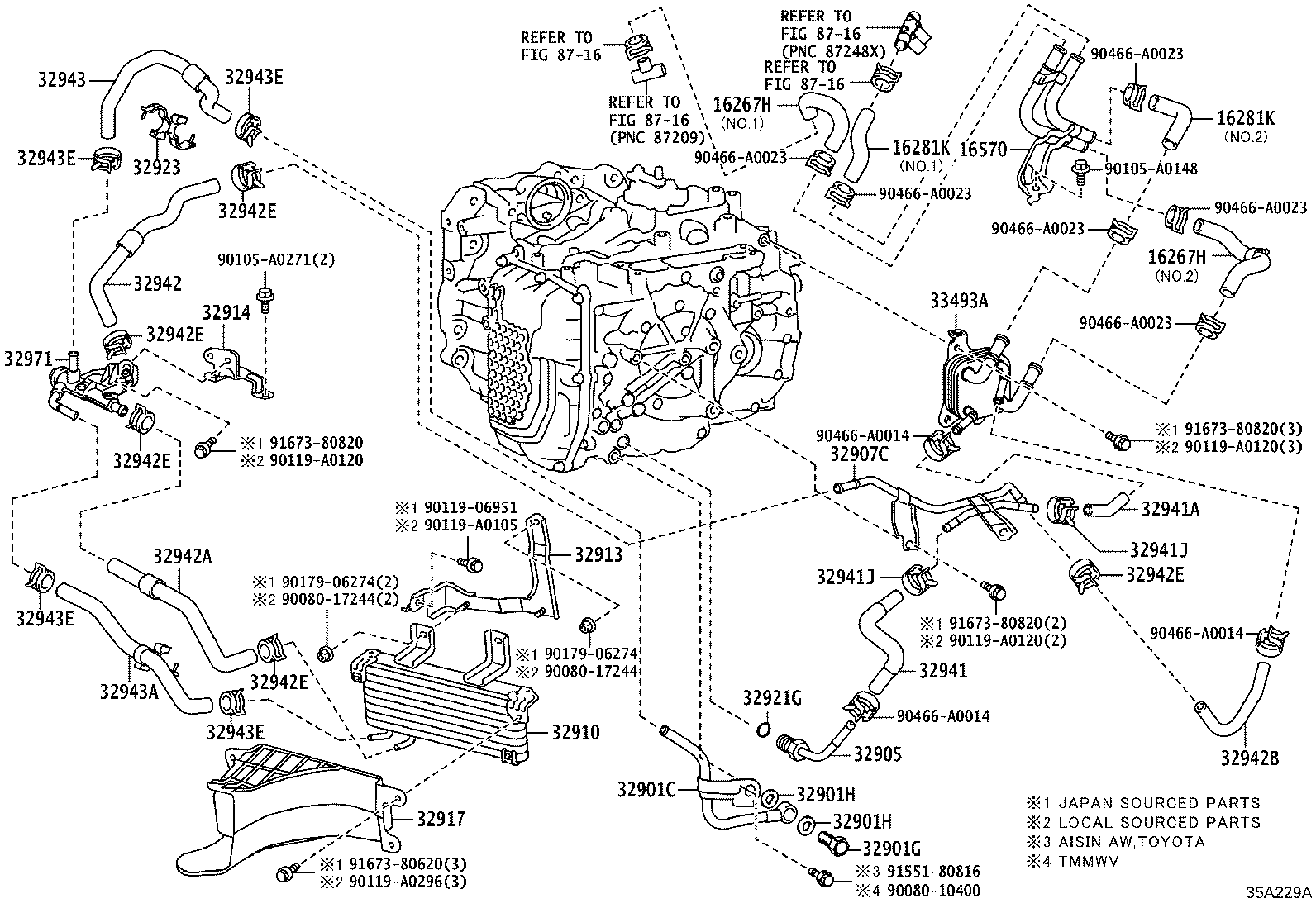

Click highlighted areas on diagram

UA80E,UA80F

diagram 16267H 16267H 16281K 16281K 16570 32901C 32901G 32901H 32901H 32905 32907C 32910 32913 32914 32917 32921G 32923 32941 32941A 32941J 32941J 32942 32942A 32942B 32942E 32942E 32942E 32942E 32942E 32943 32943A 32943E 32943E 32943E 32943E 32971 33493A 8716 8716 8716 8716 9008010400 9008017244 9008017244 90105A0148 90105A0271 9011906951 90119A0105 90119A0120 90119A0120 90119A0120 90119A0296 9017906274 9017906274 90466A0014 90466A0014 90466A0014 90466A0023 90466A0023 90466A0023 90466A0023 90466A0023 90466A0023 9155180816 9167380620 9167380820 9167380820 9167380820
Part # Description Qty Price
16267H - HOSE, WATER BY-PASS, NO.3
16267-0P140

2GRFKS..GSU5#

NO.2

 1
16267-0P130

2GRFKS..GSU5#

NO.1

 1
16267H - HOSE, WATER BY-PASS, NO.3
16267-0P140

2GRFKS..GSU5#

NO.2

 1
16267-0P130

2GRFKS..GSU5#

NO.1

 1
16281K - HOSE, WATER BY-PASS, NO.4
16281-0P140

2GRFKS..GSU5#

NO.2

 1
16281-0P130

2GRFKS..GSU5#

NO.1

 1
16281K - HOSE, WATER BY-PASS, NO.4
16281-0P140

2GRFKS..GSU5#

NO.2

 1
16281-0P130

2GRFKS..GSU5#

NO.1

 1
16570 - PIPE ASSY, RADIATOR
16570-0P010

2GRFKS..GSU5#

 1
32901C - UNION SUB-ASSY, OIL COOLER
32901-48020

GSU5#

 1
32901G - BOLT, UNION(FOR OIL COOLER)
90401-14003

GSU5#

 1
32901H - GASKET(FOR OIL COOLER UNION)
90430-14016

GSU50..G,M

DESTINATION PACKAGE(ALL)-MEXICO,AISIN AW:REFER 35-01

 2
90430-14016

GSU5#

TOYOTA:REFER 35-01

 2
90430-A0007

GSU5#

TMMWV:REFER 35-01

 2
32901H - GASKET(FOR OIL COOLER UNION)
90430-14016

GSU50..G,M

DESTINATION PACKAGE(ALL)-MEXICO,AISIN AW:REFER 35-01

 2
90430-14016

GSU5#

TOYOTA:REFER 35-01

 2
90430-A0007

GSU5#

TMMWV:REFER 35-01

 2
32905 - TUBE SUB-ASSY, OIL COOLER OUTLET, NO.1
90404-14028

GSU5#

 1
32907C - TUBE SUB-ASSY, OIL COOLER W/O HOSE, NO.1
32907-08030

GSU5#

 1
32910 - COOLER ASSY, OIL
32910-48190

GSU5#

TOWING PACKAGE-5000LBS

 1
32910-0E070

GSU5#

 1
32913 - BRACKET, OIL COOLER
32913-0E010

GSU5#

 1
32913-48030

GSU5#

TOWING PACKAGE-5000LBS

 1
32914 - STAY, OIL COOLER
32914-08010

GSU5#

 1
32917 - DUCT, TRANSMISSION OIL COOLER AIR
32917-0E060

GSU5#

 1
32917-0E010

GSU5#

TOWING PACKAGE-5000LBS

 1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11031

GSU5#

 1
90301-11031

GSU5#

 2
32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
16581-36060

GSU5#

 1
90464-00801

GSU5#

 2
32923-45010

GSU5#

 1
32941 - HOSE, OIL COOLER INLET, NO.1
32941-08051

GSU5#

 1
32930-0E050

GSU5#

 1
32941A - HOSE, OIL COOLER INLET, NO.2
32941-08061

GSU5#

 1
32941J - CLIP, NO.1(FOR OIL COOLER HOSE)
90466-A0014

ASU50,GSU5#

 2
90466-A0014

GSU5#

 1
32941J - CLIP, NO.1(FOR OIL COOLER HOSE)
90466-A0014

ASU50,GSU5#

 2
90466-A0014

GSU5#

 1
32942 - HOSE, OIL COOLER OUTLET, NO.1
32942-08051

GSU5#

 1
32942-0E110

GSU5#

TOWING PACKAGE-5000LBS

 1
32942-08050

GSU5#

 1
32942-0E080

GSU5#

 1
32942-08052

GSU5#

 1
32942A - HOSE, OIL COOLER OUTLET, NO.2
32942-0E161

GSU5#

 1
32942-0E160

GSU5#

 1
32942B - HOSE, OIL COOLER OUTLET, NO.3
32942-08041

GSU5#

 1
32942E - CLIP, NO.2(FOR OIL COOLER HOSE)
90466-A0014

ASU50,GSU5#

 2
90466-A0014

GSU5#

 6
32942E - CLIP, NO.2(FOR OIL COOLER HOSE)
90466-A0014

ASU50,GSU5#

 2
90466-A0014

GSU5#

 6
32942E - CLIP, NO.2(FOR OIL COOLER HOSE)
90466-A0014

ASU50,GSU5#

 2
90466-A0014

GSU5#

 6
32942E - CLIP, NO.2(FOR OIL COOLER HOSE)
90466-A0014

ASU50,GSU5#

 2
90466-A0014

GSU5#

 6
32942E - CLIP, NO.2(FOR OIL COOLER HOSE)
90466-A0014

ASU50,GSU5#

 2
90466-A0014

GSU5#

 6
32943 - HOSE, TRANSMISSION OIL COOLER, NO.1
32943-08021

GSU5#

 1
32943-08020

GSU5#

 1
32943-08022

GSU5#

 1
32943-0E100

GSU5#

TOWING PACKAGE-5000LBS

 1
32943A - HOSE, TRANSMISSION OIL COOLER, NO.2
32943-0E050

GSU5#

 1
32943-0E051

GSU5#

 1
32943E - CLIP, NO.3(FOR OIL COOLER HOSE)
90466-A0014

GSU5#

TOWING PACKAGE-5000LBS

 2
90466-A0014

GSU5#

 2
90466-A0014

GSU5#

 4
32943E - CLIP, NO.3(FOR OIL COOLER HOSE)
90466-A0014

GSU5#

TOWING PACKAGE-5000LBS

 2
90466-A0014

GSU5#

 2
90466-A0014

GSU5#

 4
32943E - CLIP, NO.3(FOR OIL COOLER HOSE)
90466-A0014

GSU5#

TOWING PACKAGE-5000LBS

 2
90466-A0014

GSU5#

 2
90466-A0014

GSU5#

 4
32943E - CLIP, NO.3(FOR OIL COOLER HOSE)
90466-A0014

GSU5#

TOWING PACKAGE-5000LBS

 2
90466-A0014

GSU5#

 2
90466-A0014

GSU5#

 4
32971 - THERMOSTAT, TRANSMISSION OIL
32971-48011

GSU5#

 1
33493A - COOLER, TRANSMISSION OIL
33493-06021

GSU5#

 1
33493-06020

GSU5#

 1
