GSU50L-ARTNKA (2013)

Toyota Highlander (Nap)

Production Dec 2013 - Nov 2016
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1312-1611)GSU5#

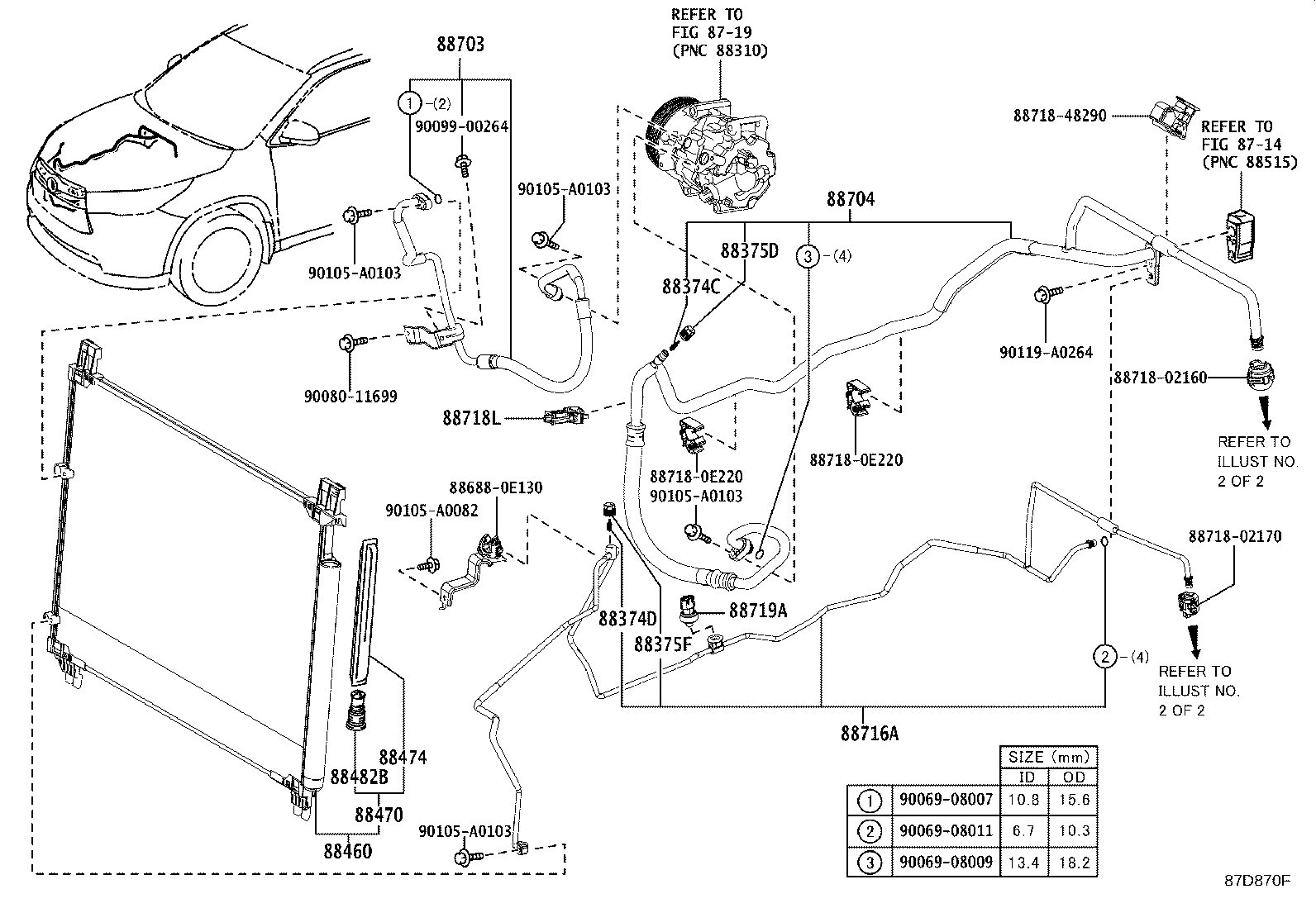

Click highlighted areas on diagram

FRONT

diagram 8714 8719 88374C 88374D 88375D 88375F 88460 88470 88474 88482B 886880E130 88703 88704 88716A 8871802160 8871802170 887180E220 887180E220 8871848290 88718L 88719A 9006908007 9006908009 9006908011 9008011699 9009900264 90105A0082 90105A0103 90105A0103 90105A0103 90105A0103 90119A0264
Part # Description Qty Price
88374C - VALVE, SERVICE, NO.2
88374-30010

ASU50,GSU5#,GVU58

 1
88374D - VALVE, SERVICE NO.3
88374-30010

ASU50,GSU5#,GVU58

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-0E030

GSU5#,GVU58

 1
88375-02070

GSU5#,GVU58

 1
88375F - CAP, SERVICE VALVE, NO.3
88375-0E020

ASU50,GSU5#,GVU58

 1
88375-02060

ASU50,GSU5#,GVU58

 1
88460 - CONDENSER ASSY, COOLER
88460-0E070

ASU50,GSU5#

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88474-08030

ASU50,GSU5#

 1
88474 - DRYER, COOLER
88474-08010

ASU50,GSU5#

 1
88482B - CAP, COOLER NO.1
88482-08010

ASU50,GSU5#

 1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-0E100

GSU5#

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-0E200

GSU5#

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-0E340

ASU50,GSU5#

 1
88718L - CLAMP, PIPING
88718-0E210

GSU5#,GVU58

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020

ASU50,GSU5#,GVU58

 1
Common parts
88688-0E130
88718-02160
88718-02170
88718-0E220
88718-48290
90069-08007
90069-08009
90069-08011
90080-11699
90099-00264
90105-A0082
90105-A0103
90119-A0264
Linked diagrams
8714
8719

(1312-1611)ASU50,GSU5#

Click highlighted areas on diagram

REAR

diagram 87114H 8714 8716 8716 8716 8716 8716 8716 8716 8716 8716 8716 885690E290 885690E290 885690E290 885690E290 885690E290 885690E290 885690E290 885690E290 885690E300 885690E350 886880E190 886880E200 8868833240 88716B 88716C 88717D 88717U 887180E300 887180E310 887180E310 887180E320 887180E330 887180E340 887180E350 887180E360 887180E370 887180E380 88840C 88840D 9006804017 9006908007 9006908009 9006908011 9008011218 9008011218 9008011218 9008017245 9008017245 9008017245 9008017245 9008017245 9009900264 9009900264 9009900264 9009900264 9009900264 9009900264 9009900264 90119A0120
Part # Description Qty Price
87114H - COVER, HEATER
87114-0E050

ASU50,GSU5#

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-0E350

ASU50,GSU5#

 1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-0E360

ASU50,GSU5#,GVU58

 1
88717D - PIPE, COOLER REFRIGERANT SUCTION, D
88717-0E200

ASU50,GSU5#,GVU58

 1
88717U - TUBE, SUCTION, NO.1
88717-0E190

ASU50,GSU5#

 1
88840C - ACCESSORY ASSY, AIR CONDITIONER, NO.1
88840-0E070

ASU50,GSU5#

 1
88840D - ACCESSORY ASSY, AIR CONDITIONER, NO.2
88840-0E080

ASU50,GSU5#,GVU58

 1
Common parts
88569-0E290
88569-0E300
88569-0E350
88688-0E190
88688-0E200
88688-33240
88718-0E300
88718-0E310
88718-0E320
88718-0E330
88718-0E340
88718-0E350
88718-0E360
88718-0E370
88718-0E380
90068-04017
90069-08007
90069-08009
90069-08011
90080-11218
90080-17245
90099-00264
90119-A0120
Linked diagrams
8714
8716
