GSU50L-ARTNKA (2013)
Toyota Highlander (Nap)
Production
Dec 2013
-
Nov 2016
Engine
2GRFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1312-1611)GSU5#

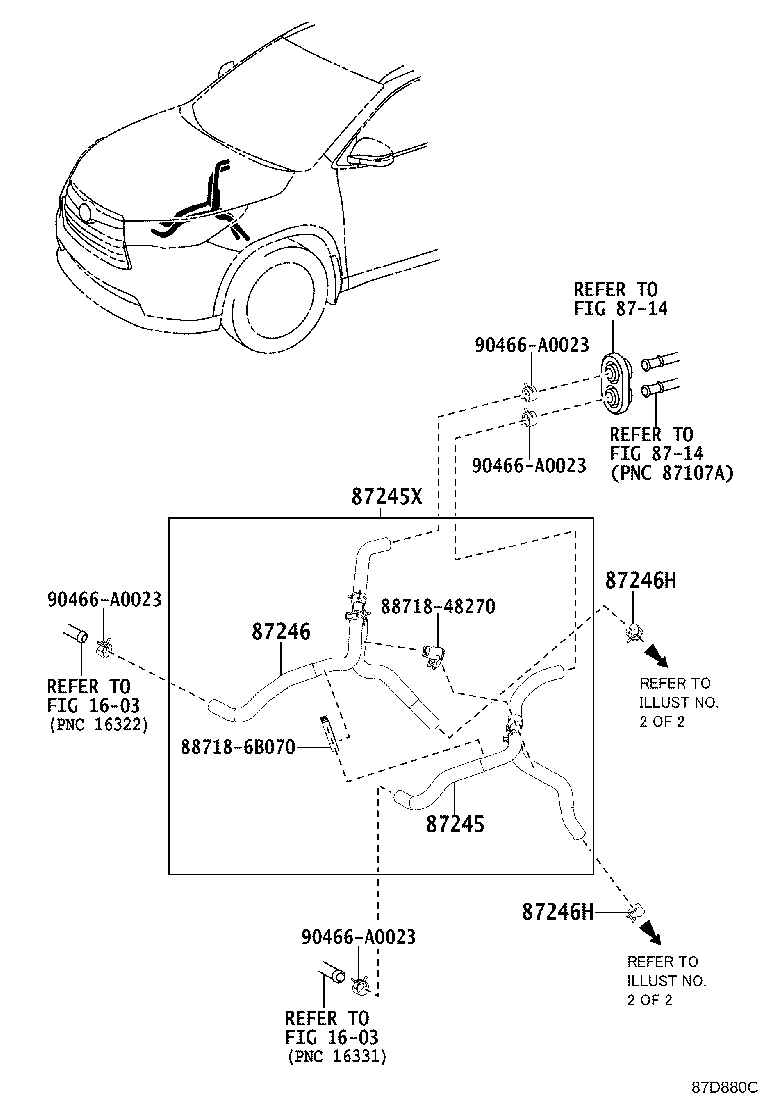

Click highlighted areas on diagram
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87245 - HOSE, HEATER WATER, INLET | ||||
| 87209-0E160 |
GSU5# |
1 | ||
| 87245X - HOSE, HEATER WATER | ||||
| 87209-0E130 |
GSU5# |
1 | ||
| 87246 - HOSE, HEATER WATER, OUTLET | ||||
| 87209-0E170 |
GSU5# |
1 | ||
| 87246H - CLIP OR CLAMP(FOR HEATER WATER HOSE) | ||||
| 90466-A0022 |
ASU50,GSU5#,GVU58 |
2 | ||
| 87246H - CLIP OR CLAMP(FOR HEATER WATER HOSE) | ||||
| 90466-A0022 |
ASU50,GSU5#,GVU58 |
2 | ||
| Common parts | ||||
| 88718-48270 | ||||
| 88718-6B070 | ||||
| 90466-A0023 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 8714 | ||||
(1312-1611)ASU50,GSU5#
Click highlighted areas on diagram
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-0E280 |
ASU50,GSU5# |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 87245-0E300 |
ASU50,GSU5#,GVU58 |
1 | ||
| 87246B - HOSE, HEATER WATER, OUTLET B | ||||
| 87245-0E310 |
ASU50,GSU5#,GVU58 |
1 | ||
| 87246G - HOSE, HEATER WATER, OUTLET G | ||||
| 87245-0E290 |
ASU50,GSU5# |
1 | ||
| 87248A - PIPE, HEATER WATER INLET, A | ||||
| 87208-0E070 |
ASU50,GSU5# |
1 | ||
| 87248B - PIPE, HEATER WATER INLET, B | ||||
| 87208-0E080 |
ASU50,GSU5#,GVU58 |
1 | ||
| 87249A - PIPE, HEATER WATER OUTLET, A | ||||
| 87248-0E110 |
ASU50,GSU5# |
1 | ||
| 87249B - PIPE, HEATER WATER OUTLET, B | ||||
| 87208-0E090 |
ASU50,GSU5#,GVU58 |
1 | ||
| Common parts | ||||
| 88569-0E250 | ||||
| 88569-0E290 | ||||
| 90080-17245 | ||||
| 90099-00264 | ||||
| 90466-A0022 | ||||
| 96134-52100 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8718 | ||||
