GSU50L-ARTNKA (2013)

Toyota Highlander (Nap)

Production Dec 2013 - Nov 2016
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1312- )G..D4 ; (1312- )8FC..G ; (1312-)6FC..G,M ; (1401- )GVU58..G,M.

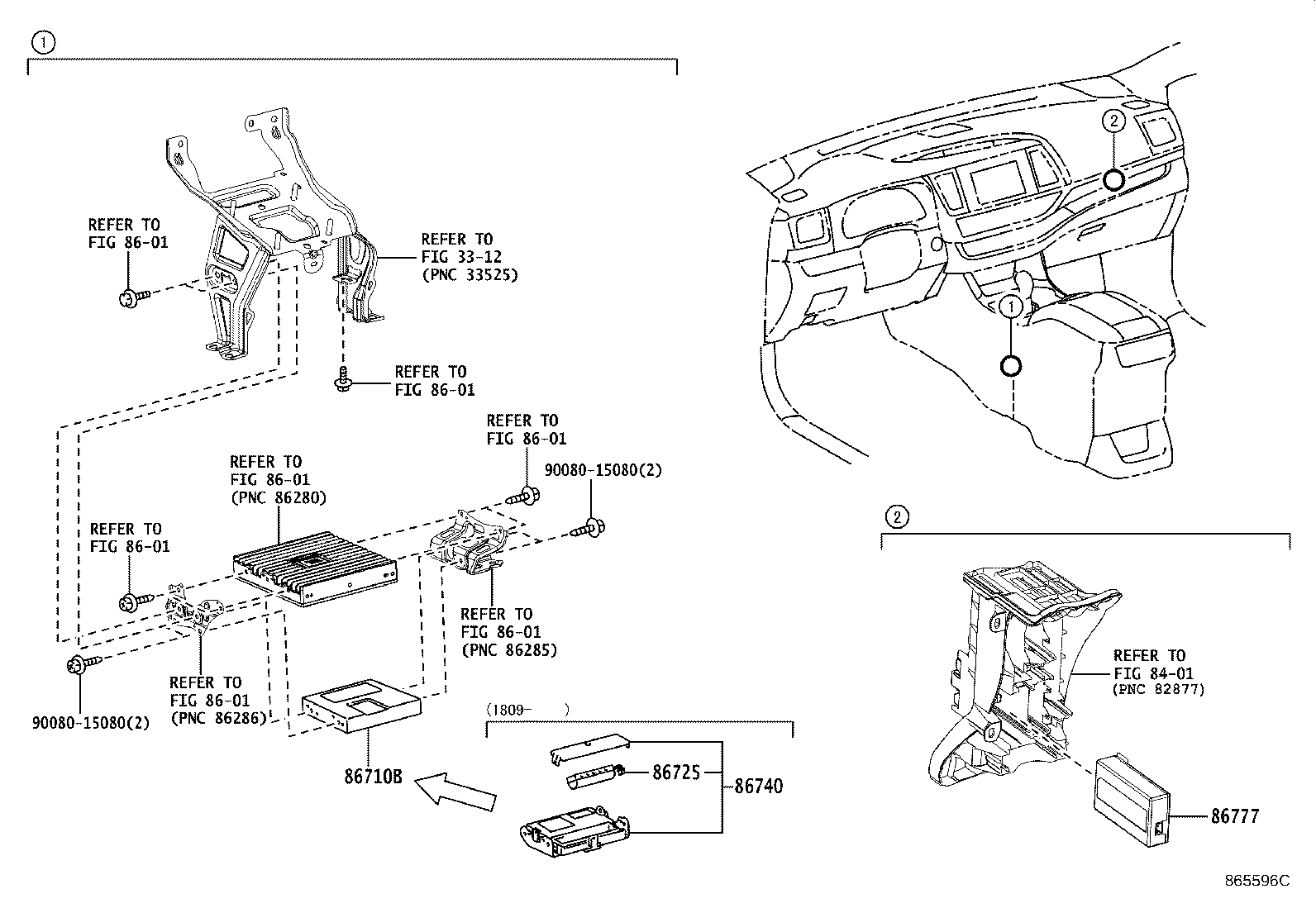

Click highlighted areas on diagram

diagram 3312 8401 8601 8601 8601 8601 8601 8601 8601 86710B 86725 86740 86777 9008015080 9008015080
Part # Description Qty Price
86710B - COMPUTER ASSY, MAYDAY
86710-07010

GSU5#,GVU58..G,M

MAYDAY SYSTEM-WITH

 1
86710-07011

GSU5#,GVU58..G,M

MAYDAY SYSTEM-WITH

 1
86777 - BATTERY, MAYDAY
86777-76040

GSU5#,GVU58..G,M

MAYDAY SYSTEM-WITH

 1
Common parts
90080-15080
Linked diagrams
3312
8401
8601
