GSU50L-ARTNKA (2013)

Toyota Highlander (Nap)

Production Dec 2013 - Nov 2016
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1312- )

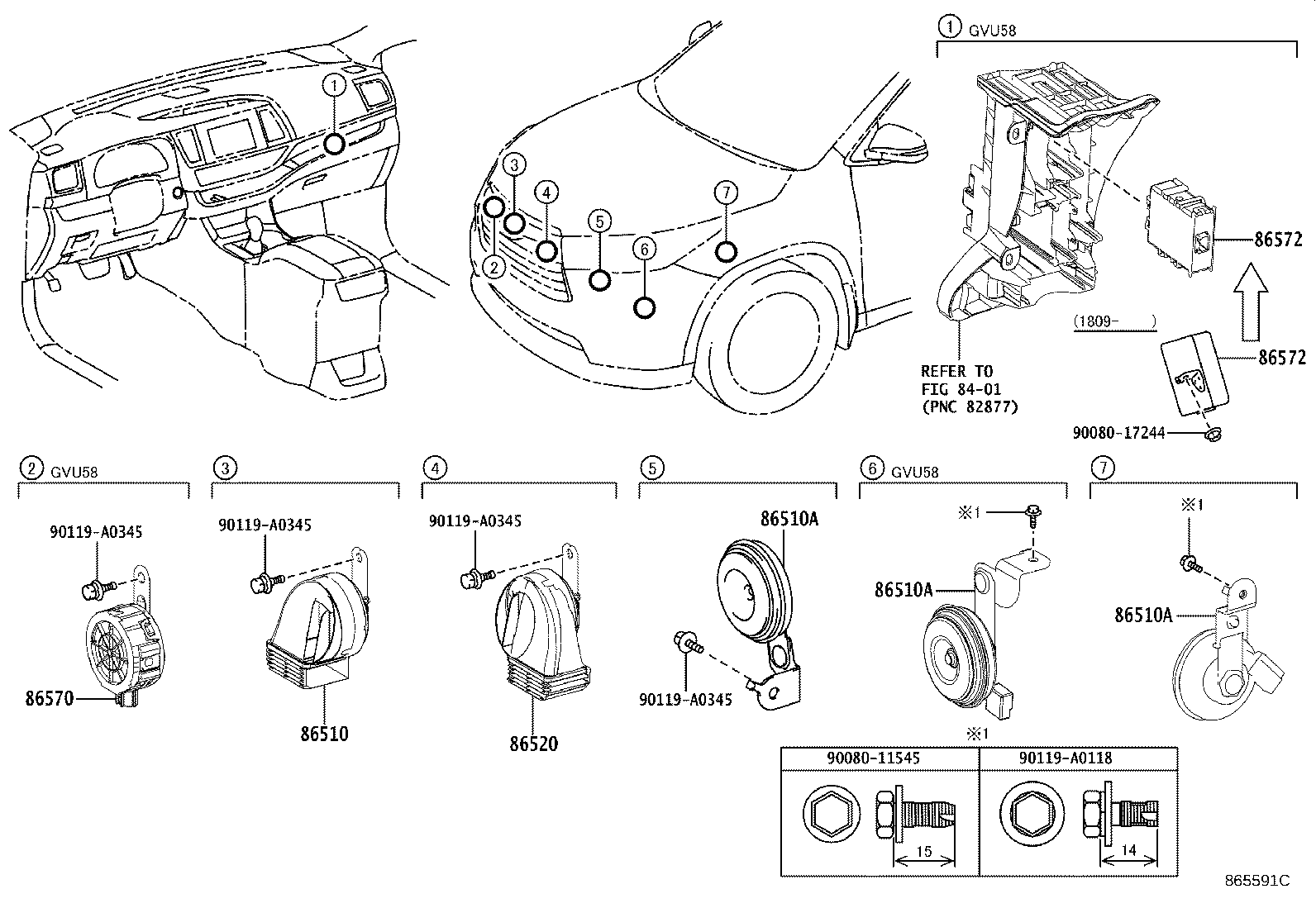

Click highlighted areas on diagram

diagram 8401 86510 86510A 86510A 86510A 86520 86570 86572 86572 9008011545 9008017244 90119A0118 90119A0345 90119A0345 90119A0345 90119A0345
Part # Description Qty Price
86510 - HORN ASSY, HIGH PITCHED
86510-0E040

ASU50,GSU5#,GVU58

 1
86510A - HORN ASSY, SECURITY
86510-0E011

GSU50..N

MEXICO SPEC

 1
86510-0E011

ASU50,GSU5#..N

USA POSSESSION SPEC

 1
86510-0E011

GSU5#..G,M

 1
86510-0E011

ASU50,GSU5#..N

USA POSSESSION SPEC&ANTI-THEFT SYSTEM-WITH(ALARM & IMMOBILIZER)

 1
86510-0E011

GSU50..N

MEXICO SPEC&ANTI-THEFT SYSTEM-WITH(ALARM & IMMOBILIZER)

 1
86510A - HORN ASSY, SECURITY
86510-0E011

GSU50..N

MEXICO SPEC

 1
86510-0E011

ASU50,GSU5#..N

USA POSSESSION SPEC

 1
86510-0E011

GSU5#..G,M

 1
86510-0E011

ASU50,GSU5#..N

USA POSSESSION SPEC&ANTI-THEFT SYSTEM-WITH(ALARM & IMMOBILIZER)

 1
86510-0E011

GSU50..N

MEXICO SPEC&ANTI-THEFT SYSTEM-WITH(ALARM & IMMOBILIZER)

 1
86510A - HORN ASSY, SECURITY
86510-0E011

GSU50..N

MEXICO SPEC

 1
86510-0E011

ASU50,GSU5#..N

USA POSSESSION SPEC

 1
86510-0E011

GSU5#..G,M

 1
86510-0E011

ASU50,GSU5#..N

USA POSSESSION SPEC&ANTI-THEFT SYSTEM-WITH(ALARM & IMMOBILIZER)

 1
86510-0E011

GSU50..N

MEXICO SPEC&ANTI-THEFT SYSTEM-WITH(ALARM & IMMOBILIZER)

 1
86520 - HORN ASSY, LOW PITCHED
86520-0E020

ASU50,GSU5#,GVU58

 1
Common parts
90080-11545
90080-17244
90119-A0118
90119-A0345
Linked diagrams
8401
