GSU50L-ARTNKA (2013)

Toyota Highlander (Nap)

Production Dec 2013 - Nov 2016
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1312- )6FC..G ; (1401- )GVU58..G..HTWC

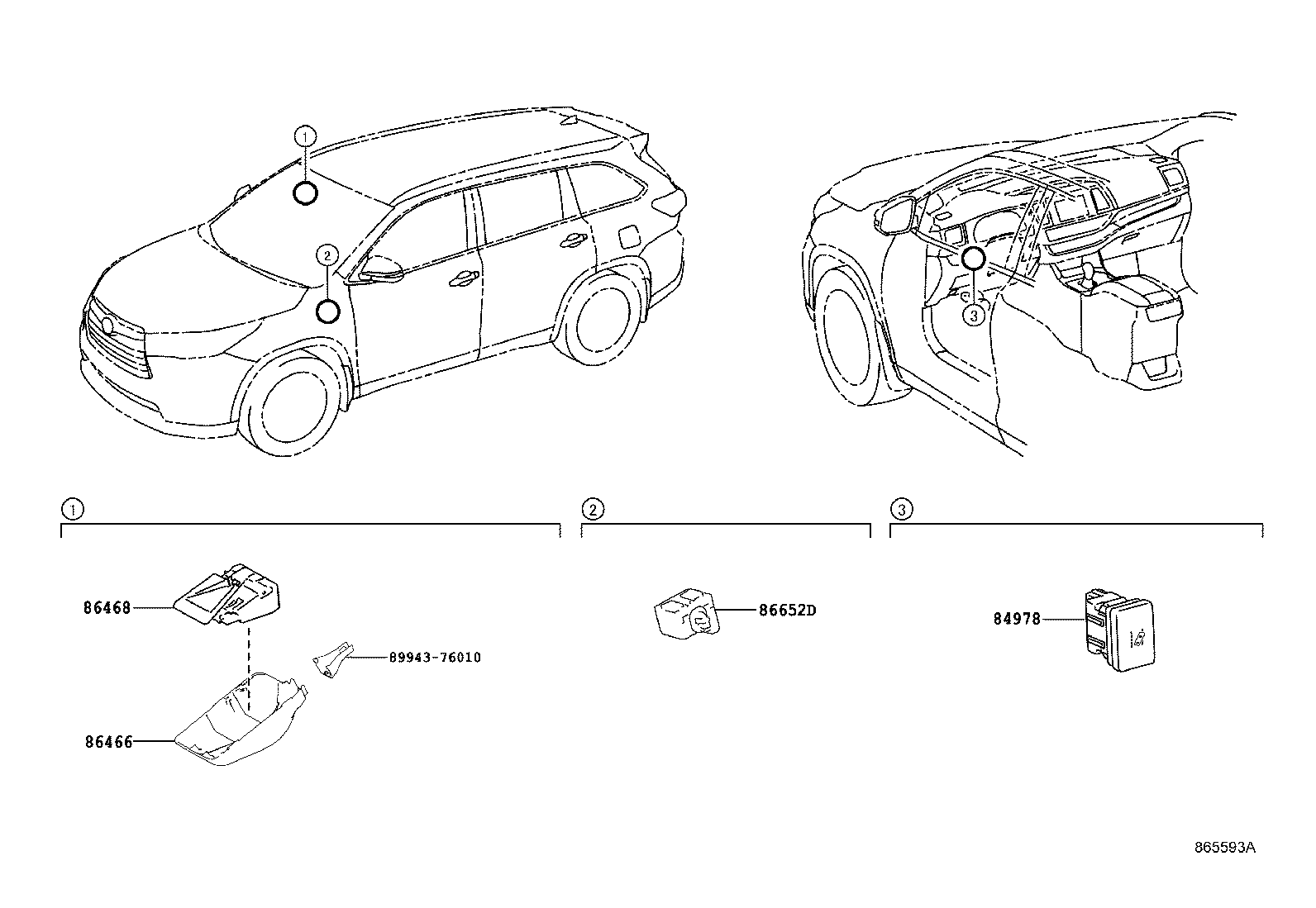

Click highlighted areas on diagram

diagram 84978 86466 86468 86652D 8994376010
Part # Description Qty Price
84978 - SWITCH, LANE-KEEPING ASSIST MAIN
84978-0E010

GSU5#,GVU58..G

LANE KEEPING SYSTEM-WITH

 1
84978-0E011

GSU5#,GVU58..G

LANE KEEPING SYSTEM-WITH

 1
84978-0E011

GSU5#,GVU58..G

PRE-COLLISION SYSTEM-WITH

 1
86466 - COVER, LANE DEPARTURE WARNING CAMERA, NO.1
86466-42010

GSU5#,GVU58..G

PRE-COLLISION SYSTEM-WITH

 1
86466-42010

GSU5#,GVU58..G

LANE KEEPING SYSTEM-WITH

 1
86468 - CAMERA, LANE DEPARTURE WARNING
86468-48010

GSU5#,GVU58..G

LANE KEEPING SYSTEM-WITH

 1
86468-48010

GSU5#,GVU58..G

PRE-COLLISION SYSTEM-WITH

 1
86652D - BUZZER, LANE DEPARTURE WARNING
86652-50010

GSU5#,GVU58..G

LANE KEEPING SYSTEM-WITH

 1
Common parts
89943-76010
