GSU50L-ARTNKA (2013)

Toyota Highlander (Nap)

Production Dec 2013 - Nov 2016
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1312-1611)

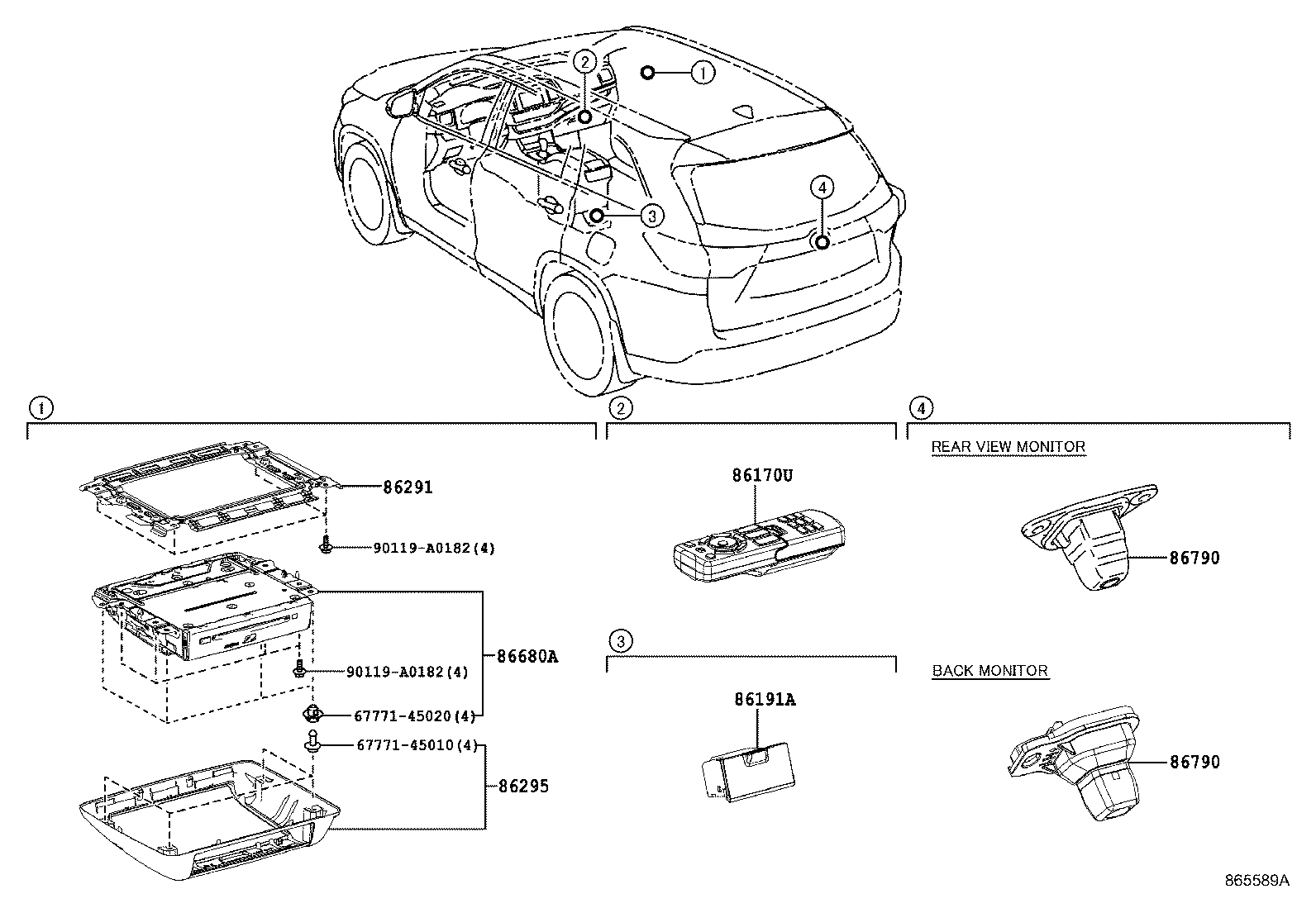

Click highlighted areas on diagram

diagram 6777145010 6777145020 86170U 86191A 86291 86295 86680A 86790 86790 90119A0182 90119A0182
Part # Description Qty Price
86170U - SWITCH & VOLUME ASSY, REAR
86170-34030

GSU5#,GVU58..G,M

TELEVISION & DVD PLAYER-WITH

 1
86191A - TERMINAL, VIDEO(VIDEO ADAPTER)
86191-48060

GSU5#,GVU58..G,M

TELEVISION & DVD PLAYER-WITH

 1
86291 - BRACKET, TELEVISION
86291-0E010

GSU5#,GVU58..G,M

TELEVISION & DVD PLAYER-WITH

 1
86291-0E010

GSU50..G,M

MEXICO SPEC&TELEVISION & DVD PLAYER-WITH

 1
86295 - BASE, TELEVISION
86295-0E060B0

GSU5#,GVU58..G,M

TELEVISION & DVD PLAYER-WITH,GRAY,TRIM1#,2#

 1
86295-0E060A0

GSU5#,GVU58..G,M

TELEVISION & DVD PLAYER-WITH,FLAXEN,TRIM0#

 1
86295-0E060A0

GSU50..G,M

MEXICO SPEC&TELEVISION & DVD PLAYER-WITH,FLAXEN,TRIM0#

 1
86295-0E060B0

GSU50..G,M

MEXICO SPEC&TELEVISION & DVD PLAYER-WITH,GRAY,TRIM1#,2#

 1
86680A - DISPLAY ASSY, TELEVISION
86680-48170A0

GSU50..G,M

PANASONIC,MEXICO SPEC&TELEVISION & DVD PLAYER-WITH,FLAXEN,TRIM0#

 1
86680-48170B0

GSU50..G,M

PANASONIC,MEXICO SPEC&TELEVISION & DVD PLAYER-WITH,GRAY,TRIM1#,2#

 1
86680-48130B0

GSU5#,GVU58..G,M

PANASONIC,TELEVISION & DVD PLAYER-WITH,GRAY,TRIM1#,2#

 1
86680-48130A0

GSU5#,GVU58..G,M

PANASONIC,TELEVISION & DVD PLAYER-WITH,FLAXEN,TRIM0#

 1
86790 - CAMERA ASSY, TELEVISION
86790-0E030

ASU50,GSU5#,GVU58..M,N

 1
867B0-0E010

GSU5#,GVU58..G

 1
867B0-0E011

GSU5#,GVU58..G

 1
86790-0E031

ASU50,GSU5#,GVU58..M,N

 1
86790 - CAMERA ASSY, TELEVISION
86790-0E030

ASU50,GSU5#,GVU58..M,N

 1
867B0-0E010

GSU5#,GVU58..G

 1
867B0-0E011

GSU5#,GVU58..G

 1
86790-0E031

ASU50,GSU5#,GVU58..M,N

 1
Common parts
67771-45010
67771-45020
90119-A0182
