GSU50L-ARTNKA (2013)

Toyota Highlander (Nap)

Production Dec 2013 - Nov 2016
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1312- )

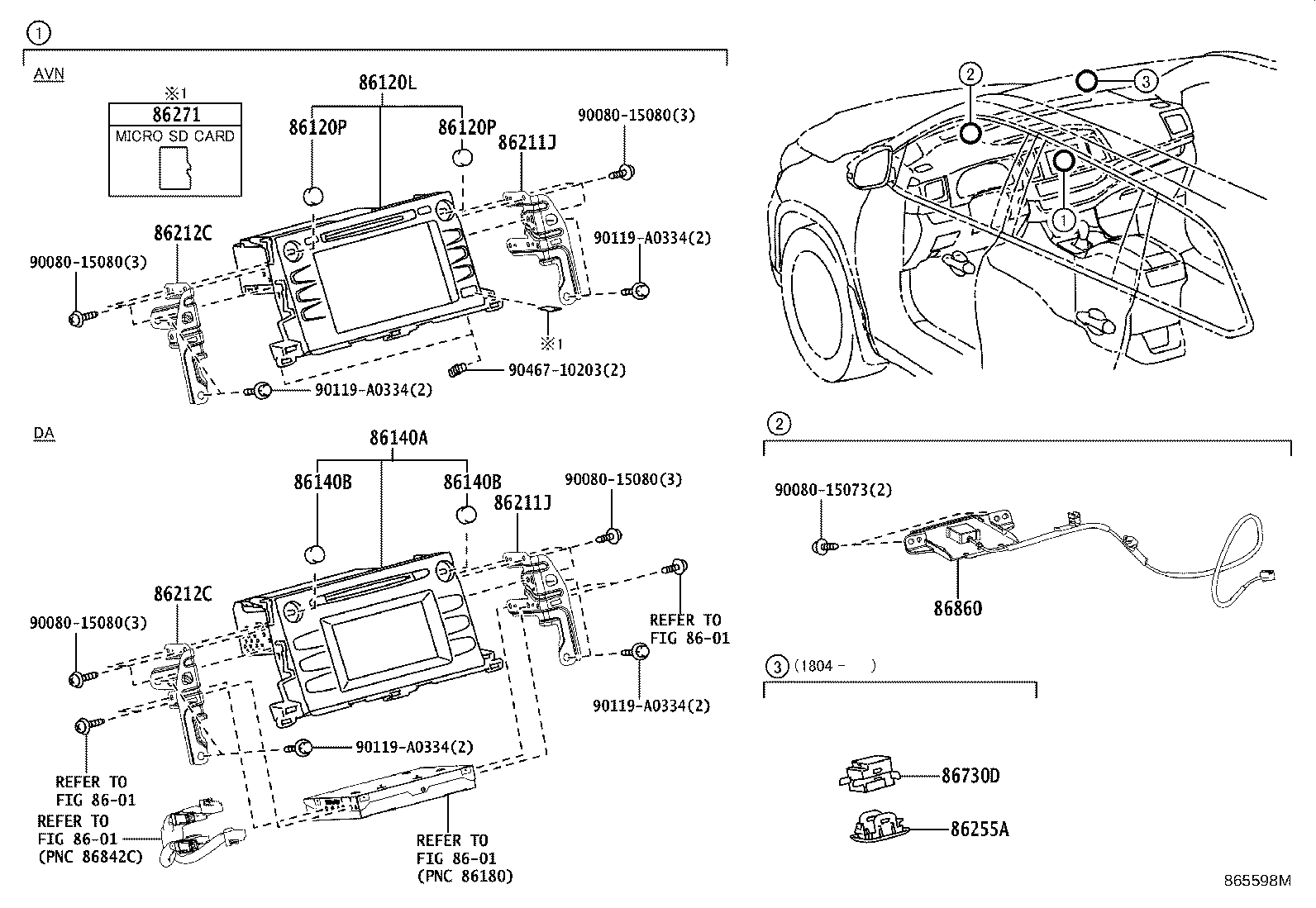

Click highlighted areas on diagram

diagram 8601 8601 8601 8601 86120L 86120P 86120P 86140A 86140B 86140B 86211J 86211J 86212C 86212C 86255A 86271 86730D 86860 9008015073 9008015080 9008015080 9008015080 9008015080 90119A0334 90119A0334 90119A0334 90119A0334 9046710203
Part # Description Qty Price
86120L - RECEIVER ASSY, NAVIGATION
86804-0E120

GSU5#,GVU58..G

PANASONIC,ID=57064,AUDIO-8INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM)

 1
86804-0E110

GSU5#,GVU58..M,N

PANASONIC,ID=57063,AUDIO-8INCH MONITOR AVN 6SPEKAER

 1
86804-0E120

GSU5#,GVU58..G

PANASONIC,ID=57064

 1
86804-0E280

GSU5#,GVU58..G

PANASONIC,ID=510160

 1
86804-0E120

GSU5#,GVU58..G

PANASONIC,ID=57064,AUDIO-6.1INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM)

 1
86804-0E270

GSU5#,GVU58..M,N

PANASONIC,ID=510159,AUDIO-8INCH MONITOR AVN 6SPEKAER

 1
86804-0E280

GSU5#,GVU58..G

PANASONIC,ID=510160,AUDIO-6.1INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM)

 1
86804-0E280

GSU5#,GVU58..G

PANASONIC,ID=510160,AUDIO-8INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM)

 1
86120P - KNOB, NAVIGATION RECEIVER SWITCH
90011-25245

GSU5#,GVU58..M,N

AUDIO-8INCH MONITOR AVN 6SPEKAER

 2
90011-25245

GSU5#,GVU58..G

 2
86120P - KNOB, NAVIGATION RECEIVER SWITCH
90011-25245

GSU5#,GVU58..M,N

AUDIO-8INCH MONITOR AVN 6SPEKAER

 2
90011-25245

GSU5#,GVU58..G

 2
86140A - RECEIVER ASSY, RADIO & DISPLAY
86140-0E051

GSU5#..M;GVU58..M,N

PIONEER,ID=P10431

 1
86140-0E190

GSU5#..M;GVU58..M,N

PIONEER,ID=P11264

 1
86140-0E041

ASU50,GSU5#..N

PIONEER,ID=P10430

 1
86140-0E190

GVU58..G;GSU5#..G,N

PIONEER,ID=P11264,AUDIO-8INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM)

 1
86140-0E200

ASU50,GSU5#..N

PIONEER,ID=P11265

 1
86140-0E051

GVU58..G;GSU5#..G,N

PIONEER,ID=P10431,AUDIO-6.1INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM)

 1
86140B - KNOB, RADIO & DISPLAY RECEIVER SWITCH
90011-25251

ASU50,GSU5#..N

 2
90011-25251

GSU5#..M;GVU58..M,N

 2
90011-25245

GVU58..G;GSU5#..G,N

AUDIO-8INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM)

 2
90011-25251

GSU5#,GVU58..G

AUDIO-6.1INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM)

 2
90011-25245

GSU5#..M;GVU58..M,N

 2
86140B - KNOB, RADIO & DISPLAY RECEIVER SWITCH
90011-25251

ASU50,GSU5#..N

 2
90011-25251

GSU5#..M;GVU58..M,N

 2
90011-25245

GVU58..G;GSU5#..G,N

AUDIO-8INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM)

 2
90011-25251

GSU5#,GVU58..G

AUDIO-6.1INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM)

 2
90011-25245

GSU5#..M;GVU58..M,N

 2
86211J - BRACKET, RADIO RECEIVER, NO.1
86211-0E080

ASU50,GSU5#,GVU58

 1
86211J - BRACKET, RADIO RECEIVER, NO.1
86211-0E080

ASU50,GSU5#,GVU58

 1
86212C - BRACKET, RADIO RECEIVER, NO.2
86212-0E080

ASU50,GSU5#,GVU58

 1
86212C - BRACKET, RADIO RECEIVER, NO.2
86212-0E080

ASU50,GSU5#,GVU58

 1
86271 - DISC, DISC PLAYER
86271-0E181

GSU5#,GVU58..G

MICRO SD CARD

 1
86271-0E182

GSU5#,GVU58..M,N

AUDIO-8INCH MONITOR AVN 6SPEKAER,MICRO SD CARD

 1
86271-0E184

GSU5#,GVU58..G

MICRO SD CARD

 1
86271-0E183

GSU5#,GVU58..M,N

AUDIO-8INCH MONITOR AVN 6SPEKAER,MICRO SD CARD

 1
86271-0E181

GSU5#,GVU58..M,N

AUDIO-8INCH MONITOR AVN 6SPEKAER,MICRO SD CARD

 1
86271-0E182

GSU5#,GVU58..G

MICRO SD CARD

 1
86271-0E184

GSU5#,GVU58..M,N

AUDIO-8INCH MONITOR AVN 6SPEKAER,MICRO SD CARD

 1
86271-0E183

GSU5#,GVU58..G

MICRO SD CARD

 1
86860 - ANTENNA ASSY, NAVIGATION
86860-0E040

GSU5#..N

AUDIO-6.1INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM)

 1
86860-0E040

GSU5#,GVU58..G

AUDIO-6.1INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM)

 1
86860-0E040

GVU58;GSU5#..G,M

 1
86860-0E040

GSU50..M

MEXICO SPEC

 1
86860-0E040

GSU5#..N

AUDIO-8INCH MONITOR AVN 6SPEKAER

 1
86860-0E040

GSU5#..N

AUDIO-8INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM)

 1
86860-0E040

GSU50..G

MEXICO SPEC&AUDIO-6.1INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM)

 1
Common parts
90080-15073
90080-15080
90119-A0334
90467-10203
Linked diagrams
8601
