GSU50L-ARTNKA (2013)

Toyota Highlander (Nap)

Production Dec 2013 - Nov 2016
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1312- )6FC ; (1312- )N..D4 ; (1312- )8FC..N ; (1312- )GVU58..HTWC

Click highlighted areas on diagram

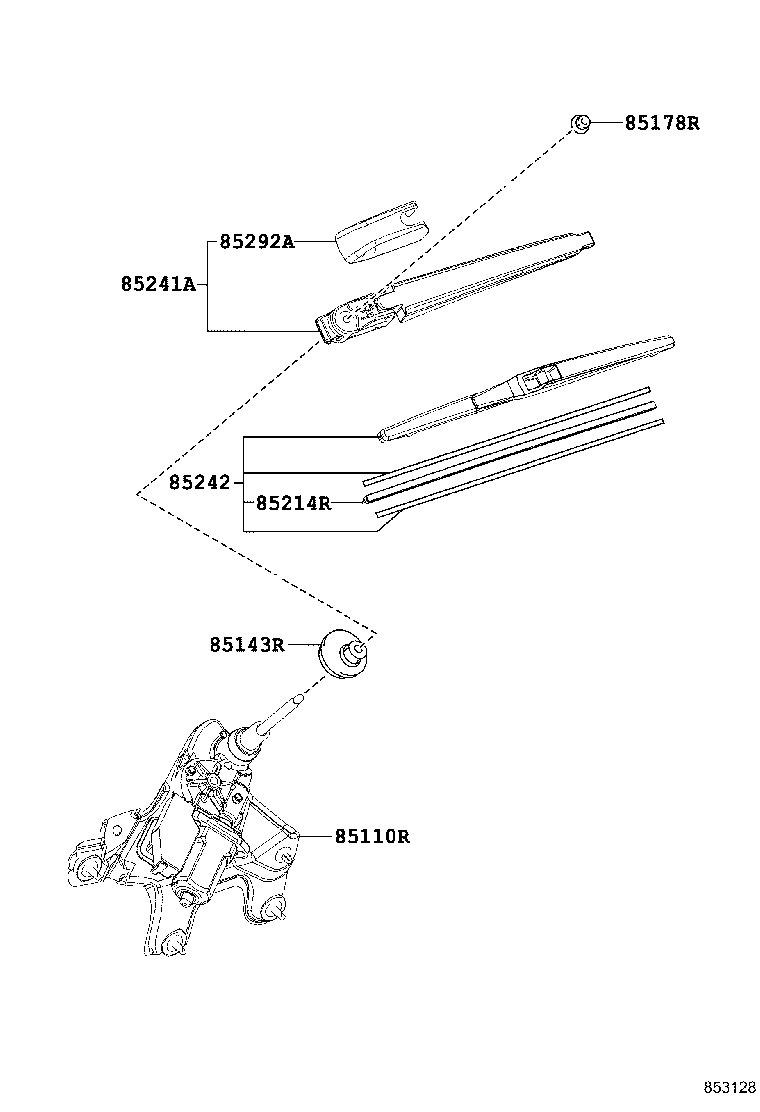

FIXED WINDOW

diagram 85110R 85143R 85178R 85214R 85241A 85242 85292A
Part # Description Qty Price
85110R - MOTOR ASSY, REAR WIPER
85130-0E080

GVU58;GSU5#..G,M

 1
85130-0E070

ASU50,GSU5#..N

 1
85130-0E080

GSU5#..N

BACK GLASS-WITH(GLASS HATCH-BACK DOOR)&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)

 1
85143R - GROMMET, REAR WIPER MOTOR
85143-0E030

ASU50,GSU5#..N

 1
85178R - NUT (FOR REAR WIPER ARM SETTING)
90080-17021

ASU50,GSU5#,GVU58

 1
85214R - RUBBER, REAR WIPER
85214-0E120

ASU50,GSU5#,GVU58

 1
85241A - ARM, REAR WIPER
85241-0E060

ASU50,GSU5#,GVU58

 1
85242 - BLADE, RR WIPER
85242-0E080

ASU50,GSU5#,GVU58

 1
85292A - CAP, REAR WIPER ARM HEAD
85292-0R020

ASU50,GSU5#,GVU58

 1

(1312- )HTWC ; (1312- )G,M..D4

Click highlighted areas on diagram

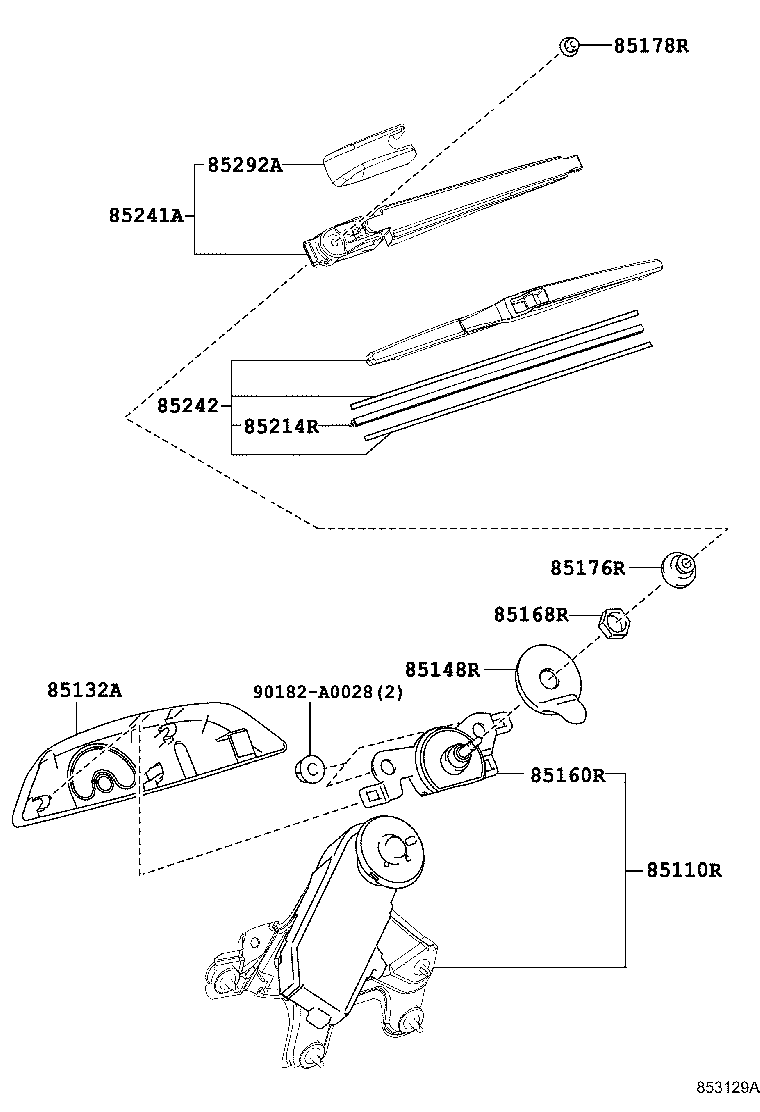

HATCH GLASS

diagram 85110R 85132A 85148R 85160R 85168R 85176R 85178R 85214R 85241A 85242 85292A 90182A0028
Part # Description Qty Price
85110R - MOTOR ASSY, REAR WIPER
85130-0E080

GVU58;GSU5#..G,M

 1
85130-0E070

ASU50,GSU5#..N

 1
85130-0E080

GSU5#..N

BACK GLASS-WITH(GLASS HATCH-BACK DOOR)&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)

 1
85132A - COVER, REAR WIPER SHAFT
85132-0E040

GVU58;GSU5#..G,M

 1
85132-0E040

GSU5#..N

BACK GLASS-WITH(GLASS HATCH-BACK DOOR)&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)

 1
85148R - NUT, W/WASHER PACKING, REAR WIPER LINK PIVOT
85133-0E020

GSU5#..N

BACK GLASS-WITH(GLASS HATCH-BACK DOOR)&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)

 1
85133-0E020

GVU58;GSU5#..G,M

 1
85160R - LINK ASSY, REAR WIPER
85170-0E030

GVU58;GSU5#..G,M

 1
85170-0E030

GSU5#..N

BACK GLASS-WITH(GLASS HATCH-BACK DOOR)&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)

 1
85168R - NUT, REAR WIPER LINK PIVOT, NO.1
90099-05141

GVU58;GSU5#..G,M

 1
90099-05141

GSU5#..N

BACK GLASS-WITH(GLASS HATCH-BACK DOOR)&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)

 1
85176R - CAP, REAR WIPER LINK
85172-0E020

GSU5#..N

BACK GLASS-WITH(GLASS HATCH-BACK DOOR)&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)

 1
85172-0E020

GVU58;GSU5#..G,M

 1
85178R - NUT (FOR REAR WIPER ARM SETTING)
90080-17021

ASU50,GSU5#,GVU58

 1
85214R - RUBBER, REAR WIPER
85214-0E120

ASU50,GSU5#,GVU58

 1
85241A - ARM, REAR WIPER
85241-0E060

ASU50,GSU5#,GVU58

 1
85242 - BLADE, RR WIPER
85242-0E080

ASU50,GSU5#,GVU58

 1
85292A - CAP, REAR WIPER ARM HEAD
85292-0R020

ASU50,GSU5#,GVU58

 1
Common parts
90182-A0028
