GSU50L-ARTNKA (2013)

Toyota Highlander (Nap)

Production Dec 2013 - Nov 2016
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1312- )

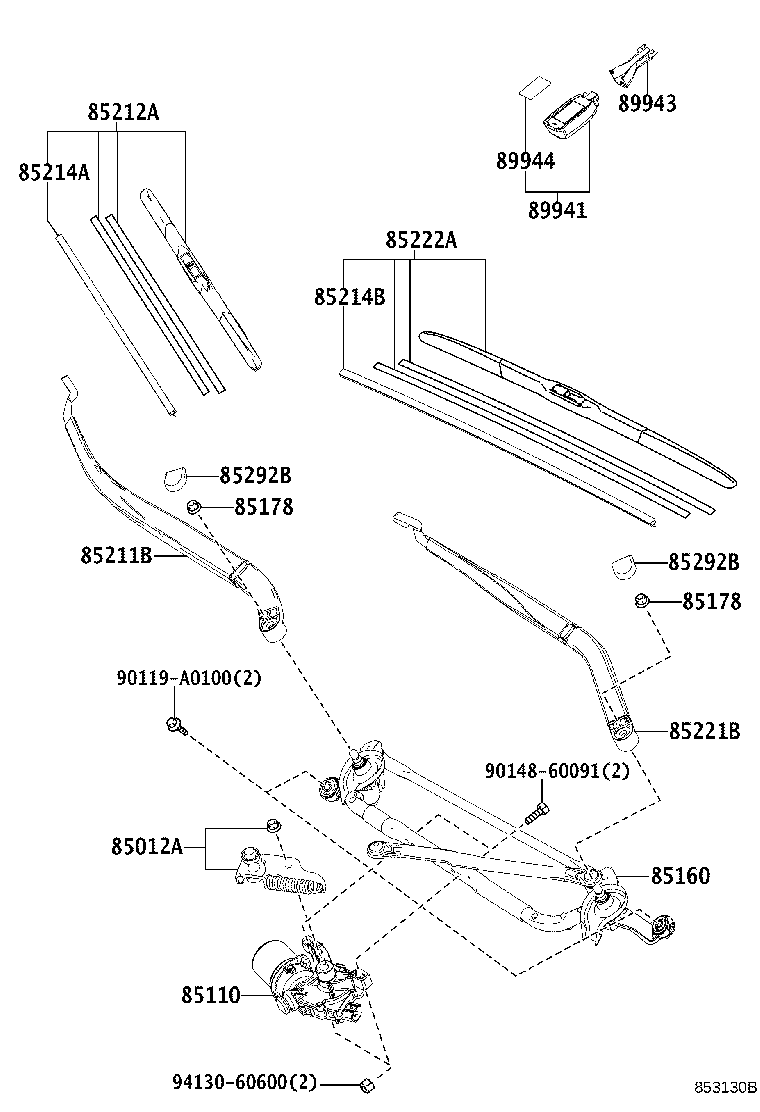

Click highlighted areas on diagram

diagram 85012A 85110 85160 85178 85178 85211B 85212A 85214A 85214B 85221B 85222A 85292B 85292B 89941 89943 89944 90119A0100 9014860091 9413060600
Part # Description Qty Price
85012A - CRANK SUB-ASSY, FRONT WIPER
85012-0E010

ASU50,GSU5#,GVU58

 1
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-0E060

ASU50,GSU5#,GVU58

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85150-0E050

ASU50,GSU5#,GVU58

 1
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90182-A0017

ASU50,GSU5#,GVU58

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90182-A0017

ASU50,GSU5#,GVU58

 2
85211B - ARM, FRONT WIPER, RH
85211-0E050

ASU50,GSU5#,GVU58

 1
85212A - BLADE, FR WIPER, RH
85212-0E050

ASU50,GSU5#,GVU58

 1
85214A - RUBBER, WIPER, RH
85214-0E140

ASU50,GSU5#,GVU58

 1
85214B - RUBBER, WIPER, LH
85214-0E151

ASU50,GSU5#,GVU58

 1
85221B - ARM, FRONT WIPER, LH
85221-0E050

ASU50,GSU5#,GVU58

 1
85222A - BLADE, FR WIPER, LH
85222-0E050

ASU50,GSU5#,GVU58

 1
85292B - CAP, FRONT WIPER ARM HEAD
85292-AA010

ASU50,GSU5#,GVU58

 2
85292B - CAP, FRONT WIPER ARM HEAD
85292-AA010

ASU50,GSU5#,GVU58

 2
89941 - SENSOR, RAIN
89941-52010

GSU5#,GVU58..G

PRE-COLLISION SYSTEM-WITH&LANE KEEPING SYSTEM-WITH

 1
89943 - COVER, RAIN SENSOR
89943-76010

GSU5#,GVU58..G

PRE-COLLISION SYSTEM-WITH&LANE KEEPING SYSTEM-WITH

 1
89944 - TAPE, RAIN SENSOR
89944-42010

GSU5#,GVU58..G

PRE-COLLISION SYSTEM-WITH&LANE KEEPING SYSTEM-WITH

 1
Common parts
90119-A0100
90148-60091
94130-60600
