GSU50L-ARTNKA (2013)

Toyota Highlander (Nap)

Production Dec 2013 - Nov 2016
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1312-1611)

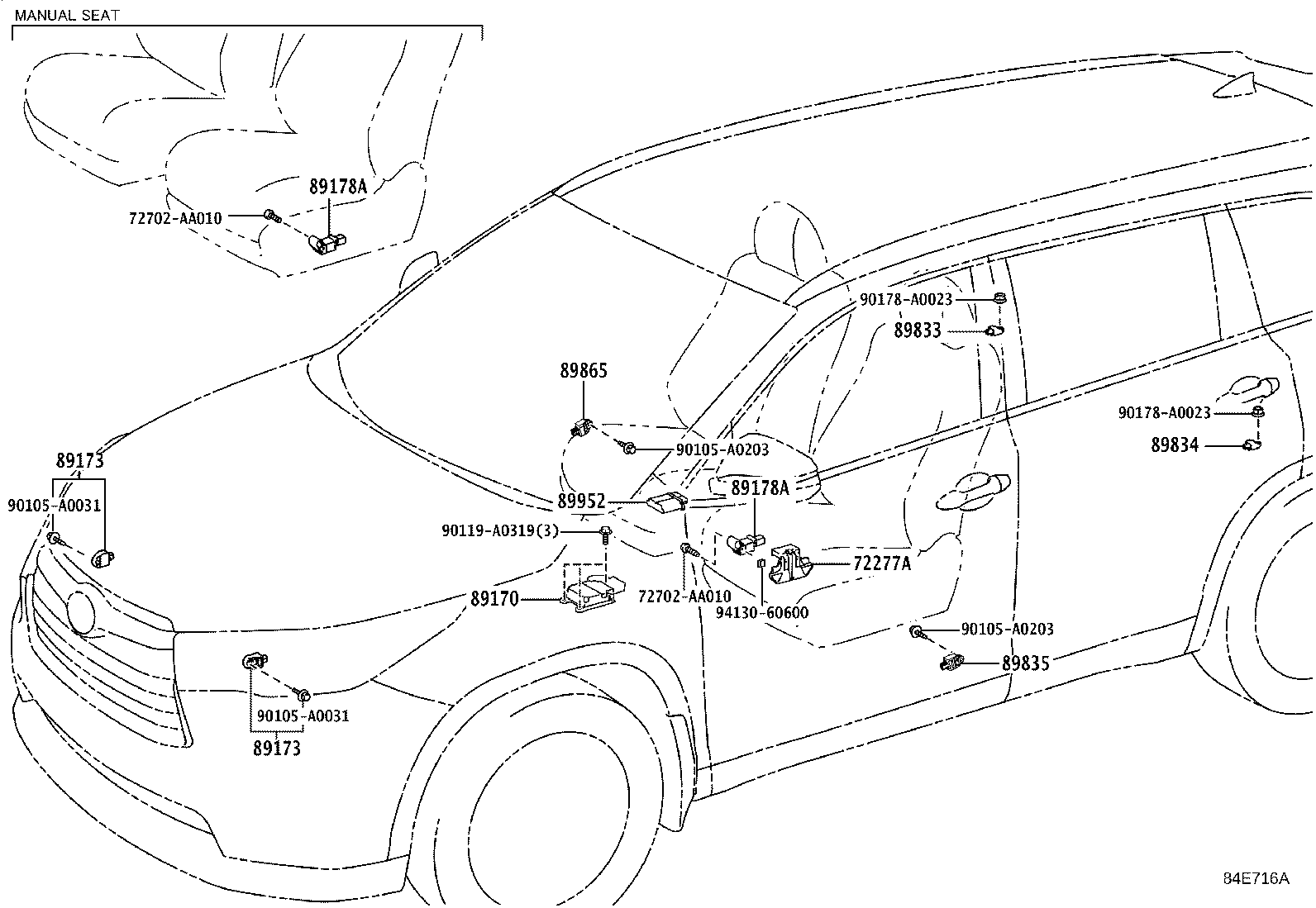

Click highlighted areas on diagram

diagram 72277A 72702AA010 72702AA010 89170 89173 89173 89178A 89178A 89833 89834 89835 89865 89952 90105A0031 90105A0031 90105A0203 90105A0203 90119A0319 90178A0023 90178A0023 9413060600
Part # Description Qty Price
72277A - PROTECTOR, SEAT SLIDE POSITION SENSOR
72277-08010

ASU50,GSU5#,GVU58

 1
89170 - SENSOR ASSY, AIR BAG
89170-0E110

ASU50,GSU5#

 1
89170-0E111

ASU50,GSU5#

 1
89173 - SENSOR, AIR BAG, FRONT
89173-09885

ASU50,GSU5#,GVU58

 1
89173 - SENSOR, AIR BAG, FRONT
89173-09885

ASU50,GSU5#,GVU58

 1
89178A - SENSOR, SEAT POSITION AIR BAG
89178-06040

ASU50,GSU5#,GVU58

 1
89178A - SENSOR, SEAT POSITION AIR BAG
89178-06040

ASU50,GSU5#,GVU58

 1
89833 - SENSOR, AIR BAG, REAR RH
89831-0R100

ASU50,GSU5#,GVU58

 1
89834 - SENSOR, AIR BAG, REAR LH
89831-0R100

ASU50,GSU5#,GVU58

 1
89835 - SENSOR, DOOR SIDE AIR BAG, LH
89831-0R080

ASU50,GSU5#,GVU58

 1
89865 - SENSOR, DOOR SIDE AIR BAG, RH
89831-0R080

ASU50,GSU5#,GVU58

 1
89952 - COMPUTER, OCCUPANT DETECTION
89952-0E011

ASU50,GSU5#,GVU58

 1
Common parts
72702-AA010
90105-A0031
90105-A0203
90119-A0319
90178-A0023
94130-60600
