Toyota Highlander (nap) GSU50 WIRELESS DOOR LOCK

GSU50L-ARTNKA (2013)

Toyota Highlander (Nap)

Production Dec 2013 - Nov 2016

Engine 2GRFE

Transmission 6FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

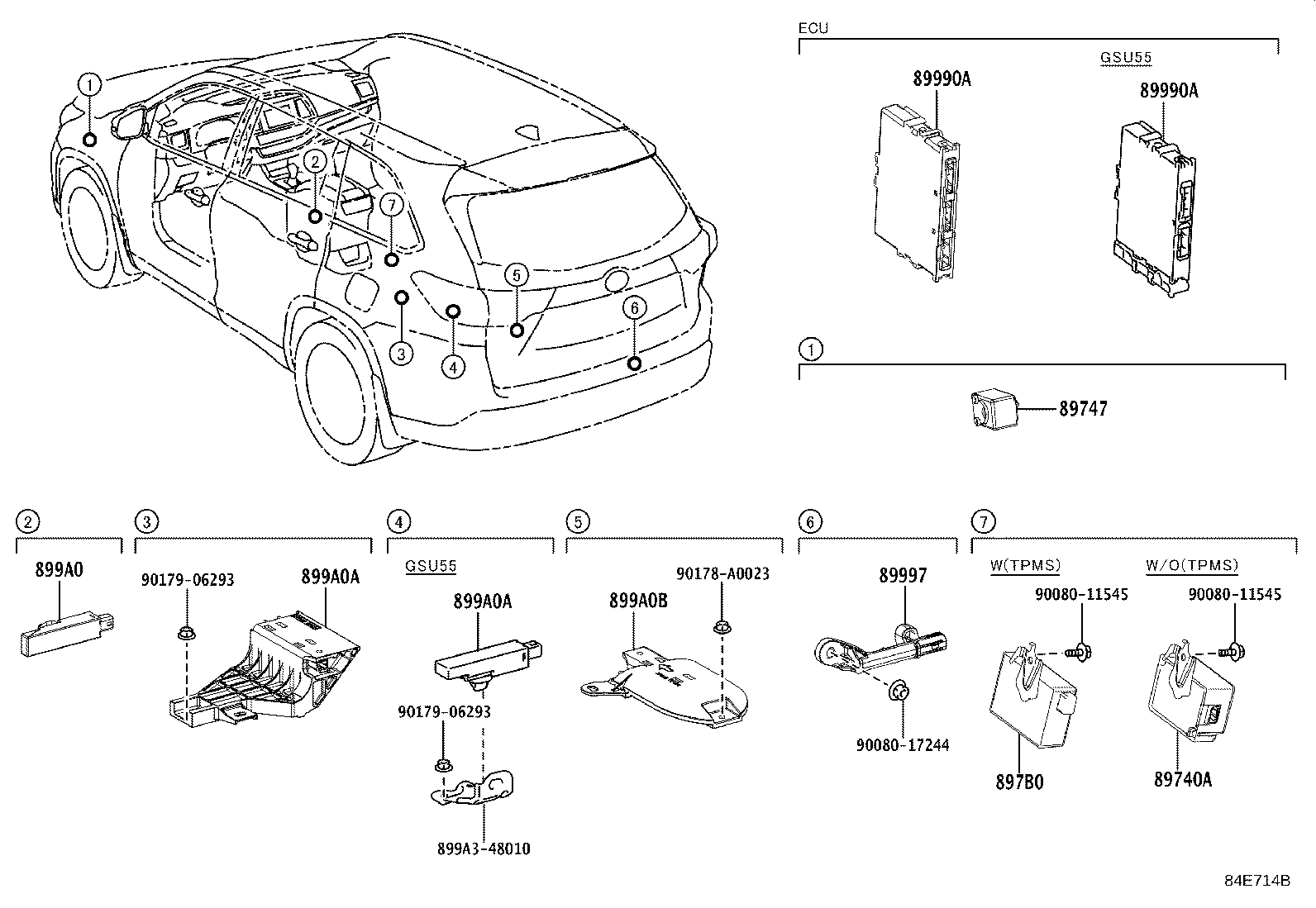

Click highlighted areas on diagram

W(SMART)

Part #	Description	Period	Qty
89740A - RECEIVER ASSY, SMART DOOR CONTROL
89740-0E050	GSU50..G,M MEXICO SPEC	12/2013 - 11/2016	1
89747 - BUZZER, WIRELESS DOOR LOCK
89747-0R020	ASU50,GSU5#,GVU58	12/2013 - 11/2016	1
897B0 - RECEIVER ASSY, ELECTRICAL KEY & TPMS
897B0-0E010	GVU58;GSU5#..G,M	12/2013 - 11/2016	1
897B0-0E020	GVU58;GSU5#..G,M USA POSSESSION SPEC	12/2013 - 11/2016	1
89990A - COMPUTER ASSY, SMART KEY
89990-0E080	GSU5#..G,M	12/2013 - 05/2016	1
89990-0E081	GSU5#..G,M	05/2016 - 11/2016	1
89990A - COMPUTER ASSY, SMART KEY
89990-0E080	GSU5#..G,M	12/2013 - 05/2016	1
89990-0E081	GSU5#..G,M	05/2016 - 11/2016	1
89997 - ANTENNA, ELECTRICAL KEY
89997-0E050	GVU58;GSU5#..G,M LUGGAGE	12/2013 - 11/2016	1
899A0 - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1
899A0-06030	GVU58;GSU5#..G,M	12/2013 - 11/2016	1
899A0A - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2
899A0-0E010	GSU5#..G,M	12/2013 - 11/2016	1
899A0A - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2
899A0-0E010	GSU5#..G,M	12/2013 - 11/2016	1
899A0B - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3
899A0-0E020	GVU58;GSU5#..G,M	12/2013 - 11/2016	1
Common parts
899A3-48010
90080-11545
90080-17244
90178-A0023
90179-06293

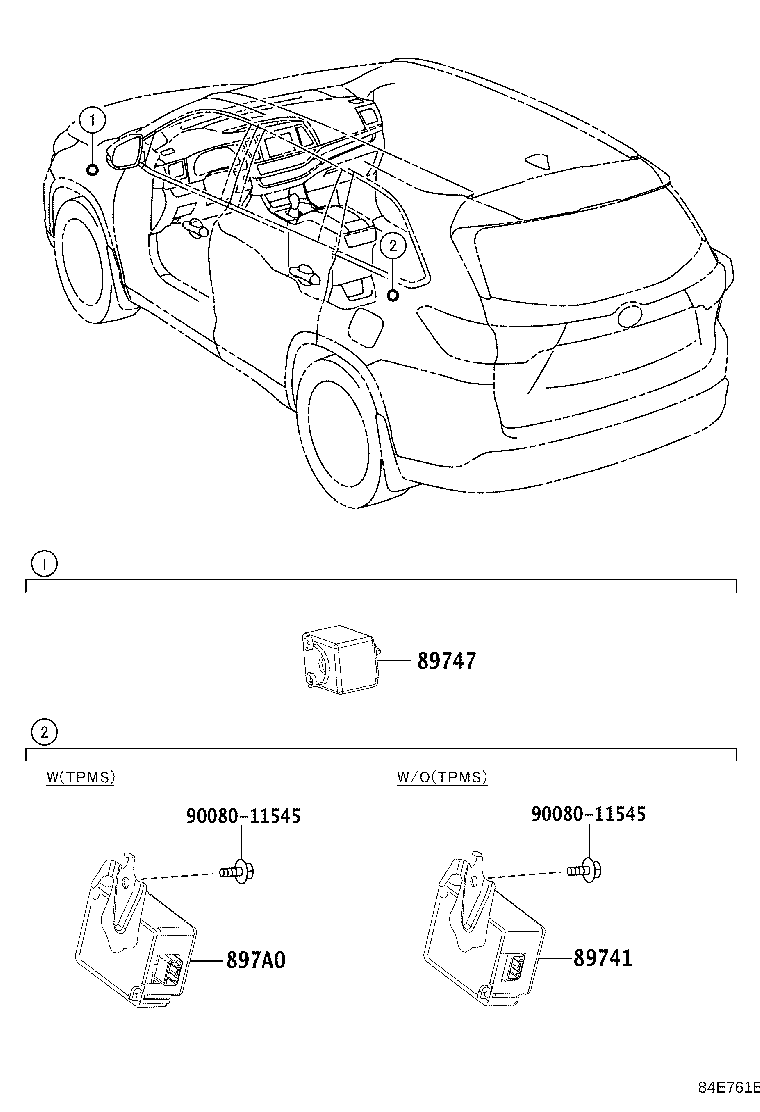

Click highlighted areas on diagram

W/O(SMART)

Part #	Description	Period	Qty
89741 - RECEIVER, DOOR CONTROL
89741-0E030	GSU50..N MEXICO SPEC	12/2013 - 08/2014	1
89741-0E030	GSU50..N MEXICO SPEC&ANTI-THEFT SYSTEM-WITH(ALARM & IMMOBILIZER)	08/2014 - 11/2016	1
89747 - BUZZER, WIRELESS DOOR LOCK
89747-0R020	ASU50,GSU5#,GVU58	12/2013 - 11/2016	1
897A0 - RECEIVER ASSY,DOOR CONTROL & TIRE PRESSURE MONITORING S
897A0-0E020	GSU5#..N USA POSSESSION SPEC&LE PACKAGE&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)	12/2013 - 09/2015	1
897A0-0E020	ASU50,GSU5#..N USA POSSESSION SPEC	12/2013 - 09/2015	1
897A0-0E011	ASU50,GSU5#..N	10/2015 - 12/2015	1
897A0-0E022	ASU50,GSU5#..N USA POSSESSION SPEC	01/2016 - 11/2016	1
897A0-0E010	ASU50,GSU5#..N	12/2013 - 09/2015	1
897A0-0E022	GSU5#..N USA POSSESSION SPEC&LE PACKAGE&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)	01/2016 - 11/2016	1
897A0-0E021	ASU50,GSU5#..N USA POSSESSION SPEC	10/2015 - 12/2015	1
897A0-0E012	ASU50,GSU5#..N	01/2016 - 11/2016	1
897A0-0E021	GSU5#..N USA POSSESSION SPEC&LE PACKAGE&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)	10/2015 - 12/2015	1
Common parts
90080-11545
