GSU50L-ARTNKA (2013)

Toyota Highlander (Nap)

Production Dec 2013 - Nov 2016
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1312- )

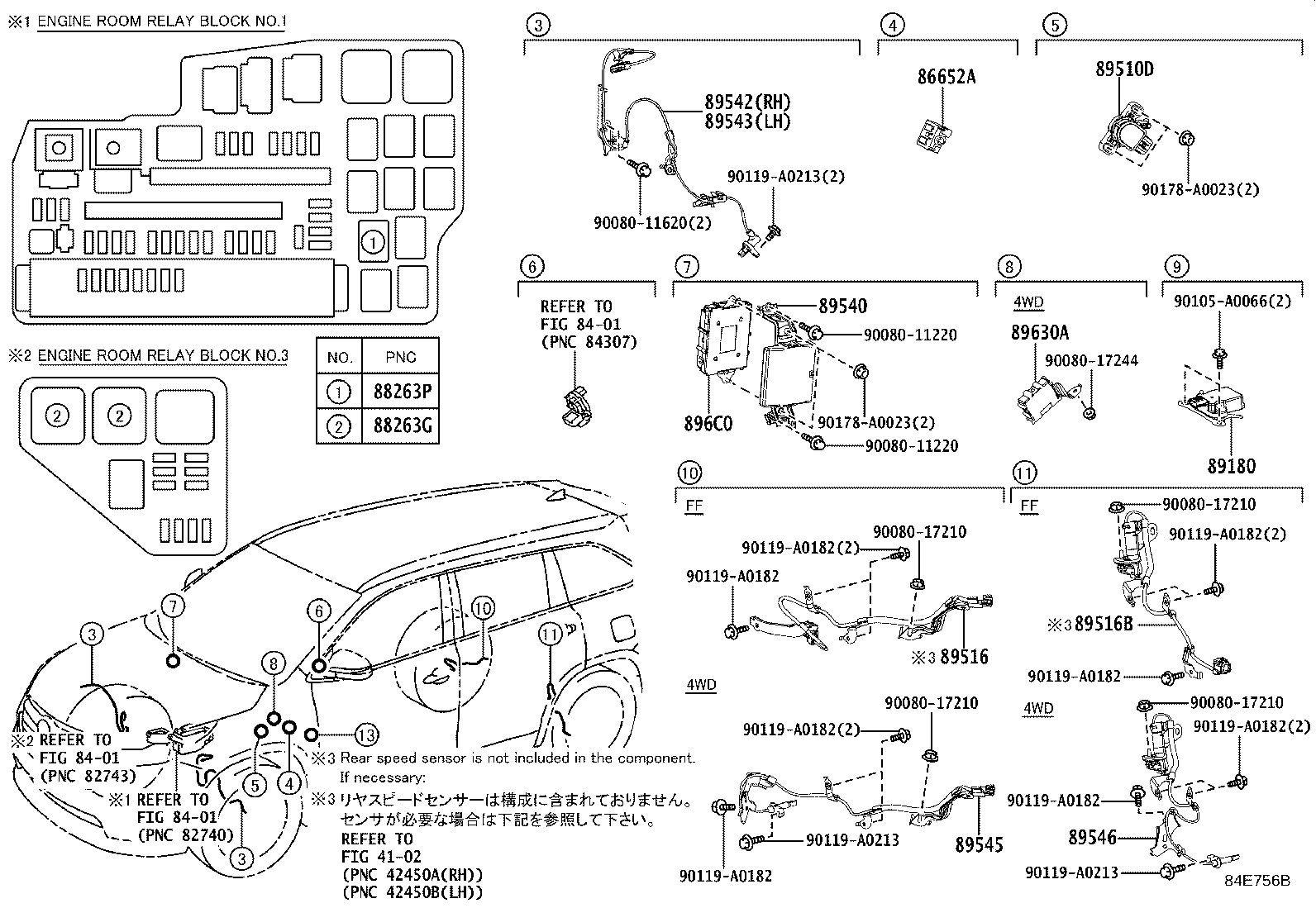

Click highlighted areas on diagram

diagram 4102 8401 8401 8401 86652A 88263G 88263P 89180 89510D 89516 89516B 89540 89542 89543 89545 89546 89630A 896C0 9008011220 9008011220 9008011620 9008017210 9008017210 9008017210 9008017210 9008017244 90105A0066 90119A0182 90119A0182 90119A0182 90119A0182 90119A0182 90119A0182 90119A0182 90119A0182 90119A0213 90119A0213 90119A0213 90178A0023 90178A0023
Part # Description Qty Price
86652A - BUZZER ASSY, SKID CONTROL
86652-50010

GSU5#,GVU58..G

PRE-COLLISION SYSTEM-WITH

 1
88263P - RELAY, STOP LAMP CONTROL
90084-98032

GSU50,GVU58..G

PRE-COLLISION SYSTEM-WITH

 1
89516 - WIRE, SKID CONTROL SENSOR
89516-0E030

ASU50,GSU50

 1
89516B - WIRE, SKID CONTROL SENSOR
89516-0E040

ASU50,GSU50

 1
89542 - SENSOR, SPEED, FRONT RH
89542-0E080

ASU50,GSU5#,GVU58

 1
89542-0E020

ASU50,GSU5#,GVU58

 1
89543 - SENSOR, SPEED, FRONT LH
89543-0E080

ASU50,GSU5#,GVU58

 1
89543-0E020

ASU50,GSU5#,GVU58

 1
Common parts
90080-11220
90080-11620
90080-17210
90080-17244
90105-A0066
90119-A0182
90119-A0213
90178-A0023
Linked diagrams
4102
8401
