GSU50L-ARTNKA (2013)

Toyota Highlander (Nap)

Production Dec 2013 - Nov 2016
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1312-1611)GSU5#

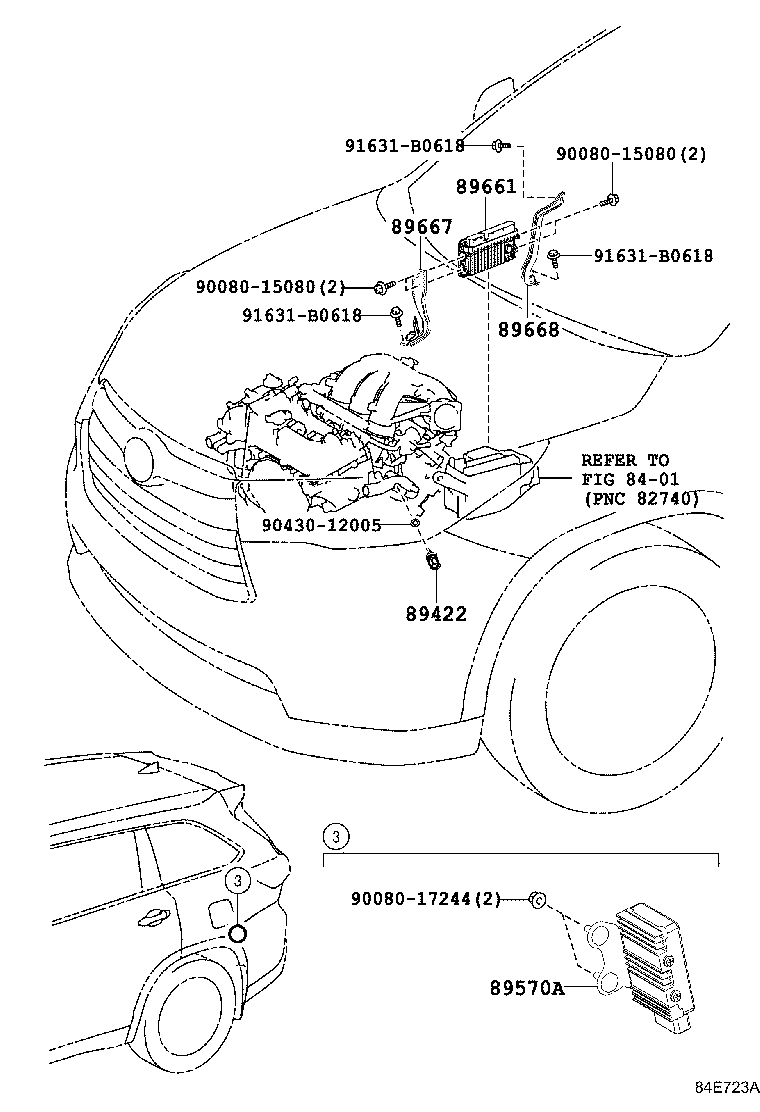

Click highlighted areas on diagram

diagram 8401 89422 89570A 89661 89667 89668 9008015080 9008015080 9008017244 9043012005 91631B0618 91631B0618 91631B0618
Part # Description Qty Price
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-33030

ASU50,GSU5#,GVU58

 1
89570A - COMPUTER ASSY, FUEL PUMP CONTROL
89570-48010

GSU5#

 1
89661 - COMPUTER, ENGINE CONTROL
89661-0E520

GSU50

 1
89661-0E540

GSU50

MEXICO SPEC

 1
89661-0E521

GSU50

 1
89661-0E570

GSU50

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-0E060

ASU50,GSU5#

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-0E060

ASU50,GSU5#

 1
Common parts
90080-15080
90080-17244
90430-12005
91631-B0618
Linked diagrams
8401
