GSU50L-ARTNKA (2013)
Toyota Highlander (Nap)
ILLUST NO. 8 OF 9(1312- )
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84070 - COMPUTER & SWITCH ASSY, POSITION CONTROL | ||||
| 84070-0E051 |
GSU5#,GVU58..G |
1 | ||
| 84070-0E050 |
GSU5#,GVU58..G |
1 | ||
| 84920 - SWITCH ASSY, POWER SEAT | ||||
| 84920-08010A1 |
GVU58;GSU5#..G,M FLAXEN,TRIM0# |
1 | ||
| 84920-08010A1 |
GSU5#..N LE PACKAGE,FLAXEN,TRIM0# |
1 | ||
| 84920-08010B2 |
GVU58;GSU5#..G,M GRAY,TRIM1# |
1 | ||
| 84920-08010C0 |
GVU58;GSU5#..G,M BLACK,TRIM2# |
1 | ||
| 84920-08010C0 |
GSU5#..N LE PACKAGE,BLACK,TRIM2# |
1 | ||
| 84920-08010B2 |
GSU5#..N LE PACKAGE,GRAY,TRIM1# |
1 | ||
| 84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING) | ||||
| 84921-08010A1 |
GSU5#..N LE PACKAGE,FLAXEN,TRIM0#,LH |
1 | ||
| 84921-08030B1 |
GSU5#,GVU58..G GRAY,TRIM1#,RH |
1 | ||
| 84921-08010A1 |
GVU58;GSU5#..G,M FLAXEN,TRIM0#,LH |
1 | ||
| 84921-08010B2 |
GSU5#..N LE PACKAGE,GRAY,TRIM1#,LH |
1 | ||
| 84921-08010C0 |
GVU58;GSU5#..G,M BLACK,TRIM2#,LH |
1 | ||
| 84921-08010C0 |
GSU5#..N LE PACKAGE,BLACK,TRIM2#,LH |
1 | ||
| 84921-08030A1 |
GSU5#,GVU58..G FLAXEN,TRIM0#,RH |
1 | ||
| 84921-08010B2 |
GVU58;GSU5#..G,M GRAY,TRIM1#,LH |
1 | ||
| 84921-08030C0 |
GSU5#,GVU58..G BLACK,TRIM2#,RH |
1 | ||
| 84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING) | ||||
| 84921-08010A1 |
GSU5#..N LE PACKAGE,FLAXEN,TRIM0#,LH |
1 | ||
| 84921-08030B1 |
GSU5#,GVU58..G GRAY,TRIM1#,RH |
1 | ||
| 84921-08010A1 |
GVU58;GSU5#..G,M FLAXEN,TRIM0#,LH |
1 | ||
| 84921-08010B2 |
GSU5#..N LE PACKAGE,GRAY,TRIM1#,LH |
1 | ||
| 84921-08010C0 |
GVU58;GSU5#..G,M BLACK,TRIM2#,LH |
1 | ||
| 84921-08010C0 |
GSU5#..N LE PACKAGE,BLACK,TRIM2#,LH |
1 | ||
| 84921-08030A1 |
GSU5#,GVU58..G FLAXEN,TRIM0#,RH |
1 | ||
| 84921-08010B2 |
GVU58;GSU5#..G,M GRAY,TRIM1#,LH |
1 | ||
| 84921-08030C0 |
GSU5#,GVU58..G BLACK,TRIM2#,RH |
1 | ||
| 84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL) | ||||
| 84921-08020B2 |
GVU58;GSU5#..G,M GRAY,TRIM1#,LH |
1 | ||
| 84921-08020A1 |
GVU58;GSU5#..G,M FLAXEN,TRIM0#,LH |
1 | ||
| 84921-08040A1 |
GSU5#,GVU58..G FLAXEN,TRIM0#,RH |
1 | ||
| 84921-08040B1 |
GSU5#,GVU58..G GRAY,TRIM1#,RH |
1 | ||
| 84921-08040C0 |
GSU5#,GVU58..G BLACK,TRIM2#,RH |
1 | ||
| 84921-08020A1 |
GSU5#..N LE PACKAGE,FLAXEN,TRIM0#,LH |
1 | ||
| 84921-08020B2 |
GSU5#..N LE PACKAGE,GRAY,TRIM1#,LH |
1 | ||
| 84921-08020C0 |
GVU58;GSU5#..G,M BLACK,TRIM2#,LH |
1 | ||
| 84921-08020C0 |
GSU5#..N LE PACKAGE,BLACK,TRIM2#,LH |
1 | ||
| 84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL) | ||||
| 84921-08020B2 |
GVU58;GSU5#..G,M GRAY,TRIM1#,LH |
1 | ||
| 84921-08020A1 |
GVU58;GSU5#..G,M FLAXEN,TRIM0#,LH |
1 | ||
| 84921-08040A1 |
GSU5#,GVU58..G FLAXEN,TRIM0#,RH |
1 | ||
| 84921-08040B1 |
GSU5#,GVU58..G GRAY,TRIM1#,RH |
1 | ||
| 84921-08040C0 |
GSU5#,GVU58..G BLACK,TRIM2#,RH |
1 | ||
| 84921-08020A1 |
GSU5#..N LE PACKAGE,FLAXEN,TRIM0#,LH |
1 | ||
| 84921-08020B2 |
GSU5#..N LE PACKAGE,GRAY,TRIM1#,LH |
1 | ||
| 84921-08020C0 |
GVU58;GSU5#..G,M BLACK,TRIM2#,LH |
1 | ||
| 84921-08020C0 |
GSU5#..N LE PACKAGE,BLACK,TRIM2#,LH |
1 | ||
| 84922B - SWITCH, FRONT POWER SEAT, RH | ||||
| 84922-08010 |
GSU5#,GVU58..G |
1 | ||
| 84922C - SWITCH, FRONT POWER SEAT, LH | ||||
| 84922-08020 |
GSU5#..N LE PACKAGE |
1 | ||
| 84922-08020 |
GSU5#..M;GVU58..M,N |
1 | ||
| 84928 - SWITCH, SEAT VARIABLE CUSHION | ||||
| 84928-0E040A0 |
GSU5#,GVU58..G,M FLAXEN,TRIM0#,LH |
1 | ||
| 84928-0E040B0 |
GSU5#,GVU58..G,M GRAY,TRIM1#,LH |
1 | ||
| 84928-0E040C0 |
GSU5#,GVU58..G,M BLACK,TRIM2#,LH |
1 | ||
| Common parts | ||||
| 90080-16089 | ||||
ILLUST NO. 7 OF 9(1312- )

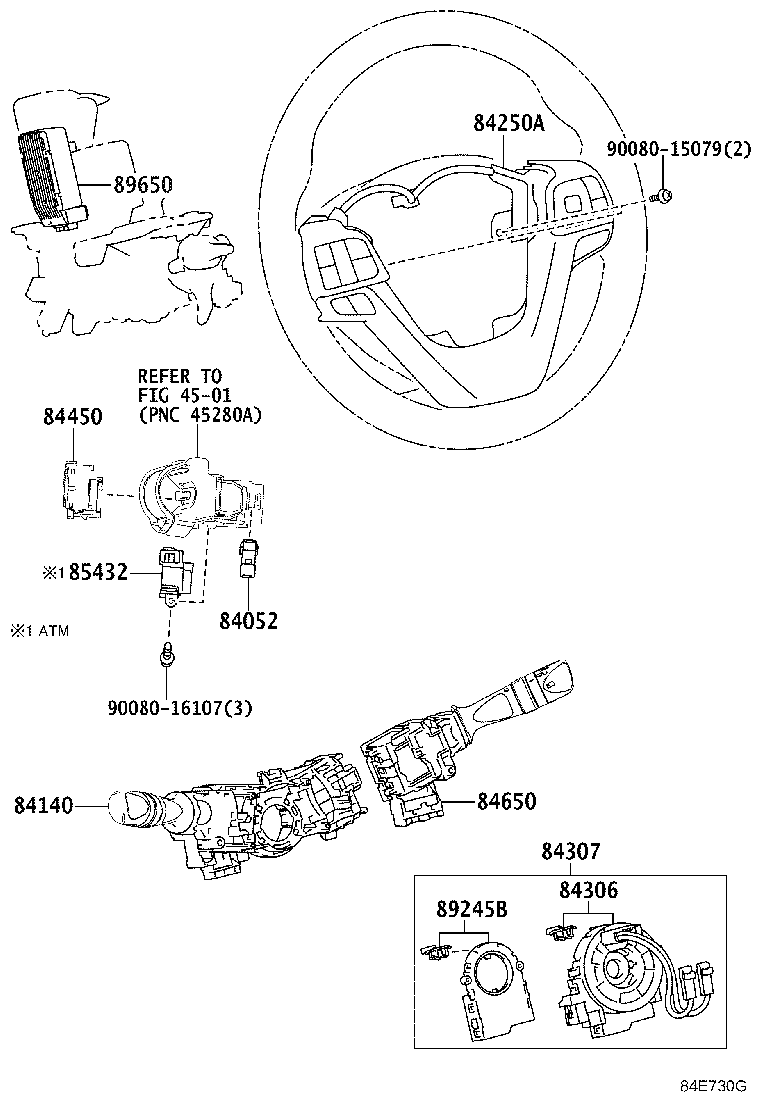

STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-71010 |
ASU50,GSU5#..N |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-02850 |
GSU5#..N CANADA SPEC |
1 | ||
| 84140-0R010 |
GVU58;GSU5#..G,M |
1 | ||
| 84140-0R040 |
GSU5#..N CANADA SPEC&LE PACKAGE |
1 | ||
| 84140-0R010 |
GSU5#..N LE PACKAGE |
1 | ||
| 84140-0R040 |
GVU58;GSU5#..G,M CANADA SPEC |
1 | ||
| 84140-02840 |
ASU50,GSU5#..N |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-0E250B1 |
ASU50,GSU5#,GVU58..M,N SILVER,TRIM0#,1#,2# |
1 | ||
| 84250-0E250B1 |
GSU5#,GVU58..G AUDIO-6.1INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM),SILVER,TRIM0#,1#,2# |
1 | ||
| 84250-0E250B1 |
GSU5#,GVU58..G AUDIO-8INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM),SILVER,TRIM0#,1#,2# |
1 | ||
| 84250-0E270B1 |
GSU5#,GVU58..G PRE-COLLISION SYSTEM-WITH,SILVER,TRIM0#,1#,2# |
1 | ||
| 84250-0E260B1 |
GSU5#..N LE PACKAGE&AUDIO-8INCH MONITOR AVN 6SPEKAER,SILVER,TRIM0#,1#,2# |
1 | ||
| 84250-0E260B1 |
GSU5#..M;GVU58..M,N AUDIO-8INCH MONITOR AVN 6SPEKAER,SILVER,TRIM0#,1#,2# |
1 | ||
| 84250-0E260B1 |
GSU5#,GVU58..G SILVER,TRIM0#,1#,2# |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84308-0R010 |
ASU50,GSU5#,GVU58 |
1 | ||
| 84308-0E120 |
GSU5#,GVU58..G SEAT HEATER-WITH(*DRP & REAR NO.1 SEAT=CAPTAIN TYPE) |
1 | ||
| 84307 - CABLE SUB-ASSY, SPIRAL W/SENSOR | ||||
| 84307-0E100 |
GSU5#,GVU58..G SEAT HEATER-WITH(*DRP & REAR NO.1 SEAT=CAPTAIN TYPE) |
1 | ||
| 84307-0E090 |
ASU50,GSU5#,GVU58 |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-0R010 |
ASU50,GSU5#..N |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-0R050 |
ASU50,GSU5#,GVU58 |
1 | ||
| 84652-0E180 |
GSU5#,GVU58..G PRE-COLLISION SYSTEM-WITH&LANE KEEPING SYSTEM-WITH |
1 | ||
| 84652-0R030 |
GSU5#,GVU58 CANADA SPEC |
1 | ||
| 84652-0E100 |
GSU5#,GVU58..G CANADA SPEC&PRE-COLLISION SYSTEM-WITH&LANE KEEPING SYSTEM-WITH |
1 | ||
| 85432 - SOLENOID, KEY INTER LOCK | ||||
| 85432-06030 |
ASU50,GSU5#..N |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 89245-09045 |
ASU50,GSU5#,GVU58 |
1 | ||
| 8924B-0E020 |
ASU50,GSU5#,GVU58 |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-0E170 |
ASU50,GSU5# |
1 | ||
| Common parts | ||||
| 90080-15079 | ||||
| 90080-16107 | ||||
| Linked diagrams | ||||
| 4501 | ||||
ILLUST NO. 1 OF 9(1312-1611)GSU5#

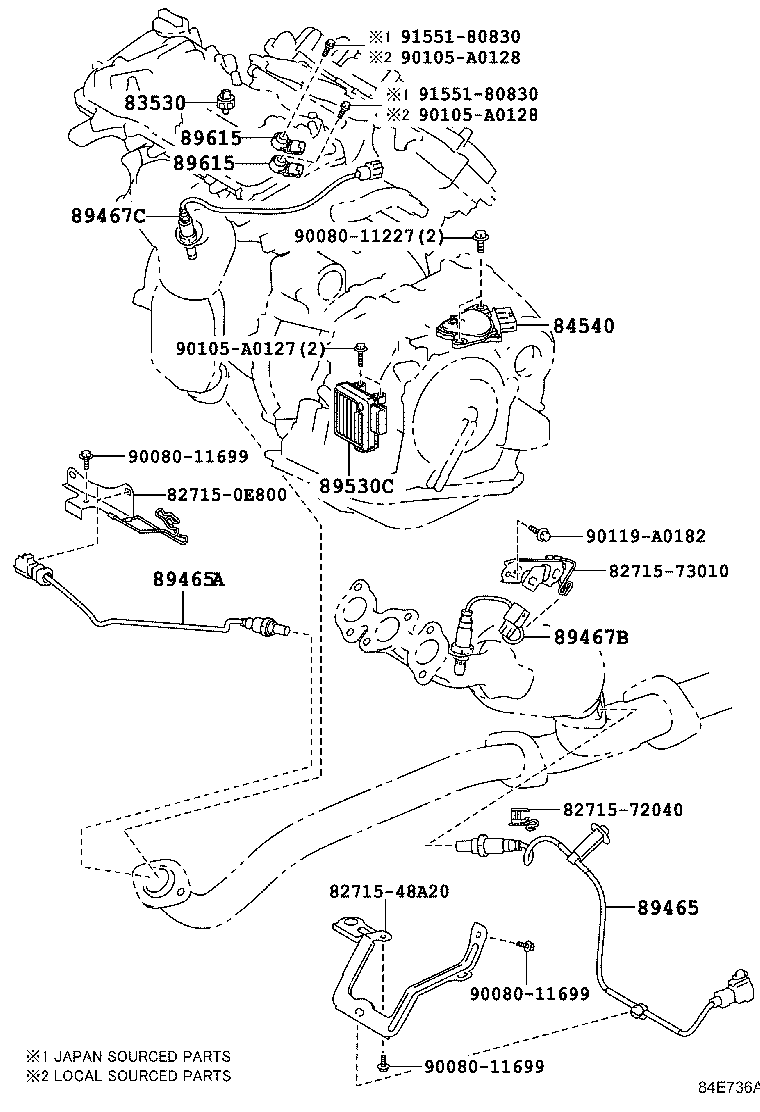

ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-0E010 |
ASU50,GSU5#,GVU58 DENSO USA |
1 | ||
| 83530-28020 |
ASU50,GSU5#,GVU58 DENSO JAPAN |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-07010 |
GSU5# |
1 | ||
| 84540-33010 |
GSU5# |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-0E130 |
GSU5# |
1 | ||
| 89465A - SENSOR, OXYGEN NO.2 | ||||
| 89465-0E120 |
GSU5# |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-0E200 |
GSU5# |
1 | ||
| 89467C - SENSOR, AIR FUEL RATIO, NO.2 | ||||
| 89467-0E190 |
GSU5# |
1 | ||
| 89530C - COMPUTER ASSY, TRANSMISSION CONTROL | ||||
| 89530-0E070 |
GSU5# |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
GSU5# DENSO JAPAN |
2 | ||
| 89615-06010 |
GSU5# DENSO USA |
2 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
GSU5# DENSO JAPAN |
2 | ||
| 89615-06010 |
GSU5# DENSO USA |
2 | ||
| Common parts | ||||
| 82715-0E800 | ||||
| 82715-48A20 | ||||
| 82715-72040 | ||||
| 82715-73010 | ||||
| 90080-11227 | ||||
| 90080-11699 | ||||
| 90105-A0127 | ||||
| 90105-A0128 | ||||
| 90119-A0182 | ||||
| 91551-80830 | ||||
ILLUST NO. 4 OF 9(1312-1611)

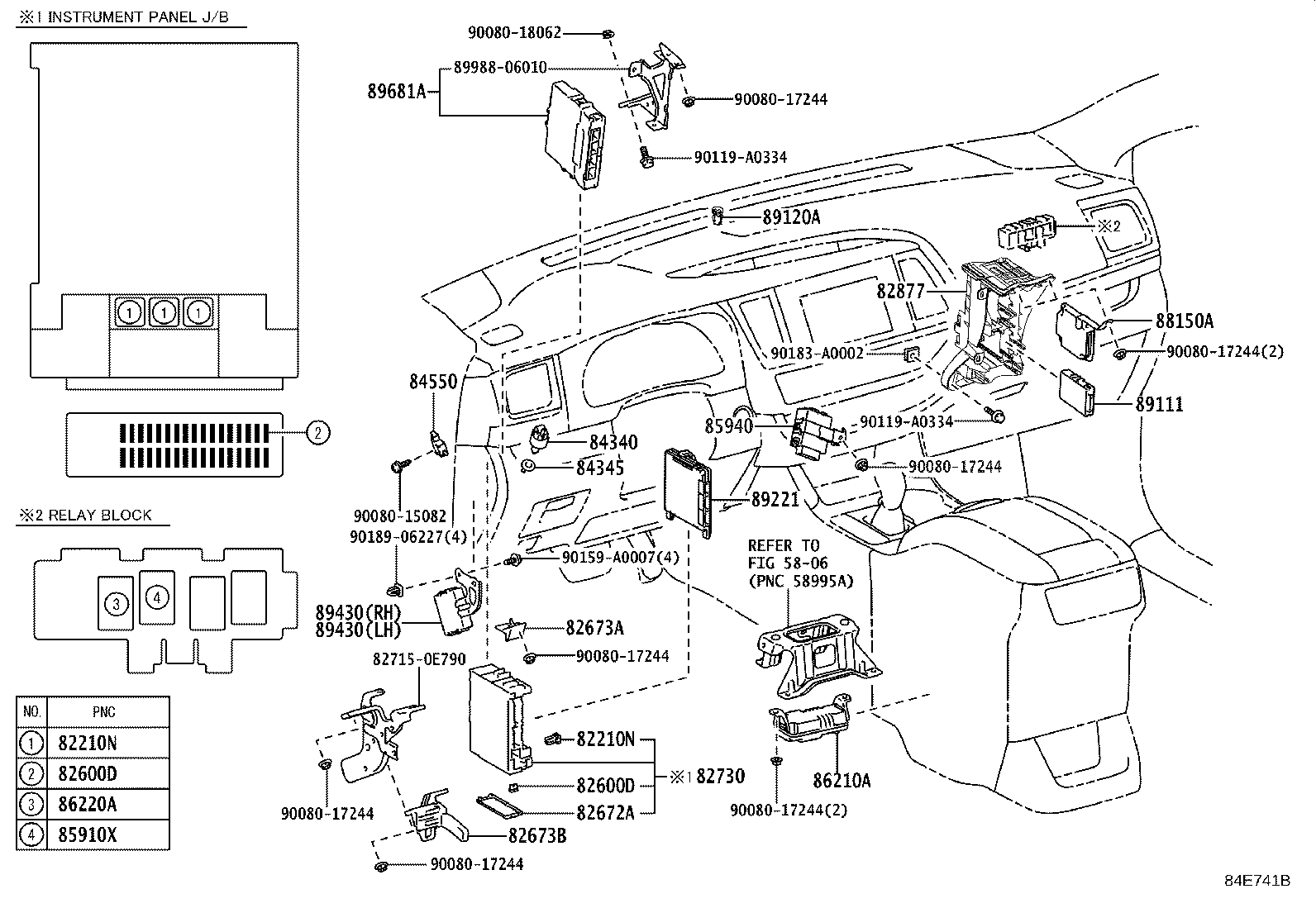

COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
ASU50,GSU5#,GVU58 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
ASU50,GSU5#,GVU58 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09020 |
ASU50,GSU5#,GVU58 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09019 |
ASU50,GSU5#,GVU58 5A,MINI FUSE,TAN |
1 | ||
| 90982-09022 |
ASU50,GSU5#,GVU58 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
ASU50,GSU5#,GVU58 10A,MINI FUSE,RED |
1 | ||
| 90982-09024 |
ASU50,GSU5#,GVU58 25A,MINI FUSE |
1 | ||
| 90982-09025 |
ASU50,GSU5#,GVU58 30A,MINI FUSE,GRN |
1 | ||
| 90982-09023 |
ASU50,GSU5#,GVU58 20A,MINI FUSE,YELLOW |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09020 |
ASU50,GSU5#,GVU58 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09019 |
ASU50,GSU5#,GVU58 5A,MINI FUSE,TAN |
1 | ||
| 90982-09022 |
ASU50,GSU5#,GVU58 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
ASU50,GSU5#,GVU58 10A,MINI FUSE,RED |
1 | ||
| 90982-09024 |
ASU50,GSU5#,GVU58 25A,MINI FUSE |
1 | ||
| 90982-09025 |
ASU50,GSU5#,GVU58 30A,MINI FUSE,GRN |
1 | ||
| 90982-09023 |
ASU50,GSU5#,GVU58 20A,MINI FUSE,YELLOW |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-0E090 |
ASU50,GSU5#,GVU58 |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-0E030 |
ASU50,GSU5#,GVU58 |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-0E040 |
ASU50,GSU5#,GVU58 |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-0EA80 |
ASU50,GSU5#,GVU58..M,N |
1 | ||
| 82730-0EA70 |
GSU5#,GVU58..G |
1 | ||
| 82877 - BOX, COMPUTER INTEGRATION, RH | ||||
| 82877-0E020 |
GVU58;GSU5#..G,M |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-09070 |
ASU50,GSU5#,GVU58 |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-08010 |
ASU50,GSU5#,GVU58 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-0E010 |
ASU50,GSU5#,GVU58 |
1 | ||
| 85910X - RELAY, HEATER MIRROR | ||||
| 90080-87026 |
GSU5#,GVU58..M |
1 | ||
| 90080-87026 |
ASU50,GSU5#,GVU58..N OUTSIDE REAR VIEW MIRROR-RETRACTABLE(COLORE),WITH(HEATER) |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-48060 |
GSU5#,GVU58..G PRE-COLLISION SYSTEM-WITH&LANE KEEPING SYSTEM-WITH |
1 | ||
| 86210A - INVERTER ASSY, VOLTAGE | ||||
| 86210-48100 |
GSU5#,GVU58..G,M ACCESSORY CONNECTOR(NO.2)-WITH(120V,100W)RR1 |
1 | ||
| 86220A - RELAY, INVERTER | ||||
| 90080-87026 |
GSU5#,GVU58..G,M ACCESSORY CONNECTOR(NO.2)-WITH(120V,100W)RR1 |
1 | ||
| 88150A - COMPUTER ASSY, DRIVING SUPPORT | ||||
| 88150-48150 |
GSU5#..G PRE-COLLISION SYSTEM-WITH |
1 | ||
| 89111 - COMPUTER, NETWORK GATEWAY | ||||
| 89111-0E030 |
GSU5#..G |
1 | ||
| 89111-0E010 |
GSU5#..G |
1 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-30020 |
ASU50,GSU5#,GVU58 |
1 | ||
| 89121-0E060 |
ASU50,GSU5#,GVU58 |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89220-0E090 |
GSU5#..N USA POSSESSION SPEC&LE PACKAGE&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR) |
1 | ||
| 89220-0E010 |
GSU5#,GVU58..G CANADA SPEC |
1 | ||
| 89220-0E040 |
GSU5#..N CANADA SPEC |
1 | ||
| 89220-0E090 |
GSU5#,GVU58..M USA POSSESSION SPEC |
1 | ||
| 89220-0E020 |
GSU5#,GVU58..M CANADA SPEC |
1 | ||
| 89220-0E070 |
GSU50..N MEXICO SPEC |
1 | ||
| 89220-0E080 |
GSU5#,GVU58..G USA POSSESSION SPEC |
1 | ||
| 89220-0E140 |
ASU50,GSU5#..N |
1 | ||
| 89220-0E050 |
GSU50..G MEXICO SPEC |
1 | ||
| 89220-0E030 |
GSU5#..N CANADA SPEC&LE PACKAGE&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR) |
1 | ||
| 89220-0E060 |
GSU50..M MEXICO SPEC |
1 | ||
| 89220-0E130 |
GSU5#..N LE PACKAGE&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR) |
1 | ||
| 89220-0E070 |
GSU50..N MEXICO SPEC&ANTI-THEFT SYSTEM-WITH(ALARM & IMMOBILIZER) |
1 | ||
| 89220-0E120 |
GSU5#,GVU58..M |
1 | ||
| 89220-0E090 |
GSU5#..N USA POSSESSION SPEC&LE PACKAGE&ANTI-THEFT SYSTEM-WITH(ALARM & IMMOBILIZER)&AUTO &EASY CLOSER DOOR-WITH(POWER BACK DOOR) |
1 | ||
| 89220-0E100 |
ASU50,GSU5#..N USA POSSESSION SPEC |
1 | ||
| 89220-0E100 |
ASU50,GSU5#..N USA POSSESSION SPEC&ANTI-THEFT SYSTEM-WITH(ALARM & IMMOBILIZER) |
1 | ||
| 89220-0E110 |
GSU5#,GVU58..G |
1 | ||
| 89220-0E210 |
ASU50,GSU5#..N USA POSSESSION SPEC |
1 | ||
| 89220-0E200 |
GSU5#..N USA POSSESSION SPEC&LE PACKAGE&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR) |
1 | ||
| 89430 - COMPUTER ASSY, OUTER MIRROR CONTROL | ||||
| 89430-0E080 |
GSU5#,GVU58..G LH |
1 | ||
| 89430-0E070 |
GSU5#,GVU58..G RH |
1 | ||
| 89430 - COMPUTER ASSY, OUTER MIRROR CONTROL | ||||
| 89430-0E080 |
GSU5#,GVU58..G LH |
1 | ||
| 89430-0E070 |
GSU5#,GVU58..G RH |
1 | ||
| Common parts | ||||
| 82715-0E790 | ||||
| 89988-06010 | ||||
| 90080-15082 | ||||
| 90080-17244 | ||||
| 90080-18062 | ||||
| 90119-A0334 | ||||
| 90159-A0007 | ||||
| 90183-A0002 | ||||
| 90189-06227 | ||||
| Linked diagrams | ||||
| 5806 | ||||
ILLUST NO. 2 OF 9(1312-1611)ASU50,GSU5#

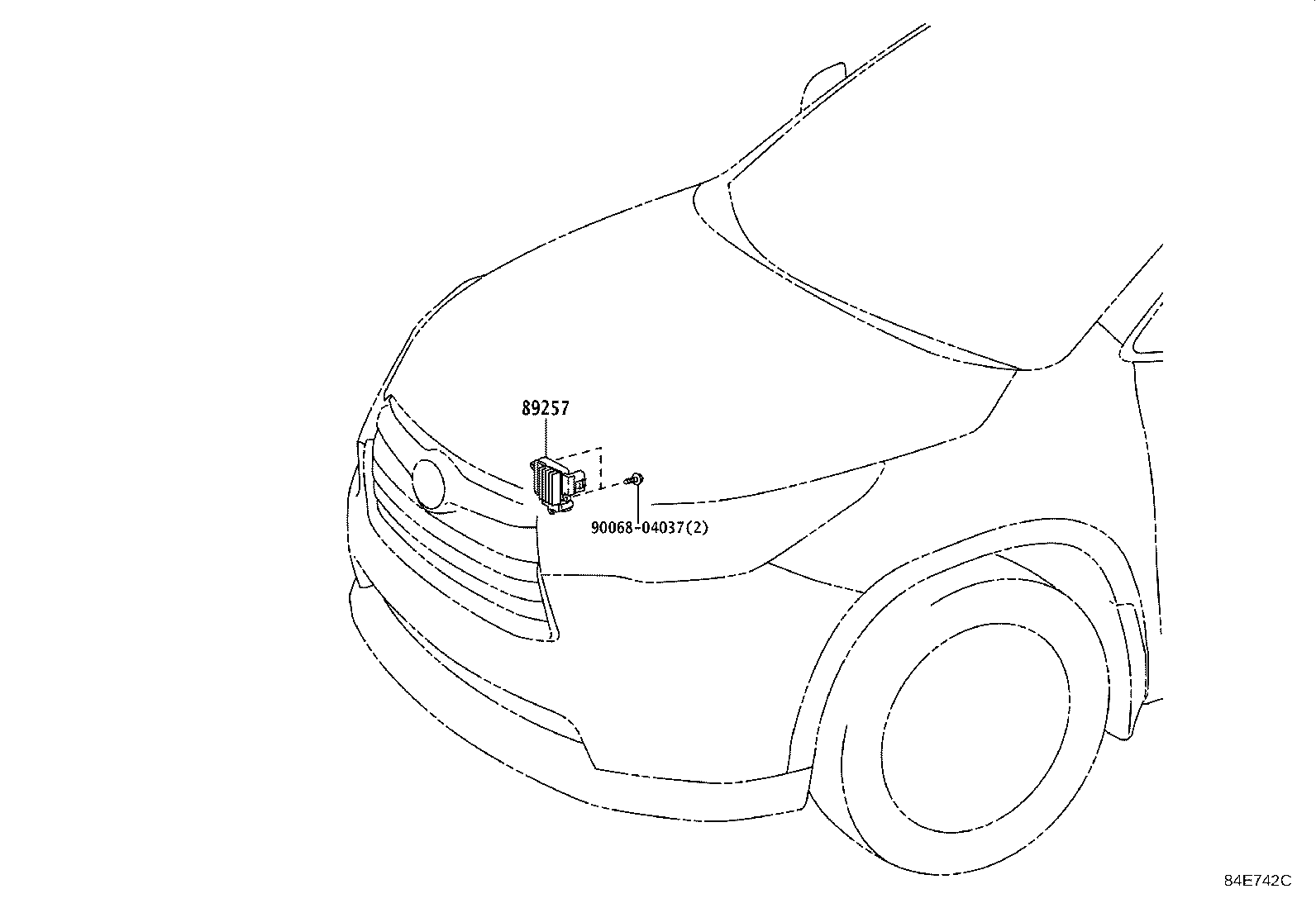

ENGINE ROOM 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89257 - COMPUTER, COOLING FAN | ||||
| 89257-30080 |
GSU5# TOWING PACKAGE-5000LBS |
1 | ||
| 89257-30060 |
ASU50,GSU5# |
1 | ||
| Common parts | ||||
| 90068-04037 | ||||

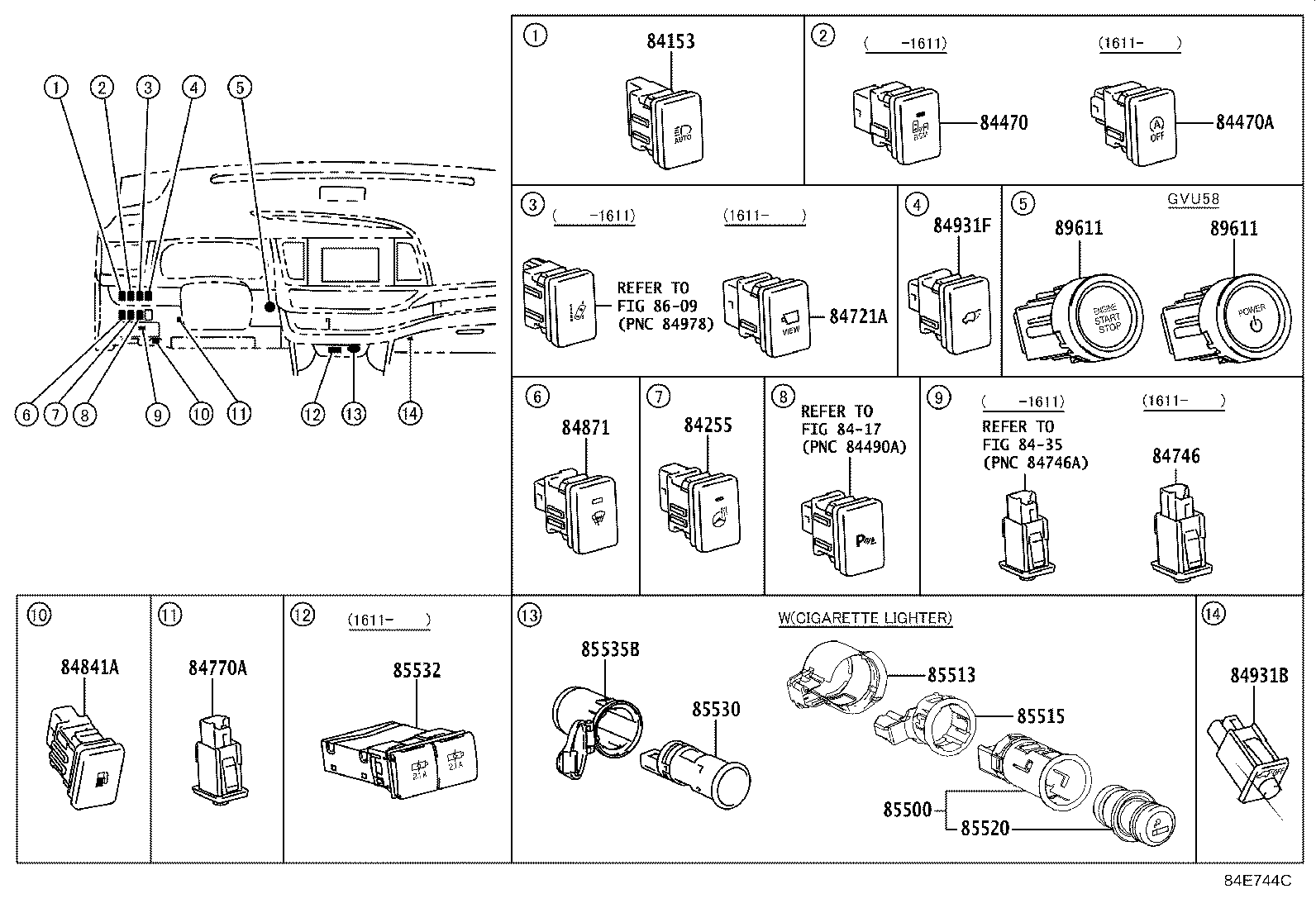

ILLUST NO. 5 OF 9(1312- )
INSTRUMENT PANEL 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84153 - SWITCH, AUTO HIGH BEAM | ||||
| 84153-0E010 |
GSU5#,GVU58..G HEADLAMP-HALOGEN,WITH(*AHB) |
1 | ||
| 84153-0E011 |
GSU5#,GVU58..G HEADLAMP-HALOGEN(SMOKE),WITH(*AHB) |
1 | ||
| 84153-0E011 |
GSU5#,GVU58..G HEADLAMP-HALOGEN,WITH(*AHB) |
1 | ||
| 84153-0E010 |
GSU5#,GVU58..G HEADLAMP-HALOGEN(SMOKE),WITH(*AHB) |
1 | ||
| 84255 - SWITCH, STEERING HEATER | ||||
| 84255-0E020 |
GSU5#,GVU58..G SEAT HEATER-WITH(*DRP & REAR NO.1 SEAT=CAPTAIN TYPE) |
1 | ||
| 84255-0E021 |
GSU5#,GVU58..G SEAT HEATER-WITH(*DRP & REAR NO.1 SEAT=CAPTAIN TYPE) |
1 | ||
| 84470 - SWITCH ASSY, WARNING CANCELING | ||||
| 84470-0R010 |
GSU5#,GVU58..G |
1 | ||
| 84470-0R011 |
GSU5#,GVU58..G |
1 | ||
| 84770A - SWITCH ASSY, PRE-COLLISION SYSTEM CANCEL | ||||
| 84770-0E010 |
GSU5#,GVU58..G PRE-COLLISION SYSTEM-WITH |
1 | ||
| 84841A - SWITCH, FUEL LID OPENER | ||||
| 84841-0E041 |
ASU50,GSU5#,GVU58 |
1 | ||
| 84841-0E040 |
ASU50,GSU5#,GVU58 |
1 | ||
| 84871 - SWITCH ASSY, OUTER MIRROR HEATER | ||||
| 84871-0E041 |
ASU50,GSU5#,GVU58..N WINDSHIELD DEICER-WITH(WIPER DEICER) |
1 | ||
| 84871-0E041 |
GSU5#,GVU58..G,M |
1 | ||
| 84871-0E040 |
GSU5#,GVU58..G,M |
1 | ||
| 84871-0E040 |
ASU50,GSU5#,GVU58..N WINDSHIELD DEICER-WITH(WIPER DEICER) |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84930-0E030 |
GVU58;GSU5#..G,M |
1 | ||
| 84930-0E030 |
GSU5#..N LE PACKAGE |
1 | ||
| 84931F - SWITCH, REAR DOOR CONTROL | ||||
| 84930-0R011 |
GSU5#..N LE PACKAGE |
1 | ||
| 84930-0R010 |
GSU5#..N LE PACKAGE |
1 | ||
| 84930-0R010 |
GVU58;GSU5#..G,M |
1 | ||
| 84930-0R011 |
GVU58;GSU5#..G,M |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-50090 |
ASU50,GSU5#,GVU58 CIGARETTE LIGHTER-WITH(POWER OUTLET) |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-28010 |
ASU50,GSU5#,GVU58 CIGARETTE LIGHTER-WITH(POWER OUTLET) |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-0E020 |
ASU50,GSU5#,GVU58 CIGARETTE LIGHTER-WITH(POWER OUTLET) |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-30200 |
ASU50,GSU5#,GVU58 CIGARETTE LIGHTER-WITH(POWER OUTLET) |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-06030 |
ASU50,GSU5#,GVU58 |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-0R030 |
ASU50,GSU5#,GVU58 |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-0R020 |
GSU5#..G,M |
1 | ||
| 89611-0R021 |
GSU5#..G,M |
1 | ||
| 89611-0R022 |
GSU5#..G,M |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-0R020 |
GSU5#..G,M |
1 | ||
| 89611-0R021 |
GSU5#..G,M |
1 | ||
| 89611-0R022 |
GSU5#..G,M |
1 | ||
| Linked diagrams | ||||
| 8417 | ||||
| 8435 | ||||
| 8609 | ||||

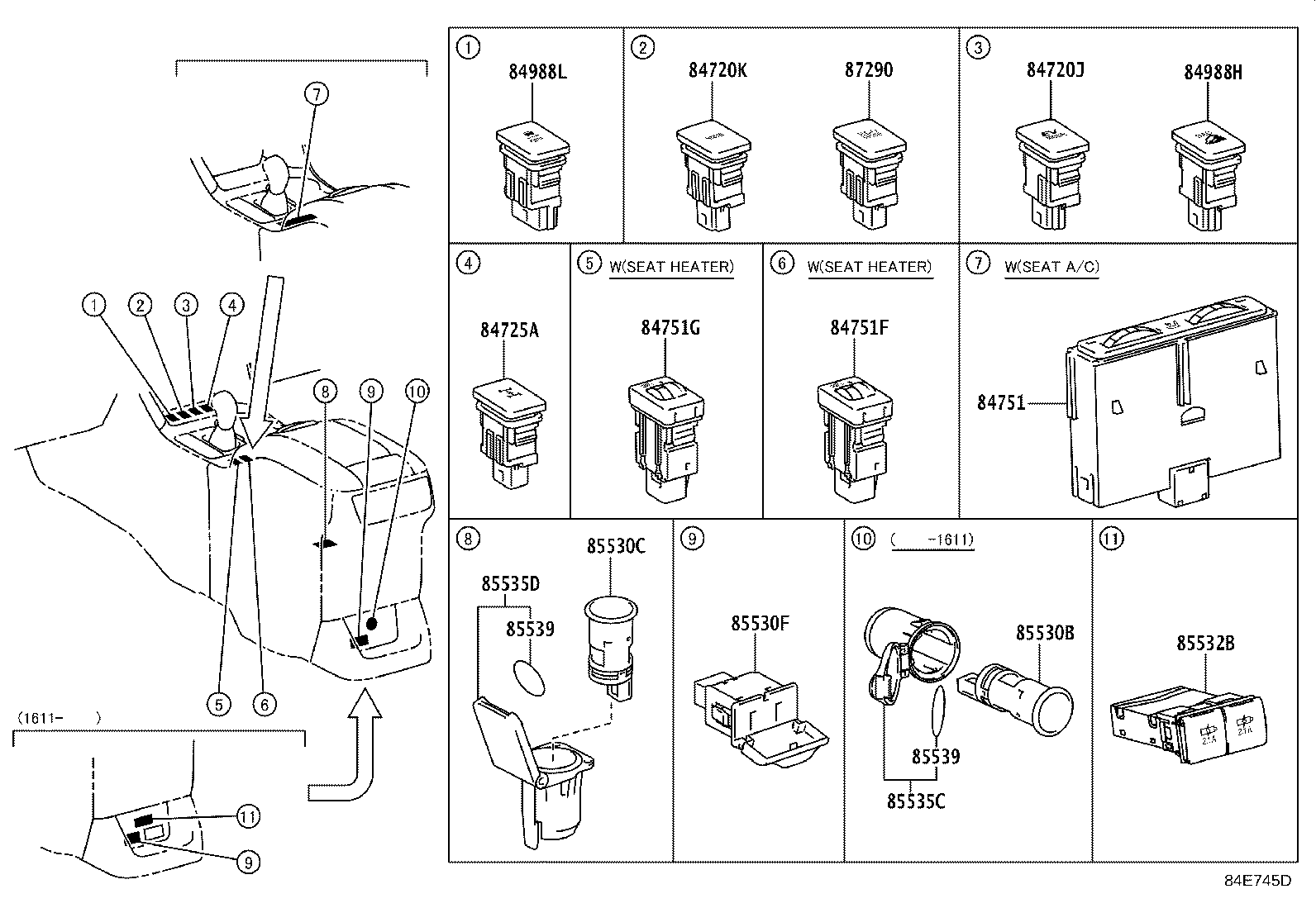

ILLUST NO. 6 OF 9(1312- )
INSTRUMENT PANEL 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84720K - SWITCH ASSY, PATTERN SELECT | ||||
| 84720-0E041 |
ASU50,GSU5# |
1 | ||
| 84720-0E040 |
ASU50,GSU5# |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-0E050 |
GSU5#,GVU58..G |
1 | ||
| 84751F - SWITCH, SEAT HEATER | ||||
| 84751-0E060 |
GSU5#,GVU58..N SEAT HEATER-WITH(*DRP),RH SEAT |
1 | ||
| 84751-0E061 |
GSU5#,GVU58..M RH SEAT |
1 | ||
| 84751-06111 |
GSU5#,GVU58..M RH SEAT |
1 | ||
| 84751-0E060 |
GSU5#,GVU58..M RH SEAT |
1 | ||
| 84751-06111 |
GSU5#,GVU58..N SEAT HEATER-WITH(*DRP),RH SEAT |
1 | ||
| 84751-0E061 |
GSU5#,GVU58..N SEAT HEATER-WITH(*DRP),RH SEAT |
1 | ||
| 84751G - SWITCH, SEAT HEATER | ||||
| 84751-0E071 |
GSU5#,GVU58..M LH SEAT |
1 | ||
| 84751-0E070 |
GSU5#,GVU58..N SEAT HEATER-WITH(*DRP),LH SEAT |
1 | ||
| 84751-0E070 |
GSU5#,GVU58..M LH SEAT |
1 | ||
| 84751-06121 |
GSU5#,GVU58..N SEAT HEATER-WITH(*DRP),LH SEAT |
1 | ||
| 84751-06121 |
GSU5#,GVU58..M LH SEAT |
1 | ||
| 84751-0E071 |
GSU5#,GVU58..N SEAT HEATER-WITH(*DRP),LH SEAT |
1 | ||
| 84988L - SWITCH, VSC OFF | ||||
| 84988-0R071 |
ASU50,GSU5#,GVU58 |
1 | ||
| 84988-0R070 |
ASU50,GSU5#,GVU58 |
1 | ||
| 85530B - SOCKET ASSY, POWER OUTLET, REAR NO.1 | ||||
| 85530-06030 |
ASU50,GSU5#,GVU58 |
1 | ||
| 85530C - SOCKET ASSY, POWER OUTLET, CENTER | ||||
| 85530-06030 |
ASU50,GSU5#,GVU58 |
1 | ||
| 85530F - SOCKET ASSY, POWER OUTLET, REAR NO.2 | ||||
| 85530-73010 |
GSU5#,GVU58..G,M ACCESSORY CONNECTOR(NO.2)-WITH(120V,100W)RR1 |
1 | ||
| 85530-48130 |
GSU5#,GVU58..G,M ACCESSORY CONNECTOR(NO.2)-WITH(120V,100W)RR1 |
1 | ||
| 85535C - COVER, POWER OUTLET SOCKET, REAR | ||||
| 85535-0C020C0 |
GSU5#,GVU58 BLACK,TRIM0#,1#,2# |
1 | ||
| 85535D - COVER, POWER OUTLET SOCKET, CENTER | ||||
| 85535-0E100 |
ASU50,GSU5#,GVU58 |
1 | ||
| 85539 - LABEL, POWER OUTLET NOTICE | ||||
| 85539-60020 |
ASU50,GSU5#,GVU58 |
2 | ||
| 85539 - LABEL, POWER OUTLET NOTICE | ||||
| 85539-60020 |
ASU50,GSU5#,GVU58 |
2 | ||

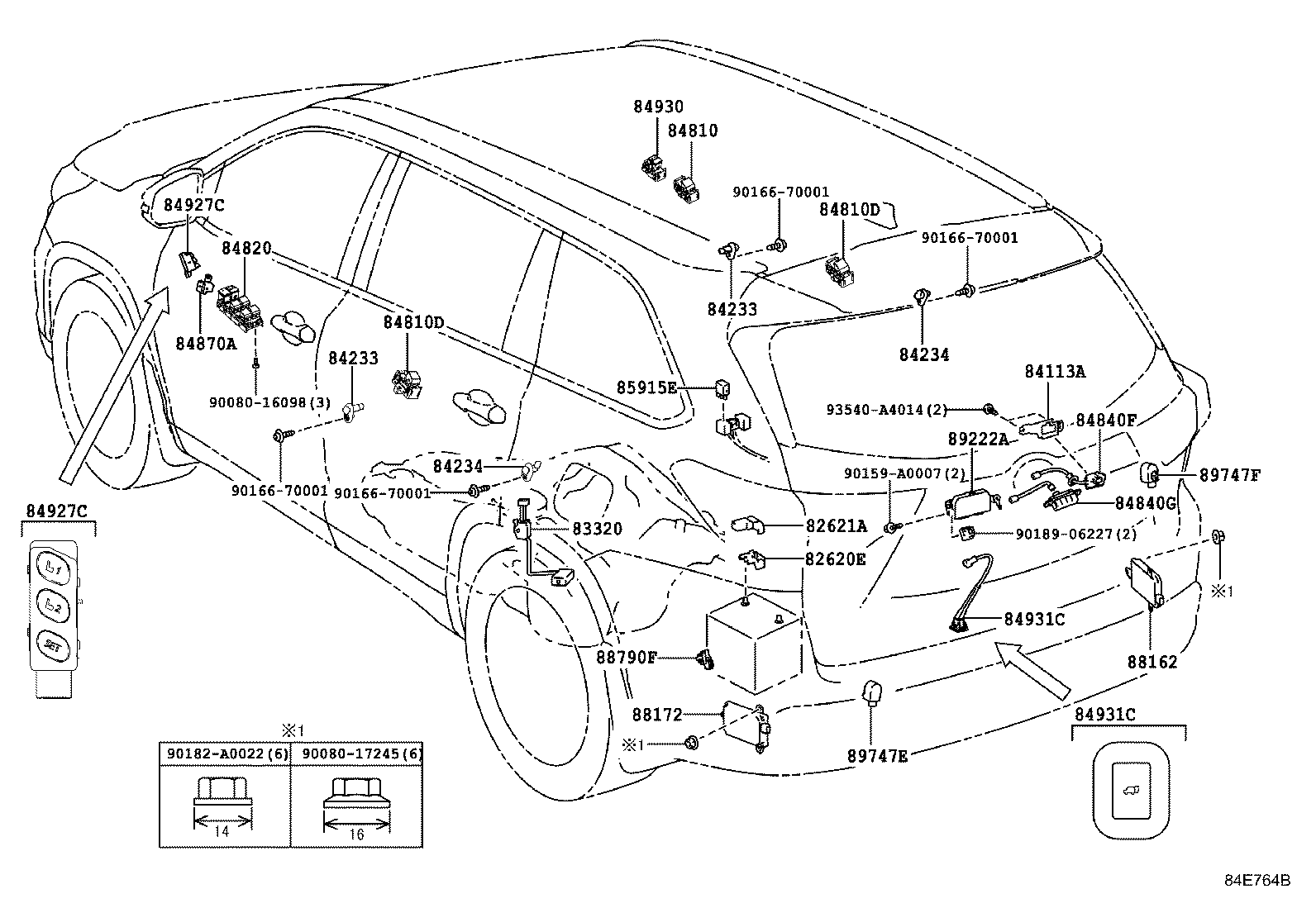

ILLUST NO. 9 OF 9(1312-1611)
DOOR,ROOF,FLOOR & BACK DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-0E030 |
ASU50,GSU5# |
1 | ||
| 84113A - BRACKET, SWITCH, NO.1 | ||||
| 84113-0E050 |
GSU5#..N AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR) |
1 | ||
| 84113-0E050 |
GVU58;GSU5#..G,M |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-08030 |
ASU50,GSU5#,GVU58 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-08030 |
ASU50,GSU5#,GVU58 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-AA030 |
ASU50,GSU5#,GVU58 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-AA030 |
ASU50,GSU5#,GVU58 |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-0E060 |
GSU5#,GVU58..G |
1 | ||
| 84810-0E040 |
ASU50,GSU5#,GVU58..M,N |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-0E060 |
GSU5#,GVU58..G |
2 | ||
| 84810-0E050 |
ASU50,GSU5#,GVU58..M,N |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-0E060 |
GSU5#,GVU58..G |
2 | ||
| 84810-0E050 |
ASU50,GSU5#,GVU58..M,N |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-0E020 |
ASU50,GSU5#,GVU58..M,N |
1 | ||
| 84040-0E040 |
GSU5#,GVU58..G |
1 | ||
| 84840F - SWITCH ASSY, GLASS HATCH OPENER | ||||
| 84840-0E050 |
GVU58;GSU5#..G,M |
1 | ||
| 84840-0E050 |
GSU5#..N AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR) |
1 | ||
| 84840G - SWITCH ASSY, BACK DOOR OPENER | ||||
| 84840-0T020 |
GVU58;GSU5#..G,M |
1 | ||
| 84840-0T010 |
ASU50,GSU5#..N |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-0E020 |
ASU50,GSU5#,GVU58..M,N |
1 | ||
| 84872-0E030 |
GSU5#,GVU58..G |
1 | ||
| 84927C - SWITCH, SEAT MEMORY, LH | ||||
| 84927-0E030 |
GSU5#,GVU58..G |
1 | ||
| 84927C - SWITCH, SEAT MEMORY, LH | ||||
| 84927-0E030 |
GSU5#,GVU58..G |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-0E160 |
ASU50,GSU5#,GVU58 |
1 | ||
| 84931C - SWITCH, BACK DOOR CONTROL | ||||
| 84930-0E151 |
GSU5#..N LE PACKAGE |
1 | ||
| 84930-0E150 |
GSU5#..N LE PACKAGE |
1 | ||
| 84930-0E150 |
GVU58;GSU5#..G,M |
1 | ||
| 84930-0E151 |
GVU58;GSU5#..G,M |
1 | ||
| 84931C - SWITCH, BACK DOOR CONTROL | ||||
| 84930-0E151 |
GSU5#..N LE PACKAGE |
1 | ||
| 84930-0E150 |
GSU5#..N LE PACKAGE |
1 | ||
| 84930-0E150 |
GVU58;GSU5#..G,M |
1 | ||
| 84930-0E151 |
GVU58;GSU5#..G,M |
1 | ||
| 85915E - RELAY | ||||
| 90084-98032 |
GVU58;GSU5#..G,M |
1 | ||
| 90084-98032 |
GSU5#..N AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR) |
1 | ||
| 88162 - SENSOR, BLIND SPOT MONITOR, RH | ||||
| 88162-0E020 |
GSU5#,GVU58..G |
1 | ||
| 88172 - SENSOR, BLIND SPOT MONITOR, LH | ||||
| 88162-0E020 |
GSU5#,GVU58..G |
1 | ||
| 89222A - COMPUTER, MULTIPLEX NETWORK DOOR | ||||
| 89222-0E080 |
GVU58;GSU5#..G,M |
1 | ||
| 89222-0E081 |
GSU5#..N LE PACKAGE&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR) |
1 | ||
| 89222-0E080 |
GSU5#..N LE PACKAGE&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR) |
1 | ||
| 89222-0E081 |
GVU58;GSU5#..G,M |
1 | ||
| 89747E - BUZZER, POWER BACK DOOR WARNING | ||||
| 89747-0R020 |
GVU58;GSU5#..G,M |
1 | ||
| 89747-0R020 |
GSU5#..N LE PACKAGE |
1 | ||
| 89747F - BUZZER, BLIND SPOT MONITOR | ||||
| 89747-02010 |
GSU5#,GVU58..G |
1 | ||
| Common parts | ||||
| 90080-16098 | ||||
| 90080-17245 | ||||
| 90159-A0007 | ||||
| 90166-70001 | ||||
| 90182-A0022 | ||||
| 90189-06227 | ||||
| 93540-A4014 | ||||
ILLUST NO. 3 OF 9(1312-1611)ASU50,GSU5#
ENGINE ROOM 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

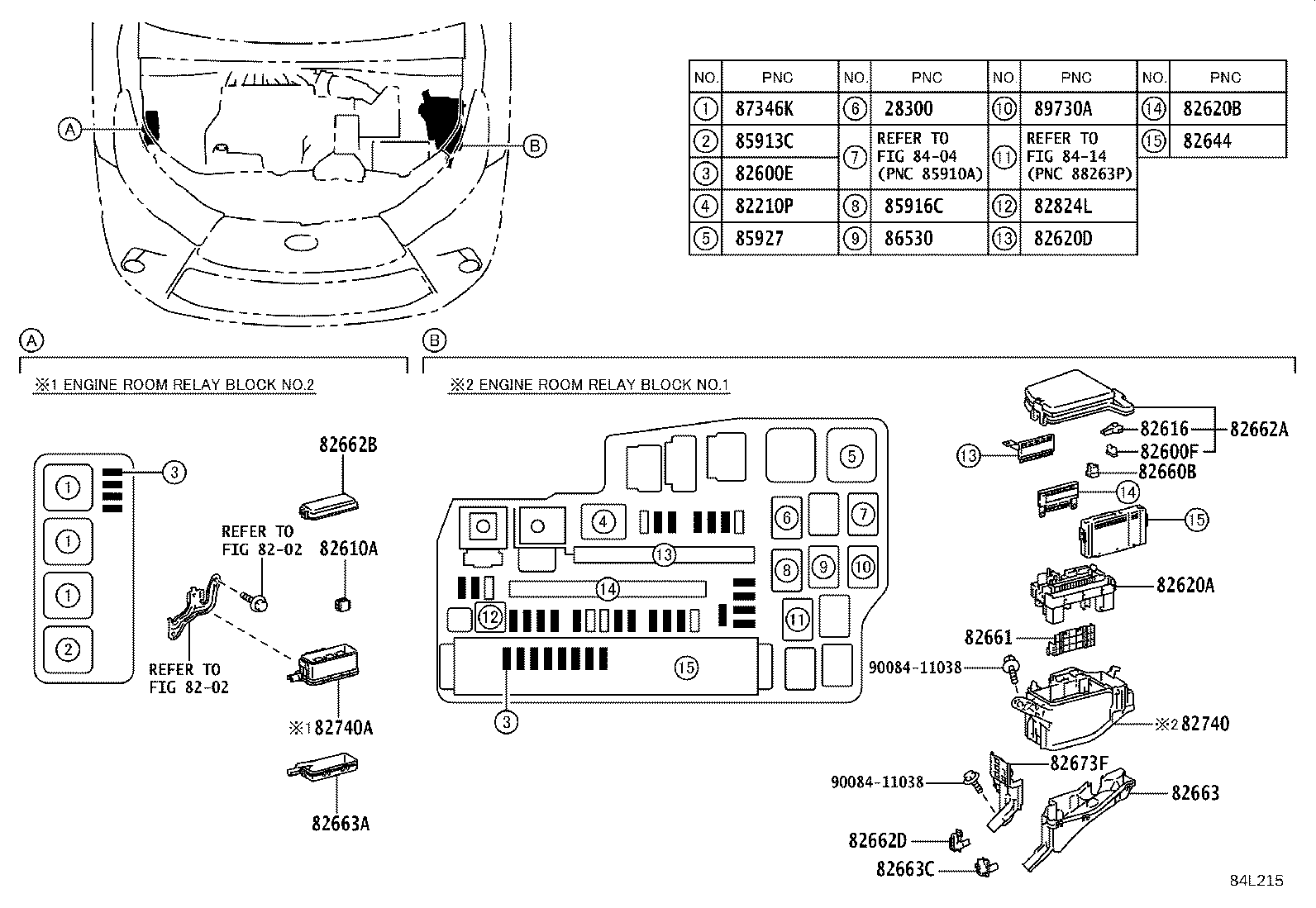

| 28300 - RELAY ASSY, STARTER | ||||
| 28300-0A011 |
1ARFE,2GRFE..ASU50,GSU5# |
1 | ||
| 28300-0A010 |
1ARFE,2GRFE..ASU50,GSU5# |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08203 |
ASU50,GSU5#,GVU58 80A,TERM.:MALE,BLK |
1 | ||
| 90982-08228 |
ASU50,GSU5#,GVU58 50A,TERM.:MALE,RED |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09020 |
ASU50,GSU5#,GVU58 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
ASU50,GSU5#,GVU58 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09024 |
ASU50,GSU5#,GVU58 25A,MINI FUSE |
1 | ||
| 90982-09025 |
ASU50,GSU5#,GVU58 30A,MINI FUSE,GRN |
1 | ||
| 90982-09023 |
ASU50,GSU5#,GVU58 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09019 |
ASU50,GSU5#,GVU58 5A,MINI FUSE,TAN |
1 | ||
| 90982-09021 |
ASU50,GSU5#,GVU58 10A,MINI FUSE,RED |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09021 |
ASU50,GSU5#,GVU58 10A,MINI FUSE,RED |
1 | ||
| 90982-09020 |
ASU50,GSU5#,GVU58 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09024 |
ASU50,GSU5#,GVU58 25A,MINI FUSE |
1 | ||
| 82610A - BLOCK ASSY, FUSE | ||||
| 82610-0E020 |
ASU50,GSU5# |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
ASU50,GSU5#,GVU58 |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-0E010 |
ASU50,GSU5# |
1 | ||
| 82620B - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-0E030 |
ASU50,GSU5# |
1 | ||
| 82620D - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-48100 |
ASU50,GSU5#,GVU58 |
1 | ||
| 82644 - COMPUTER, SEMICONDUCTOR POWER INTEGRATION | ||||
| 82644-0E040 |
GSU5#..G CANADA SPEC&PRE-COLLISION SYSTEM-WITH |
1 | ||
| 82644-0E010 |
ASU50,GSU5#..M,N |
1 | ||
| 82644-0E030 |
GSU5#,GVU58..G |
1 | ||
| 82644-0E040 |
GSU50..N CANADA SPEC&WINDSHIELD DEICER-WITH(WIPER DEICER) |
1 | ||
| 82644-0E040 |
GSU5# CANADA SPEC |
1 | ||
| 82644-0E040 |
GSU5#..G CANADA SPEC&PRE-COLLISION SYSTEM-WITH&HEADLAMP-HALOGEN(SMOKE),WITH(*AHB) |
1 | ||
| 82644-0E040 |
GSU5#..G CANADA SPEC&PRE-COLLISION SYSTEM-WITH&HEADLAMP-HALOGEN,WITH(*AHB) |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-0E010 |
GSU5# |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-0E030 |
ASU50,GSU5#,GVU58 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-0E160 |
GSU5# |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-0E190 |
ASU50,GSU5#,GVU58 |
1 | ||
| 82662D - COVER, RELAY BLOCK, UPPER, NO.4 | ||||
| 82662-0E150 |
ASU50,GSU5# |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-0E020 |
ASU50,GSU5# |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-0E050 |
ASU50,GSU5# |
1 | ||
| 82663C - COVER, RELAY BLOCK LOWER, NO.4 | ||||
| 82663-0E010 |
ASU50,GSU5# |
1 | ||
| 82673F - BRACKET, JUNCTION BLOCK | ||||
| 82673-0E010 |
ASU50,GSU5#,GVU58 |
1 | ||
| 82740 - BLOCK ASSY, ENGINE ROOM RELAY | ||||
| 82740-0E010 |
ASU50,GSU5# |
1 | ||
| 82740A - BLOCK ASSY, ENGINE ROOM RELAY, NO.2 | ||||
| 82740-0E040 |
ASU50,GSU5# |
1 | ||
| 82824L - PIN, SHORT | ||||
| 82824-41010 |
ASU50,GSU5#,GVU58 |
1 | ||
| 85913C - RELAY, HEATER, NO.1 | ||||
| 90080-87024 |
GSU5#,GVU58..G,M DENSO USA |
1 | ||
| 90080-87024 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),DENSO USA |
1 | ||
| 90987-02025 |
GSU5#,GVU58..G,M DENSO JAPAN |
1 | ||
| 90987-02025 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),DENSO JAPAN |
1 | ||
| 85916C - RELAY, BACK UP LAMP | ||||
| 90080-87026 |
ASU50,GSU5# |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90080-87024 |
ASU50,GSU5#,GVU58 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90080-87026 |
ASU50,GSU5#,GVU58 |
1 | ||
| 87346K - RELAY, PTC HEATER | ||||
| 90080-87024 |
ASU50,GSU5#,GVU58 |
3 | ||
| 89730A - RELAY(FOR SECURITY WARNING) | ||||
| 90080-87026 |
GSU50..N MEXICO SPEC |
1 | ||
| 90080-87026 |
ASU50,GSU5#,GVU58..N USA POSSESSION SPEC&ANTI-THEFT SYSTEM-WITH(ALARM & IMMOBILIZER) |
1 | ||
| 90080-87026 |
GSU5#,GVU58..G,M |
1 | ||
| 90080-87026 |
GSU50..N MEXICO SPEC&ANTI-THEFT SYSTEM-WITH(ALARM & IMMOBILIZER) |
1 | ||
| 90080-87026 |
ASU50,GSU5#..N USA POSSESSION SPEC |
1 | ||
| Common parts | ||||
| 90084-11038 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8404 | ||||
| 8414 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
