GSU50L-ARTNKA (2013)
Toyota Highlander (Nap)

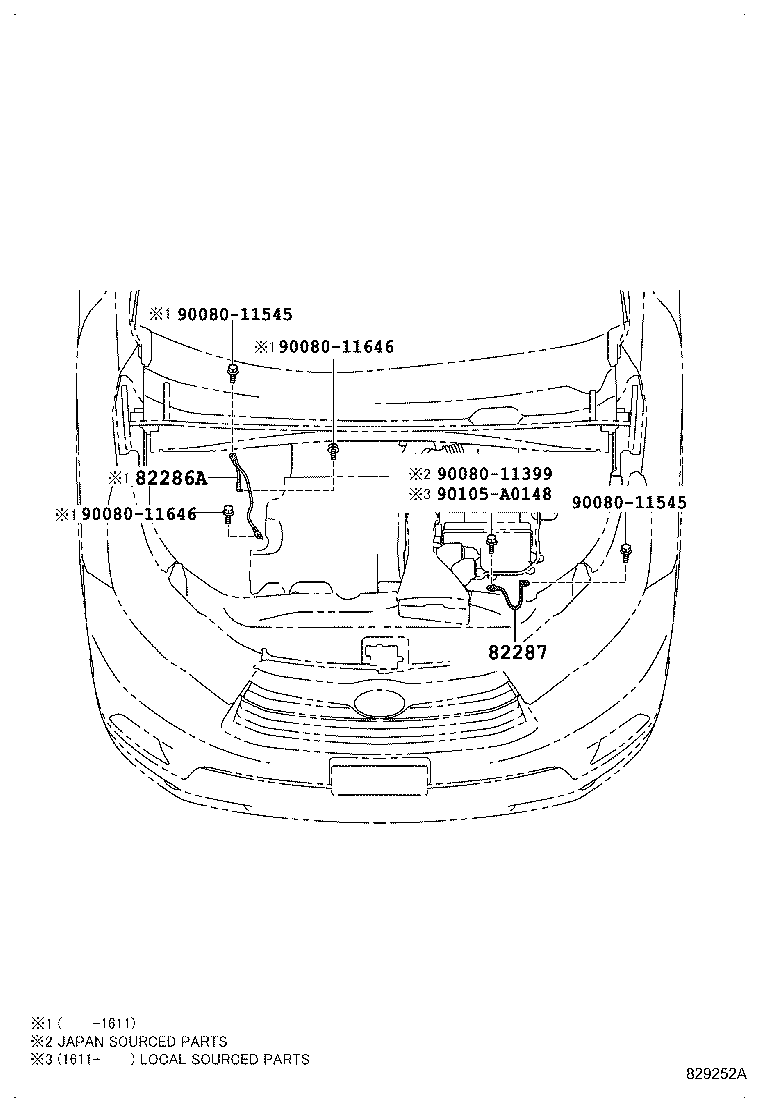

ILLUST NO. 9 OF11(1312- )GVU58 ; (1611- )GSU5#
CABLE BOND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90080-11399 | ||||
| 90080-11545 | ||||
| 90080-11646 | ||||
| 90105-A0148 | ||||

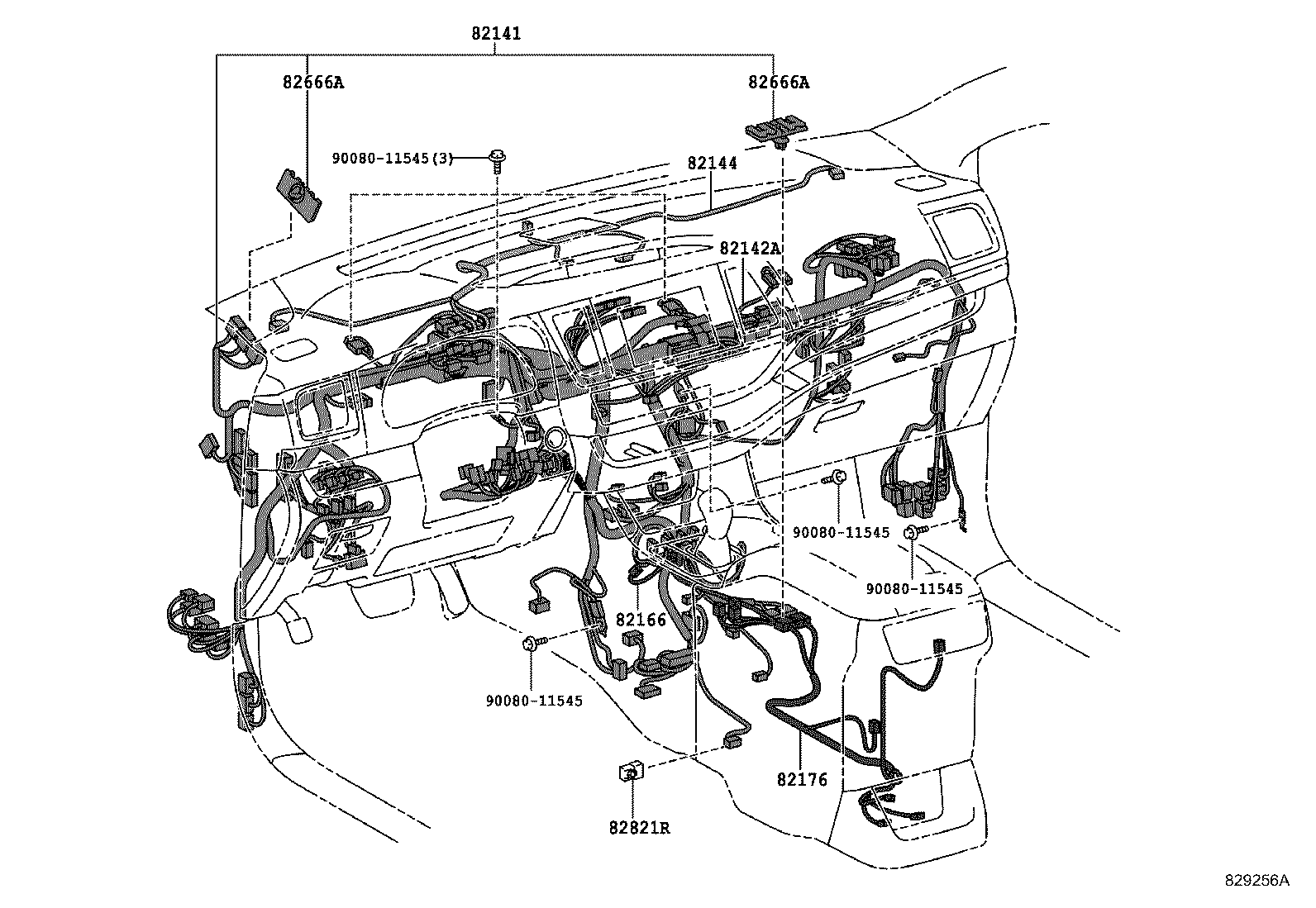

ILLUST NO. 3 OF11(1312- )
INSTRUMENT PANEL & CONSOLE BOX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-0E640 |
GSU5#..G PRE-COLLISION SYSTEM-WITH&MAYDAY SYSTEM-WITH |
1 | ||
| 82141-0E670 |
ASU50,GSU50..N |
1 | ||
| 82141-0E690 |
GSU5#..M MAYDAY SYSTEM-WITH |
1 | ||
| 82141-0E870 |
GSU5#..M |
1 | ||
| 82141-0E840 |
GSU5#..G PRE-COLLISION SYSTEM-WITH |
1 | ||
| 82141-0E890 |
GSU5#..G |
1 | ||
| 82141-0E700 |
GSU5#..G AUDIO-6.1INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM)&MAYDAY SYSTEM-WITH |
1 | ||
| 82141-0E880 |
GSU5#..G AUDIO-6.1INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM) |
1 | ||
| 82141-0E710 |
GSU5#..G MAYDAY SYSTEM-WITH |
1 | ||
| 82141-0E641 |
GSU5#..G PRE-COLLISION SYSTEM-WITH&ACCESSORY CONNECTOR(NO.2)-WITH(120V,100W)RR1&MAYDAY SYSTEM-WITH&LANE KEEPING SYSTEM-WITH |
1 | ||
| 82141-0E641 |
GSU5#..G PRE-COLLISION SYSTEM-WITH&MAYDAY SYSTEM-WITH&LANE KEEPING SYSTEM-WITH |
1 | ||
| 82141-0E671 |
ASU50,GSU50..N |
1 | ||
| 82141-0E701 |
GSU5#..G AUDIO-8INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM)&MAYDAY SYSTEM-WITH |
1 | ||
| 82141-0E711 |
GSU5#..G MAYDAY SYSTEM-WITH |
1 | ||
| 82141-0E711 |
GSU5#..G ACCESSORY CONNECTOR(NO.2)-WITH(120V,100W)RR1&MAYDAY SYSTEM-WITH |
1 | ||
| 82141-0E701 |
GSU5#..G ACCESSORY CONNECTOR(NO.2)-WITH(120V,100W)RR1&AUDIO-8INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM)&MAYDAY SYSTEM-WITH |
1 | ||
| 82141-0E691 |
GSU5#..M MAYDAY SYSTEM-WITH |
1 | ||
| 82141-0E691 |
GSU5#..M ACCESSORY CONNECTOR(NO.2)-WITH(120V,100W)RR1&MAYDAY SYSTEM-WITH |
1 | ||
| 82141-0E871 |
GSU5#..M |
1 | ||
| 82141-0E841 |
GSU5#..G PRE-COLLISION SYSTEM-WITH&LANE KEEPING SYSTEM-WITH |
1 | ||
| 82141-0E881 |
GSU5#..G AUDIO-8INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM) |
1 | ||
| 82141-0E841 |
GSU5#..G PRE-COLLISION SYSTEM-WITH&ACCESSORY CONNECTOR(NO.2)-WITH(120V,100W)RR1&LANE KEEPING SYSTEM-WITH |
1 | ||
| 82141-0E891 |
GSU5#..G |
1 | ||
| 82141-0E881 |
GSU5#..G ACCESSORY CONNECTOR(NO.2)-WITH(120V,100W)RR1&AUDIO-8INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM) |
1 | ||
| 82142A - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82140-0E030 |
ASU50,GSU5#,GVU58 |
1 | ||
| 82144 - WIRE, INSTRUMENT PANEL, NO.4 | ||||
| 82144-0E010 |
ASU50,GSU5#,GVU58..M,N |
1 | ||
| 82144-0E180 |
GSU5#,GVU58..G |
1 | ||
| 82144-0E010 |
GSU5#,GVU58..G AUDIO-8INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM) |
1 | ||
| 82144-0E010 |
GSU5#,GVU58..G AUDIO-6.1INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM) |
1 | ||
| 82166 - WIRE, CONSOLE BOX | ||||
| 82166-0E050 |
GSU5#..M |
1 | ||
| 82166-0E040 |
ASU50,GSU5#..N |
1 | ||
| 82166-0E060 |
GSU5#..G |
1 | ||
| 82166-0E050 |
GSU5#..N SEAT HEATER-WITH(*DRP) |
1 | ||
| 82176 - WIRE, REAR CONSOLE BOX | ||||
| 82176-0E110 |
ASU50,GSU5#,GVU58 |
1 | ||
| 82176-0E121 |
GSU5#,GVU58..G,M ACCESSORY CONNECTOR(NO.2)-WITH(120V,100W)RR1&TELEVISION & DVD PLAYER-WITH |
1 | ||
| 82176-0E120 |
GSU5#,GVU58..G,M TELEVISION & DVD PLAYER-WITH |
1 | ||
| 82176-0E120 |
GSU5#,GVU58..G,M ACCESSORY CONNECTOR(NO.2)-WITH(120V,100W)RR1&TELEVISION & DVD PLAYER-WITH |
1 | ||
| 82176-0E121 |
GSU5#,GVU58..G,M ACCESSORY CONNECTOR(NO.2)-WITH(120V,100W)RR1 |
1 | ||
| 82176-0E121 |
GSU5#,GVU58..G,M TELEVISION & DVD PLAYER-WITH |
1 | ||
| 82176-0E120 |
GSU5#,GVU58..G,M ACCESSORY CONNECTOR(NO.2)-WITH(120V,100W)RR1 |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-60030 |
ASU50,GSU5#,GVU58 |
2 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-60030 |
ASU50,GSU5#,GVU58 |
2 | ||
| 82821R - COVER, CONNECTOR | ||||
| 82821-0E110 |
GVU58;GSU5#..G,M |
1 | ||
| Common parts | ||||
| 90080-11545 | ||||

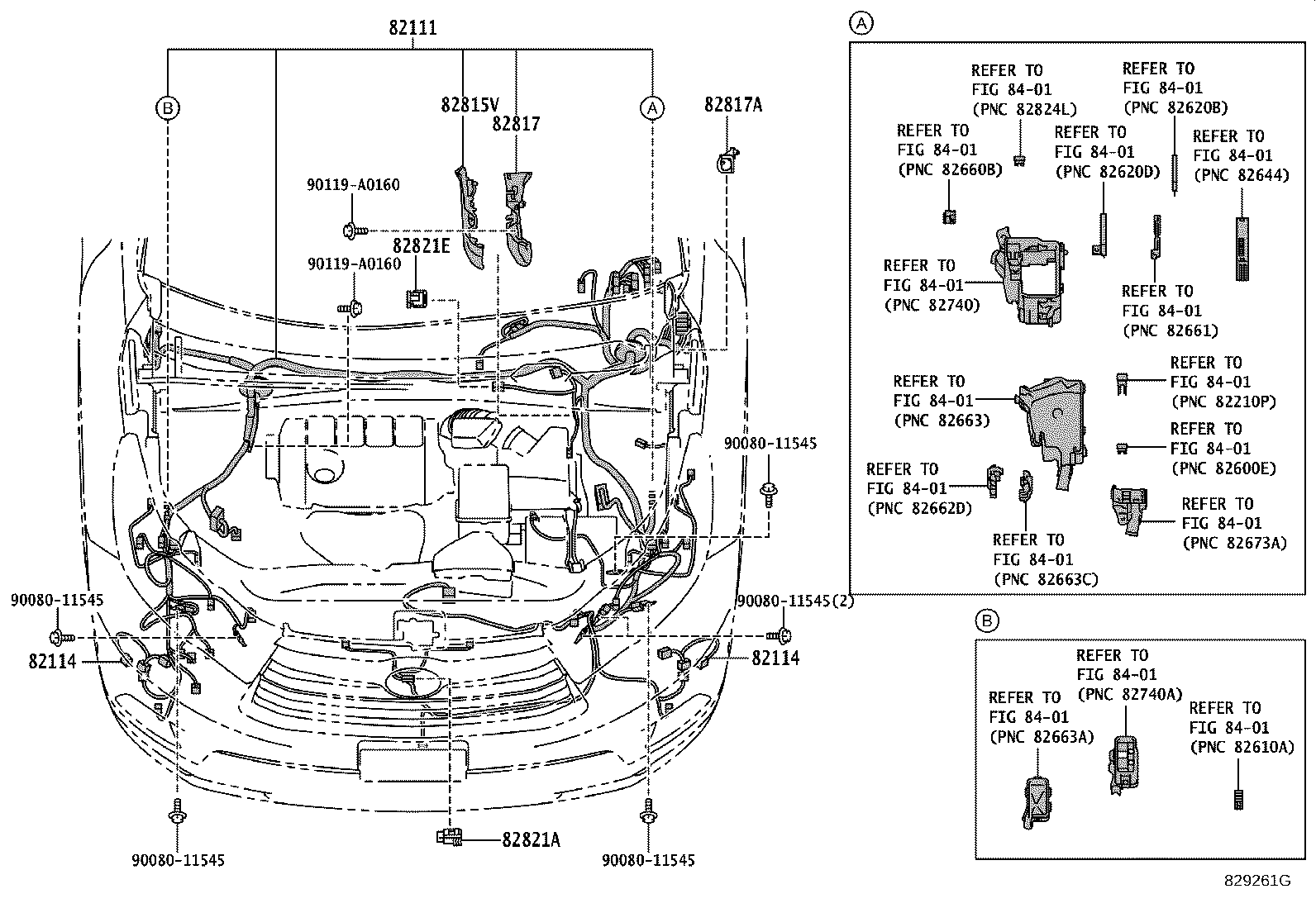

ILLUST NO. 1 OF11(1312- )ASU50,GSU5#
ENGINE ROOM MAIN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-0E791 |
GSU50..M,N |
1 | ||
| 82111-0E860 |
GSU50 CANADA SPEC |
1 | ||
| 82111-0EA80 |
GSU50..G PRE-COLLISION SYSTEM-WITH |
1 | ||
| 82111-0EB10 |
GSU50..G |
1 | ||
| 82111-0E792 |
GSU50..M,N |
1 | ||
| 82111-0E750 |
GSU50..G CANADA SPEC&PRE-COLLISION SYSTEM-WITH |
1 | ||
| 82111-0E861 |
GSU50 CANADA SPEC |
1 | ||
| 82111-0E861 |
GSU50..N CANADA SPEC&WINDSHIELD DEICER-WITH(WIPER DEICER) |
1 | ||
| 82111-0E751 |
GSU50..G CANADA SPEC&PRE-COLLISION SYSTEM-WITH&HEADLAMP-HALOGEN(SMOKE),WITH(*AHB) |
1 | ||
| 82111-0E793 |
GSU50..M,N |
1 | ||
| 82111-0E751 |
GSU50..G CANADA SPEC&PRE-COLLISION SYSTEM-WITH&HEADLAMP-HALOGEN,WITH(*AHB) |
1 | ||
| 82111-0E862 |
GSU50..N CANADA SPEC&WINDSHIELD DEICER-WITH(WIPER DEICER) |
1 | ||
| 82111-0E862 |
GSU50 CANADA SPEC |
1 | ||
| 82111-0EA81 |
GSU50..G PRE-COLLISION SYSTEM-WITH&HEADLAMP-HALOGEN,WITH(*AHB) |
1 | ||
| 82111-0EB11 |
GSU50..G |
1 | ||
| 82111-0EA81 |
GSU50..G PRE-COLLISION SYSTEM-WITH&HEADLAMP-HALOGEN(SMOKE),WITH(*AHB) |
1 | ||
| 82815V - COVER, WIRING HARNESS PROTECTOR, NO.1 | ||||
| 82815-0E020 |
ASU50,GSU5# |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-0E370 |
ASU50,GSU5# |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-0E120 |
ASU50,GSU5#,GVU58 |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-0E040 |
ASU50,GSU5#,GVU58..N |
1 | ||
| 82821E - COVER, CONNECTOR | ||||
| 82821-0E060 |
ASU50,GSU50,GVU58..N |
1 | ||
| Common parts | ||||
| 90080-11545 | ||||
| 90119-A0160 | ||||
| Linked diagrams | ||||
| 8401 | ||||

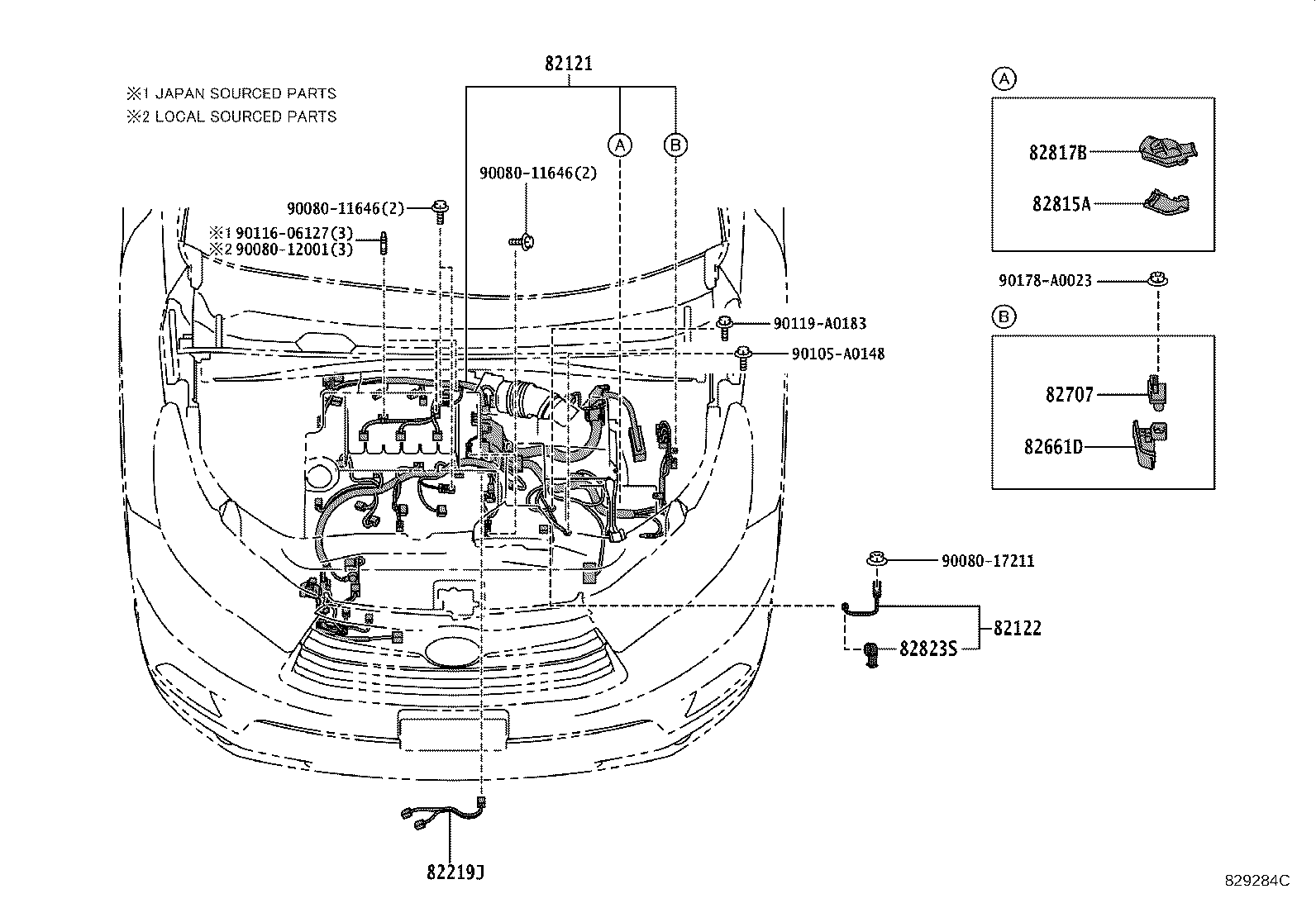

ILLUST NO. 2 OF11(1312-1611)GSU5#
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-0E180 |
GSU5# TOWING PACKAGE-5000LBS |
1 | ||
| 82121-0E190 |
GSU5# |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-0E020 |
ASU50,GSU5# |
1 | ||
| 82219J - WIRE, KNOCK SENSOR | ||||
| 82219-06010 |
GSU5#,GVU58 (L) |
1 | ||
| 82219-41010 |
GSU5#,GVU58 (J) |
1 | ||
| 82661D - COVER, RELAY BLOCK, SIDE NO.1 | ||||
| 82661-0E010 |
ASU50,GSU5# |
1 | ||
| 82707 - SUPPORT SUB-ASSY, WIRING HARNESS | ||||
| 82712-0E010 |
ASU50,GSU5#,GVU58 |
1 | ||
| 82815A - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-0E010 |
ASU50,GSU5# |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-0E170 |
ASU50,GSU5# |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-12090 |
ASU50,GSU5# |
1 | ||
| Common parts | ||||
| 90080-11646 | ||||
| 90080-12001 | ||||
| 90080-17211 | ||||
| 90105-A0148 | ||||
| 90116-06127 | ||||
| 90119-A0183 | ||||
| 90178-A0023 | ||||

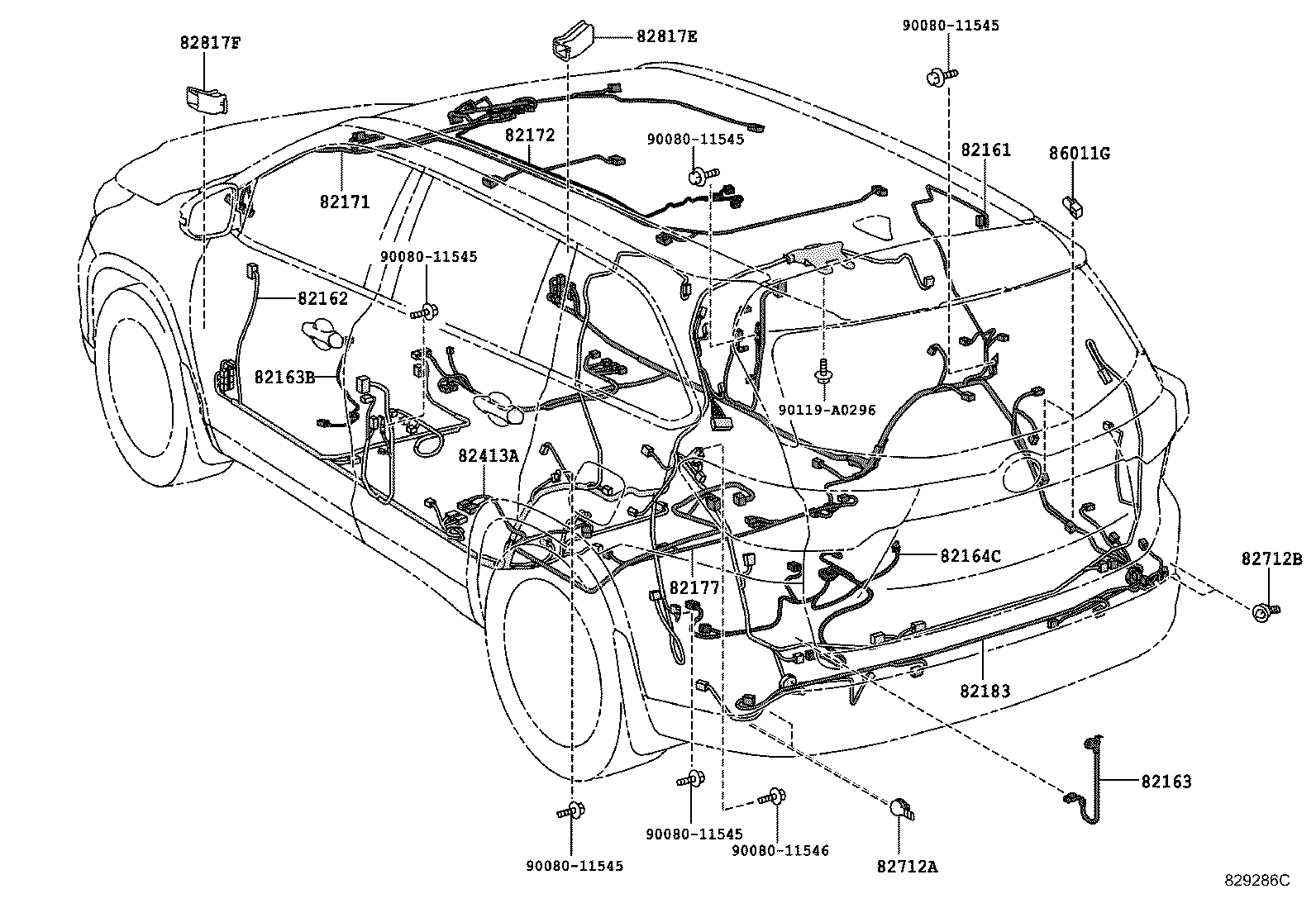

ILLUST NO. 5 OF11(1312-1611)
FLOOR, FRAME & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-0E790 |
GSU5#..M MAYDAY SYSTEM-WITH |
1 | ||
| 82161-0E770 |
GSU5#..G MAYDAY SYSTEM-WITH |
1 | ||
| 82161-0EB10 |
GSU5#..N LE PACKAGE |
1 | ||
| 82161-0E780 |
GSU5#..G |
1 | ||
| 82161-0E760 |
ASU50,GSU5#..N |
1 | ||
| 82161-0EA80 |
GSU5#..M |
1 | ||
| 82161-0E800 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP) |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-0E320 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP) |
1 | ||
| 82162-0E200 |
GSU5#..N LE PACKAGE |
1 | ||
| 82162-0E340 |
GSU5#..N |
1 | ||
| 82162-0E390 |
GSU5#..G |
1 | ||
| 82162-0E590 |
GSU5#..M |
1 | ||
| 82162-0E380 |
GSU50..M MEXICO SPEC |
1 | ||
| 82162-0E350 |
GSU50..N MEXICO SPEC |
1 | ||
| 82162-0E400 |
GSU50..G MEXICO SPEC |
1 | ||
| 82163B - WIRE, FLOOR NO.5 | ||||
| 82165-0E030 |
ASU50,GSU5# |
1 | ||
| 82164C - WIRE, FLOOR, NO.4 | ||||
| 82164-0E090 |
ASU50,GSU50..N |
1 | ||
| 82164-0E100 |
GSU50..G,M |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-0E570 |
ASU50,GSU5#..N MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 82171-0E620 |
GSU5#..G LANE KEEPING SYSTEM-WITH |
1 | ||
| 82171-0E640 |
GSU5#..G MOON ROOF-WITH(PANORAMA ROOF)&LANE KEEPING SYSTEM-WITH |
1 | ||
| 82171-0E590 |
GSU5#..M |
1 | ||
| 82171-0E580 |
GSU5#..M TELEVISION & DVD PLAYER-WITH |
1 | ||
| 82171-0E610 |
GSU5#..G TELEVISION & DVD PLAYER-WITH |
1 | ||
| 82171-0E600 |
GSU5#..G TELEVISION & DVD PLAYER-WITH&LANE KEEPING SYSTEM-WITH |
1 | ||
| 82171-0E630 |
GSU5#..M AUDIO-8INCH MONITOR AVN 6SPEKAER |
1 | ||
| 82171-0E610 |
GSU5#..M AUDIO-8INCH MONITOR AVN 6SPEKAER&TELEVISION & DVD PLAYER-WITH |
1 | ||
| 82171-0E630 |
GSU5#..G |
1 | ||
| 82171-0E660 |
ASU50,GSU5#..N |
1 | ||
| 82171-0E650 |
GSU5#..G MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 82171-0E641 |
GSU5#..G PRE-COLLISION SYSTEM-WITH&MOON ROOF-WITH(PANORAMA ROOF)&LANE KEEPING SYSTEM-WITH |
1 | ||
| 82171-0E601 |
GSU5#..G PRE-COLLISION SYSTEM-WITH&TELEVISION & DVD PLAYER-WITH&LANE KEEPING SYSTEM-WITH |
1 | ||
| 82171-0E701 |
GSU5#..G PRE-COLLISION SYSTEM-WITH&LANE KEEPING SYSTEM-WITH |
1 | ||
| 82172 - WIRE, ROOF, NO.2 | ||||
| 82172-0E030 |
GSU5#,GVU58..G MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 82183 - WIRE, LUGGAGE ROOM, NO.3 | ||||
| 82183-0E030 |
GSU5#,GVU58..G |
1 | ||
| 82712A - SUPPORT, WIRING HARNESS | ||||
| 82712-28290 |
ASU50,GSU5#,GVU58..M,N |
2 | ||
| 82711-2D070 |
ASU50,GSU5#,GVU58..M,N |
2 | ||
| 82712B - SUPPORT, WIRING HARNESS | ||||
| 82712-28290 |
ASU50,GSU5#,GVU58..M,N |
2 | ||
| 82711-2D070 |
ASU50,GSU5#,GVU58..M,N |
2 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-0E360 |
ASU50,GSU5#,GVU58 |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-0E360 |
ASU50,GSU5#,GVU58 |
1 | ||
| Common parts | ||||
| 90080-11545 | ||||
| 90080-11546 | ||||
| 90119-A0296 | ||||

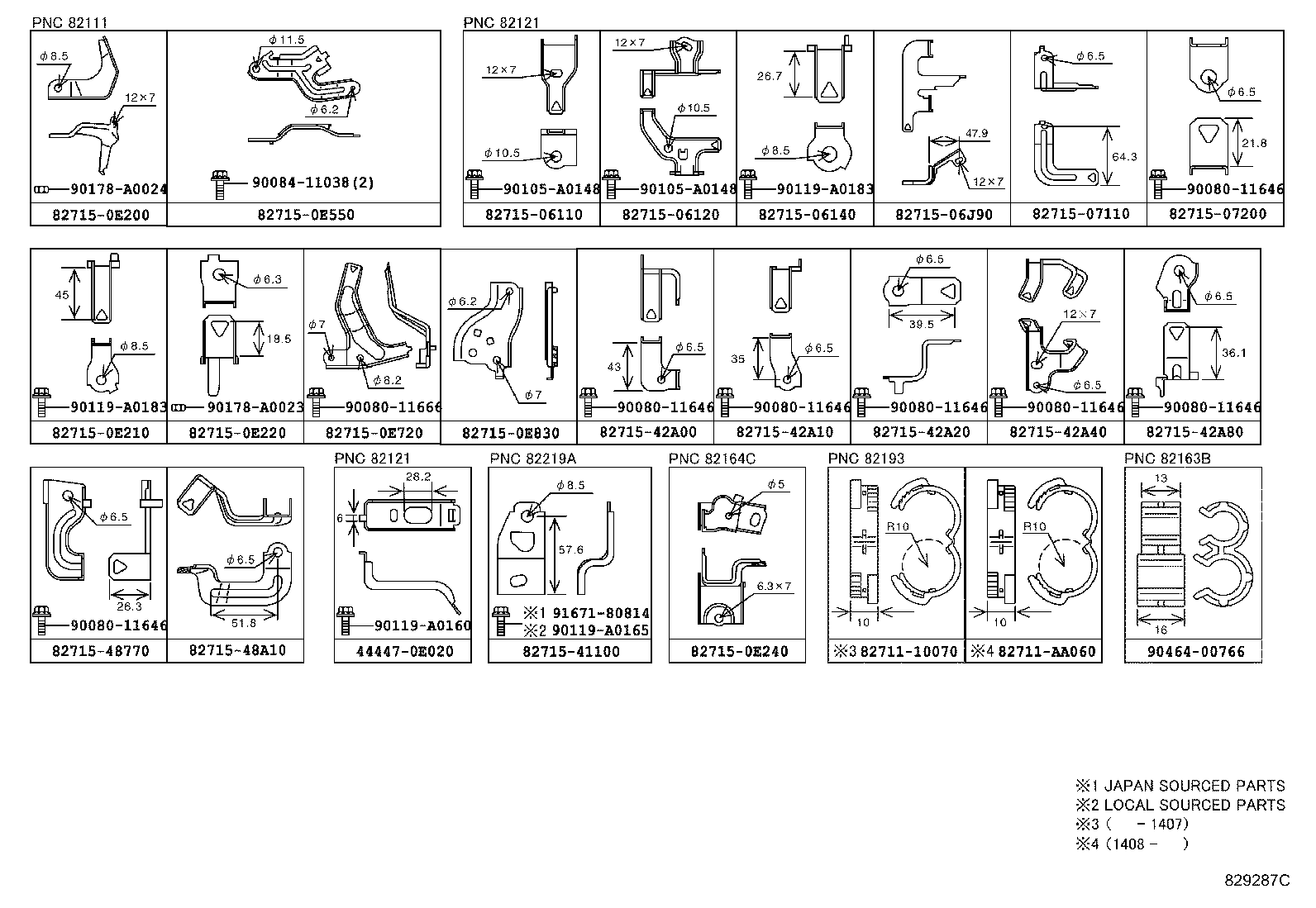

ILLUST NO. 8 OF11(1312-1611)GSU5#
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 44447-0E020 | ||||
| 82711-10070 | ||||
| 82711-AA060 | ||||
| 82715-06110 | ||||
| 82715-06120 | ||||
| 82715-06140 | ||||
| 82715-06J90 | ||||
| 82715-07110 | ||||
| 82715-07200 | ||||
| 82715-0E200 | ||||
| 82715-0E210 | ||||
| 82715-0E220 | ||||
| 82715-0E240 | ||||
| 82715-0E550 | ||||
| 82715-0E720 | ||||
| 82715-0E830 | ||||
| 82715-41100 | ||||
| 82715-42A00 | ||||
| 82715-42A10 | ||||
| 82715-42A20 | ||||
| 82715-42A40 | ||||
| 82715-42A80 | ||||
| 82715-48770 | ||||
| 82715-48A10 | ||||
| 90080-11646 | ||||
| 90080-11666 | ||||
| 90084-11038 | ||||
| 90105-A0148 | ||||
| 90119-A0160 | ||||
| 90119-A0165 | ||||
| 90119-A0183 | ||||
| 90178-A0023 | ||||
| 90178-A0024 | ||||
| 90464-00766 | ||||
| 91671-80814 | ||||
ILLUST NO. 4 OF11(1312- )
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-0E160 |
ASU50,GSU5#..N |
1 | ||
| 82151-0E180 |
GSU5#..M;GVU58..M,N |
1 | ||
| 82151-0E190 |
GSU5#,GVU58..G |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-0E190 |
GSU5#,GVU58..G |
1 | ||
| 82152-0E160 |
ASU50,GSU5#..N |
1 | ||
| 82152-0E180 |
GSU5#..M;GVU58..M,N |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-0E090 |
GSU5#,GVU58..G |
1 | ||
| 82153-0E070 |
ASU50,GSU5#,GVU58..M,N |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-0E090 |
GSU5#,GVU58..G |
1 | ||
| 82154-0E070 |
ASU50,GSU5#,GVU58..M,N |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-0E380 |
GSU5#,GVU58..G AUDIO-6.1INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM) |
1 | ||
| 82184-0E340 |
GSU5#..M;GVU58..M,N |
1 | ||
| 82184-0E340 |
GSU5#..N LE PACKAGE&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)&AUDIO-8INCH MONITOR AVN 6SPEKAER |
1 | ||
| 82184-0E380 |
GSU5#,GVU58..G AUDIO-8INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM) |
1 | ||
| 82184-0E390 |
GSU5#,GVU58..G |
1 | ||
| 82184-0E340 |
GSU5#..N LE PACKAGE&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)&AUDIO-6.1INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM) |
1 | ||
| 82184-0E330 |
ASU50,GSU50..N |
1 | ||
| 82184-0E340 |
GSU5#..N LE PACKAGE&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)&AUDIO-8INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM) |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-0E070 |
ASU50,GSU5#..N |
1 | ||
| 82189 - WIRE, BACK DOOR, NO.4 | ||||
| 82181-0E140 |
GVU58;GSU5#..G,M |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-0E230 |
ASU50,GSU5#,GVU58 |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-0E260 |
ASU50,GSU5#,GVU58 |
1 | ||
| Common parts | ||||
| 90080-11545 | ||||
| 90105-A0031 | ||||
| 90467-A0005 | ||||

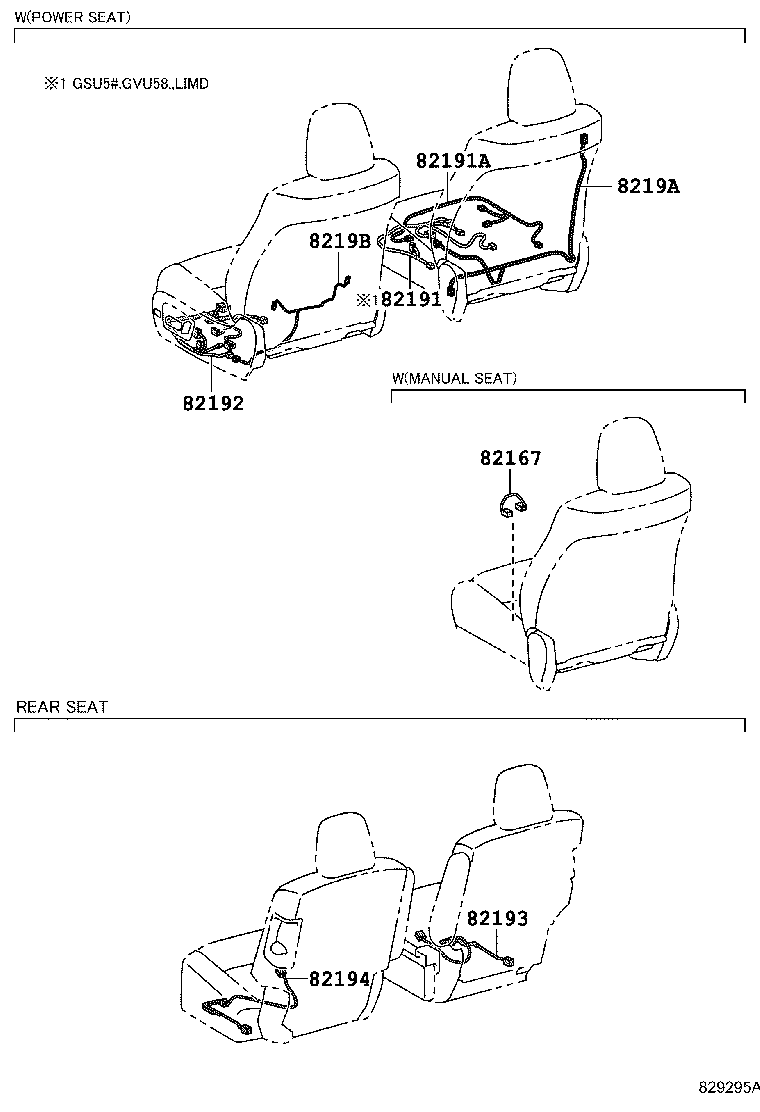

ILLUST NO. 7 OF11(1312- )
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82167 - WIRE, SEAT, NO.1 | ||||
| 82191-0E220 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP) |
1 | ||
| 82191-0E220 |
GSU5#,GVU58..M |
1 | ||
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-0E220 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP) |
1 | ||
| 82191-0E220 |
GSU5#,GVU58..M |
1 | ||
| 82191-0E240 |
GSU5#,GVU58..G |
1 | ||
| 82191A - WIRE, FRONT SEAT, RH | ||||
| 82191-0E230 |
ASU50,GSU5#,GVU58 |
1 | ||
| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82192-0E200 |
GSU5#..N LE PACKAGE |
1 | ||
| 82192-0E220 |
GSU5#,GVU58..M |
1 | ||
| 82192-0E210 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP) |
1 | ||
| 82192-0E230 |
GSU5#,GVU58..G |
1 | ||
| 82193 - WIRE, REAR SEAT, RH | ||||
| 82193-0E010 |
GSU5#,GVU58..G SEAT HEATER-WITH(*DRP & REAR NO.1 SEAT=CAPTAIN TYPE) |
1 | ||
| 82194 - WIRE, REAR SEAT, LH | ||||
| 82194-0E010 |
GSU5#,GVU58..G SEAT HEATER-WITH(*DRP & REAR NO.1 SEAT=CAPTAIN TYPE) |
1 | ||
| 8219A - WIRE, FRONT SEAT, RH NO.2 | ||||
| 8219A-0E020 |
GSU5#,GVU58..G |
1 | ||
| 8219B - WIRE, FRONT SEAT, LH NO.2 | ||||
| 8219B-0E030 |
GSU5#..M;GVU58..M,N |
1 | ||
| 8219B-0E030 |
GSU5#..N LE PACKAGE |
1 | ||
| 8219B-0E040 |
GSU5#,GVU58..G |
1 | ||
| 8219B-0E030 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP) |
1 | ||
ILLUST NO.10 OF11(1312- )
CONNECTOR 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-60460 | ||||
| 90980-10825 | ||||
| 90980-10860 | ||||
| 90980-11016 | ||||
| 90980-11148 | ||||
| 90980-11156 | ||||
| 90980-11194 | ||||
| 90980-11246 | ||||
| 90980-11292 | ||||
| 90980-11452 | ||||
| 90980-11659 | ||||
| 90980-12195 | ||||
| 90980-12380 | ||||
| 90980-12390 | ||||
| 90980-12391 | ||||
| 90980-12392 | ||||
| 90980-12490 | ||||
| 90980-12699 | ||||
ILLUST NO.11 OF11(1312- )
CONNECTOR 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-78020 | ||||
| 90980-10619 | ||||
| 90980-10928 | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-11070 | ||||
| 90980-11909 | ||||
| 90980-12294 | ||||
| 90980-12297 | ||||
| 90980-12366 | ||||
| 90980-12380 | ||||
| 90980-12416 | ||||
| 90980-12520 | ||||
| 90980-12551 | ||||
| 90980-12552 | ||||
| 90980-12554 | ||||
| 90980-12555 | ||||
| 90980-12686 | ||||
| 90980-12790 | ||||
| 90980-12A59 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
