GSU50L-ARTNKA (2013)

Toyota Highlander (Nap)

Production Dec 2013 - Nov 2016
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(1312- )ASU50,GSU5#

Click highlighted areas on diagram

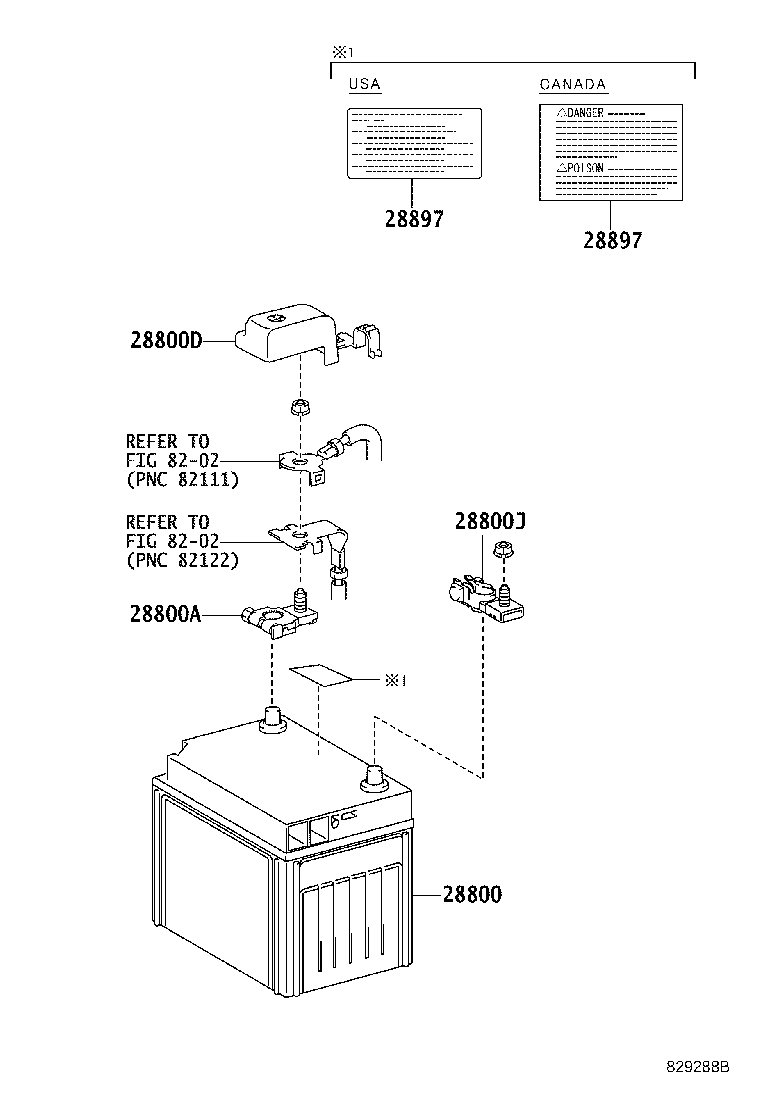

BATTERY

diagram 28800 28800A 28800D 28800J 28897 28897 8202 8202
Part # Description Qty Price
28800A - TERMINAL, BATTERY POSITIVE
90982-05061

1ARFE,2GRFE..ASU50,GSU5#

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-0E010

1ARFE,2GRFE..ASU50,GSU5#

 1
28800J - TERMINAL, BATTERY NEGATIVE
90982-06070

1ARFE,2GRFE..ASU50,GSU5#

 1
Linked diagrams
8202
