GSU50L-ARTNKA (2013)

Toyota Highlander (Nap)

Production Dec 2013 - Nov 2016
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1312- )

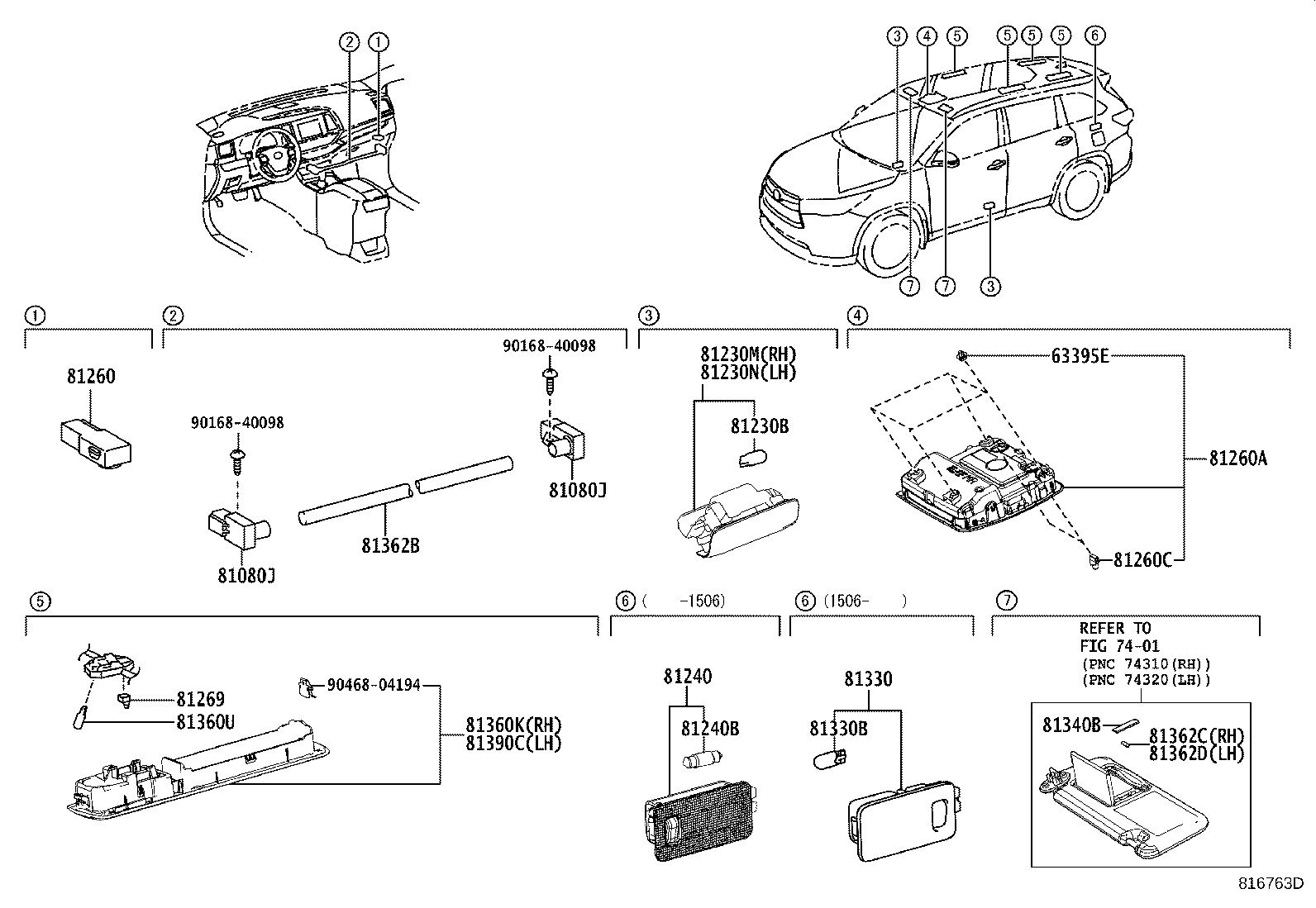

Click highlighted areas on diagram

diagram 63395E 7401 81080J 81080J 81230B 81230M 81230N 81240 81240B 81260 81260A 81260C 81269 81330 81330B 81340B 81360K 81360U 81362B 81362C 81362D 81390C 9016840098 9016840098 9046804194
Part # Description Qty Price
63395E - CLIP(FOR MAP LAMP)
62489-0E010

ASU50,GSU5#,GVU58..N

USA POSSESSION SPEC&MOON ROOF-WITH(TILT & SLIDE)

 4
62489-0E010

GSU5#,GVU58..G,M

 4
63395-12150

ASU50,GSU5#,GVU58..N

 4
62489-0E010

ASU50,GSU5#,GVU58..N

MOON ROOF-WITH(TILT & SLIDE)

 4
62489-0E010

GSU50..N

MEXICO SPEC&MOON ROOF-WITH(TILT & SLIDE)

 4
81080J - LAMP ASSY, INTERIOR ILLUMINATION, NO.1
81080-0E020

GSU5#,GVU58..G

 2
81080J - LAMP ASSY, INTERIOR ILLUMINATION, NO.1
81080-0E020

GSU5#,GVU58..G

 2
81230B - BULB(FOR COURTESY LAMP)
90981-12010

ASU50,GSU5#,GVU58

12V 5W

 2
81230M - LAMP ASSY, COURTESY, RH
81230-06040

ASU50,GSU5#,GVU58

 1
81230N - LAMP ASSY, COURTESY, LH
81230-06040

ASU50,GSU5#,GVU58

 1
81240 - LAMP ASSY, ROOM, NO.1
81250-48010

ASU50,GSU5#,GVU58

 1
81240B - BULB, ROOM LAMP, NO.1
99132-13050

ASU50,GSU5#,GVU58

12V 5W

 1
81260 - LAMP ASSY, GLOVE BOX
81080-48010

ASU50,GSU5#,GVU58

 1
81260A - LAMP ASSY, MAP
63650-0E140A0

GSU5#,GVU58..G,M

MAYDAY SYSTEM-WITH,FLAXEN,TRIM0#

 1
63650-0E160A0

GSU5#,GVU58..G

MOON ROOF-WITH(PANORAMA ROOF)&MAYDAY SYSTEM-WITH,FLAXEN,TRIM0#

 1
63650-0E140B0

GSU5#,GVU58..G,M

MAYDAY SYSTEM-WITH,GRAY,TRIM1#,2#

 1
63650-0E150B0

GSU5#,GVU58..G,M

GRAY,TRIM1#,2#

 1
63650-0E130A0

ASU50,GSU5#,GVU58..N

MOON ROOF-WITH(TILT & SLIDE),FLAXEN,TRIM0#

 1
63650-0E120B0

ASU50,GSU5#,GVU58..N

GRAY,TRIM1#,2#

 1
63650-0E150A0

GSU5#,GVU58..G,M

FLAXEN,TRIM0#

 1
63650-0E170B0

GSU5#,GVU58..G

MOON ROOF-WITH(PANORAMA ROOF),GRAY,TRIM1#,2#

 1
63650-0E130A0

GSU50..N

MEXICO SPEC&MOON ROOF-WITH(TILT & SLIDE),FLAXEN,TRIM0#

 1
63650-0E120A0

ASU50,GSU5#,GVU58..N

FLAXEN,TRIM0#

 1
63650-0E160B0

GSU5#,GVU58..G

MOON ROOF-WITH(PANORAMA ROOF)&MAYDAY SYSTEM-WITH,GRAY,TRIM1#,2#

 1
63650-0E170A0

GSU5#,GVU58..G

MOON ROOF-WITH(PANORAMA ROOF),FLAXEN,TRIM0#

 1
63650-0E130A0

ASU50,GSU5#,GVU58..N

USA POSSESSION SPEC&MOON ROOF-WITH(TILT & SLIDE),FLAXEN,TRIM0#

 1
63650-0E130B0

ASU50,GSU5#,GVU58..N

MOON ROOF-WITH(TILT & SLIDE),GRAY,TRIM1#,2#

 1
63650-0E130B0

GSU50..N

MEXICO SPEC&MOON ROOF-WITH(TILT & SLIDE),GRAY,TRIM1#,2#

 1
63650-0E130B0

ASU50,GSU5#,GVU58..N

USA POSSESSION SPEC&MOON ROOF-WITH(TILT & SLIDE),GRAY,TRIM1#,2#

 1
81260C - BULB(FOR MAP LAMP)
90084-81002

ASU50,GSU5#,GVU58

12V 5W

 2
81269 - SWITCH, MAP LAMP
84532-58010

ASU50,GSU5#,GVU58

 4
81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330-58010

ASU50,GSU5#,GVU58

 1
81330B - BULB, LUGGAGE COMPARTMENT LAMP
99132-12050

ASU50,GSU5#,GVU58

12V 5W

 1
81360K - LAMP ASSY, SPOT, RH
81360-0E020A0

ASU50,GSU5#,GVU58

FLAXEN,TRIM0#

 2
81360-0E020B0

ASU50,GSU5#,GVU58

GRAY,TRIM1#,2#

 2
81360U - BULB, SPOT LAMP
90981-11062

ASU50,GSU5#,GVU58

 4
81362B - LENS, INTERIOR ILLUMINATION LAMP
81362-0E010

GSU5#,GVU58..G

 1
81390C - LAMP ASSY, SPOT, LH
81390-0E010A0

ASU50,GSU5#,GVU58

FLAXEN,TRIM0#

 2
81390-0E010B0

ASU50,GSU5#,GVU58

GRAY,TRIM1#,2#

 2
Common parts
90168-40098
90468-04194
Linked diagrams
7401
