GSU50L-ARTNKA (2013)

Toyota Highlander (Nap)

Production Dec 2013 - Nov 2016
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1312-1611)

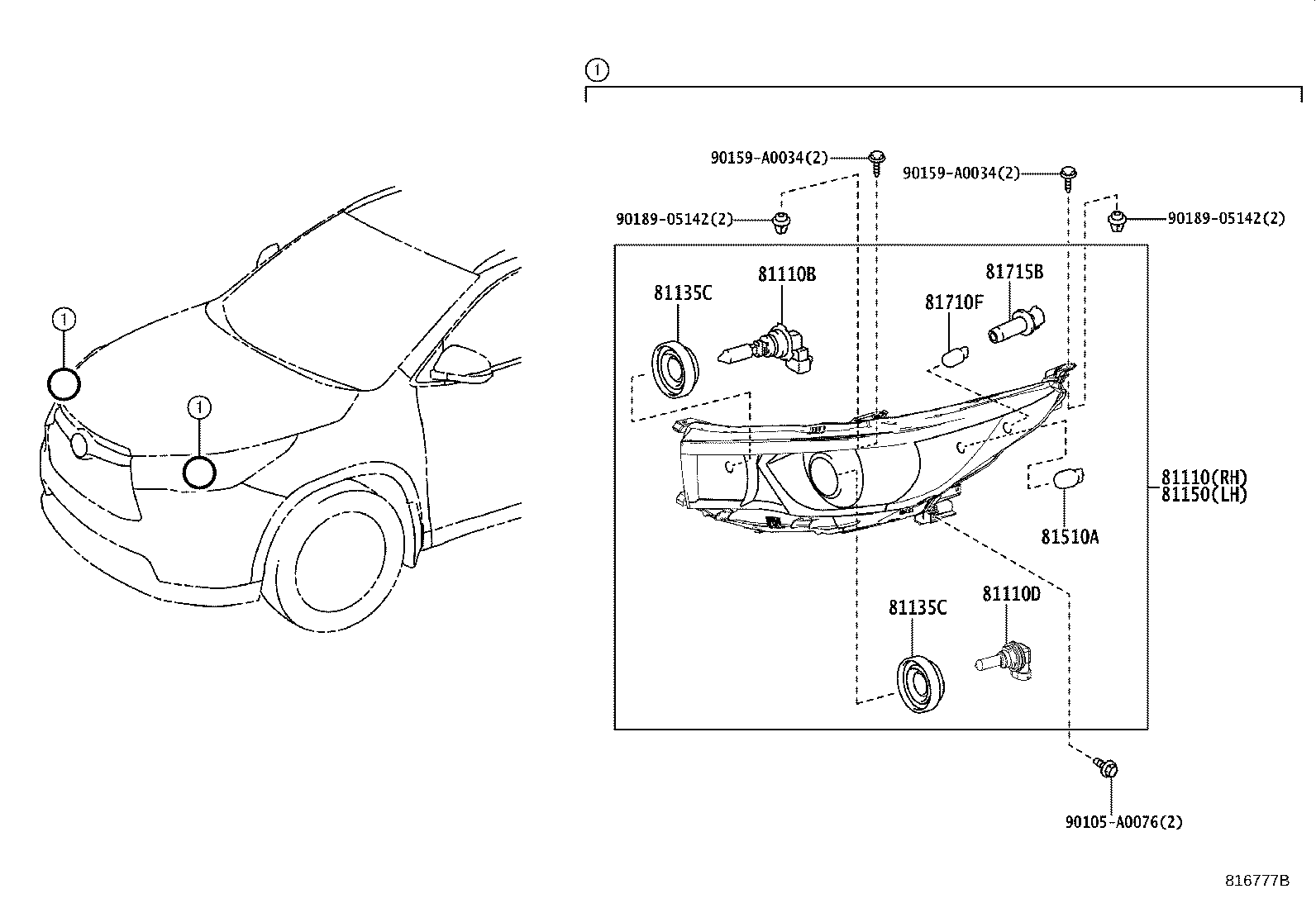

Click highlighted areas on diagram

diagram 81110 81110B 81110D 81135C 81135C 81150 81510A 81710F 81715B 90105A0076 90159A0034 90159A0034 9018905142 9018905142
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-0E250

GSU5#,GVU58..G

HEADLAMP-HALOGEN(SMOKE)

 1
81110-0E180

ASU50,GSU5#,GVU58

 1
81110-0E250

ASU50,GSU5#,GVU58..M,N

HEADLAMP-HALOGEN(SMOKE)

 1
81110-0E250

GSU5#,GVU58..G

HEADLAMP-HALOGEN(SMOKE),WITH(*AHB)

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13046

ASU50,GSU5#,GVU58

12V65W(SAE),60W(ECE)

 2
81110D - BULB(FOR HEADLAMP, NO.2)
90981-13075

ASU50,GSU5#,GVU58

12V 55W,HALOGEN

 2
81135C - COVER, HEADLAMP BACK, NO.1
90075-65006

ASU50,GSU5#,GVU58

 4
81135C - COVER, HEADLAMP BACK, NO.1
90075-65006

ASU50,GSU5#,GVU58

 4
81150 - HEADLAMP ASSY, LH
81150-0E250

GSU5#,GVU58..G

HEADLAMP-HALOGEN(SMOKE)

 1
81150-0E250

GSU5#,GVU58..G

HEADLAMP-HALOGEN(SMOKE),WITH(*AHB)

 1
81150-0E180

ASU50,GSU5#,GVU58

 1
81150-0E250

ASU50,GSU5#,GVU58..M,N

HEADLAMP-HALOGEN(SMOKE)

 1
81510A - BULB, FRONT TURN SIGNAL & PARKING LAMP
90981-15024

ASU50,GSU5#,GVU58

12V 28/8W

 2
81710F - BULB, FRONT SIDE MAKER LAMP
90981-11069

ASU50,GSU5#,GVU58

 2
81715B - SOCKET & WIRE, FRONT SIDE MARKER LAMP
81128-06470

ASU50,GSU5#,GVU58

 2
Common parts
90105-A0076
90159-A0034
90189-05142
