GSU50L-ARTNKA (2013)
Toyota Highlander (Nap)
ILLUST NO. 1 OF 4(1312-1611)GSU5#

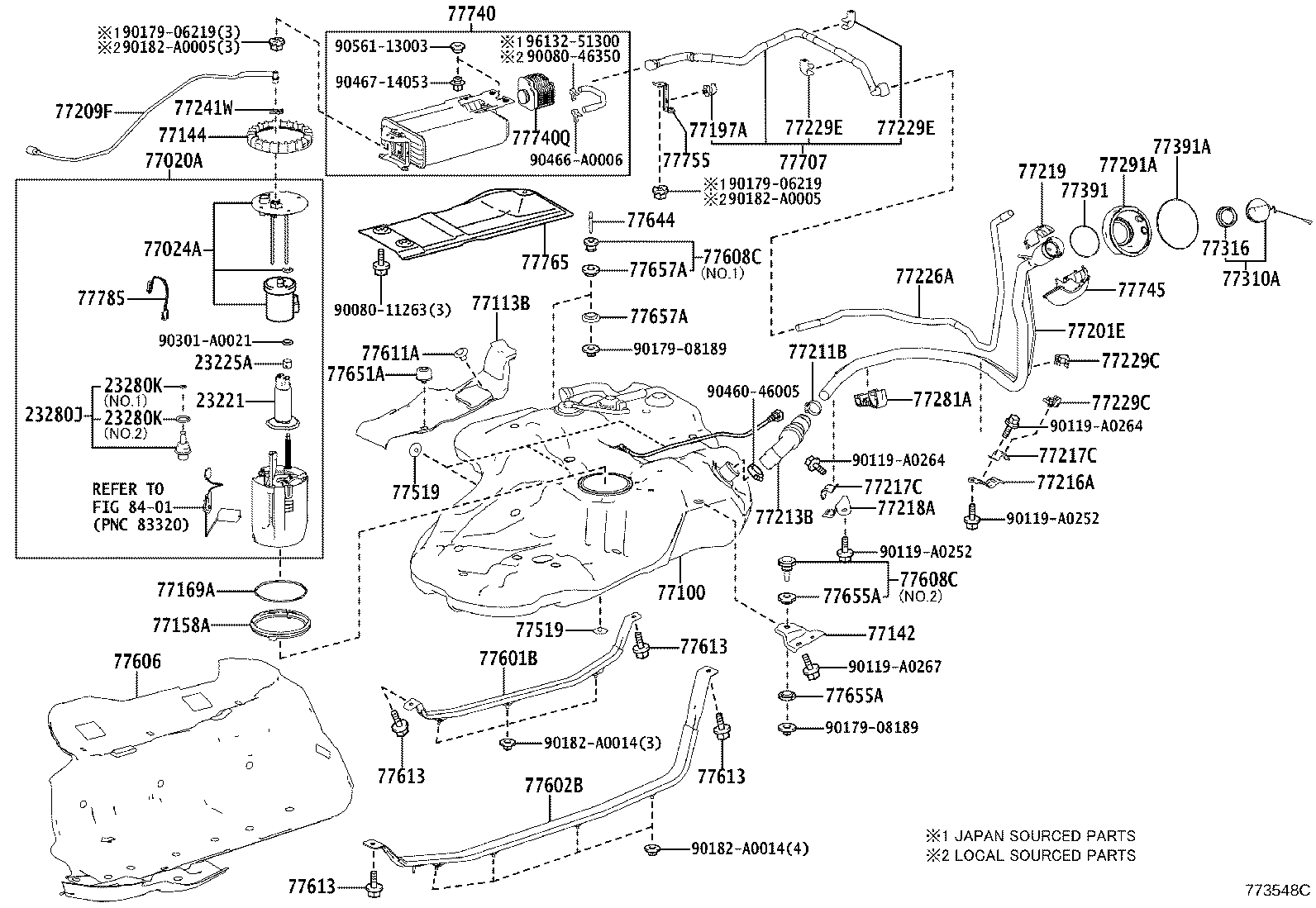

FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23221 - PUMP, FUEL | ||||
| 23220-0P180 |
2GRFE..GSU5# |
1 | ||
| 23225A - SPACER, FUEL PUMP | ||||
| 23225-23010 |
2GRFE..GSU5# |
1 | ||
| 23280J - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-38020 |
2GRFE..GSU5# |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-15024 |
1ARFE,2GRFE..ASU50,GSU5# NO.2 |
1 | ||
| 90301-04013 |
1ARFE,2GRFE..ASU50,GSU5# NO.1 |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-15024 |
1ARFE,2GRFE..ASU50,GSU5# NO.2 |
1 | ||
| 90301-04013 |
1ARFE,2GRFE..ASU50,GSU5# NO.1 |
1 | ||
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-0E111 |
GSU5# |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-0E091 |
GSU5# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-0E060 |
ASU50,GSU5# |
1 | ||
| 77113B - PLATE, FUEL TANK SIDE | ||||
| 77114-0E050 |
ASU50,GSU5# |
1 | ||
| 77142 - BRACKET, FUEL TANK MOUNTING, REAR | ||||
| 77142-0E010 |
ASU50,GSU5# |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-08010 |
ASU50,GSU5# |
1 | ||
| 77158A - SUPPORT, TANK SUCTION TUBE | ||||
| 77158-08010 |
ASU50,GSU5# |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-48060 |
ASU50,GSU5# |
1 | ||
| 77197A - CLAMP, EVAPORATION VENT TUBE, NO.2 | ||||
| 77197-02020 |
ASU50,GSU5# |
1 | ||
| 77201E - PIPE SUB-ASSY, FUEL TANK FILLER | ||||
| 77201-0E100 |
ASU50,GSU5# |
1 | ||
| 77209F - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-0E050 |
ASU50,GSU5# |
1 | ||
| 77211B - CLAMP (FOR FUEL FILLER PIPE) | ||||
| 90460-40005 |
ASU50,GSU5# |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-0E020 |
ASU50,GSU5# |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-0E040 |
ASU50,GSU5#,GVU58 |
1 | ||
| 77217C - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-0E050 |
ASU50,GSU5#,GVU58 |
2 | ||
| 77217C - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-0E050 |
ASU50,GSU5#,GVU58 |
2 | ||
| 77218A - SUPPORT, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77218-0E050 |
ASU50,GSU5# |
1 | ||
| 77219 - COVER, FUEL TANK FILLER PIPE | ||||
| 77219-0E010 |
ASU50,GSU5#,GVU58 |
1 | ||
| 77226A - TUBE, FUEL TANK BREATHER, NO.6 | ||||
| 77226-0E040 |
ASU50,GSU5# |
1 | ||
| 77229C - CLAMP, BREATHER TUBE | ||||
| 77229-0E010 |
ASU50,GSU5#,GVU58 |
2 | ||
| 77229C - CLAMP, BREATHER TUBE | ||||
| 77229-0E010 |
ASU50,GSU5#,GVU58 |
2 | ||
| 77229E - CLAMP, BREATHER TUBE | ||||
| 77229-30060 |
ASU50,GSU5# |
2 | ||
| 77229E - CLAMP, BREATHER TUBE | ||||
| 77229-30060 |
ASU50,GSU5# |
2 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-06020 |
ASU50,GSU5# |
1 | ||
| 77281A - CLAMP, FUEL FILLER PIPE | ||||
| 77281-0E030 |
ASU50,GSU5#,GVU58 |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-0E050 |
ASU50,GSU5# |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-07030 |
ASU50,GSU5# |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-06070 |
ASU50,GSU5# |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-02041 |
ASU50,GSU5#,GVU58 |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-12060 |
ASU50,GSU5#,GVU58 |
1 | ||
| 77391-0E040 |
ASU50,GSU5#,GVU58 |
1 | ||
| 77519 - SPACER, FUEL TANK BRACKET | ||||
| 77529-0E010 |
ASU50,GSU5# |
4 | ||
| 77519 - SPACER, FUEL TANK BRACKET | ||||
| 77529-0E010 |
ASU50,GSU5# |
4 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-0E030 |
ASU50,GSU5# |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-0E030 |
ASU50,GSU5# |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-0E040 |
ASU50,GSU5# |
1 | ||
| 77608C - CUSHION SET, FUEL TANK | ||||
| 77608-0E050 |
ASU50,GSU5# NO.2 |
1 | ||
| 77608-0E011 |
ASU50,GSU5# NO.1 |
1 | ||
| 77608C - CUSHION SET, FUEL TANK | ||||
| 77608-0E050 |
ASU50,GSU5# NO.2 |
1 | ||
| 77608-0E011 |
ASU50,GSU5# NO.1 |
1 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77653-08010 |
ASU50,GSU5# |
1 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-A0267 |
ASU50,GSU5#,GVU58 |
4 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-A0267 |
ASU50,GSU5#,GVU58 |
4 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-A0267 |
ASU50,GSU5#,GVU58 |
4 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-A0267 |
ASU50,GSU5#,GVU58 |
4 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 77644-0E010 |
ASU50,GSU5# |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-0E030 |
ASU50,GSU5# |
1 | ||
| 77655A - CUSHION, FUEL TANK, NO.5 | ||||
| 77655-0E020 |
ASU50,GSU5# |
2 | ||
| 77655A - CUSHION, FUEL TANK, NO.5 | ||||
| 77655-0E020 |
ASU50,GSU5# |
2 | ||
| 77657A - CUSHION, FUEL TANK, NO.5 | ||||
| 77655-0E011 |
GSU5# |
1 | ||
| 77657A - CUSHION, FUEL TANK, NO.5 | ||||
| 77655-0E011 |
GSU5# |
1 | ||
| 77707 - TUBE SUB-ASSY, CHARCOAL CANISTER OUTLET | ||||
| 77707-0E020 |
ASU50,GSU5# |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-0E030 |
ASU50,GSU5# |
1 | ||
| 77740Q - LEAK DETECTION PUMP SUB-ASSY, CHARCOAL CANISTER | ||||
| 90910-AF004 |
ASU50,GSU5#,GVU58 |
1 | ||
| 90910-AF006 |
ASU50,GSU5#,GVU58 |
1 | ||
| 77745 - FILTER, CHARCOAL CANISTER, NO.1 | ||||
| 77745-0E010 |
ASU50,GSU5#,GVU58 |
1 | ||
| 77755 - BRACKET, CHARCOAL CANISTER OUTLET HOSE | ||||
| 77755-48030 |
ASU50,GSU5# |
1 | ||
| 77765 - PROTECTOR, CHARCOAL CANISTER | ||||
| 77765-0E010 |
ASU50,GSU5# |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-0E070 |
GSU5# |
1 | ||
| Common parts | ||||
| 90080-11263 | ||||
| 90080-46350 | ||||
| 90119-A0252 | ||||
| 90119-A0264 | ||||
| 90119-A0267 | ||||
| 90179-06219 | ||||
| 90179-08189 | ||||
| 90182-A0005 | ||||
| 90182-A0014 | ||||
| 90301-A0021 | ||||
| 90460-46005 | ||||
| 90466-A0006 | ||||
| 90467-14053 | ||||
| 90561-13003 | ||||
| 96132-51300 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 4 OF 4(1312- )

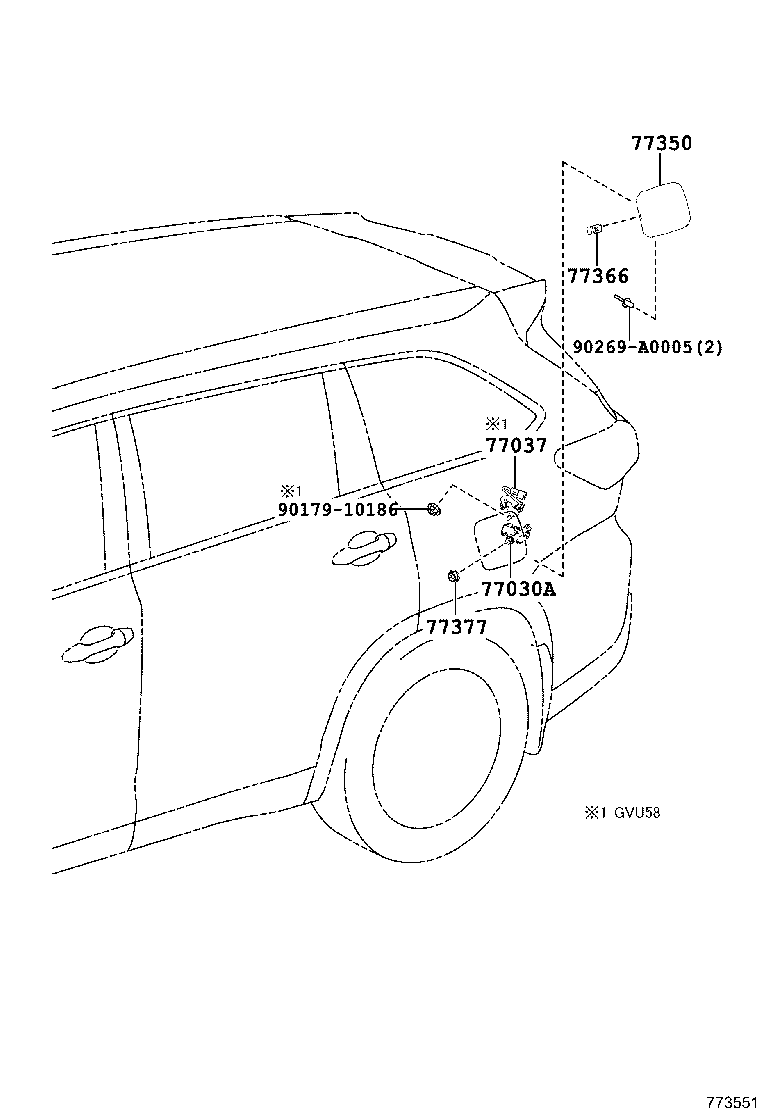

FUEL LID OPENER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77030A - LOCK ASSY, FUEL LID W/MOTOR | ||||
| 77030-0E030 |
ASU50,GSU5#,GVU58 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-0E040 |
ASU50,GSU5#,GVU58 |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-02020 |
ASU50,GSU5#,GVU58 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-0E020 |
ASU50,GSU5#,GVU58 |
1 | ||
| Common parts | ||||
| 90179-10186 | ||||
| 90269-A0005 | ||||
ILLUST NO. 3 OF 4(1312-1611)ASU50,GSU5#
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-0E070 |
GSU5# |
1 | ||
| 77261 - TUBE SUB-ASSY, FUEL EMISSION | ||||
| 77261-0E050 |
ASU50,GSU5# |
1 | ||
| 77285A - SUPPORT, FUEL RETURN AND MAIN TUBE | ||||
| 77285-42110 |
ASU50,GSU5#,GVU58 |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-0E030 |
ASU50,GSU5#,GVU58 |
1 | ||
| 77286F - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-0E010 |
ASU50,GSU5# |
1 | ||
| 77295D - GROMMET, FUEL TUBE | ||||
| 77295-0E010 |
ASU50,GSU5# |
1 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-0E010 |
ASU50,GSU5# |
4 | ||
| 77298B - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-0E020 |
ASU50,GSU5#,GVU58 |
1 | ||
| 77298C - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-68030 |
ASU50,GSU5# |
1 | ||
| 77299A - CLAMP, FUEL TUBE, NO.5 | ||||
| 77299-0E010 |
ASU50,GSU5# |
1 | ||
| 77411C - SUPPORT, FUEL TUBE GROMMET, NO.1 | ||||
| 77411-0E021 |
ASU50,GSU5# |
1 | ||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
