GSU50L-ARTNKA (2013)

Toyota Highlander (Nap)

Production Dec 2013 - Nov 2016
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(1312- )

Click highlighted areas on diagram

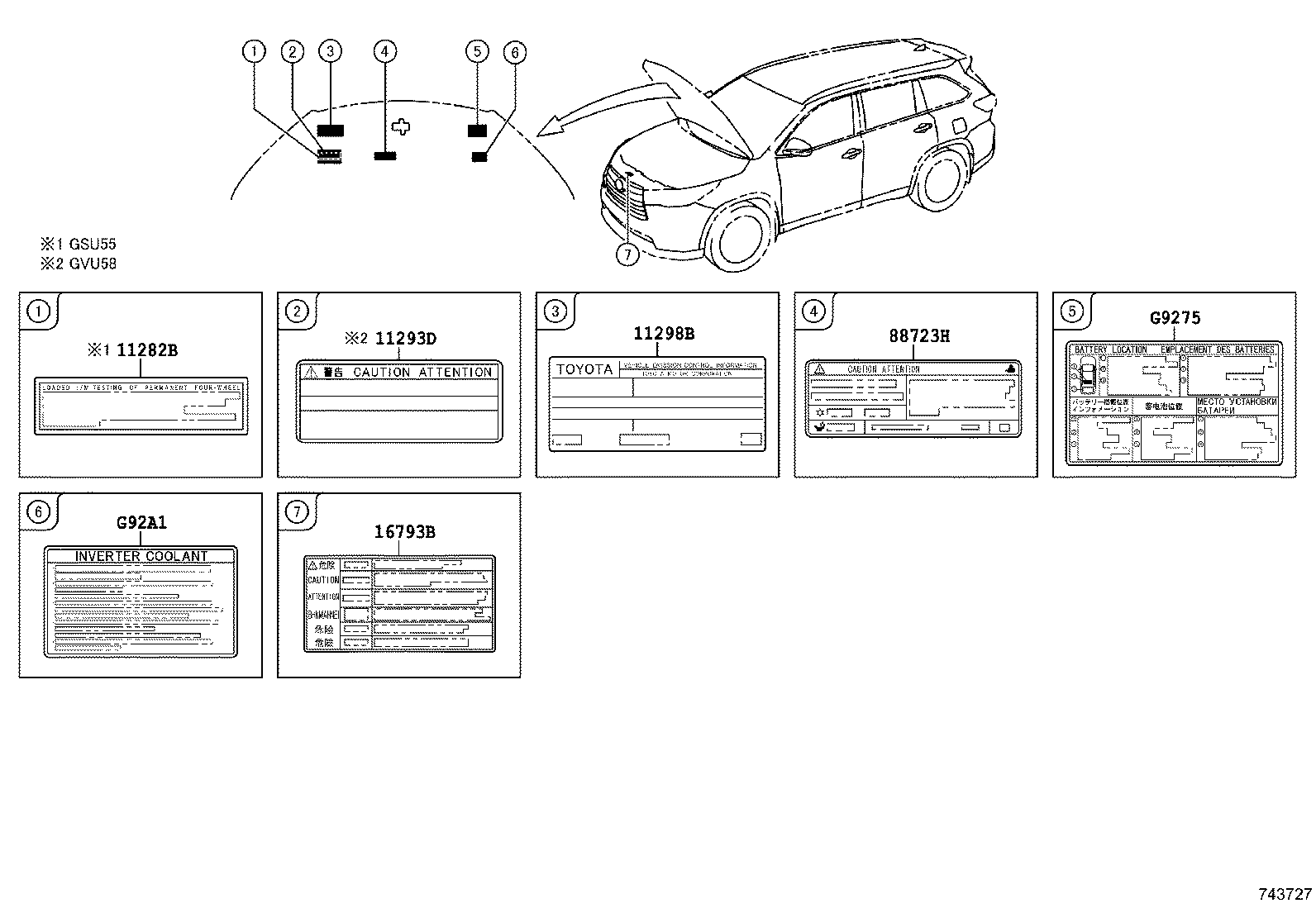

ENGINE ROOM

diagram 11282B 11293D 11298B 16793B 88723H G9275 G92A1
Part # Description Qty Price
11298B - LABEL, EMISSION CONTROL INFORMATION
11298-0P130

2GRFE..GSU5#

 1
11298-0P130

2GRFE..GSU50

MEXICO SPEC

 1
11298-0P330

2GRFE..GSU5#

 1
11298-0P220

2GRFE..GSU50

MEXICO SPEC

 1
11298-0P220

2GRFE..GSU5#

 1
11298-0P330

2GRFE..GSU50

MEXICO SPEC

 1
16793B - LABEL, COOLING FAN INFORMATION
16793-31040

2GR#..GSU5#,GVU58

 1
88723H - LABEL, COOLER SERVICE CAUTION
88723-0E040

ASU50,GSU5#

 1

ILLUST NO. 2 OF 3(1312- )

Click highlighted areas on diagram

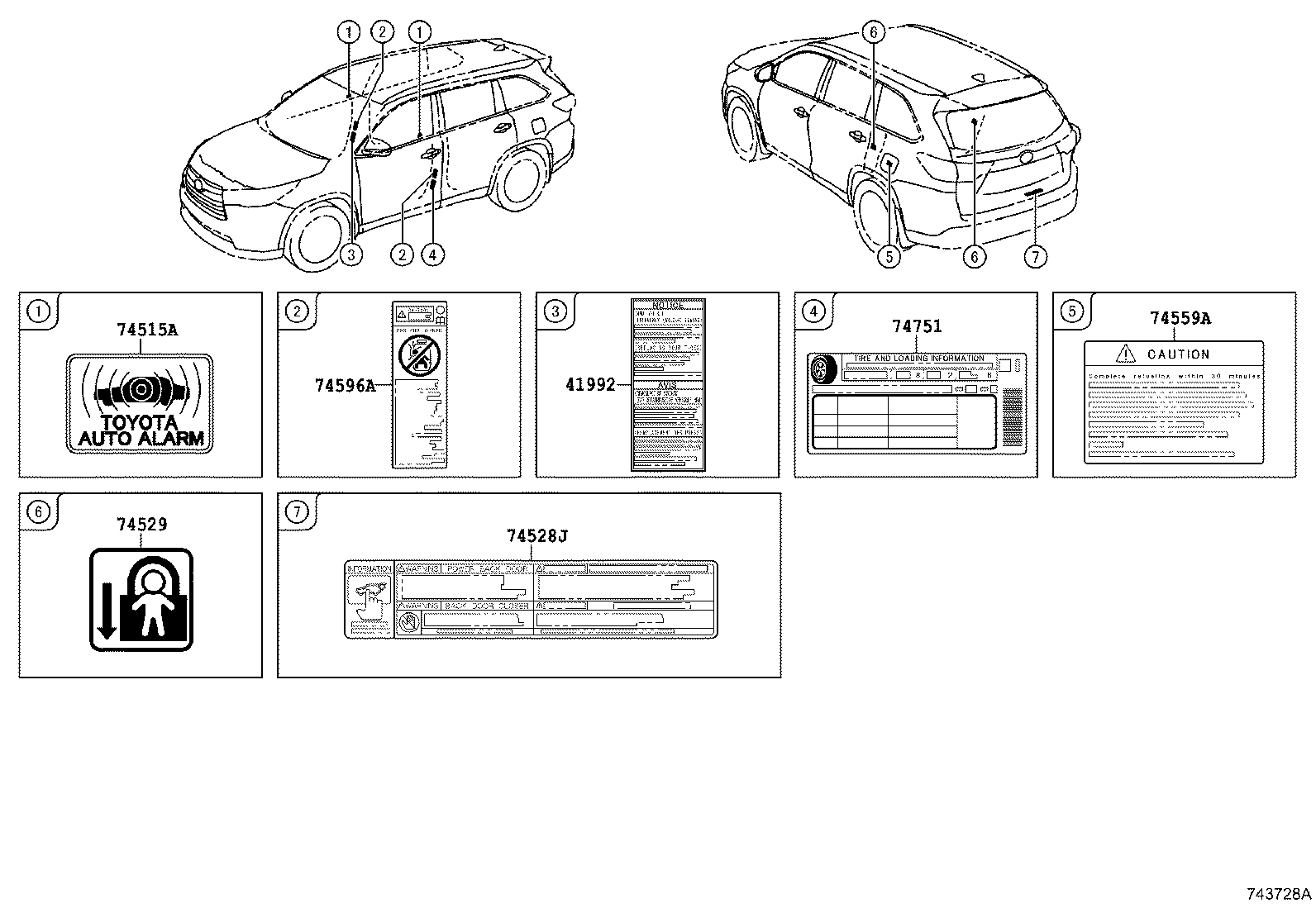

EXTERIOR

diagram 41992 74515A 74528J 74529 74559A 74596A 74751
Part # Description Qty Price
74515A - PLATE, THEFT WARNING
74515-06010

GSU50..N

MEXICO SPEC

 2
74515-06010

ASU50,GSU5#,GVU58..N

USA POSSESSION SPEC

 2
74515-06010

ASU50,GSU5#,GVU58..N

ANTI-THEFT SYSTEM-WITH(ALARM & IMMOBILIZER)

 2
74515-06010

GSU5#,GVU58..G,M

 2
74528J - LABEL, POWER BACK DOOR CAUTION
74528-0E020

GVU58;GSU5#..G,M

 1
74528-0E020

GSU5#..N

LE PACKAGE&AUDIO-6.1INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM)

 1
74528-0E020

GSU5#..N

LE PACKAGE&AUDIO-8INCH MONITOR AVN 6SPEKAER

 1
74528-0E020

GSU5#..N

LE PACKAGE&AUDIO-8INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM)

 1
74529 - PLATE, CHILD PROOF OR CHILD PROTECTOR LOCK CAUTION
69339-06040

ASU50,GSU5#,GVU58

 2
74596A - LABEL, SIDE AIR BAG CAUTION
74596-53011

ASU50,GSU5#,GVU58

 2
74751 - LABEL, TIRE PRESSURE INFORMATION
42661-0E260

ASU50,GSU5#..M,N

 1

ILLUST NO. 3 OF 3(1312- )

Click highlighted areas on diagram

INTERIOR

diagram 41991A 74541E 74559B 74572A 74597 82685
Part # Description Qty Price
74541E - PLATE, COMPACT SPARE TIRE CAUTION
42668-52020

GSU50

MEXICO SPEC

 1
42668-0E010

ASU50,GSU5#,GVU58

USA POSSESSION SPEC

 1
42668-52020

ASU50,GSU5#,GVU58

USA POSSESSION SPEC

 1
42668-0E010

ASU50,GSU5#,GVU58

 1
42668-52020

ASU50,GSU5#,GVU58

 1
42668-0E010

GSU50

MEXICO SPEC

 1
74597 - LABEL, DRIVER & PASSENGER AIR BAG CAUTION
74599-0E020

ASU50,GSU5#,GVU58

 1
82685 - PLATE, CAUTION
82685-0E010

ASU50,GSU5#,GVU58

USA POSSESSION SPEC

 1
