GSU50L-ARTNKA (2013)
Toyota Highlander (Nap)
(1312-1611)ASU50,GSU5#..N

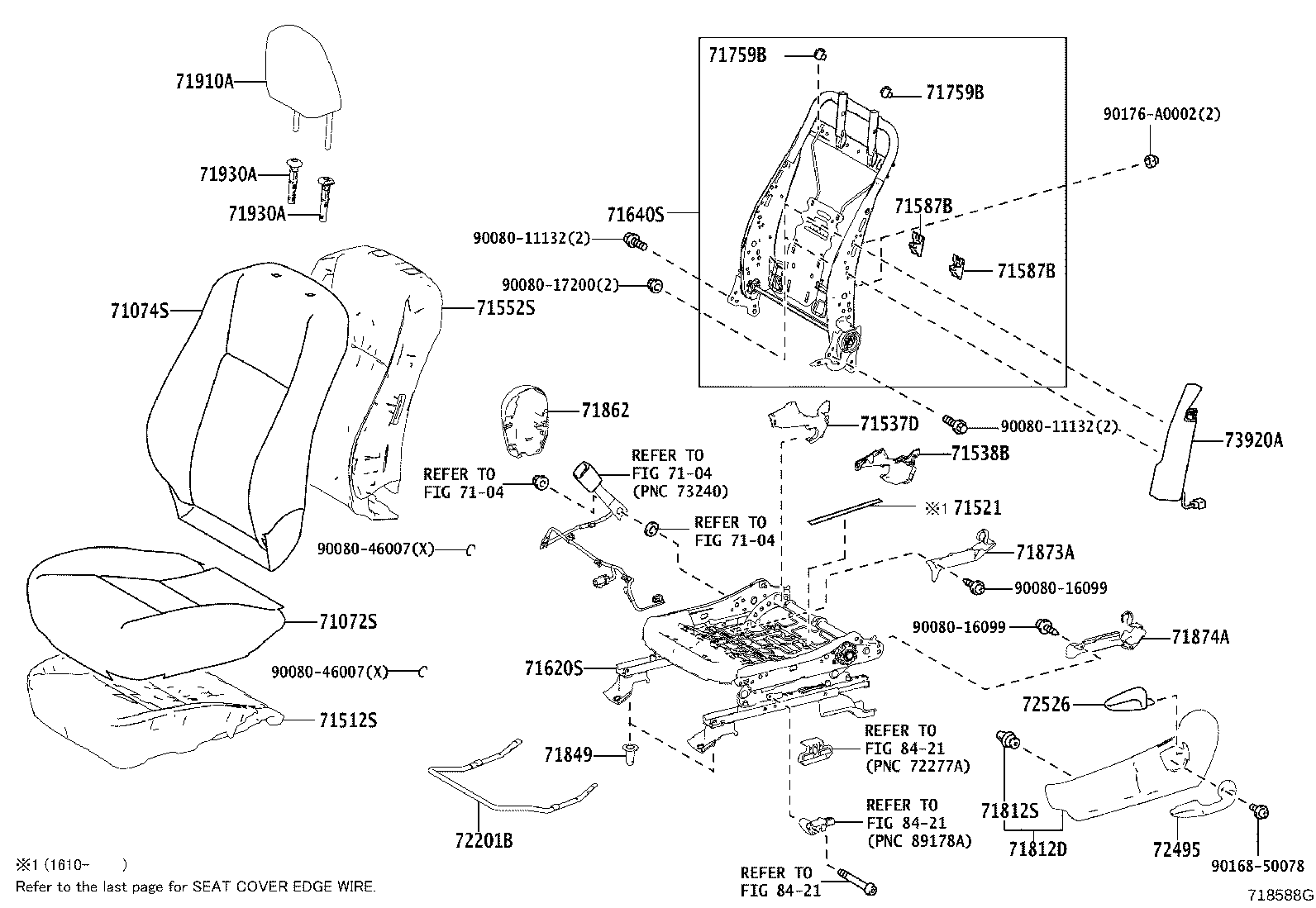

DRIVER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-0E270B2 |
ASU50,GSU5#..N GRAY,TRIM1# |
1 | ||
| 71072-0E270C1 |
ASU50,GSU5#..N BLACK,TRIM2# |
1 | ||
| 71072-0E290A3 |
GSU5#..N LE PACKAGE,FLAXEN,TRIM0# |
1 | ||
| 71072-0E300A4 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),FLAXEN,TRIM0# |
1 | ||
| 71072-0E300B2 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),GRAY,TRIM1# |
1 | ||
| 71072-0E340A2 |
GSU5#,GVU58..G FLAXEN,TRIM0# |
1 | ||
| 71072-0E320C1 |
GSU5#,GVU58..M BLACK,TRIM2# |
1 | ||
| 71072-0E340B1 |
GSU5#,GVU58..G GRAY,TRIM1# |
1 | ||
| 71072-0E300C2 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),BLACK,TRIM2# |
1 | ||
| 71072-0E290B1 |
GSU5#..N LE PACKAGE,GRAY,TRIM1# |
1 | ||
| 71072-0E340C1 |
GSU5#,GVU58..G BLACK,TRIM2# |
1 | ||
| 71072-0E320B1 |
GSU5#,GVU58..M GRAY,TRIM1# |
1 | ||
| 71072-0E290C1 |
GSU5#..N LE PACKAGE,BLACK,TRIM2# |
1 | ||
| 71072-0E320A2 |
GSU5#,GVU58..M FLAXEN,TRIM0# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-0E310A3 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),FLAXEN,TRIM0# |
1 | ||
| 71074-0E320A1 |
GSU5#,GVU58..M FLAXEN,TRIM0# |
1 | ||
| 71074-0E300A2 |
GSU5#..N LE PACKAGE,FLAXEN,TRIM0# |
1 | ||
| 71074-0E310B1 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),GRAY,TRIM1# |
1 | ||
| 71074-0E300C1 |
GSU5#..N LE PACKAGE,BLACK,TRIM2# |
1 | ||
| 71074-0E300B1 |
GSU5#..N LE PACKAGE,GRAY,TRIM1# |
1 | ||
| 71074-0E320B0 |
GSU5#,GVU58..M GRAY,TRIM1# |
1 | ||
| 71074-0E280C1 |
ASU50,GSU5#..N BLACK,TRIM2# |
1 | ||
| 71074-0E310C1 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),BLACK,TRIM2# |
1 | ||
| 71074-0E320C0 |
GSU5#,GVU58..M BLACK,TRIM2# |
1 | ||
| 71074-0E330C0 |
GSU5#,GVU58..G BLACK,TRIM2# |
1 | ||
| 71074-0E330B0 |
GSU5#,GVU58..G GRAY,TRIM1# |
1 | ||
| 71074-0E280B1 |
ASU50,GSU5#..N GRAY,TRIM1# |
1 | ||
| 71074-0E330A1 |
GSU5#,GVU58..G FLAXEN,TRIM0# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-0E150 |
GSU5#..N LE PACKAGE |
1 | ||
| 71502-0E040 |
GSU5#,GVU58..G |
1 | ||
| 71512-0E150 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP) |
1 | ||
| 71512-0E160 |
GSU5#,GVU58..M |
1 | ||
| 71512-0E130 |
ASU50,GSU5#..N |
1 | ||
| 71521 - PAD, FRONT SEAT CUSHION SILENCER, A | ||||
| 71521-0E010 |
ASU50,GSU5#,GVU58 |
1 | ||
| 71537D - PROTECTOR, FRONT SEAT CUSHION EDGE, LH | ||||
| 71537-0R020A0 |
GVU58;GSU5#..G,M FLAXEN,TRIM0# |
1 | ||
| 71537-0R020A0 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),FLAXEN,TRIM0# |
1 | ||
| 71537-0R020A0 |
GSU5#..N LE PACKAGE,FLAXEN,TRIM0# |
1 | ||
| 71537-0R020C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM2# |
1 | ||
| 71537-0R020B0 |
ASU50,GSU5#,GVU58 GRAY,TRIM1# |
1 | ||
| 71538B - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT) | ||||
| 71538-0R020A0 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),FLAXEN,TRIM0# |
1 | ||
| 71538-0R020A0 |
GVU58;GSU5#..G,M FLAXEN,TRIM0# |
1 | ||
| 71538-0R020A0 |
GSU5#..N LE PACKAGE,FLAXEN,TRIM0# |
1 | ||
| 71538-0R020C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM2# |
1 | ||
| 71538-0R020B0 |
ASU50,GSU5#,GVU58 GRAY,TRIM1# |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71506-0E010 |
GSU5#,GVU58..G |
1 | ||
| 71552-0E090 |
ASU50,GSU5#,GVU58..M,N |
1 | ||
| 71587B - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-52030 |
ASU50,GSU5#,GVU58 |
4 | ||
| 71587B - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-52030 |
ASU50,GSU5#,GVU58 |
4 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-0E070 |
ASU50,GSU5#..N |
1 | ||
| 71620-0E100 |
GSU5#..N LE PACKAGE |
1 | ||
| 71620-0E110 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP) |
1 | ||
| 71620-0E130 |
GSU5#,GVU58..G |
1 | ||
| 71620-0E120 |
GSU5#,GVU58..M |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-0E030 |
ASU50,GSU5#..N |
1 | ||
| 71640-0E040 |
GSU5#..N LE PACKAGE |
1 | ||
| 71640-0E040 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP) |
1 | ||
| 71640-0E040 |
GSU5#..M;GVU58..M,N |
1 | ||
| 71640-0E060 |
GSU5#,GVU58..G |
1 | ||
| 71759B - HOOK, FRONT SEAT BACK | ||||
| 71759-0E010 |
ASU50,GSU5#,GVU58 |
4 | ||
| 71759B - HOOK, FRONT SEAT BACK | ||||
| 71759-0E010 |
ASU50,GSU5#,GVU58 |
4 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-0E150B0 |
ASU50,GSU5#..N GRAY,TRIM1# |
1 | ||
| 71812-0E150C0 |
ASU50,GSU5#..N BLACK,TRIM2# |
1 | ||
| 71812-0E170A0 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),FLAXEN,TRIM0# |
1 | ||
| 71812-0E170C0 |
GSU5#..N LE PACKAGE,BLACK,TRIM2# |
1 | ||
| 71812-0E170A0 |
GSU5#..N LE PACKAGE,FLAXEN,TRIM0# |
1 | ||
| 71812-0E180A0 |
GSU5#,GVU58..G,M FLAXEN,TRIM0# |
1 | ||
| 71812-0E170C0 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),BLACK,TRIM2# |
1 | ||
| 71812-0E170B0 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),GRAY,TRIM1# |
1 | ||
| 71812-0E170B0 |
GSU5#..N LE PACKAGE,GRAY,TRIM1# |
1 | ||
| 71812-0E180C0 |
GSU5#,GVU58..G,M BLACK,TRIM2# |
1 | ||
| 71812-0E180B0 |
GSU5#,GVU58..G,M GRAY,TRIM1# |
1 | ||
| 71812S - CLIP, FRONT SEAT CUSHION SHIELD, LH | ||||
| 71769-47020 |
ASU50,GSU5#,GVU58 |
1 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-33010 |
ASU50,GSU5#,GVU58 |
2 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-0R060A0 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),FLAXEN,TRIM0# |
1 | ||
| 71862-0R060A0 |
GVU58;GSU5#..G,M FLAXEN,TRIM0# |
1 | ||
| 71862-0R060C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM2# |
1 | ||
| 71862-0R060B0 |
ASU50,GSU5#,GVU58 GRAY,TRIM1# |
1 | ||
| 71862-0R060A0 |
GSU5#..N LE PACKAGE,FLAXEN,TRIM0# |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71873-08020 |
GSU5#..N LE PACKAGE |
1 | ||
| 71873-08020 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP) |
1 | ||
| 71873-08020 |
GVU58;GSU5#..G,M |
1 | ||
| 71873-08010 |
ASU50,GSU5#..N |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-06540 |
GVU58;GSU5#..G,M |
1 | ||
| 71874-08010 |
ASU50,GSU5#..N |
1 | ||
| 71874-06540 |
GSU5#..N LE PACKAGE |
1 | ||
| 71874-06540 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP) |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0E260A4 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),FLAXEN,TRIM0# |
2 | ||
| 71910-0E260C2 |
GVU58;GSU5#..G,M BLACK,TRIM2# |
2 | ||
| 71910-0E260A4 |
GSU5#..N LE PACKAGE,FLAXEN,TRIM0# |
2 | ||
| 71910-0E260C2 |
GSU5#..N LE PACKAGE,BLACK,TRIM2# |
2 | ||
| 71910-0E260B2 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),GRAY,TRIM1# |
2 | ||
| 71910-0E261A4 |
GSU5#..N LE PACKAGE,FLAXEN,TRIM0# |
2 | ||
| 71910-0E260A4 |
GVU58;GSU5#..G,M FLAXEN,TRIM0# |
2 | ||
| 71910-0E250B0 |
ASU50,GSU5#..N GRAY,TRIM1# |
2 | ||
| 71910-0E261B2 |
GVU58;GSU5#..G,M GRAY,TRIM1# |
2 | ||
| 71910-0E261A4 |
GVU58;GSU5#..G,M FLAXEN,TRIM0# |
2 | ||
| 71910-0E250C0 |
ASU50,GSU5#..N BLACK,TRIM2# |
2 | ||
| 71910-0E260B2 |
GVU58;GSU5#..G,M GRAY,TRIM1# |
2 | ||
| 71910-0E260B2 |
GSU5#..N LE PACKAGE,GRAY,TRIM1# |
2 | ||
| 71910-0E260C2 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),BLACK,TRIM2# |
2 | ||
| 71910-0E261B2 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),GRAY,TRIM1# |
2 | ||
| 71910-0E261B2 |
GSU5#..N LE PACKAGE,GRAY,TRIM1# |
2 | ||
| 71910-0E261C2 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),BLACK,TRIM2# |
2 | ||
| 71910-0E261C2 |
GVU58;GSU5#..G,M BLACK,TRIM2# |
2 | ||
| 71910-0E261A4 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),FLAXEN,TRIM0# |
2 | ||
| 71910-0E261C2 |
GSU5#..N LE PACKAGE,BLACK,TRIM2# |
2 | ||
| 71930A - SUPPORT ASSY, FRONT SEAT HEADREST | ||||
| 71930-47020A7 |
GSU5#..N W(LOCK),LE PACKAGE,FLAXEN,TRIM0# |
2 | ||
| 71930-47020C0 |
ASU50,GSU5#,GVU58 W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47020A7 |
GVU58;GSU5#..G,M W/O(LOCK),FLAXEN,TRIM0# |
2 | ||
| 71931-47020A7 |
GSU5#..N W/O(LOCK),LE PACKAGE&SEAT HEATER-WITH(*DRP),FLAXEN,TRIM0# |
2 | ||
| 71930-47020A7 |
GVU58;GSU5#..G,M W(LOCK),FLAXEN,TRIM0# |
2 | ||
| 71931-47020C0 |
ASU50,GSU5#,GVU58 W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47020A7 |
GSU5#..N W/O(LOCK),LE PACKAGE,FLAXEN,TRIM0# |
2 | ||
| 71930-47020B5 |
ASU50,GSU5#,GVU58 W(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-47020A7 |
GSU5#..N W(LOCK),LE PACKAGE&SEAT HEATER-WITH(*DRP),FLAXEN,TRIM0# |
2 | ||
| 71931-47020B5 |
ASU50,GSU5#,GVU58 W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930A - SUPPORT ASSY, FRONT SEAT HEADREST | ||||
| 71930-47020A7 |
GSU5#..N W(LOCK),LE PACKAGE,FLAXEN,TRIM0# |
2 | ||
| 71930-47020C0 |
ASU50,GSU5#,GVU58 W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47020A7 |
GVU58;GSU5#..G,M W/O(LOCK),FLAXEN,TRIM0# |
2 | ||
| 71931-47020A7 |
GSU5#..N W/O(LOCK),LE PACKAGE&SEAT HEATER-WITH(*DRP),FLAXEN,TRIM0# |
2 | ||
| 71930-47020A7 |
GVU58;GSU5#..G,M W(LOCK),FLAXEN,TRIM0# |
2 | ||
| 71931-47020C0 |
ASU50,GSU5#,GVU58 W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47020A7 |
GSU5#..N W/O(LOCK),LE PACKAGE,FLAXEN,TRIM0# |
2 | ||
| 71930-47020B5 |
ASU50,GSU5#,GVU58 W(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-47020A7 |
GSU5#..N W(LOCK),LE PACKAGE&SEAT HEATER-WITH(*DRP),FLAXEN,TRIM0# |
2 | ||
| 71931-47020B5 |
ASU50,GSU5#,GVU58 W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 72201B - HANDLE SUB-ASSY, SEAT TRACK LH | ||||
| 72211-08020 |
ASU50,GSU5#..N |
1 | ||
| 72495 - HANDLE, VERTICAL ADJUSTING, LH | ||||
| 72495-0R030C0 |
ASU50,GSU5#..N BLACK,TRIM2# |
1 | ||
| 72495-0R030B0 |
ASU50,GSU5#..N GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-08010B1 |
ASU50,GSU5#..N GRAY,TRIM1# |
1 | ||
| 72526-08010C0 |
ASU50,GSU5#..N BLACK,TRIM2# |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-0E060 |
ASU50,GSU5#,GVU58 |
1 | ||
| Common parts | ||||
| 90080-11132 | ||||
| 90080-16099 | ||||
| 90080-17200 | ||||
| 90080-46007 | ||||
| 90168-50078 | ||||
| 90176-A0002 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8421 | ||||
(1312-1611)N

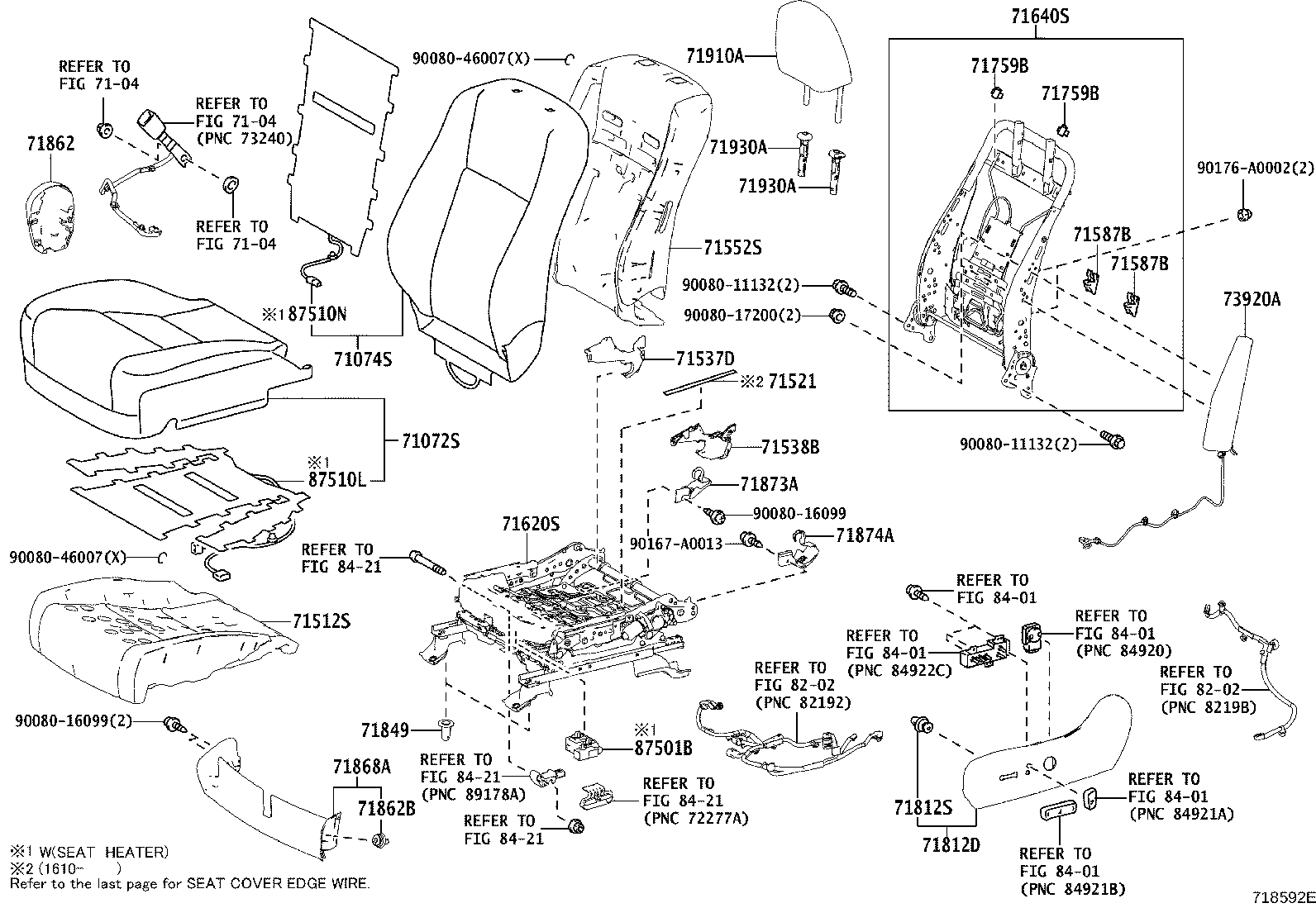

DRIVER SEAT W(POWER SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-0E270B2 |
ASU50,GSU5#..N GRAY,TRIM1# |
1 | ||
| 71072-0E270C1 |
ASU50,GSU5#..N BLACK,TRIM2# |
1 | ||
| 71072-0E290A3 |
GSU5#..N LE PACKAGE,FLAXEN,TRIM0# |
1 | ||
| 71072-0E300A4 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),FLAXEN,TRIM0# |
1 | ||
| 71072-0E300B2 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),GRAY,TRIM1# |
1 | ||
| 71072-0E340A2 |
GSU5#,GVU58..G FLAXEN,TRIM0# |
1 | ||
| 71072-0E320C1 |
GSU5#,GVU58..M BLACK,TRIM2# |
1 | ||
| 71072-0E340B1 |
GSU5#,GVU58..G GRAY,TRIM1# |
1 | ||
| 71072-0E300C2 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),BLACK,TRIM2# |
1 | ||
| 71072-0E290B1 |
GSU5#..N LE PACKAGE,GRAY,TRIM1# |
1 | ||
| 71072-0E340C1 |
GSU5#,GVU58..G BLACK,TRIM2# |
1 | ||
| 71072-0E320B1 |
GSU5#,GVU58..M GRAY,TRIM1# |
1 | ||
| 71072-0E290C1 |
GSU5#..N LE PACKAGE,BLACK,TRIM2# |
1 | ||
| 71072-0E320A2 |
GSU5#,GVU58..M FLAXEN,TRIM0# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-0E310A3 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),FLAXEN,TRIM0# |
1 | ||
| 71074-0E320A1 |
GSU5#,GVU58..M FLAXEN,TRIM0# |
1 | ||
| 71074-0E300A2 |
GSU5#..N LE PACKAGE,FLAXEN,TRIM0# |
1 | ||
| 71074-0E310B1 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),GRAY,TRIM1# |
1 | ||
| 71074-0E300C1 |
GSU5#..N LE PACKAGE,BLACK,TRIM2# |
1 | ||
| 71074-0E300B1 |
GSU5#..N LE PACKAGE,GRAY,TRIM1# |
1 | ||
| 71074-0E320B0 |
GSU5#,GVU58..M GRAY,TRIM1# |
1 | ||
| 71074-0E280C1 |
ASU50,GSU5#..N BLACK,TRIM2# |
1 | ||
| 71074-0E310C1 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),BLACK,TRIM2# |
1 | ||
| 71074-0E320C0 |
GSU5#,GVU58..M BLACK,TRIM2# |
1 | ||
| 71074-0E330C0 |
GSU5#,GVU58..G BLACK,TRIM2# |
1 | ||
| 71074-0E330B0 |
GSU5#,GVU58..G GRAY,TRIM1# |
1 | ||
| 71074-0E280B1 |
ASU50,GSU5#..N GRAY,TRIM1# |
1 | ||
| 71074-0E330A1 |
GSU5#,GVU58..G FLAXEN,TRIM0# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-0E150 |
GSU5#..N LE PACKAGE |
1 | ||
| 71502-0E040 |
GSU5#,GVU58..G |
1 | ||
| 71512-0E150 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP) |
1 | ||
| 71512-0E160 |
GSU5#,GVU58..M |
1 | ||
| 71512-0E130 |
ASU50,GSU5#..N |
1 | ||
| 71521 - PAD, FRONT SEAT CUSHION SILENCER, A | ||||
| 71521-0E010 |
ASU50,GSU5#,GVU58 |
1 | ||
| 71537D - PROTECTOR, FRONT SEAT CUSHION EDGE, LH | ||||
| 71537-0R020A0 |
GVU58;GSU5#..G,M FLAXEN,TRIM0# |
1 | ||
| 71537-0R020A0 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),FLAXEN,TRIM0# |
1 | ||
| 71537-0R020A0 |
GSU5#..N LE PACKAGE,FLAXEN,TRIM0# |
1 | ||
| 71537-0R020C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM2# |
1 | ||
| 71537-0R020B0 |
ASU50,GSU5#,GVU58 GRAY,TRIM1# |
1 | ||
| 71538B - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT) | ||||
| 71538-0R020A0 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),FLAXEN,TRIM0# |
1 | ||
| 71538-0R020A0 |
GVU58;GSU5#..G,M FLAXEN,TRIM0# |
1 | ||
| 71538-0R020A0 |
GSU5#..N LE PACKAGE,FLAXEN,TRIM0# |
1 | ||
| 71538-0R020C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM2# |
1 | ||
| 71538-0R020B0 |
ASU50,GSU5#,GVU58 GRAY,TRIM1# |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71506-0E010 |
GSU5#,GVU58..G |
1 | ||
| 71552-0E090 |
ASU50,GSU5#,GVU58..M,N |
1 | ||
| 71587B - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-52030 |
ASU50,GSU5#,GVU58 |
4 | ||
| 71587B - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-52030 |
ASU50,GSU5#,GVU58 |
4 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-0E070 |
ASU50,GSU5#..N |
1 | ||
| 71620-0E100 |
GSU5#..N LE PACKAGE |
1 | ||
| 71620-0E110 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP) |
1 | ||
| 71620-0E130 |
GSU5#,GVU58..G |
1 | ||
| 71620-0E120 |
GSU5#,GVU58..M |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-0E030 |
ASU50,GSU5#..N |
1 | ||
| 71640-0E040 |
GSU5#..N LE PACKAGE |
1 | ||
| 71640-0E040 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP) |
1 | ||
| 71640-0E040 |
GSU5#..M;GVU58..M,N |
1 | ||
| 71640-0E060 |
GSU5#,GVU58..G |
1 | ||
| 71759B - HOOK, FRONT SEAT BACK | ||||
| 71759-0E010 |
ASU50,GSU5#,GVU58 |
4 | ||
| 71759B - HOOK, FRONT SEAT BACK | ||||
| 71759-0E010 |
ASU50,GSU5#,GVU58 |
4 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-0E150B0 |
ASU50,GSU5#..N GRAY,TRIM1# |
1 | ||
| 71812-0E150C0 |
ASU50,GSU5#..N BLACK,TRIM2# |
1 | ||
| 71812-0E170A0 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),FLAXEN,TRIM0# |
1 | ||
| 71812-0E170C0 |
GSU5#..N LE PACKAGE,BLACK,TRIM2# |
1 | ||
| 71812-0E170A0 |
GSU5#..N LE PACKAGE,FLAXEN,TRIM0# |
1 | ||
| 71812-0E180A0 |
GSU5#,GVU58..G,M FLAXEN,TRIM0# |
1 | ||
| 71812-0E170C0 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),BLACK,TRIM2# |
1 | ||
| 71812-0E170B0 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),GRAY,TRIM1# |
1 | ||
| 71812-0E170B0 |
GSU5#..N LE PACKAGE,GRAY,TRIM1# |
1 | ||
| 71812-0E180C0 |
GSU5#,GVU58..G,M BLACK,TRIM2# |
1 | ||
| 71812-0E180B0 |
GSU5#,GVU58..G,M GRAY,TRIM1# |
1 | ||
| 71812S - CLIP, FRONT SEAT CUSHION SHIELD, LH | ||||
| 71769-47020 |
ASU50,GSU5#,GVU58 |
1 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-33010 |
ASU50,GSU5#,GVU58 |
2 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-0R060A0 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),FLAXEN,TRIM0# |
1 | ||
| 71862-0R060A0 |
GVU58;GSU5#..G,M FLAXEN,TRIM0# |
1 | ||
| 71862-0R060C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM2# |
1 | ||
| 71862-0R060B0 |
ASU50,GSU5#,GVU58 GRAY,TRIM1# |
1 | ||
| 71862-0R060A0 |
GSU5#..N LE PACKAGE,FLAXEN,TRIM0# |
1 | ||
| 71862B - CLIP(FOR FRONT SEAT SHIELD, LH) | ||||
| 71769-47020 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP) |
1 | ||
| 71769-47020 |
GVU58;GSU5#..G,M |
1 | ||
| 71769-47020 |
GSU5#..M REAR NO.1 SEAT-CAPTAIN SEAT W/SIDE TABLE |
2 | ||
| 71769-47020 |
GSU5#..N LE PACKAGE |
1 | ||
| 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-0E090B0 |
GSU5#..N LE PACKAGE,GRAY,TRIM1# |
1 | ||
| 71868-0E100B0 |
GSU5#,GVU58..G,M GRAY,TRIM1# |
1 | ||
| 71868-0E090C0 |
GSU5#..N LE PACKAGE,BLACK,TRIM2# |
1 | ||
| 71868-0E100C0 |
GSU5#,GVU58..G,M BLACK,TRIM2# |
1 | ||
| 71868-0E090A0 |
GSU5#..N LE PACKAGE,FLAXEN,TRIM0# |
1 | ||
| 71868-0E100A0 |
GSU5#,GVU58..G,M FLAXEN,TRIM0# |
1 | ||
| 71868-0E090A0 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),FLAXEN,TRIM0# |
1 | ||
| 71868-0E090B0 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),GRAY,TRIM1# |
1 | ||
| 71868-0E090C0 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),BLACK,TRIM2# |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71873-08020 |
GSU5#..N LE PACKAGE |
1 | ||
| 71873-08020 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP) |
1 | ||
| 71873-08020 |
GVU58;GSU5#..G,M |
1 | ||
| 71873-08010 |
ASU50,GSU5#..N |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-06540 |
GVU58;GSU5#..G,M |
1 | ||
| 71874-08010 |
ASU50,GSU5#..N |
1 | ||
| 71874-06540 |
GSU5#..N LE PACKAGE |
1 | ||
| 71874-06540 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP) |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0E260A4 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),FLAXEN,TRIM0# |
2 | ||
| 71910-0E260C2 |
GVU58;GSU5#..G,M BLACK,TRIM2# |
2 | ||
| 71910-0E260A4 |
GSU5#..N LE PACKAGE,FLAXEN,TRIM0# |
2 | ||
| 71910-0E260C2 |
GSU5#..N LE PACKAGE,BLACK,TRIM2# |
2 | ||
| 71910-0E260B2 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),GRAY,TRIM1# |
2 | ||
| 71910-0E261A4 |
GSU5#..N LE PACKAGE,FLAXEN,TRIM0# |
2 | ||
| 71910-0E260A4 |
GVU58;GSU5#..G,M FLAXEN,TRIM0# |
2 | ||
| 71910-0E250B0 |
ASU50,GSU5#..N GRAY,TRIM1# |
2 | ||
| 71910-0E261B2 |
GVU58;GSU5#..G,M GRAY,TRIM1# |
2 | ||
| 71910-0E261A4 |
GVU58;GSU5#..G,M FLAXEN,TRIM0# |
2 | ||
| 71910-0E250C0 |
ASU50,GSU5#..N BLACK,TRIM2# |
2 | ||
| 71910-0E260B2 |
GVU58;GSU5#..G,M GRAY,TRIM1# |
2 | ||
| 71910-0E260B2 |
GSU5#..N LE PACKAGE,GRAY,TRIM1# |
2 | ||
| 71910-0E260C2 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),BLACK,TRIM2# |
2 | ||
| 71910-0E261B2 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),GRAY,TRIM1# |
2 | ||
| 71910-0E261B2 |
GSU5#..N LE PACKAGE,GRAY,TRIM1# |
2 | ||
| 71910-0E261C2 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),BLACK,TRIM2# |
2 | ||
| 71910-0E261C2 |
GVU58;GSU5#..G,M BLACK,TRIM2# |
2 | ||
| 71910-0E261A4 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),FLAXEN,TRIM0# |
2 | ||
| 71910-0E261C2 |
GSU5#..N LE PACKAGE,BLACK,TRIM2# |
2 | ||
| 71930A - SUPPORT ASSY, FRONT SEAT HEADREST | ||||
| 71930-47020A7 |
GSU5#..N W(LOCK),LE PACKAGE,FLAXEN,TRIM0# |
2 | ||
| 71930-47020C0 |
ASU50,GSU5#,GVU58 W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47020A7 |
GVU58;GSU5#..G,M W/O(LOCK),FLAXEN,TRIM0# |
2 | ||
| 71931-47020A7 |
GSU5#..N W/O(LOCK),LE PACKAGE&SEAT HEATER-WITH(*DRP),FLAXEN,TRIM0# |
2 | ||
| 71930-47020A7 |
GVU58;GSU5#..G,M W(LOCK),FLAXEN,TRIM0# |
2 | ||
| 71931-47020C0 |
ASU50,GSU5#,GVU58 W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47020A7 |
GSU5#..N W/O(LOCK),LE PACKAGE,FLAXEN,TRIM0# |
2 | ||
| 71930-47020B5 |
ASU50,GSU5#,GVU58 W(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-47020A7 |
GSU5#..N W(LOCK),LE PACKAGE&SEAT HEATER-WITH(*DRP),FLAXEN,TRIM0# |
2 | ||
| 71931-47020B5 |
ASU50,GSU5#,GVU58 W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930A - SUPPORT ASSY, FRONT SEAT HEADREST | ||||
| 71930-47020A7 |
GSU5#..N W(LOCK),LE PACKAGE,FLAXEN,TRIM0# |
2 | ||
| 71930-47020C0 |
ASU50,GSU5#,GVU58 W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47020A7 |
GVU58;GSU5#..G,M W/O(LOCK),FLAXEN,TRIM0# |
2 | ||
| 71931-47020A7 |
GSU5#..N W/O(LOCK),LE PACKAGE&SEAT HEATER-WITH(*DRP),FLAXEN,TRIM0# |
2 | ||
| 71930-47020A7 |
GVU58;GSU5#..G,M W(LOCK),FLAXEN,TRIM0# |
2 | ||
| 71931-47020C0 |
ASU50,GSU5#,GVU58 W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47020A7 |
GSU5#..N W/O(LOCK),LE PACKAGE,FLAXEN,TRIM0# |
2 | ||
| 71930-47020B5 |
ASU50,GSU5#,GVU58 W(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-47020A7 |
GSU5#..N W(LOCK),LE PACKAGE&SEAT HEATER-WITH(*DRP),FLAXEN,TRIM0# |
2 | ||
| 71931-47020B5 |
ASU50,GSU5#,GVU58 W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-0E060 |
ASU50,GSU5#,GVU58 |
1 | ||
| 87501B - CONTROL SUB-ASSY, SEAT HEATER, LH | ||||
| 87501-60040 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP) |
1 | ||
| 87501-60050 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP) |
1 | ||
| 87501-60040 |
GSU5#..G,M |
1 | ||
| 87501-60050 |
GSU5#..G,M |
1 | ||
| 87510L - HEATER ASSY, FRONT SEAT CUSHION, LH | ||||
| 87510-0E150 |
GSU5#,GVU58..G |
1 | ||
| 87510-0E140 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP) |
1 | ||
| 87510-0E140 |
GSU5#,GVU58..M |
1 | ||
| 87510N - HEATER ASSY, FRONT SEAT BACK, LH | ||||
| 87530-0E070 |
GSU5#,GVU58..M |
1 | ||
| 87530-0E070 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP) |
1 | ||
| 87530-0E080 |
GSU5#,GVU58..G |
1 | ||
| Common parts | ||||
| 90080-11132 | ||||
| 90080-16099 | ||||
| 90080-17200 | ||||
| 90080-46007 | ||||
| 90167-A0013 | ||||
| 90176-A0002 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||
| 8421 | ||||

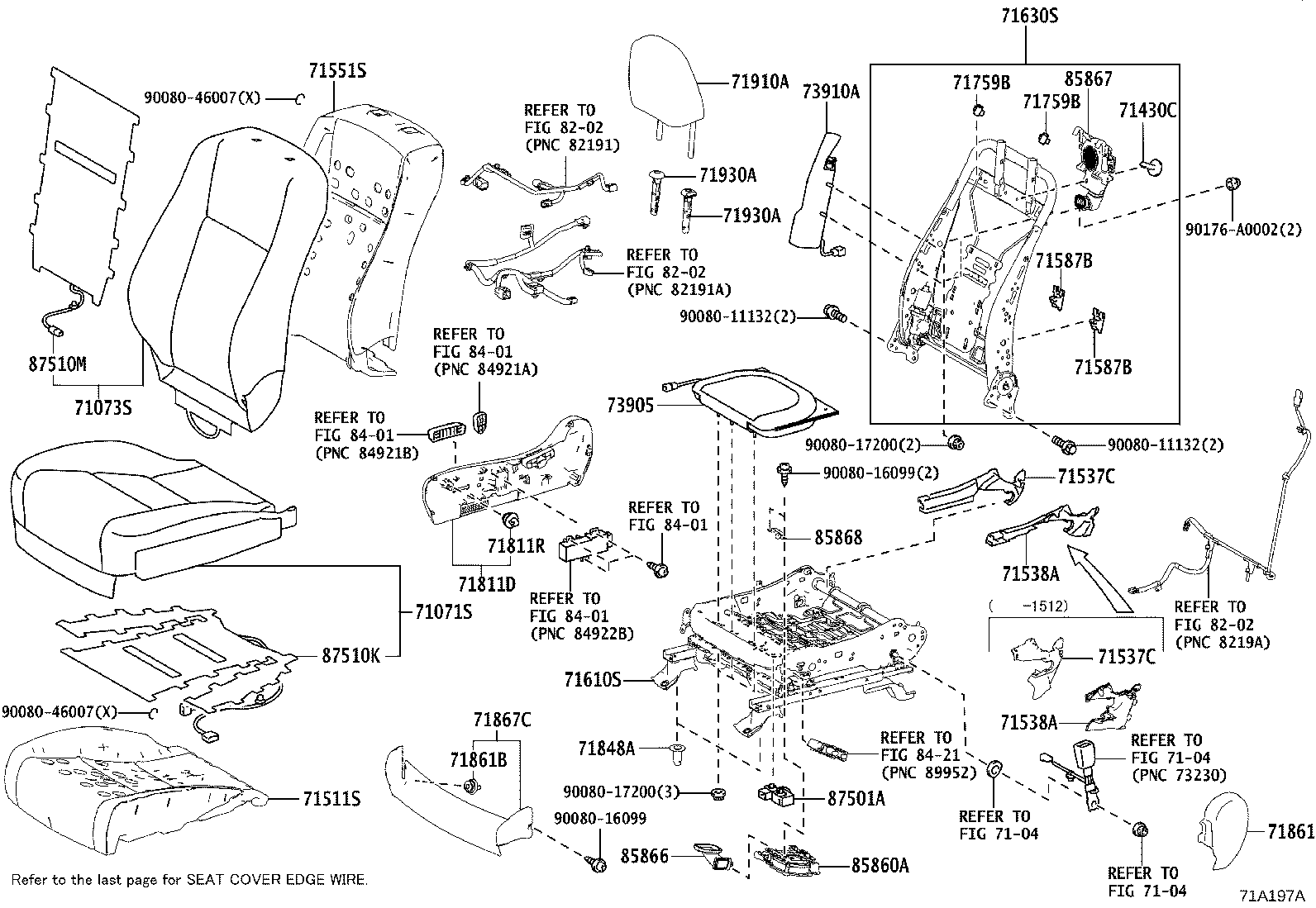

(1312-1611)G,M
DRIVER SEAT W(POWER SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-0E270B2 |
ASU50,GSU5#..N GRAY,TRIM1# |
1 | ||
| 71072-0E270C1 |
ASU50,GSU5#..N BLACK,TRIM2# |
1 | ||
| 71072-0E290A3 |
GSU5#..N LE PACKAGE,FLAXEN,TRIM0# |
1 | ||
| 71072-0E300A4 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),FLAXEN,TRIM0# |
1 | ||
| 71072-0E300B2 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),GRAY,TRIM1# |
1 | ||
| 71072-0E340A2 |
GSU5#,GVU58..G FLAXEN,TRIM0# |
1 | ||
| 71072-0E320C1 |
GSU5#,GVU58..M BLACK,TRIM2# |
1 | ||
| 71072-0E340B1 |
GSU5#,GVU58..G GRAY,TRIM1# |
1 | ||
| 71072-0E300C2 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),BLACK,TRIM2# |
1 | ||
| 71072-0E290B1 |
GSU5#..N LE PACKAGE,GRAY,TRIM1# |
1 | ||
| 71072-0E340C1 |
GSU5#,GVU58..G BLACK,TRIM2# |
1 | ||
| 71072-0E320B1 |
GSU5#,GVU58..M GRAY,TRIM1# |
1 | ||
| 71072-0E290C1 |
GSU5#..N LE PACKAGE,BLACK,TRIM2# |
1 | ||
| 71072-0E320A2 |
GSU5#,GVU58..M FLAXEN,TRIM0# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-0E310A3 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),FLAXEN,TRIM0# |
1 | ||
| 71074-0E320A1 |
GSU5#,GVU58..M FLAXEN,TRIM0# |
1 | ||
| 71074-0E300A2 |
GSU5#..N LE PACKAGE,FLAXEN,TRIM0# |
1 | ||
| 71074-0E310B1 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),GRAY,TRIM1# |
1 | ||
| 71074-0E300C1 |
GSU5#..N LE PACKAGE,BLACK,TRIM2# |
1 | ||
| 71074-0E300B1 |
GSU5#..N LE PACKAGE,GRAY,TRIM1# |
1 | ||
| 71074-0E320B0 |
GSU5#,GVU58..M GRAY,TRIM1# |
1 | ||
| 71074-0E280C1 |
ASU50,GSU5#..N BLACK,TRIM2# |
1 | ||
| 71074-0E310C1 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),BLACK,TRIM2# |
1 | ||
| 71074-0E320C0 |
GSU5#,GVU58..M BLACK,TRIM2# |
1 | ||
| 71074-0E330C0 |
GSU5#,GVU58..G BLACK,TRIM2# |
1 | ||
| 71074-0E330B0 |
GSU5#,GVU58..G GRAY,TRIM1# |
1 | ||
| 71074-0E280B1 |
ASU50,GSU5#..N GRAY,TRIM1# |
1 | ||
| 71074-0E330A1 |
GSU5#,GVU58..G FLAXEN,TRIM0# |
1 | ||
| 71430C - CLIP | ||||
| 90467-A0002C0 |
GSU5#,GVU58..G BLACK |
2 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-0E150 |
GSU5#..N LE PACKAGE |
1 | ||
| 71502-0E040 |
GSU5#,GVU58..G |
1 | ||
| 71512-0E150 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP) |
1 | ||
| 71512-0E160 |
GSU5#,GVU58..M |
1 | ||
| 71512-0E130 |
ASU50,GSU5#..N |
1 | ||
| 71521 - PAD, FRONT SEAT CUSHION SILENCER, A | ||||
| 71521-0E010 |
ASU50,GSU5#,GVU58 |
1 | ||
| 71537D - PROTECTOR, FRONT SEAT CUSHION EDGE, LH | ||||
| 71537-0R020A0 |
GVU58;GSU5#..G,M FLAXEN,TRIM0# |
1 | ||
| 71537-0R020A0 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),FLAXEN,TRIM0# |
1 | ||
| 71537-0R020A0 |
GSU5#..N LE PACKAGE,FLAXEN,TRIM0# |
1 | ||
| 71537-0R020C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM2# |
1 | ||
| 71537-0R020B0 |
ASU50,GSU5#,GVU58 GRAY,TRIM1# |
1 | ||
| 71538B - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT) | ||||
| 71538-0R020A0 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),FLAXEN,TRIM0# |
1 | ||
| 71538-0R020A0 |
GVU58;GSU5#..G,M FLAXEN,TRIM0# |
1 | ||
| 71538-0R020A0 |
GSU5#..N LE PACKAGE,FLAXEN,TRIM0# |
1 | ||
| 71538-0R020C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM2# |
1 | ||
| 71538-0R020B0 |
ASU50,GSU5#,GVU58 GRAY,TRIM1# |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71506-0E010 |
GSU5#,GVU58..G |
1 | ||
| 71552-0E090 |
ASU50,GSU5#,GVU58..M,N |
1 | ||
| 71587B - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-52030 |
ASU50,GSU5#,GVU58 |
4 | ||
| 71587B - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-52030 |
ASU50,GSU5#,GVU58 |
4 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-0E070 |
ASU50,GSU5#..N |
1 | ||
| 71620-0E100 |
GSU5#..N LE PACKAGE |
1 | ||
| 71620-0E110 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP) |
1 | ||
| 71620-0E130 |
GSU5#,GVU58..G |
1 | ||
| 71620-0E120 |
GSU5#,GVU58..M |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-0E030 |
ASU50,GSU5#..N |
1 | ||
| 71640-0E040 |
GSU5#..N LE PACKAGE |
1 | ||
| 71640-0E040 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP) |
1 | ||
| 71640-0E040 |
GSU5#..M;GVU58..M,N |
1 | ||
| 71640-0E060 |
GSU5#,GVU58..G |
1 | ||
| 71759B - HOOK, FRONT SEAT BACK | ||||
| 71759-0E010 |
ASU50,GSU5#,GVU58 |
4 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-0E150B0 |
ASU50,GSU5#..N GRAY,TRIM1# |
1 | ||
| 71812-0E150C0 |
ASU50,GSU5#..N BLACK,TRIM2# |
1 | ||
| 71812-0E170A0 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),FLAXEN,TRIM0# |
1 | ||
| 71812-0E170C0 |
GSU5#..N LE PACKAGE,BLACK,TRIM2# |
1 | ||
| 71812-0E170A0 |
GSU5#..N LE PACKAGE,FLAXEN,TRIM0# |
1 | ||
| 71812-0E180A0 |
GSU5#,GVU58..G,M FLAXEN,TRIM0# |
1 | ||
| 71812-0E170C0 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),BLACK,TRIM2# |
1 | ||
| 71812-0E170B0 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),GRAY,TRIM1# |
1 | ||
| 71812-0E170B0 |
GSU5#..N LE PACKAGE,GRAY,TRIM1# |
1 | ||
| 71812-0E180C0 |
GSU5#,GVU58..G,M BLACK,TRIM2# |
1 | ||
| 71812-0E180B0 |
GSU5#,GVU58..G,M GRAY,TRIM1# |
1 | ||
| 71812S - CLIP, FRONT SEAT CUSHION SHIELD, LH | ||||
| 71769-47020 |
ASU50,GSU5#,GVU58 |
1 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-33010 |
ASU50,GSU5#,GVU58 |
2 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-0R060A0 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),FLAXEN,TRIM0# |
1 | ||
| 71862-0R060A0 |
GVU58;GSU5#..G,M FLAXEN,TRIM0# |
1 | ||
| 71862-0R060C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM2# |
1 | ||
| 71862-0R060B0 |
ASU50,GSU5#,GVU58 GRAY,TRIM1# |
1 | ||
| 71862-0R060A0 |
GSU5#..N LE PACKAGE,FLAXEN,TRIM0# |
1 | ||
| 71862B - CLIP(FOR FRONT SEAT SHIELD, LH) | ||||
| 71769-47020 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP) |
1 | ||
| 71769-47020 |
GVU58;GSU5#..G,M |
1 | ||
| 71769-47020 |
GSU5#..M REAR NO.1 SEAT-CAPTAIN SEAT W/SIDE TABLE |
2 | ||
| 71769-47020 |
GSU5#..N LE PACKAGE |
1 | ||
| 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-0E090B0 |
GSU5#..N LE PACKAGE,GRAY,TRIM1# |
1 | ||
| 71868-0E100B0 |
GSU5#,GVU58..G,M GRAY,TRIM1# |
1 | ||
| 71868-0E090C0 |
GSU5#..N LE PACKAGE,BLACK,TRIM2# |
1 | ||
| 71868-0E100C0 |
GSU5#,GVU58..G,M BLACK,TRIM2# |
1 | ||
| 71868-0E090A0 |
GSU5#..N LE PACKAGE,FLAXEN,TRIM0# |
1 | ||
| 71868-0E100A0 |
GSU5#,GVU58..G,M FLAXEN,TRIM0# |
1 | ||
| 71868-0E090A0 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),FLAXEN,TRIM0# |
1 | ||
| 71868-0E090B0 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),GRAY,TRIM1# |
1 | ||
| 71868-0E090C0 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),BLACK,TRIM2# |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71873-08020 |
GSU5#..N LE PACKAGE |
1 | ||
| 71873-08020 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP) |
1 | ||
| 71873-08020 |
GVU58;GSU5#..G,M |
1 | ||
| 71873-08010 |
ASU50,GSU5#..N |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-06540 |
GVU58;GSU5#..G,M |
1 | ||
| 71874-08010 |
ASU50,GSU5#..N |
1 | ||
| 71874-06540 |
GSU5#..N LE PACKAGE |
1 | ||
| 71874-06540 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP) |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0E260A4 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),FLAXEN,TRIM0# |
2 | ||
| 71910-0E260C2 |
GVU58;GSU5#..G,M BLACK,TRIM2# |
2 | ||
| 71910-0E260A4 |
GSU5#..N LE PACKAGE,FLAXEN,TRIM0# |
2 | ||
| 71910-0E260C2 |
GSU5#..N LE PACKAGE,BLACK,TRIM2# |
2 | ||
| 71910-0E260B2 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),GRAY,TRIM1# |
2 | ||
| 71910-0E261A4 |
GSU5#..N LE PACKAGE,FLAXEN,TRIM0# |
2 | ||
| 71910-0E260A4 |
GVU58;GSU5#..G,M FLAXEN,TRIM0# |
2 | ||
| 71910-0E250B0 |
ASU50,GSU5#..N GRAY,TRIM1# |
2 | ||
| 71910-0E261B2 |
GVU58;GSU5#..G,M GRAY,TRIM1# |
2 | ||
| 71910-0E261A4 |
GVU58;GSU5#..G,M FLAXEN,TRIM0# |
2 | ||
| 71910-0E250C0 |
ASU50,GSU5#..N BLACK,TRIM2# |
2 | ||
| 71910-0E260B2 |
GVU58;GSU5#..G,M GRAY,TRIM1# |
2 | ||
| 71910-0E260B2 |
GSU5#..N LE PACKAGE,GRAY,TRIM1# |
2 | ||
| 71910-0E260C2 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),BLACK,TRIM2# |
2 | ||
| 71910-0E261B2 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),GRAY,TRIM1# |
2 | ||
| 71910-0E261B2 |
GSU5#..N LE PACKAGE,GRAY,TRIM1# |
2 | ||
| 71910-0E261C2 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),BLACK,TRIM2# |
2 | ||
| 71910-0E261C2 |
GVU58;GSU5#..G,M BLACK,TRIM2# |
2 | ||
| 71910-0E261A4 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),FLAXEN,TRIM0# |
2 | ||
| 71910-0E261C2 |
GSU5#..N LE PACKAGE,BLACK,TRIM2# |
2 | ||
| 71930A - SUPPORT ASSY, FRONT SEAT HEADREST | ||||
| 71930-47020A7 |
GSU5#..N W(LOCK),LE PACKAGE,FLAXEN,TRIM0# |
2 | ||
| 71930-47020C0 |
ASU50,GSU5#,GVU58 W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47020A7 |
GVU58;GSU5#..G,M W/O(LOCK),FLAXEN,TRIM0# |
2 | ||
| 71931-47020A7 |
GSU5#..N W/O(LOCK),LE PACKAGE&SEAT HEATER-WITH(*DRP),FLAXEN,TRIM0# |
2 | ||
| 71930-47020A7 |
GVU58;GSU5#..G,M W(LOCK),FLAXEN,TRIM0# |
2 | ||
| 71931-47020C0 |
ASU50,GSU5#,GVU58 W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47020A7 |
GSU5#..N W/O(LOCK),LE PACKAGE,FLAXEN,TRIM0# |
2 | ||
| 71930-47020B5 |
ASU50,GSU5#,GVU58 W(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-47020A7 |
GSU5#..N W(LOCK),LE PACKAGE&SEAT HEATER-WITH(*DRP),FLAXEN,TRIM0# |
2 | ||
| 71931-47020B5 |
ASU50,GSU5#,GVU58 W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930A - SUPPORT ASSY, FRONT SEAT HEADREST | ||||
| 71930-47020A7 |
GSU5#..N W(LOCK),LE PACKAGE,FLAXEN,TRIM0# |
2 | ||
| 71930-47020C0 |
ASU50,GSU5#,GVU58 W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47020A7 |
GVU58;GSU5#..G,M W/O(LOCK),FLAXEN,TRIM0# |
2 | ||
| 71931-47020A7 |
GSU5#..N W/O(LOCK),LE PACKAGE&SEAT HEATER-WITH(*DRP),FLAXEN,TRIM0# |
2 | ||
| 71930-47020A7 |
GVU58;GSU5#..G,M W(LOCK),FLAXEN,TRIM0# |
2 | ||
| 71931-47020C0 |
ASU50,GSU5#,GVU58 W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47020A7 |
GSU5#..N W/O(LOCK),LE PACKAGE,FLAXEN,TRIM0# |
2 | ||
| 71930-47020B5 |
ASU50,GSU5#,GVU58 W(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-47020A7 |
GSU5#..N W(LOCK),LE PACKAGE&SEAT HEATER-WITH(*DRP),FLAXEN,TRIM0# |
2 | ||
| 71931-47020B5 |
ASU50,GSU5#,GVU58 W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-0E060 |
ASU50,GSU5#,GVU58 |
1 | ||
| 85860B - BLOWER ASSY, SEAT CUSHION CLIMATE CONTROL, LH | ||||
| 85860-0E030 |
GSU5#,GVU58..G |
1 | ||
| 85866C - DUCT, SEAT BACK CLIMATE CONTROL, LH | ||||
| 85866-0E020 |
GSU5#,GVU58..G |
1 | ||
| 85867A - BLOWER, SEAT BACK CLIMATE CONTROL, LH | ||||
| 85867-0E020 |
GSU5#,GVU58..G |
1 | ||
| 85868A - BRACKET, SEAT CUSHION CLIMATE CONTROL, LH | ||||
| 85868-0E020 |
GSU5#,GVU58..G |
1 | ||
| 87501B - CONTROL SUB-ASSY, SEAT HEATER, LH | ||||
| 87501-60040 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP) |
1 | ||
| 87501-60050 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP) |
1 | ||
| 87501-60040 |
GSU5#..G,M |
1 | ||
| 87501-60050 |
GSU5#..G,M |
1 | ||
| 87510L - HEATER ASSY, FRONT SEAT CUSHION, LH | ||||
| 87510-0E150 |
GSU5#,GVU58..G |
1 | ||
| 87510-0E140 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP) |
1 | ||
| 87510-0E140 |
GSU5#,GVU58..M |
1 | ||
| 87510N - HEATER ASSY, FRONT SEAT BACK, LH | ||||
| 87530-0E070 |
GSU5#,GVU58..M |
1 | ||
| 87530-0E070 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP) |
1 | ||
| 87530-0E080 |
GSU5#,GVU58..G |
1 | ||
| Common parts | ||||
| 90080-11132 | ||||
| 90080-16099 | ||||
| 90080-17200 | ||||
| 90080-46007 | ||||
| 90167-A0013 | ||||
| 90176-A0002 | ||||
| 93269-55010 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||
| 8421 | ||||
(1312- )
SEAT TRACK BRACKET COVER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-0E090C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM0#,1#,2# |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-0E080C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM0#,1#,2# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-0E050C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM0#,1#,2# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72128-0E070C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM0#,1#,2# |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-0E160C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM0#,1#,2# |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-0E090C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM0#,1#,2# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-0E050C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM0#,1#,2# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-0E070C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM0#,1#,2# |
1 | ||
| Common parts | ||||
| 90119-A0304 | ||||
(1312- )
SEAT COVER EDGE WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 71149-30050 | ||||
(1312-1611)M,N

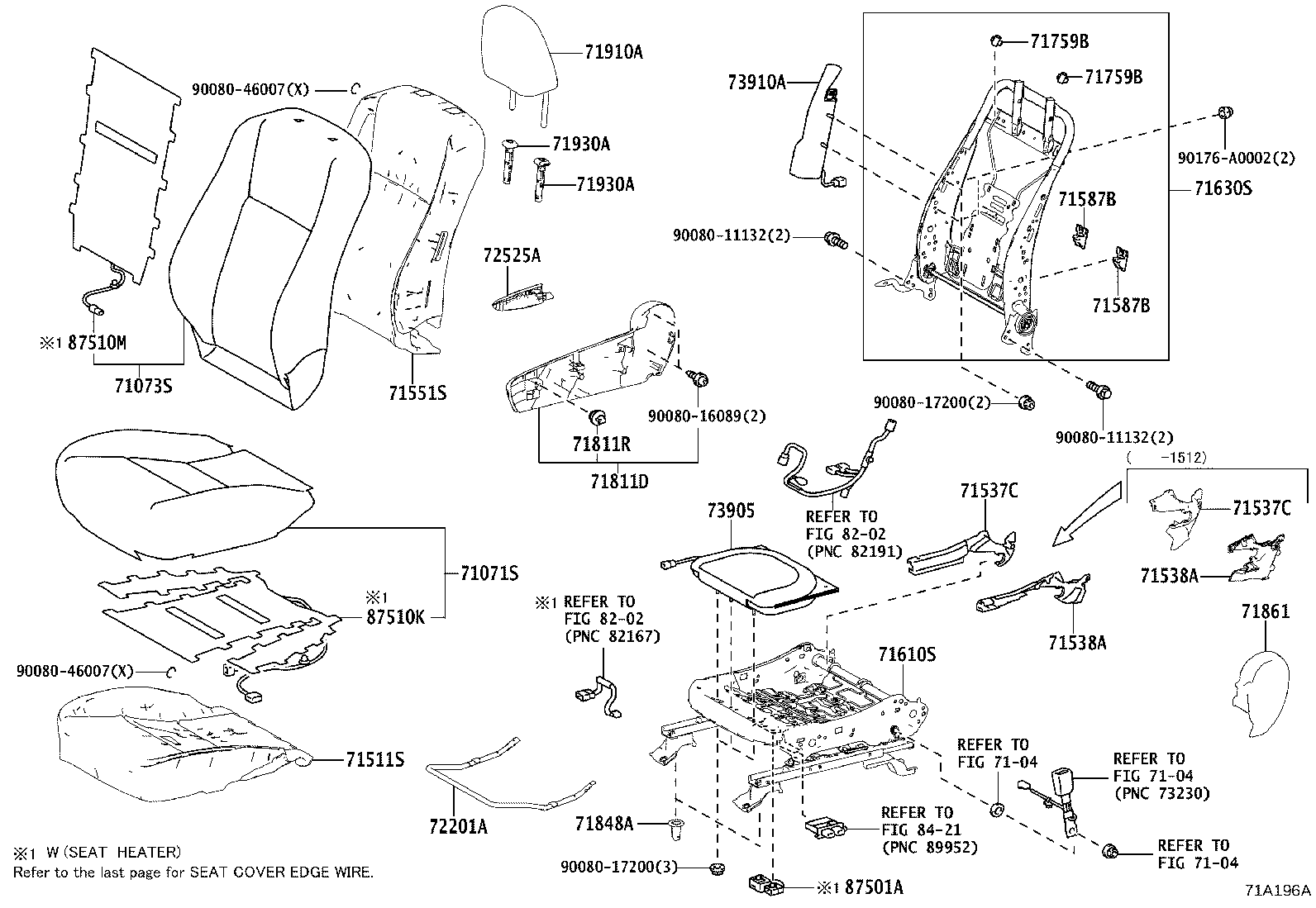

PASSENGER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-0E270A4 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),FLAXEN,TRIM0# |
1 | ||
| 71071-0E230B2 |
ASU50,GSU5#..N GRAY,TRIM1# |
1 | ||
| 71071-0E280B1 |
GSU5#,GVU58..M GRAY,TRIM1# |
1 | ||
| 71071-0E270C2 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),BLACK,TRIM2# |
1 | ||
| 71071-0E260B1 |
GSU5#..N LE PACKAGE,GRAY,TRIM1# |
1 | ||
| 71071-0E270B2 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),GRAY,TRIM1# |
1 | ||
| 71071-0E260A3 |
GSU5#..N LE PACKAGE,FLAXEN,TRIM0# |
1 | ||
| 71071-0E300B1 |
GSU5#,GVU58..G GRAY,TRIM1# |
1 | ||
| 71071-0E260C1 |
GSU5#..N LE PACKAGE,BLACK,TRIM2# |
1 | ||
| 71071-0E230C1 |
ASU50,GSU5#..N BLACK,TRIM2# |
1 | ||
| 71071-0E280C1 |
GSU5#,GVU58..M BLACK,TRIM2# |
1 | ||
| 71071-0E280A2 |
GSU5#,GVU58..M FLAXEN,TRIM0# |
1 | ||
| 71071-0E300C1 |
GSU5#,GVU58..G BLACK,TRIM2# |
1 | ||
| 71071-0E300A2 |
GSU5#,GVU58..G FLAXEN,TRIM0# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-0E290C1 |
GSU5#..N LE PACKAGE,BLACK,TRIM2# |
1 | ||
| 71073-0E300A3 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),FLAXEN,TRIM0# |
1 | ||
| 71073-0E270B1 |
ASU50,GSU5#..N GRAY,TRIM1# |
1 | ||
| 71073-0E310C0 |
GSU5#,GVU58..M BLACK,TRIM2# |
1 | ||
| 71073-0E310B0 |
GSU5#,GVU58..M GRAY,TRIM1# |
1 | ||
| 71073-0E270C1 |
ASU50,GSU5#..N BLACK,TRIM2# |
1 | ||
| 71073-0E290B1 |
GSU5#..N LE PACKAGE,GRAY,TRIM1# |
1 | ||
| 71073-0E310A1 |
GSU5#,GVU58..M FLAXEN,TRIM0# |
1 | ||
| 71073-0E320B0 |
GSU5#,GVU58..G GRAY,TRIM1# |
1 | ||
| 71073-0E320A1 |
GSU5#,GVU58..G FLAXEN,TRIM0# |
1 | ||
| 71073-0E300C1 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),BLACK,TRIM2# |
1 | ||
| 71073-0E320C0 |
GSU5#,GVU58..G BLACK,TRIM2# |
1 | ||
| 71073-0E290A2 |
GSU5#..N LE PACKAGE,FLAXEN,TRIM0# |
1 | ||
| 71073-0E300B1 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-0E110 |
ASU50,GSU5#,GVU58..M,N |
1 | ||
| 71501-0E020 |
GSU5#,GVU58..G |
1 | ||
| 71537C - PROTECTOR, FRONT SEAT CUSHION EDGE, RH | ||||
| 71537-0R010C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM2# |
1 | ||
| 71537-0R010A0 |
ASU50,GSU5#,GVU58 FLAXEN,TRIM0# |
1 | ||
| 71537-0E050B0 |
ASU50,GSU5#,GVU58 GRAY,TRIM1# |
1 | ||
| 71537-0R010B0 |
ASU50,GSU5#,GVU58 GRAY,TRIM1# |
1 | ||
| 71537-0E050A0 |
GSU5#,GVU58 FLAXEN,TRIM0# |
1 | ||
| 71537-0E050C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM2# |
1 | ||
| 71537C - PROTECTOR, FRONT SEAT CUSHION EDGE, RH | ||||
| 71537-0R010C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM2# |
1 | ||
| 71537-0R010A0 |
ASU50,GSU5#,GVU58 FLAXEN,TRIM0# |
1 | ||
| 71537-0E050B0 |
ASU50,GSU5#,GVU58 GRAY,TRIM1# |
1 | ||
| 71537-0R010B0 |
ASU50,GSU5#,GVU58 GRAY,TRIM1# |
1 | ||
| 71537-0E050A0 |
GSU5#,GVU58 FLAXEN,TRIM0# |
1 | ||
| 71537-0E050C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM2# |
1 | ||
| 71538A - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT) | ||||
| 71538-0R010A0 |
ASU50,GSU5#,GVU58 FLAXEN,TRIM0# |
1 | ||
| 71538-0R010B0 |
ASU50,GSU5#,GVU58 GRAY,TRIM1# |
1 | ||
| 71538-0E030B0 |
ASU50,GSU5#,GVU58 GRAY,TRIM1# |
1 | ||
| 71538-0E030A0 |
GSU5#,GVU58 FLAXEN,TRIM0# |
1 | ||
| 71538-0E030C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM2# |
1 | ||
| 71538-0R010C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM2# |
1 | ||
| 71538A - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT) | ||||
| 71538-0R010A0 |
ASU50,GSU5#,GVU58 FLAXEN,TRIM0# |
1 | ||
| 71538-0R010B0 |
ASU50,GSU5#,GVU58 GRAY,TRIM1# |
1 | ||
| 71538-0E030B0 |
ASU50,GSU5#,GVU58 GRAY,TRIM1# |
1 | ||
| 71538-0E030A0 |
GSU5#,GVU58 FLAXEN,TRIM0# |
1 | ||
| 71538-0E030C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM2# |
1 | ||
| 71538-0R010C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM2# |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-0E090 |
ASU50,GSU5#,GVU58..M,N |
1 | ||
| 71505-0E010 |
GSU5#,GVU58..G |
1 | ||
| 71587B - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-52030 |
ASU50,GSU5#,GVU58 |
4 | ||
| 71587B - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-52030 |
ASU50,GSU5#,GVU58 |
4 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-0E090 |
GSU5#,GVU58..G |
1 | ||
| 71610-0E050 |
ASU50,GSU5#,GVU58..N |
1 | ||
| 71610-0E060 |
GSU5#,GVU58..M |
1 | ||
| 71610-0E060 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP) |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-0E030 |
ASU50,GSU5#,GVU58..M,N |
1 | ||
| 71630-0E050 |
GSU5#,GVU58..G |
1 | ||
| 71759B - HOOK, FRONT SEAT BACK | ||||
| 71759-0E010 |
ASU50,GSU5#,GVU58 |
4 | ||
| 71759B - HOOK, FRONT SEAT BACK | ||||
| 71759-0E010 |
ASU50,GSU5#,GVU58 |
4 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-0E120B0 |
ASU50,GSU5#,GVU58..M,N GRAY,TRIM1# |
1 | ||
| 71811-0E140A0 |
GSU5#,GVU58..G FLAXEN,TRIM0# |
1 | ||
| 71811-0E120C0 |
ASU50,GSU5#,GVU58..M,N BLACK,TRIM2# |
1 | ||
| 71811-0E140B0 |
GSU5#,GVU58..G GRAY,TRIM1# |
1 | ||
| 71811-0E120A0 |
ASU50,GSU5#,GVU58..M,N FLAXEN,TRIM0# |
1 | ||
| 71811-0E140C0 |
GSU5#,GVU58..G BLACK,TRIM2# |
1 | ||
| 71811R - CLIP, FRONT SEAT CUSHION SHIELD, RH | ||||
| 71769-47020 |
ASU50,GSU5#,GVU58 |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-33010 |
ASU50,GSU5#,GVU58 |
2 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-0E070C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM2# |
1 | ||
| 71861-0E070A0 |
ASU50,GSU5#,GVU58 FLAXEN,TRIM0# |
1 | ||
| 71861-0E070B0 |
ASU50,GSU5#,GVU58 GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0E260A4 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),FLAXEN,TRIM0# |
2 | ||
| 71910-0E260C2 |
GVU58;GSU5#..G,M BLACK,TRIM2# |
2 | ||
| 71910-0E260A4 |
GSU5#..N LE PACKAGE,FLAXEN,TRIM0# |
2 | ||
| 71910-0E260C2 |
GSU5#..N LE PACKAGE,BLACK,TRIM2# |
2 | ||
| 71910-0E260B2 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),GRAY,TRIM1# |
2 | ||
| 71910-0E261A4 |
GSU5#..N LE PACKAGE,FLAXEN,TRIM0# |
2 | ||
| 71910-0E260A4 |
GVU58;GSU5#..G,M FLAXEN,TRIM0# |
2 | ||
| 71910-0E250B0 |
ASU50,GSU5#..N GRAY,TRIM1# |
2 | ||
| 71910-0E261B2 |
GVU58;GSU5#..G,M GRAY,TRIM1# |
2 | ||
| 71910-0E261A4 |
GVU58;GSU5#..G,M FLAXEN,TRIM0# |
2 | ||
| 71910-0E250C0 |
ASU50,GSU5#..N BLACK,TRIM2# |
2 | ||
| 71910-0E260B2 |
GVU58;GSU5#..G,M GRAY,TRIM1# |
2 | ||
| 71910-0E260B2 |
GSU5#..N LE PACKAGE,GRAY,TRIM1# |
2 | ||
| 71910-0E260C2 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),BLACK,TRIM2# |
2 | ||
| 71910-0E261B2 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),GRAY,TRIM1# |
2 | ||
| 71910-0E261B2 |
GSU5#..N LE PACKAGE,GRAY,TRIM1# |
2 | ||
| 71910-0E261C2 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),BLACK,TRIM2# |
2 | ||
| 71910-0E261C2 |
GVU58;GSU5#..G,M BLACK,TRIM2# |
2 | ||
| 71910-0E261A4 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),FLAXEN,TRIM0# |
2 | ||
| 71910-0E261C2 |
GSU5#..N LE PACKAGE,BLACK,TRIM2# |
2 | ||
| 71930A - SUPPORT ASSY, FRONT SEAT HEADREST | ||||
| 71930-47020A7 |
GSU5#..N W(LOCK),LE PACKAGE,FLAXEN,TRIM0# |
2 | ||
| 71930-47020C0 |
ASU50,GSU5#,GVU58 W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47020A7 |
GVU58;GSU5#..G,M W/O(LOCK),FLAXEN,TRIM0# |
2 | ||
| 71931-47020A7 |
GSU5#..N W/O(LOCK),LE PACKAGE&SEAT HEATER-WITH(*DRP),FLAXEN,TRIM0# |
2 | ||
| 71930-47020A7 |
GVU58;GSU5#..G,M W(LOCK),FLAXEN,TRIM0# |
2 | ||
| 71931-47020C0 |
ASU50,GSU5#,GVU58 W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47020A7 |
GSU5#..N W/O(LOCK),LE PACKAGE,FLAXEN,TRIM0# |
2 | ||
| 71930-47020B5 |
ASU50,GSU5#,GVU58 W(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-47020A7 |
GSU5#..N W(LOCK),LE PACKAGE&SEAT HEATER-WITH(*DRP),FLAXEN,TRIM0# |
2 | ||
| 71931-47020B5 |
ASU50,GSU5#,GVU58 W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930A - SUPPORT ASSY, FRONT SEAT HEADREST | ||||
| 71930-47020A7 |
GSU5#..N W(LOCK),LE PACKAGE,FLAXEN,TRIM0# |
2 | ||
| 71930-47020C0 |
ASU50,GSU5#,GVU58 W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47020A7 |
GVU58;GSU5#..G,M W/O(LOCK),FLAXEN,TRIM0# |
2 | ||
| 71931-47020A7 |
GSU5#..N W/O(LOCK),LE PACKAGE&SEAT HEATER-WITH(*DRP),FLAXEN,TRIM0# |
2 | ||
| 71930-47020A7 |
GVU58;GSU5#..G,M W(LOCK),FLAXEN,TRIM0# |
2 | ||
| 71931-47020C0 |
ASU50,GSU5#,GVU58 W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47020A7 |
GSU5#..N W/O(LOCK),LE PACKAGE,FLAXEN,TRIM0# |
2 | ||
| 71930-47020B5 |
ASU50,GSU5#,GVU58 W(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-47020A7 |
GSU5#..N W(LOCK),LE PACKAGE&SEAT HEATER-WITH(*DRP),FLAXEN,TRIM0# |
2 | ||
| 71931-47020B5 |
ASU50,GSU5#,GVU58 W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 72201A - HANDLE SUB-ASSY, SEAT TRACK RH | ||||
| 72211-08020 |
ASU50,GSU5#,GVU58..M,N |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-0R020C0 |
ASU50,GSU5#,GVU58..M,N BLACK,TRIM2# |
1 | ||
| 72525-0R020A0 |
ASU50,GSU5#,GVU58..M,N FLAXEN,TRIM0# |
1 | ||
| 72525-0R020B0 |
ASU50,GSU5#,GVU58..M,N GRAY,TRIM1# |
1 | ||
| 73905 - AIR BAG SUB-ASSY, FRONT SEAT, RH | ||||
| 73905-0E010 |
ASU50,GSU5#,GVU58 |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-0E060 |
ASU50,GSU5#,GVU58 |
1 | ||
| 87501A - CONTROL SUB-ASSY, SEAT HEATER, RH | ||||
| 87501-60040 |
GSU5#,GVU58..G,M |
1 | ||
| 87501-60040 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP) |
1 | ||
| 87501-60050 |
GSU5#,GVU58..G,M |
1 | ||
| 87501-60050 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP) |
1 | ||
| 87510K - HEATER ASSY, FRONT SEAT CUSHION, RH | ||||
| 87510-0E120 |
GSU5#,GVU58..M |
1 | ||
| 87510-0E120 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP) |
1 | ||
| 87510-0E130 |
GSU5#,GVU58..G |
1 | ||
| 87510M - HEATER ASSY, FRONT SEAT BACK, RH | ||||
| 87530-0E080 |
GSU5#,GVU58..G |
1 | ||
| 87530-0E070 |
GSU5#,GVU58..M |
1 | ||
| 87530-0E070 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP) |
1 | ||
| Common parts | ||||
| 90080-11132 | ||||
| 90080-16089 | ||||
| 90080-17200 | ||||
| 90080-46007 | ||||
| 90176-A0002 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8421 | ||||
(1312-1611)G
PASSENGER SEAT W(POWER SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-0E270A4 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),FLAXEN,TRIM0# |
1 | ||
| 71071-0E230B2 |
ASU50,GSU5#..N GRAY,TRIM1# |
1 | ||
| 71071-0E280B1 |
GSU5#,GVU58..M GRAY,TRIM1# |
1 | ||
| 71071-0E270C2 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),BLACK,TRIM2# |
1 | ||
| 71071-0E260B1 |
GSU5#..N LE PACKAGE,GRAY,TRIM1# |
1 | ||
| 71071-0E270B2 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),GRAY,TRIM1# |
1 | ||
| 71071-0E260A3 |
GSU5#..N LE PACKAGE,FLAXEN,TRIM0# |
1 | ||
| 71071-0E300B1 |
GSU5#,GVU58..G GRAY,TRIM1# |
1 | ||
| 71071-0E260C1 |
GSU5#..N LE PACKAGE,BLACK,TRIM2# |
1 | ||
| 71071-0E230C1 |
ASU50,GSU5#..N BLACK,TRIM2# |
1 | ||
| 71071-0E280C1 |
GSU5#,GVU58..M BLACK,TRIM2# |
1 | ||
| 71071-0E280A2 |
GSU5#,GVU58..M FLAXEN,TRIM0# |
1 | ||
| 71071-0E300C1 |
GSU5#,GVU58..G BLACK,TRIM2# |
1 | ||
| 71071-0E300A2 |
GSU5#,GVU58..G FLAXEN,TRIM0# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-0E290C1 |
GSU5#..N LE PACKAGE,BLACK,TRIM2# |
1 | ||
| 71073-0E300A3 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),FLAXEN,TRIM0# |
1 | ||
| 71073-0E270B1 |
ASU50,GSU5#..N GRAY,TRIM1# |
1 | ||
| 71073-0E310C0 |
GSU5#,GVU58..M BLACK,TRIM2# |
1 | ||
| 71073-0E310B0 |
GSU5#,GVU58..M GRAY,TRIM1# |
1 | ||
| 71073-0E270C1 |
ASU50,GSU5#..N BLACK,TRIM2# |
1 | ||
| 71073-0E290B1 |
GSU5#..N LE PACKAGE,GRAY,TRIM1# |
1 | ||
| 71073-0E310A1 |
GSU5#,GVU58..M FLAXEN,TRIM0# |
1 | ||
| 71073-0E320B0 |
GSU5#,GVU58..G GRAY,TRIM1# |
1 | ||
| 71073-0E320A1 |
GSU5#,GVU58..G FLAXEN,TRIM0# |
1 | ||
| 71073-0E300C1 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),BLACK,TRIM2# |
1 | ||
| 71073-0E320C0 |
GSU5#,GVU58..G BLACK,TRIM2# |
1 | ||
| 71073-0E290A2 |
GSU5#..N LE PACKAGE,FLAXEN,TRIM0# |
1 | ||
| 71073-0E300B1 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),GRAY,TRIM1# |
1 | ||
| 71430C - CLIP | ||||
| 90467-A0002C0 |
GSU5#,GVU58..G BLACK |
2 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-0E110 |
ASU50,GSU5#,GVU58..M,N |
1 | ||
| 71501-0E020 |
GSU5#,GVU58..G |
1 | ||
| 71537C - PROTECTOR, FRONT SEAT CUSHION EDGE, RH | ||||
| 71537-0R010C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM2# |
1 | ||
| 71537-0R010A0 |
ASU50,GSU5#,GVU58 FLAXEN,TRIM0# |
1 | ||
| 71537-0E050B0 |
ASU50,GSU5#,GVU58 GRAY,TRIM1# |
1 | ||
| 71537-0R010B0 |
ASU50,GSU5#,GVU58 GRAY,TRIM1# |
1 | ||
| 71537-0E050A0 |
GSU5#,GVU58 FLAXEN,TRIM0# |
1 | ||
| 71537-0E050C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM2# |
1 | ||
| 71537C - PROTECTOR, FRONT SEAT CUSHION EDGE, RH | ||||
| 71537-0R010C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM2# |
1 | ||
| 71537-0R010A0 |
ASU50,GSU5#,GVU58 FLAXEN,TRIM0# |
1 | ||
| 71537-0E050B0 |
ASU50,GSU5#,GVU58 GRAY,TRIM1# |
1 | ||
| 71537-0R010B0 |
ASU50,GSU5#,GVU58 GRAY,TRIM1# |
1 | ||
| 71537-0E050A0 |
GSU5#,GVU58 FLAXEN,TRIM0# |
1 | ||
| 71537-0E050C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM2# |
1 | ||
| 71538A - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT) | ||||
| 71538-0R010A0 |
ASU50,GSU5#,GVU58 FLAXEN,TRIM0# |
1 | ||
| 71538-0R010B0 |
ASU50,GSU5#,GVU58 GRAY,TRIM1# |
1 | ||
| 71538-0E030B0 |
ASU50,GSU5#,GVU58 GRAY,TRIM1# |
1 | ||
| 71538-0E030A0 |
GSU5#,GVU58 FLAXEN,TRIM0# |
1 | ||
| 71538-0E030C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM2# |
1 | ||
| 71538-0R010C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM2# |
1 | ||
| 71538A - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT) | ||||
| 71538-0R010A0 |
ASU50,GSU5#,GVU58 FLAXEN,TRIM0# |
1 | ||
| 71538-0R010B0 |
ASU50,GSU5#,GVU58 GRAY,TRIM1# |
1 | ||
| 71538-0E030B0 |
ASU50,GSU5#,GVU58 GRAY,TRIM1# |
1 | ||
| 71538-0E030A0 |
GSU5#,GVU58 FLAXEN,TRIM0# |
1 | ||
| 71538-0E030C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM2# |
1 | ||
| 71538-0R010C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM2# |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-0E090 |
ASU50,GSU5#,GVU58..M,N |
1 | ||
| 71505-0E010 |
GSU5#,GVU58..G |
1 | ||
| 71587B - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-52030 |
ASU50,GSU5#,GVU58 |
4 | ||
| 71587B - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-52030 |
ASU50,GSU5#,GVU58 |
4 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-0E090 |
GSU5#,GVU58..G |
1 | ||
| 71610-0E050 |
ASU50,GSU5#,GVU58..N |
1 | ||
| 71610-0E060 |
GSU5#,GVU58..M |
1 | ||
| 71610-0E060 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP) |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-0E030 |
ASU50,GSU5#,GVU58..M,N |
1 | ||
| 71630-0E050 |
GSU5#,GVU58..G |
1 | ||
| 71759B - HOOK, FRONT SEAT BACK | ||||
| 71759-0E010 |
ASU50,GSU5#,GVU58 |
4 | ||
| 71759B - HOOK, FRONT SEAT BACK | ||||
| 71759-0E010 |
ASU50,GSU5#,GVU58 |
4 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-0E120B0 |
ASU50,GSU5#,GVU58..M,N GRAY,TRIM1# |
1 | ||
| 71811-0E140A0 |
GSU5#,GVU58..G FLAXEN,TRIM0# |
1 | ||
| 71811-0E120C0 |
ASU50,GSU5#,GVU58..M,N BLACK,TRIM2# |
1 | ||
| 71811-0E140B0 |
GSU5#,GVU58..G GRAY,TRIM1# |
1 | ||
| 71811-0E120A0 |
ASU50,GSU5#,GVU58..M,N FLAXEN,TRIM0# |
1 | ||
| 71811-0E140C0 |
GSU5#,GVU58..G BLACK,TRIM2# |
1 | ||
| 71811R - CLIP, FRONT SEAT CUSHION SHIELD, RH | ||||
| 71769-47020 |
ASU50,GSU5#,GVU58 |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-33010 |
ASU50,GSU5#,GVU58 |
2 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-0E070C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM2# |
1 | ||
| 71861-0E070A0 |
ASU50,GSU5#,GVU58 FLAXEN,TRIM0# |
1 | ||
| 71861-0E070B0 |
ASU50,GSU5#,GVU58 GRAY,TRIM1# |
1 | ||
| 71861B - CLIP(FOR FRONT SEAT SHIELD, RH) | ||||
| 71769-47020 |
GSU5#,GVU58..G |
1 | ||
| 71867C - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-0E070A0 |
GSU5#,GVU58..G FLAXEN,TRIM0# |
1 | ||
| 71867-0E070C0 |
GSU5#,GVU58..G BLACK,TRIM2# |
1 | ||
| 71867-0E070B0 |
GSU5#,GVU58..G GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0E260A4 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),FLAXEN,TRIM0# |
2 | ||
| 71910-0E260C2 |
GVU58;GSU5#..G,M BLACK,TRIM2# |
2 | ||
| 71910-0E260A4 |
GSU5#..N LE PACKAGE,FLAXEN,TRIM0# |
2 | ||
| 71910-0E260C2 |
GSU5#..N LE PACKAGE,BLACK,TRIM2# |
2 | ||
| 71910-0E260B2 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),GRAY,TRIM1# |
2 | ||
| 71910-0E261A4 |
GSU5#..N LE PACKAGE,FLAXEN,TRIM0# |
2 | ||
| 71910-0E260A4 |
GVU58;GSU5#..G,M FLAXEN,TRIM0# |
2 | ||
| 71910-0E250B0 |
ASU50,GSU5#..N GRAY,TRIM1# |
2 | ||
| 71910-0E261B2 |
GVU58;GSU5#..G,M GRAY,TRIM1# |
2 | ||
| 71910-0E261A4 |
GVU58;GSU5#..G,M FLAXEN,TRIM0# |
2 | ||
| 71910-0E250C0 |
ASU50,GSU5#..N BLACK,TRIM2# |
2 | ||
| 71910-0E260B2 |
GVU58;GSU5#..G,M GRAY,TRIM1# |
2 | ||
| 71910-0E260B2 |
GSU5#..N LE PACKAGE,GRAY,TRIM1# |
2 | ||
| 71910-0E260C2 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),BLACK,TRIM2# |
2 | ||
| 71910-0E261B2 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),GRAY,TRIM1# |
2 | ||
| 71910-0E261B2 |
GSU5#..N LE PACKAGE,GRAY,TRIM1# |
2 | ||
| 71910-0E261C2 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),BLACK,TRIM2# |
2 | ||
| 71910-0E261C2 |
GVU58;GSU5#..G,M BLACK,TRIM2# |
2 | ||
| 71910-0E261A4 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP),FLAXEN,TRIM0# |
2 | ||
| 71910-0E261C2 |
GSU5#..N LE PACKAGE,BLACK,TRIM2# |
2 | ||
| 71930A - SUPPORT ASSY, FRONT SEAT HEADREST | ||||
| 71930-47020A7 |
GSU5#..N W(LOCK),LE PACKAGE,FLAXEN,TRIM0# |
2 | ||
| 71930-47020C0 |
ASU50,GSU5#,GVU58 W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47020A7 |
GVU58;GSU5#..G,M W/O(LOCK),FLAXEN,TRIM0# |
2 | ||
| 71931-47020A7 |
GSU5#..N W/O(LOCK),LE PACKAGE&SEAT HEATER-WITH(*DRP),FLAXEN,TRIM0# |
2 | ||
| 71930-47020A7 |
GVU58;GSU5#..G,M W(LOCK),FLAXEN,TRIM0# |
2 | ||
| 71931-47020C0 |
ASU50,GSU5#,GVU58 W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47020A7 |
GSU5#..N W/O(LOCK),LE PACKAGE,FLAXEN,TRIM0# |
2 | ||
| 71930-47020B5 |
ASU50,GSU5#,GVU58 W(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-47020A7 |
GSU5#..N W(LOCK),LE PACKAGE&SEAT HEATER-WITH(*DRP),FLAXEN,TRIM0# |
2 | ||
| 71931-47020B5 |
ASU50,GSU5#,GVU58 W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930A - SUPPORT ASSY, FRONT SEAT HEADREST | ||||
| 71930-47020A7 |
GSU5#..N W(LOCK),LE PACKAGE,FLAXEN,TRIM0# |
2 | ||
| 71930-47020C0 |
ASU50,GSU5#,GVU58 W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47020A7 |
GVU58;GSU5#..G,M W/O(LOCK),FLAXEN,TRIM0# |
2 | ||
| 71931-47020A7 |
GSU5#..N W/O(LOCK),LE PACKAGE&SEAT HEATER-WITH(*DRP),FLAXEN,TRIM0# |
2 | ||
| 71930-47020A7 |
GVU58;GSU5#..G,M W(LOCK),FLAXEN,TRIM0# |
2 | ||
| 71931-47020C0 |
ASU50,GSU5#,GVU58 W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47020A7 |
GSU5#..N W/O(LOCK),LE PACKAGE,FLAXEN,TRIM0# |
2 | ||
| 71930-47020B5 |
ASU50,GSU5#,GVU58 W(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-47020A7 |
GSU5#..N W(LOCK),LE PACKAGE&SEAT HEATER-WITH(*DRP),FLAXEN,TRIM0# |
2 | ||
| 71931-47020B5 |
ASU50,GSU5#,GVU58 W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 73905 - AIR BAG SUB-ASSY, FRONT SEAT, RH | ||||
| 73905-0E010 |
ASU50,GSU5#,GVU58 |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-0E060 |
ASU50,GSU5#,GVU58 |
1 | ||
| 85860A - BLOWER ASSY, SEAT CUSHION CLIMATE CONTROL, RH | ||||
| 85860-0E020 |
GSU5#,GVU58..G |
1 | ||
| 85866 - DUCT, SEAT CUSHION CLIMATE CONTROL, RH | ||||
| 85866-0E030 |
GSU5#,GVU58..G |
1 | ||
| 85867 - BLOWER, SEAT BACK CLIMATE CONTROL, RH | ||||
| 85867-0E030 |
GSU5#,GVU58..G |
1 | ||
| 85868 - BRACKET, SEAT CUSHION CLIMATE CONTROL, RH | ||||
| 85868-0E020 |
GSU5#,GVU58..G |
1 | ||
| 87501A - CONTROL SUB-ASSY, SEAT HEATER, RH | ||||
| 87501-60040 |
GSU5#,GVU58..G,M |
1 | ||
| 87501-60040 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP) |
1 | ||
| 87501-60050 |
GSU5#,GVU58..G,M |
1 | ||
| 87501-60050 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP) |
1 | ||
| 87510K - HEATER ASSY, FRONT SEAT CUSHION, RH | ||||
| 87510-0E120 |
GSU5#,GVU58..M |
1 | ||
| 87510-0E120 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP) |
1 | ||
| 87510-0E130 |
GSU5#,GVU58..G |
1 | ||
| 87510M - HEATER ASSY, FRONT SEAT BACK, RH | ||||
| 87530-0E080 |
GSU5#,GVU58..G |
1 | ||
| 87530-0E070 |
GSU5#,GVU58..M |
1 | ||
| 87530-0E070 |
GSU5#..N LE PACKAGE&SEAT HEATER-WITH(*DRP) |
1 | ||
| Common parts | ||||
| 90080-11132 | ||||
| 90080-16099 | ||||
| 90080-17200 | ||||
| 90080-46007 | ||||
| 90176-A0002 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||
| 8421 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
