GSU50L-ARTNKA (2013)
Toyota Highlander (Nap)
ILLUST NO. 1 OF 2(1312- )
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-0E110 |
ASU50,GSU5#,GVU58 |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09124 |
ASU50,GSU5#,GVU58 |
4 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-0E110 |
ASU50,GSU5#,GVU58 |
1 | ||
| 67002-0E110 |
ASU50,GSU5#,GVU58 |
1 | ||
| 67002-0E100 |
ASU50,GSU5#,GVU58 |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-0E050 |
ASU50,GSU5#,GVU58 |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-0E050 |
ASU50,GSU5#,GVU58 |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-0E010 |
ASU50,GSU5#,GVU58 |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-0E010 |
ASU50,GSU5#,GVU58 |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-0E060 |
ASU50,GSU5#,GVU58 |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-0E050 |
ASU50,GSU5#,GVU58 |
1 | ||
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-0E040 |
ASU50,GSU5#,GVU58 |
1 | ||
| 67491F - CLIP(FOR DOOR TRIM) | ||||
| 90467-10167 |
ASU50,GSU5#,GVU58 |
4 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-0E040 |
ASU50,GSU5#,GVU58 |
1 | ||
| 67663D - GARNISH, DOOR FRAME, RH | ||||
| 67663-0E040 |
ASU50,GSU5#,GVU58 |
1 | ||
| 67664C - GARNISH, DOOR FRAME, LH | ||||
| 67663-0E040 |
ASU50,GSU5#,GVU58 |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-0E060 |
ASU50,GSU5#,GVU58 |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-0E060 |
ASU50,GSU5#,GVU58 |
1 | ||
| 67837A - SEAL, FRONT DOOR VENT, RH | ||||
| 67837-0E030 |
ASU50,GSU5#,GVU58 |
1 | ||
| 67837-0E080 |
ASU50,GSU5#,GVU58 |
1 | ||
| 67838A - SEAL, FRONT DOOR VENT, LH | ||||
| 67837-0E030 |
ASU50,GSU5#,GVU58 |
1 | ||
| 67838-0E020 |
ASU50,GSU5#,GVU58 |
1 | ||
| 67855D - PROTECTOR, FRONT DOOR PANEL, RH | ||||
| 67855-0E020 |
ASU50,GSU5#,GVU58 |
1 | ||
| 67855-0E022 |
ASU50,GSU5#,GVU58 |
1 | ||
| 67855-0E021 |
ASU50,GSU5#,GVU58 |
1 | ||
| 67856D - PROTECTOR, FRONT DOOR PANEL, LH | ||||
| 67856-0E010 |
ASU50,GSU5#,GVU58 |
1 | ||
| 67856-0E011 |
ASU50,GSU5#,GVU58 |
1 | ||
| 67856-0E012 |
ASU50,GSU5#,GVU58 |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-0E060 |
ASU50,GSU5#,GVU58 |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-0E060 |
ASU50,GSU5#,GVU58 |
1 | ||
| 67867 - CLIP, DOOR WEATHERSTRIP | ||||
| 90467-A0027 |
ASU50,GSU5#,GVU58 |
2 | ||
| 90467-04034 |
ASU50,GSU5#,GVU58 |
2 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
ASU50,GSU5#,GVU58 |
17 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
ASU50,GSU5#,GVU58 |
17 | ||
| 67923 - CUSHION, FRONT DOOR STIFFENER, NO.1 | ||||
| 67923-0E060 |
ASU50,GSU5#,GVU58 |
1 | ||
| 67924 - CUSHION, FRONT DOOR STIFFENER, NO.2 | ||||
| 67924-0E030 |
ASU50,GSU5#,GVU58 |
1 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-0E060 |
ASU50,GSU5#,GVU58 *HSEAT,T=5.0,GREEN |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-0E060 |
ASU50,GSU5#,GVU58 *HSEAT,T=5.0,GREEN |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-0E050 |
ASU50,GSU5#,GVU58 |
1 | ||
| 68151D - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-0E050 |
ASU50,GSU5#,GVU58 |
1 | ||
| 68610B - CHECK ASSY, FRONT DOOR, RH | ||||
| 68610-0E060 |
ASU50,GSU5#,GVU58 |
1 | ||
| 68620 - CHECK ASSY, FRONT DOOR, LH | ||||
| 68620-0E060 |
ASU50,GSU5#,GVU58 |
1 | ||
| 75929 - TAPE, BLACK OUT FRONT DOOR, INNER UPPER RH | ||||
| 75929-0E030 |
ASU50,GSU5#,GVU58 |
1 | ||
| 75939 - TAPE, BLACK OUT FRONT DOOR, INNER UPPER LH | ||||
| 75939-0E030 |
ASU50,GSU5#,GVU58 |
1 | ||
| 75968 - TAPE, BLACK OUT FRONT DOOR, INNER REAR RH | ||||
| 75968-0E030 |
ASU50,GSU5#,GVU58 |
1 | ||
| 75969 - TAPE, BLACK OUT FRONT DOOR, INNER REAR LH | ||||
| 75969-0E030 |
ASU50,GSU5#,GVU58 |
1 | ||
| Common parts | ||||
| 90084-10049 | ||||
| 90119-A0237 | ||||
| 90119-A0247 | ||||
| 90178-A0023 | ||||
| 90333-20001 | ||||
| 90387-08171 | ||||
| 90950-01911 | ||||
| 90950-01A02 | ||||
| 90950-01A05 | ||||

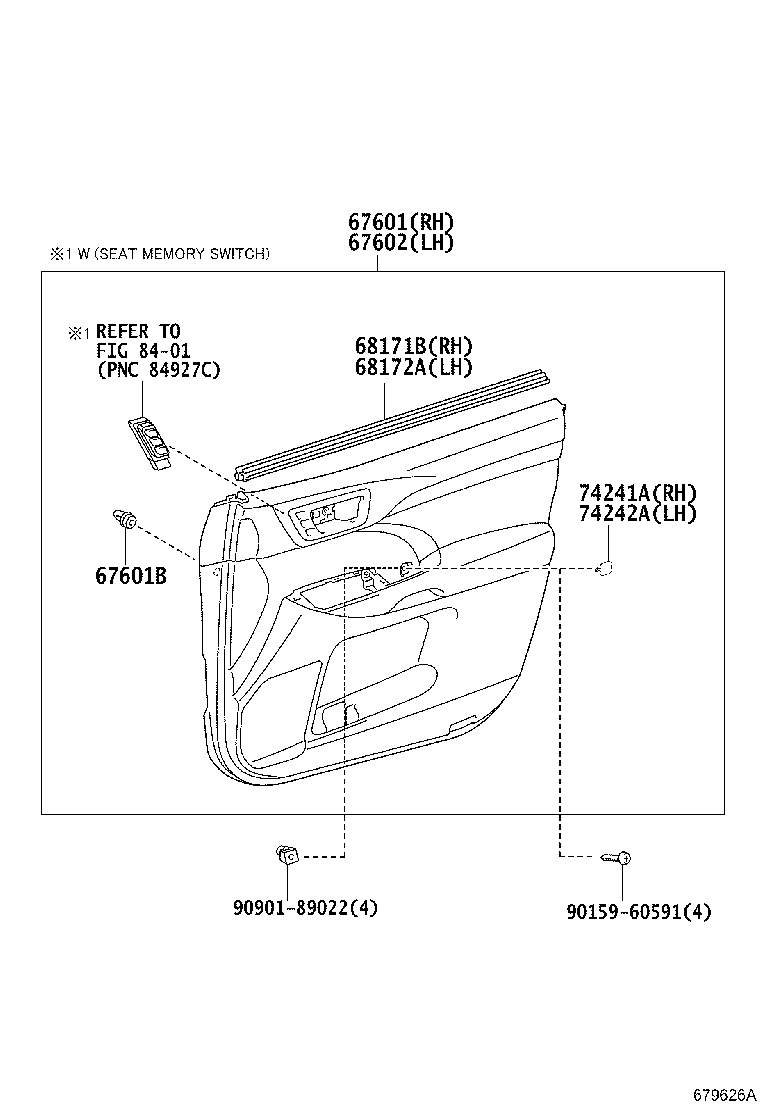

ILLUST NO. 2 OF 2(1312- )
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-0E290C1 |
GSU5#..N LE PACKAGE&AUDIO-6.1INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM),GRAY,TRIM1# |
1 | ||
| 67610-0E300C3 |
GSU5#,GVU58..G AUDIO-6.1INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM),FLAXEN,TRIM0# |
1 | ||
| 67610-0E280C1 |
ASU50,GSU5#..N GRAY,TRIM1# |
1 | ||
| 67610-0E300C2 |
GSU5#,GVU58..G AUDIO-6.1INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM),BLACK,TRIM2# |
1 | ||
| 67610-0E290C1 |
GSU5#..M;GVU58..M,N GRAY,TRIM1# |
1 | ||
| 67610-0E290C6 |
GSU5#..M;GVU58..M,N FLAXEN,TRIM0# |
1 | ||
| 67610-0E300C1 |
GSU5#,GVU58..G AUDIO-6.1INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM),GRAY,TRIM1# |
1 | ||
| 67610-0E290C1 |
GSU5#..N LE PACKAGE&AUDIO-8INCH MONITOR AVN 6SPEKAER,GRAY,TRIM1# |
1 | ||
| 67610-0E290C2 |
GSU5#..N LE PACKAGE&AUDIO-6.1INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM),BLACK,TRIM2# |
1 | ||
| 67610-0E290C6 |
GSU5#..N LE PACKAGE&AUDIO-6.1INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM),FLAXEN,TRIM0# |
1 | ||
| 67610-0E290C2 |
GSU5#..N LE PACKAGE&AUDIO-8INCH MONITOR AVN 6SPEKAER,BLACK,TRIM2# |
1 | ||
| 67610-0E320C1 |
GSU5#,GVU58..G GRAY,TRIM1# |
1 | ||
| 67610-0E290C6 |
GSU5#..N LE PACKAGE&AUDIO-8INCH MONITOR AVN 6SPEKAER,FLAXEN,TRIM0# |
1 | ||
| 67610-0E280C2 |
ASU50,GSU5#..N BLACK,TRIM2# |
1 | ||
| 67610-0E300C1 |
GSU5#,GVU58..G AUDIO-8INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM),GRAY,TRIM1# |
1 | ||
| 67610-0E290C1 |
GSU5#..N LE PACKAGE&AUDIO-8INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM),GRAY,TRIM1# |
1 | ||
| 67610-0E290C6 |
GSU5#..N LE PACKAGE&AUDIO-8INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM),FLAXEN,TRIM0# |
1 | ||
| 67610-0E290C2 |
GSU5#..M;GVU58..M,N BLACK,TRIM2# |
1 | ||
| 67610-0E290C2 |
GSU5#..N LE PACKAGE&AUDIO-8INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM),BLACK,TRIM2# |
1 | ||
| 67610-0E300C2 |
GSU5#,GVU58..G AUDIO-8INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM),BLACK,TRIM2# |
1 | ||
| 67610-0E580C1 |
GSU5#..M;GVU58..M,N GRAY,TRIM1# |
1 | ||
| 67610-0E580C1 |
GSU5#..N LE PACKAGE&AUDIO-8INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM),GRAY,TRIM1# |
1 | ||
| 67610-0E580C0 |
GSU5#..M;GVU58..M,N FLAXEN,TRIM0# |
1 | ||
| 67610-0E300C3 |
GSU5#,GVU58..G AUDIO-8INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM),FLAXEN,TRIM0# |
1 | ||
| 67610-0E580C1 |
GSU5#..N LE PACKAGE&AUDIO-8INCH MONITOR AVN 6SPEKAER,GRAY,TRIM1# |
1 | ||
| 67610-0E580C2 |
GSU5#..N LE PACKAGE&AUDIO-8INCH MONITOR AVN 6SPEKAER,BLACK,TRIM2# |
1 | ||
| 67610-0E610C1 |
GSU5#,GVU58..G GRAY,TRIM1# |
1 | ||
| 67610-0E320C2 |
GSU5#,GVU58..G BLACK,TRIM2# |
1 | ||
| 67610-0E320C3 |
GSU5#,GVU58..G FLAXEN,TRIM0# |
1 | ||
| 67610-0E580C2 |
GSU5#..M;GVU58..M,N BLACK,TRIM2# |
1 | ||
| 67610-0E580C0 |
GSU5#..N LE PACKAGE&AUDIO-8INCH MONITOR AVN 6SPEKAER,FLAXEN,TRIM0# |
1 | ||
| 67610-0E570C0 |
ASU50,GSU5#..N GRAY,TRIM1# |
1 | ||
| 67610-0E610C2 |
GSU5#,GVU58..G BLACK,TRIM2# |
1 | ||
| 67610-0E590C0 |
GSU5#,GVU58..G AUDIO-8INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM),FLAXEN,TRIM0# |
1 | ||
| 67610-0E580C2 |
GSU5#..N LE PACKAGE&AUDIO-8INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM),BLACK,TRIM2# |
1 | ||
| 67610-0E581C0 |
GSU5#..N LE PACKAGE&AUDIO-8INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM),FLAXEN,TRIM0# |
1 | ||
| 67610-0E590C2 |
GSU5#,GVU58..G AUDIO-8INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM),BLACK,TRIM2# |
1 | ||
| 67610-0E590C1 |
GSU5#,GVU58..G AUDIO-8INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM),GRAY,TRIM1# |
1 | ||
| 67610-0E581C0 |
GSU5#..M;GVU58..M,N FLAXEN,TRIM0# |
1 | ||
| 67610-0E581C0 |
GSU5#..N LE PACKAGE&AUDIO-8INCH MONITOR AVN 6SPEKAER,FLAXEN,TRIM0# |
1 | ||
| 67610-0E580C0 |
GSU5#..N LE PACKAGE&AUDIO-8INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM),FLAXEN,TRIM0# |
1 | ||
| 67610-0E610C0 |
GSU5#,GVU58..G FLAXEN,TRIM0# |
1 | ||
| 67610-0E591C1 |
GSU5#,GVU58..G AUDIO-8INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM),GRAY,TRIM1# |
1 | ||
| 67610-0E591C2 |
GSU5#,GVU58..G AUDIO-8INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM),BLACK,TRIM2# |
1 | ||
| 67610-0E611C2 |
GSU5#,GVU58..G BLACK,TRIM2# |
1 | ||
| 67610-0E581C2 |
GSU5#..M;GVU58..M,N BLACK,TRIM2# |
1 | ||
| 67610-0E581C2 |
GSU5#..N LE PACKAGE&AUDIO-8INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM),BLACK,TRIM2# |
1 | ||
| 67610-0E581C1 |
GSU5#..N LE PACKAGE&AUDIO-8INCH MONITOR AVN 6SPEKAER,GRAY,TRIM1# |
1 | ||
| 67610-0E570C1 |
ASU50,GSU5#..N BLACK,TRIM2# |
1 | ||
| 67610-0E581C1 |
GSU5#..N LE PACKAGE&AUDIO-8INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM),GRAY,TRIM1# |
1 | ||
| 67610-0E611C1 |
GSU5#,GVU58..G GRAY,TRIM1# |
1 | ||
| 67610-0E581C2 |
GSU5#..N LE PACKAGE&AUDIO-8INCH MONITOR AVN 6SPEKAER,BLACK,TRIM2# |
1 | ||
| 67610-0E591C0 |
GSU5#,GVU58..G AUDIO-8INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM),FLAXEN,TRIM0# |
1 | ||
| 67610-0E581C1 |
GSU5#..M;GVU58..M,N GRAY,TRIM1# |
1 | ||
| 67610-0E611C0 |
GSU5#,GVU58..G FLAXEN,TRIM0# |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-A0005 |
ASU50,GSU5#,GVU58 |
20 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-0E310C1 |
GSU5#,GVU58..G AUDIO-6.1INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM),GRAY,TRIM1# |
1 | ||
| 67620-0E290C6 |
GSU5#..N LE PACKAGE&AUDIO-6.1INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM),FLAXEN,TRIM0# |
1 | ||
| 67620-0E310C2 |
GSU5#,GVU58..G AUDIO-6.1INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM),BLACK,TRIM2# |
1 | ||
| 67620-0E290C1 |
GSU5#..N LE PACKAGE&AUDIO-6.1INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM),GRAY,TRIM1# |
1 | ||
| 67620-0E310C3 |
GSU5#,GVU58..G AUDIO-6.1INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM),FLAXEN,TRIM0# |
1 | ||
| 67620-0E290C1 |
GSU5#..N LE PACKAGE&AUDIO-8INCH MONITOR AVN 6SPEKAER,GRAY,TRIM1# |
1 | ||
| 67620-0E290C2 |
GSU5#..N LE PACKAGE&AUDIO-6.1INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM),BLACK,TRIM2# |
1 | ||
| 67620-0E280C2 |
ASU50,GSU5#..N BLACK,TRIM2# |
1 | ||
| 67620-0E290C1 |
GSU5#..M;GVU58..M,N GRAY,TRIM1# |
1 | ||
| 67620-0E320C3 |
GSU5#,GVU58..G FLAXEN,TRIM0# |
1 | ||
| 67620-0E290C6 |
GSU5#..M;GVU58..M,N FLAXEN,TRIM0# |
1 | ||
| 67620-0E290C2 |
GSU5#..M;GVU58..M,N BLACK,TRIM2# |
1 | ||
| 67620-0E290C1 |
GSU5#..N LE PACKAGE&AUDIO-8INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM),GRAY,TRIM1# |
1 | ||
| 67620-0E290C2 |
GSU5#..N LE PACKAGE&AUDIO-8INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM),BLACK,TRIM2# |
1 | ||
| 67620-0E280C1 |
ASU50,GSU5#..N GRAY,TRIM1# |
1 | ||
| 67620-0E290C6 |
GSU5#..N LE PACKAGE&AUDIO-8INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM),FLAXEN,TRIM0# |
1 | ||
| 67620-0E320C2 |
GSU5#,GVU58..G BLACK,TRIM2# |
1 | ||
| 67620-0E320C1 |
GSU5#,GVU58..G GRAY,TRIM1# |
1 | ||
| 67620-0E290C6 |
GSU5#..N LE PACKAGE&AUDIO-8INCH MONITOR AVN 6SPEKAER,FLAXEN,TRIM0# |
1 | ||
| 67620-0E310C1 |
GSU5#,GVU58..G AUDIO-8INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM),GRAY,TRIM1# |
1 | ||
| 67620-0E310C2 |
GSU5#,GVU58..G AUDIO-8INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM),BLACK,TRIM2# |
1 | ||
| 67620-0E290C2 |
GSU5#..N LE PACKAGE&AUDIO-8INCH MONITOR AVN 6SPEKAER,BLACK,TRIM2# |
1 | ||
| 67620-0E540C1 |
GSU5#..M;GVU58..M,N GRAY,TRIM1# |
1 | ||
| 67620-0E310C3 |
GSU5#,GVU58..G AUDIO-8INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM),FLAXEN,TRIM0# |
1 | ||
| 67620-0E540C0 |
GSU5#..N LE PACKAGE&AUDIO-8INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM),FLAXEN,TRIM0# |
1 | ||
| 67620-0E570C2 |
GSU5#,GVU58..G BLACK,TRIM2# |
1 | ||
| 67620-0E540C1 |
GSU5#..N LE PACKAGE&AUDIO-8INCH MONITOR AVN 6SPEKAER,GRAY,TRIM1# |
1 | ||
| 67620-0E570C1 |
GSU5#,GVU58..G GRAY,TRIM1# |
1 | ||
| 67620-0E540C2 |
GSU5#..M;GVU58..M,N BLACK,TRIM2# |
1 | ||
| 67620-0E540C0 |
GSU5#..N LE PACKAGE&AUDIO-8INCH MONITOR AVN 6SPEKAER,FLAXEN,TRIM0# |
1 | ||
| 67620-0E570C0 |
GSU5#,GVU58..G FLAXEN,TRIM0# |
1 | ||
| 67620-0E550C2 |
GSU5#,GVU58..G AUDIO-8INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM),BLACK,TRIM2# |
1 | ||
| 67620-0E540C1 |
GSU5#..N LE PACKAGE&AUDIO-8INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM),GRAY,TRIM1# |
1 | ||
| 67620-0E550C0 |
GSU5#,GVU58..G AUDIO-8INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM),FLAXEN,TRIM0# |
1 | ||
| 67620-0E541C0 |
GSU5#..N LE PACKAGE&AUDIO-8INCH MONITOR AVN 6SPEKAER,FLAXEN,TRIM0# |
1 | ||
| 67620-0E530C0 |
ASU50,GSU5#..N GRAY,TRIM1# |
1 | ||
| 67620-0E540C0 |
GSU5#..M;GVU58..M,N FLAXEN,TRIM0# |
1 | ||
| 67620-0E541C2 |
GSU5#..M;GVU58..M,N BLACK,TRIM2# |
1 | ||
| 67620-0E541C1 |
GSU5#..N LE PACKAGE&AUDIO-8INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM),GRAY,TRIM1# |
1 | ||
| 67620-0E541C1 |
GSU5#..M;GVU58..M,N GRAY,TRIM1# |
1 | ||
| 67620-0E540C2 |
GSU5#..N LE PACKAGE&AUDIO-8INCH MONITOR AVN 6SPEKAER,BLACK,TRIM2# |
1 | ||
| 67620-0E541C1 |
GSU5#..N LE PACKAGE&AUDIO-8INCH MONITOR AVN 6SPEKAER,GRAY,TRIM1# |
1 | ||
| 67620-0E551C2 |
GSU5#,GVU58..G AUDIO-8INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM),BLACK,TRIM2# |
1 | ||
| 67620-0E550C1 |
GSU5#,GVU58..G AUDIO-8INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM),GRAY,TRIM1# |
1 | ||
| 67620-0E530C1 |
ASU50,GSU5#..N BLACK,TRIM2# |
1 | ||
| 67620-0E571C0 |
GSU5#,GVU58..G FLAXEN,TRIM0# |
1 | ||
| 67620-0E541C0 |
GSU5#..N LE PACKAGE&AUDIO-8INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM),FLAXEN,TRIM0# |
1 | ||
| 67620-0E540C2 |
GSU5#..N LE PACKAGE&AUDIO-8INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM),BLACK,TRIM2# |
1 | ||
| 67620-0E541C0 |
GSU5#..M;GVU58..M,N FLAXEN,TRIM0# |
1 | ||
| 67620-0E551C1 |
GSU5#,GVU58..G AUDIO-8INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM),GRAY,TRIM1# |
1 | ||
| 67620-0E541C2 |
GSU5#..N LE PACKAGE&AUDIO-8INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM),BLACK,TRIM2# |
1 | ||
| 67620-0E541C2 |
GSU5#..N LE PACKAGE&AUDIO-8INCH MONITOR AVN 6SPEKAER,BLACK,TRIM2# |
1 | ||
| 67620-0E571C1 |
GSU5#,GVU58..G GRAY,TRIM1# |
1 | ||
| 67620-0E551C0 |
GSU5#,GVU58..G AUDIO-8INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM),FLAXEN,TRIM0# |
1 | ||
| 67620-0E571C2 |
GSU5#,GVU58..G BLACK,TRIM2# |
1 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-0E051 |
ASU50,GSU5#,GVU58 |
1 | ||
| 68171-0E050 |
ASU50,GSU5#,GVU58 |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-0E050 |
ASU50,GSU5#,GVU58 |
1 | ||
| 68172-0E051 |
ASU50,GSU5#,GVU58 |
1 | ||
| 74241A - PLUG, FRONT DOOR ARMREST, RH | ||||
| 74241-0E010A0 |
GSU5#..N LE PACKAGE&AUDIO-6.1INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM),FLAXEN,TRIM0# |
1 | ||
| 74241-0E010B0 |
ASU50,GSU5#,GVU58 GRAY,TRIM1# |
1 | ||
| 74241-0E010A0 |
GSU5#..N LE PACKAGE&AUDIO-8INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM),FLAXEN,TRIM0# |
1 | ||
| 74241-0E010A0 |
GVU58;GSU5#..G,M FLAXEN,TRIM0# |
1 | ||
| 74241-0E010C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM2# |
1 | ||
| 74241-0E010A0 |
GSU5#..N LE PACKAGE&AUDIO-8INCH MONITOR AVN 6SPEKAER,FLAXEN,TRIM0# |
1 | ||
| 74242A - PLUG, FRONT DOOR ARMREST, LH | ||||
| 74242-0E010A0 |
GSU5#..N LE PACKAGE&AUDIO-8INCH MONITOR AVN 6SPEKAER,FLAXEN,TRIM0# |
1 | ||
| 74242-0E010B0 |
ASU50,GSU5#,GVU58 GRAY,TRIM1# |
1 | ||
| 74242-0E010A0 |
GVU58;GSU5#..G,M FLAXEN,TRIM0# |
1 | ||
| 74242-0E010A0 |
GSU5#..N LE PACKAGE&AUDIO-6.1INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM),FLAXEN,TRIM0# |
1 | ||
| 74242-0E010A0 |
GSU5#..N LE PACKAGE&AUDIO-8INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM),FLAXEN,TRIM0# |
1 | ||
| 74242-0E010C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90159-60591 | ||||
| 90901-89022 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
