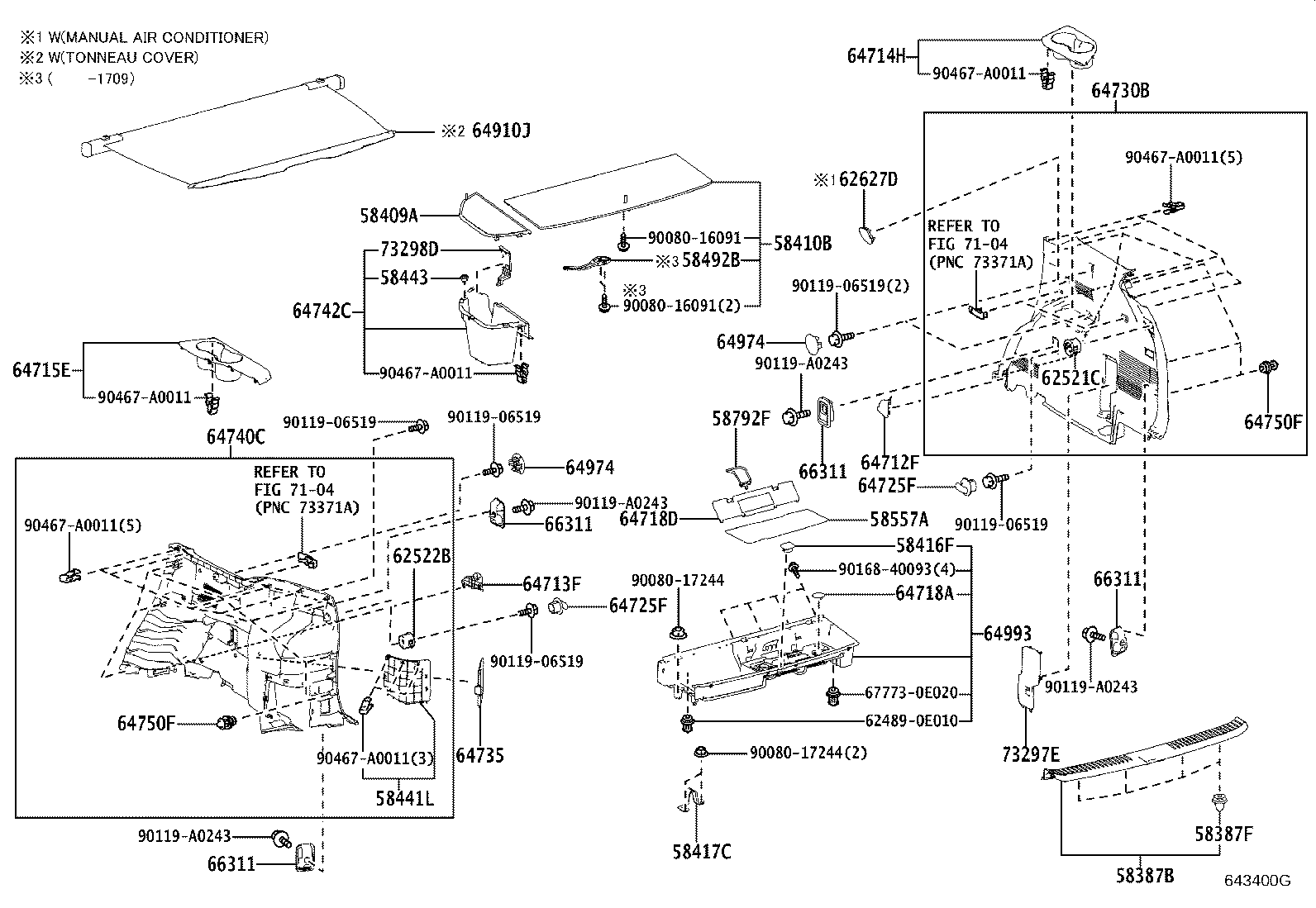

GSU50L-ARTNKA (2013)
Toyota Highlander (Nap)
(1312- )ASU50,GSU5#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58387B - PLATE, REAR FLOOR FINISH | ||||
| 58387-0E050B0 |
ASU50,GSU5#,GVU58 GRAY,TRIM1# |
1 | ||
| 58387-0E050C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM2# |
1 | ||
| 58387-0E050A0 |
ASU50,GSU5#,GVU58 FLAXEN,TRIM0# |
1 | ||
| 58387F - CLIP, REAR FLOOR FINISH PLATE | ||||
| 90467-A0006 |
ASU50,GSU5#,GVU58 |
4 | ||
| 58409A - BOARD SUB-ASSY, DECK, NO.3 | ||||
| 58409-0E040B1 |
ASU50,GSU5#,GVU58 GRAY,TRIM1# |
1 | ||
| 58409-0E041C1 |
ASU50,GSU5#,GVU58 BLACK,TRIM2# |
1 | ||
| 58409-0E040A1 |
ASU50,GSU5#,GVU58 FLAXEN,TRIM0# |
1 | ||
| 58409-0E041A1 |
GSU5#,GVU58 FLAXEN,TRIM0# |
1 | ||
| 58409-0E041B1 |
ASU50,GSU5#,GVU58 GRAY,TRIM1# |
1 | ||
| 58409-0E040C1 |
ASU50,GSU5#,GVU58 BLACK,TRIM2# |
1 | ||
| 58410B - BOARD ASSY, DECK | ||||
| 58410-0E050C1 |
ASU50,GSU5#,GVU58 BLACK,TRIM2# |
1 | ||
| 58410-0E050A1 |
ASU50,GSU5#,GVU58 FLAXEN,TRIM0# |
1 | ||
| 58410-0E050B1 |
ASU50,GSU5#,GVU58 GRAY,TRIM1# |
1 | ||
| 58416F - BRACKET, DECK BOARD, NO.1 | ||||
| 58416-33020C0 |
ASU50,GSU5#,GVU58 BLACK |
1 | ||
| 58417C - BRACKET, DECK BOARD, NO.1 LH | ||||
| 58417-0E030 |
ASU50,GSU5#,GVU58 |
1 | ||
| 58441L - COVER, BATTERY SERVICE HOLE | ||||
| 58441-0E020A0 |
ASU50,GSU5#,GVU58 FLAXEN,TRIM0# |
1 | ||
| 58441-0E020B0 |
ASU50,GSU5#,GVU58 GRAY,TRIM1# |
1 | ||
| 58441-0E020C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM2# |
1 | ||
| 58443 - CUSHION, DECK BOARD, NO.1 | ||||
| 58443-33010 |
ASU50,GSU5#,GVU58 |
1 | ||
| 58492B - HOOK, DECK BOARD LOCK | ||||
| 58492-01010 |
ASU50,GSU5#,GVU58 |
1 | ||
| 58557A - MAT, REAR | ||||
| 58557-0E030 |
ASU50,GSU5#,GVU58 |
1 | ||
| 58792F - SUPPORT, JACK CARRIER | ||||
| 58792-0E040 |
ASU50,GSU5#,GVU58 |
1 | ||
| 62521C - COVER, QUARTER TRIM RH | ||||
| 62521-48020A2 |
ASU50,GSU5#,GVU58 FLAXEN,TRIM0# |
2 | ||
| 62521-48020B2 |
ASU50,GSU5#,GVU58 GRAY,TRIM1# |
2 | ||
| 62521-48020C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM2# |
2 | ||
| 62522B - COVER, QUARTER TRIM LH | ||||
| 62521-48020 |
ASU50,GSU5#,GVU58 |
2 | ||
| 62627D - COVER, SIDE TRIM, RH | ||||
| 62627-0E040B0 |
ASU50,GSU5#..N GRAY,TRIM1# |
1 | ||
| 62627-0E040C0 |
ASU50,GSU5#..N BLACK,TRIM2# |
1 | ||
| 64712F - COVER, DECK SIDE TRIM, FRONT RH | ||||
| 64712-0E030B0 |
ASU50,GSU5#,GVU58 GRAY,TRIM1# |
1 | ||
| 64712-0E030C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM2# |
1 | ||
| 64712-0E030A0 |
ASU50,GSU5#,GVU58 FLAXEN,TRIM0# |
1 | ||
| 64713F - COVER, DECK SIDE TRIM, FRONT LH | ||||
| 64713-0E030A0 |
ASU50,GSU5#,GVU58 FLAXEN,TRIM0# |
1 | ||
| 64713-0E030B0 |
ASU50,GSU5#,GVU58 GRAY,TRIM1# |
1 | ||
| 64713-0E030C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM2# |
1 | ||
| 64714H - COVER, DECK SIDE TRIM, NO.1 | ||||
| 64714-0E060A0 |
ASU50,GSU5#,GVU58 FLAXEN,TRIM0# |
1 | ||
| 64714-0E060B0 |
ASU50,GSU5#,GVU58 GRAY,TRIM1# |
1 | ||
| 64714-0E060C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM2# |
1 | ||
| 64715E - COVER, DECK SIDE TRIM, NO.2 | ||||
| 64715-0E060B0 |
ASU50,GSU5#,GVU58 GRAY,TRIM1# |
1 | ||
| 64715-0E060A0 |
ASU50,GSU5#,GVU58 FLAXEN,TRIM0# |
1 | ||
| 64715-0E060C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM2# |
1 | ||
| 64718A - COVER, DECK TRIM SERVICE HOLE | ||||
| 64718-48010 |
ASU50,GSU5#,GVU58 |
1 | ||
| 64718D - COVER, DECK TRIM SERVICE HOLE | ||||
| 64718-0E050 |
ASU50,GSU5#,GVU58 |
1 | ||
| 64725F - HOOK, LUGGAGE COMPARTMENT TRIM, NO.1 | ||||
| 64725-48020B1 |
ASU50,GSU5#,GVU58 GRAY,TRIM1# |
2 | ||
| 64725-48020C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM2# |
2 | ||
| 64725-48020A1 |
GVU58;GSU5#..G,M FLAXEN,TRIM0# |
2 | ||
| 64725-48020A1 |
GSU5#..N FRONT AIR CONDITIONER-AUTO,FLAXEN,TRIM0# |
2 | ||
| 64725F - HOOK, LUGGAGE COMPARTMENT TRIM, NO.1 | ||||
| 64725-48020B1 |
ASU50,GSU5#,GVU58 GRAY,TRIM1# |
2 | ||
| 64725-48020C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM2# |
2 | ||
| 64725-48020A1 |
GVU58;GSU5#..G,M FLAXEN,TRIM0# |
2 | ||
| 64725-48020A1 |
GSU5#..N FRONT AIR CONDITIONER-AUTO,FLAXEN,TRIM0# |
2 | ||
| 64730B - PANEL ASSY, DECK TRIM SIDE, RH | ||||
| 64730-0E070A0 |
ASU50,GSU5#,GVU58 FLAXEN,TRIM0# |
1 | ||
| 64730-0E070C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM2# |
1 | ||
| 64730-0E070B0 |
ASU50,GSU5#,GVU58 GRAY,TRIM1# |
1 | ||
| 64735 - COVER, DECK TRIM SIDE SERVICE HOLE | ||||
| 64735-0E010A0 |
GVU58;GSU5#..G,M FLAXEN,TRIM0# |
1 | ||
| 64735-0E010C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM2# |
1 | ||
| 64735-0E010A0 |
GSU5#..N FRONT AIR CONDITIONER-AUTO,FLAXEN,TRIM0# |
1 | ||
| 64735-0E010B0 |
ASU50,GSU5#,GVU58 GRAY,TRIM1# |
1 | ||
| 64740C - PANEL ASSY, DECK TRIM SIDE, LH | ||||
| 64740-0E070A0 |
ASU50,GSU5#,GVU58 FLAXEN,TRIM0# |
1 | ||
| 64740-0E070C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM2# |
1 | ||
| 64740-0E070B0 |
ASU50,GSU5#,GVU58 GRAY,TRIM1# |
1 | ||
| 64742C - BOX, DECK SIDE TRIM, LH | ||||
| 64742-0E030 |
ASU50,GSU5# |
1 | ||
| 64750F - CLIP(FOR DECK SIDE TRIM PANEL) | ||||
| 62489-0E010 |
ASU50,GSU5#,GVU58 |
10 | ||
| 64750F - CLIP(FOR DECK SIDE TRIM PANEL) | ||||
| 62489-0E010 |
ASU50,GSU5#,GVU58 |
10 | ||
| 64974 - COVER, DECK TRIM POCKET | ||||
| 64974-0E010A0 |
GSU5#..N FRONT AIR CONDITIONER-AUTO,FLAXEN,TRIM0# |
2 | ||
| 64974-0E010B0 |
ASU50,GSU5#,GVU58 GRAY,TRIM1# |
2 | ||
| 64974-0E010C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM2# |
2 | ||
| 64974-0E010A0 |
GVU58;GSU5#..G,M FLAXEN,TRIM0# |
2 | ||
| 64974 - COVER, DECK TRIM POCKET | ||||
| 64974-0E010A0 |
GSU5#..N FRONT AIR CONDITIONER-AUTO,FLAXEN,TRIM0# |
2 | ||
| 64974-0E010B0 |
ASU50,GSU5#,GVU58 GRAY,TRIM1# |
2 | ||
| 64974-0E010C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM2# |
2 | ||
| 64974-0E010A0 |
GVU58;GSU5#..G,M FLAXEN,TRIM0# |
2 | ||
| 64993 - BOX, DECK FLOOR, REAR | ||||
| 64993-0E110 |
ASU50,GSU5#,GVU58 |
1 | ||
| 66311 - HOOK, ROPE | ||||
| 66311-0E010A0 |
ASU50,GSU5#,GVU58 FLAXEN,TRIM0# |
4 | ||
| 66311-0E010B0 |
ASU50,GSU5#,GVU58 GRAY,TRIM1# |
4 | ||
| 66311-0E010C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM2# |
4 | ||
| 66311 - HOOK, ROPE | ||||
| 66311-0E010A0 |
ASU50,GSU5#,GVU58 FLAXEN,TRIM0# |
4 | ||
| 66311-0E010B0 |
ASU50,GSU5#,GVU58 GRAY,TRIM1# |
4 | ||
| 66311-0E010C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM2# |
4 | ||
| 66311 - HOOK, ROPE | ||||
| 66311-0E010A0 |
ASU50,GSU5#,GVU58 FLAXEN,TRIM0# |
4 | ||
| 66311-0E010B0 |
ASU50,GSU5#,GVU58 GRAY,TRIM1# |
4 | ||
| 66311-0E010C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM2# |
4 | ||
| 66311 - HOOK, ROPE | ||||
| 66311-0E010A0 |
ASU50,GSU5#,GVU58 FLAXEN,TRIM0# |
4 | ||
| 66311-0E010B0 |
ASU50,GSU5#,GVU58 GRAY,TRIM1# |
4 | ||
| 66311-0E010C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM2# |
4 | ||
| 73297E - COVER, DECK TRIM SIDE BELT HOLE, RH | ||||
| 73297-0E010C0 |
ASU50,GSU5#,GVU58 BLACK,TRIM2# |
1 | ||
| 73297-0E010B0 |
ASU50,GSU5#,GVU58 GRAY,TRIM1# |
1 | ||
| 73297-0E010A0 |
ASU50,GSU5#,GVU58 FLAXEN,TRIM0# |
1 | ||
| 73298D - COVER,DECK TRIM SIDE BELT HOLE, LH | ||||
| 73298-0E010C0 |
ASU50,GSU5#,GVU58 BLACK |
1 | ||
| Common parts | ||||
| 62489-0E010 | ||||
| 67773-0E020 | ||||
| 90080-16091 | ||||
| 90080-17244 | ||||
| 90119-06519 | ||||
| 90119-A0243 | ||||
| 90168-40093 | ||||
| 90467-A0011 | ||||
| Linked diagrams | ||||
| 7104 | ||||
